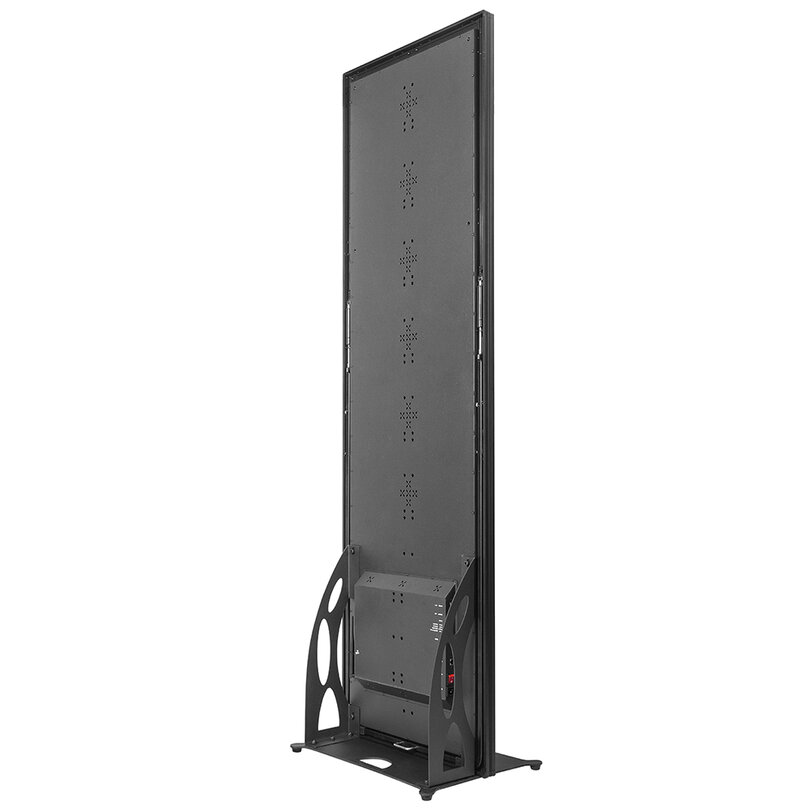

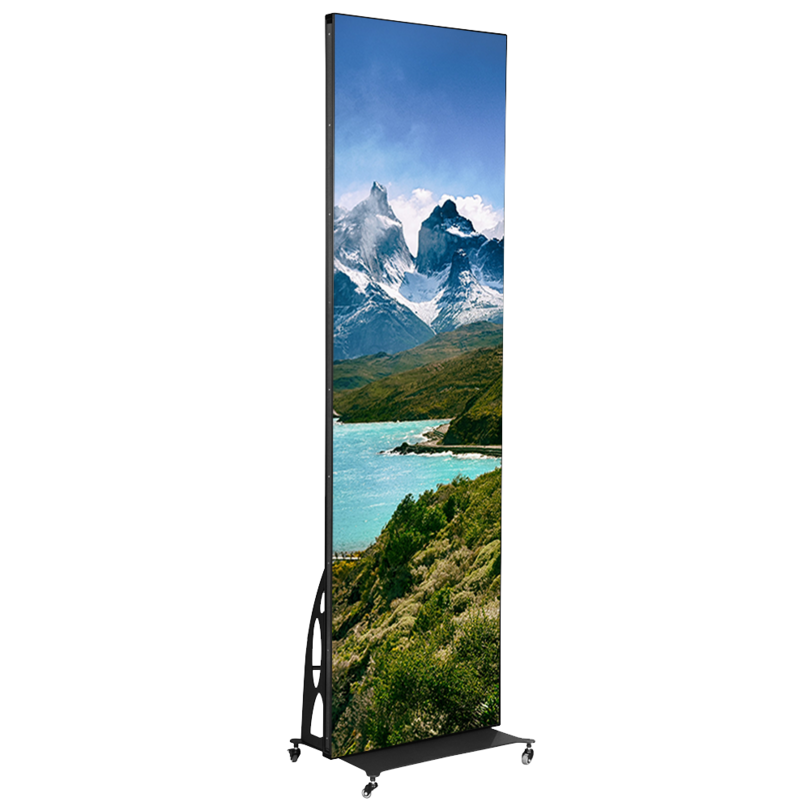

P1.7 LED totem display, 572 x 1902 mm, black SMD1010 LEDs, for indoor rental use (700 nits).
The IP31-certified cabinet features a slim, lightweight, and robust structure. HDMI, USB, and Wi-Fi data inputs. Includes Novastar TB1. Front-end maintenance.
Areas of use
Technical characteristics
LED specification
| Color | Chip brand | Wavelength | View Angle | Place of origin |
| Red | San’an | 625 nm | 140° / 140° | China |
| Green | San’an | 520 nm | 140° / 140° | China |
| Blue | San’an | 467 nm | 140° / 140° | China |
Cabinet specification
| Model NO. | LED-TOTEM01-P1.7I |
| Pixel pitch | 1.75 mm |
| Pixel configuration | 1R1G1B |
| LED type | SMD1010 |
| Module size | 280 x 210 mm |
| Module resolution | 160 x 120 pixel |
| Panel resolution | 320 x 1080 pixel |
| Cabinet size (overall) | 572 x 1902 x 33 mm |
| Density | 326,530 dots/m2 |
| Brightness | ≥ 700 nit |
| Scan method | 1/40 scan |
| Best view distance | ≥ 1.75 m |
| Max. power consumption | 650 W/panel |
| Ave. power consumption | 230 W/panel |
| Weight | 30 kg |
| Color depth | 14 bit |
| Colors | 4.398 trillion |
| Refresh rate | ≥ 3840 Hz |
| View angle | horizontal 120°, vertical 120° |
| Color temperature | 6500 K |
| Frame frequency | ≥ 60 Hz |
| Out of control pixel rate | < 1/10,000 |
| MTBF | > 5000 hours |
| Lifespan | 50,000 hours |
| Control mode | asynchronous and synchronous, Novastar T1 |
| Data input | HDMI, USB, Wi-Fi |
| Working voltage | 90 - 240 VAC 50/60 Hz |
| Operation temperature | -30 to +50 °C |
| Operation humdity | 10% to 80% |
| Protection level | IP31, indoor use |
