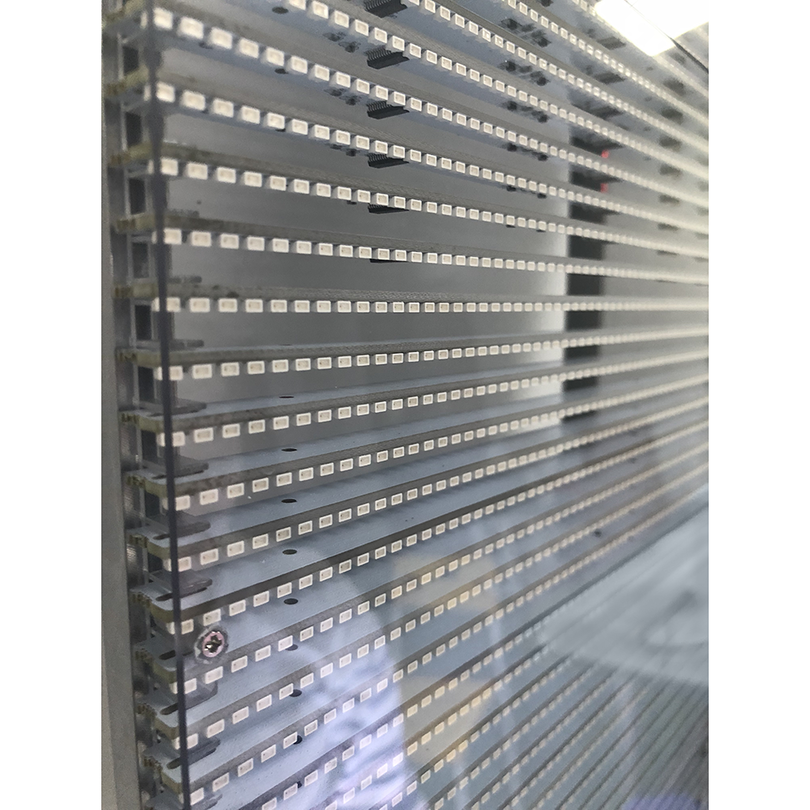

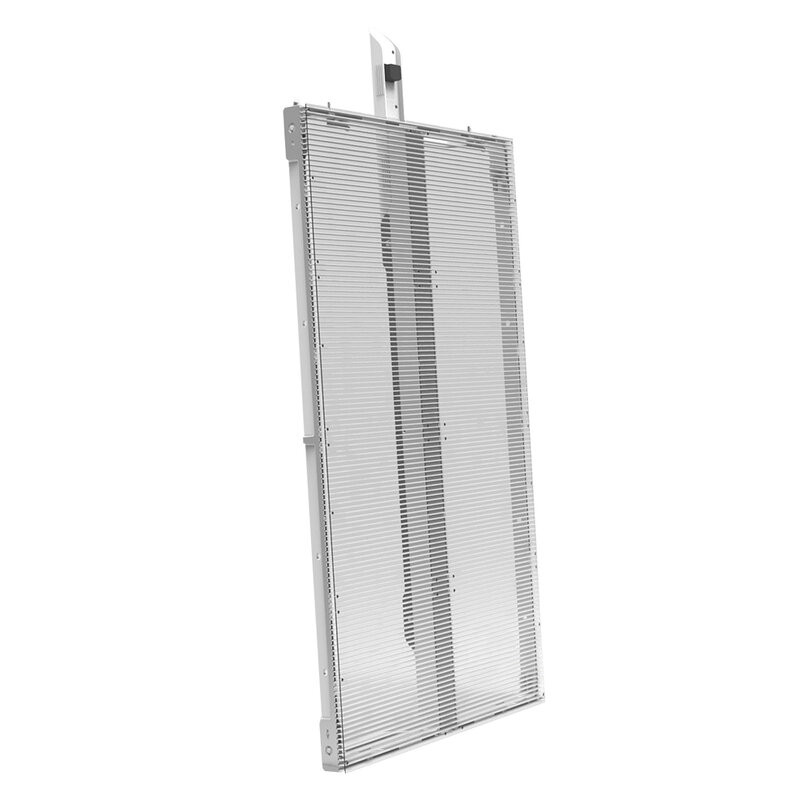

P3.91 / 7.8 LED display, very high transparency and brightness with 500 x 1000 mm cabinet, SMD2516 LED, IC MBI5120GM for outdoor rental use (5000 nit).

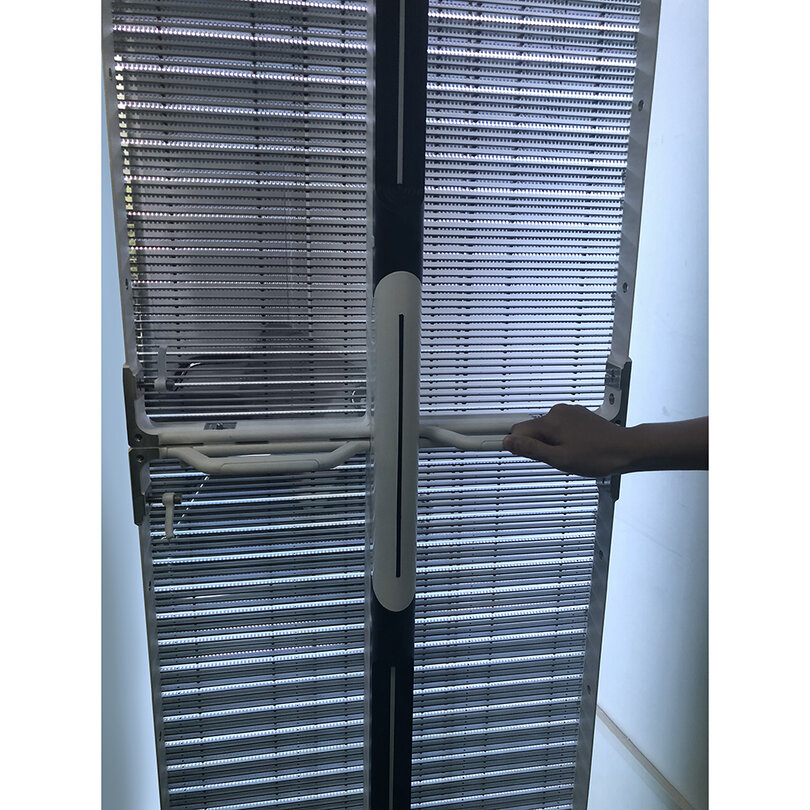

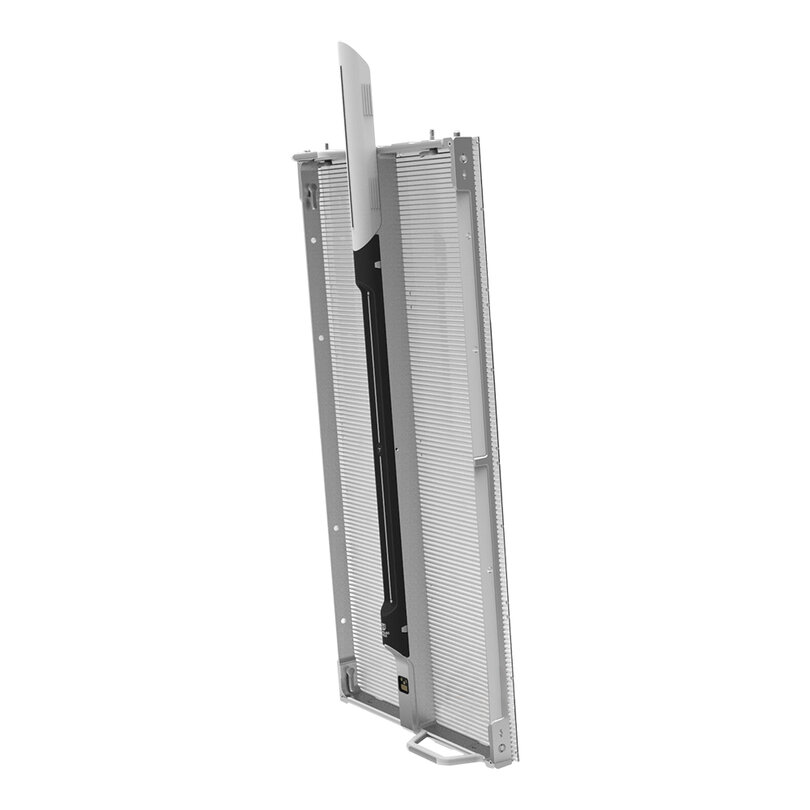

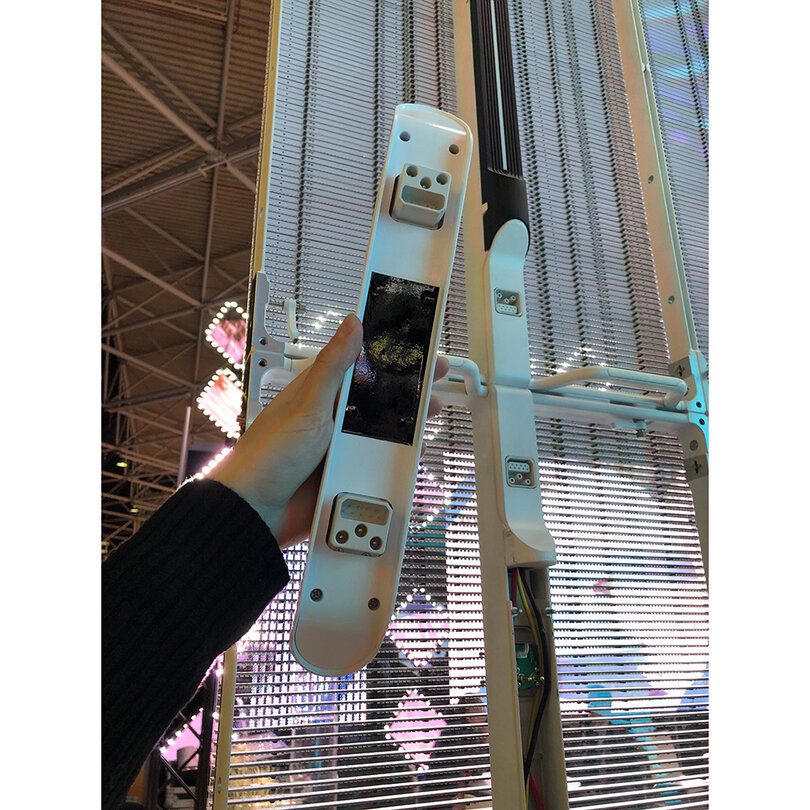

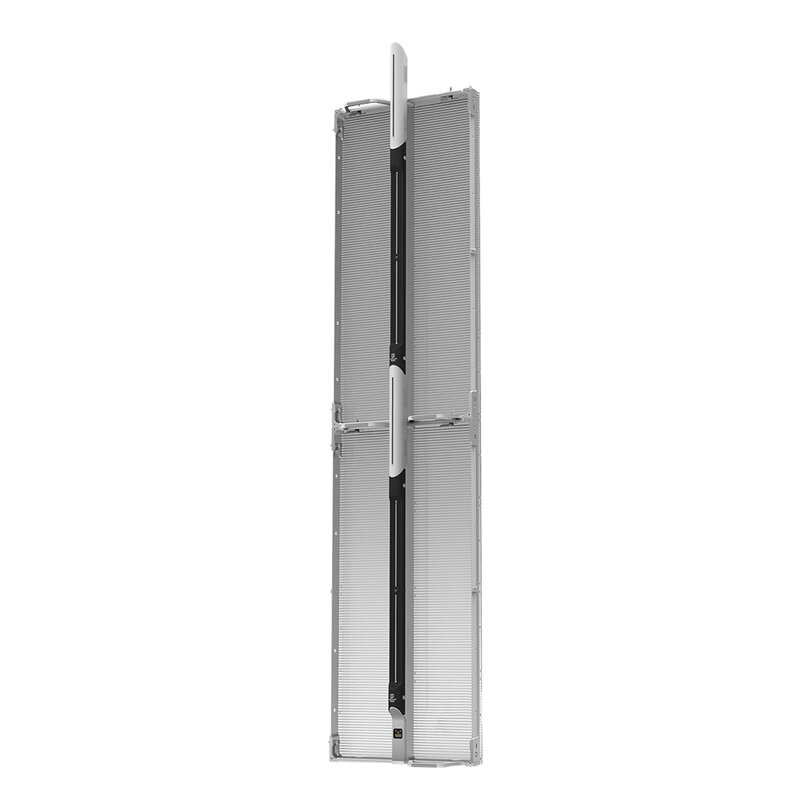

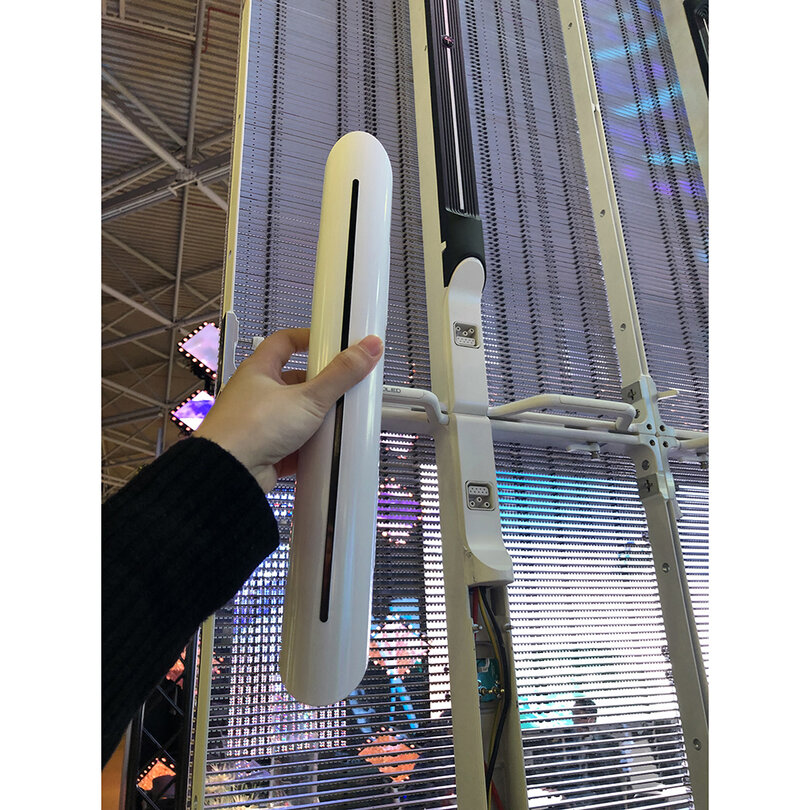

The IP43 certified cabinet is based on a thin and light structure, with a pin for suspended mounting. Quick and easy installation in just 10s, no special tools required.
Typical applications in broadcasting, building facades, exhibitions, events and shows.
Technical characteristics
| Pixel pitch | 2.5 mm |
| Dimension (overall) | 572 x 1902 x 33 mm |
| LED type | SMD2020 black |
| Module size | 280 x 210 mm |
| Module resolution | 112 x 84 pixel |
| Panel resolution | 224 x 756 pixel |
| Physical density | 160,000 pixel/panel |
| Brightness | ≥ 1000 cd/m2 |
| Max. power consumption | 700 W/pc |
| Ave. power consumption | 250 W/pc |
| Weight | 30 kg/panel |
| Refresh rate | ≤ 1920 Hz |
| Control mode | asynchronous and aynchronous, Novastar TB1 |
| Protection level | IP31, indoor use |
