Magic Stage Series 500 x 500 mm LED Display, SMD2020, for indoor applications (800 - 1200 nits). It is the first multipurpose LED display from Yes Tech designed for fixed installations and rental, it allows you to create various geometric shapes.
It can be used as a dance floor, interactive screen, for stadium, Sky Curtain and retail (shops, malls). Magic Stage series models are suitable for both outdoor and indoor use, with a high refresh rate driver IC based on S-PWM technology, accurate grayscale and color, high contrast ratio and brightness. You only need to turn the indoor mode on when using it as an indoor screen, for comfortable viewing with beautiful colors.
Thanks to a reinforced structural design, it can withstand a pressure of 800 kg/0.03 m2, which is enough to be used safely as a floor in discos and dance halls, and it can be activated with multiple points, with an inductive effect, even if several people are walking on it at the same time. Equipped with a capacitive proximity sensor, Magic Stage can be used as an interactive screen similar to other LED walls of the same type.
Due to a unique design of its structure, Magic Stage is light (5.7 kg per cabinet) and thin (73 mm), safe and reliable and for these reasons it is particularly suitable for use as a Sky Curtain. In addition, it is easy and quick to install, thanks to a hanging beam with a suspension height of up to 10 m.

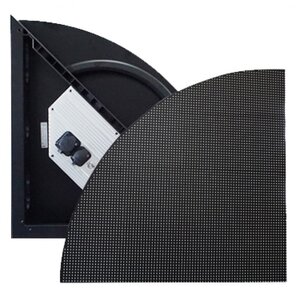

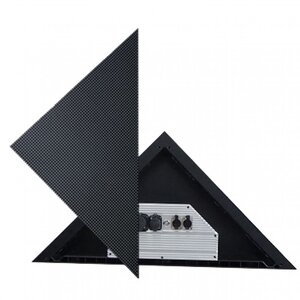

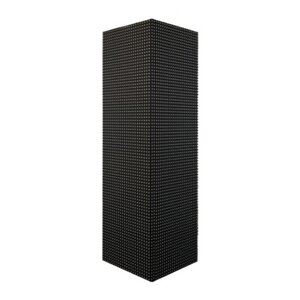

Magic Stage has excellent visual performance, produces a clear image with rich colors, is simple to install and allows for quick and efficient maintenance, making it a good choice for shop window advertising. With the unique multi-hole design, along with ±15° curved connectors, Magic Stage can be easily used as curved, concave, convex, S-shape and circular screen. Except for curved screen, the unique multi-hole design helps Magic Stage easily realize vertical, horizontal, front and rear LED wall. By using the various modules together with Magic Stage extension series of right angle (MG11), triangle (MG12) and sector (MG13) LED displays, you can realize a variety of creative displays in the shape of numbers 0-9, letters A-Z, square column, Christmas tree, diamond, windmill, flower, heart and more.
User benefits
Areas of use
Technical characteristics
| Module | |
| LED | SMD2020 black LED |
| Encapsulation | Nationstar |
| Pixel pitch | 3.9 mm |
| IC | MBI5252 |
| Pixel configuration | SMD 3-in-1 |
| Cabinet | |
| Module quantity per cabinet（W x H） | 2 x 2 |
| Cabinet resolution（W x H） | 128 x 128 |
| Cabinet size | 500 x 500 x 73 mm |
| Cabinet area | 0.25 m2 |
| Weight | 5.7 kg/cabinet |
| IP grade | IP50 |
| White balance brightness | 800 - 1200 nit |
| Horizontal viewing angle | 150° |
| Vertical viewing angle | 120° |
| Electrical parameters | |
| Power consumption | max. 480 W/m2 / average 160 W/m2 |
| Working voltage | 100 - 264 VAC 50/60 Hz |
| Processing performance | |
| Driving method | constant drive |
| Scanning method | 1/16 s |
| Refresh frequency | ≤ 3840 Hz |
| Usage parameter | |
| Brightness adjustment | brightness of R, G, B 256 colors adjustable by software |
| Life span | > 100,000 h |
| Average no failure time | > 10,000 h |
| Working temperature | -20 to 50 ℃ |
| Working | 10 to 90% RH (no condensation) |
| Communication mode | CAT5 |
| Communication distance | UTP transmission distance 100 m, maximum 130 m (multimode fiber 500 m, single mode fiber 150 km optional) |
| Connection method | Synchronized with computer; if TV, DVD / VCD player, VCR, etc., a video processor is needed |
| Certification | CE, CCC, ISO, TUV, ETL |
