X400 (G1) Mainstream - High‑performance professional media server with modular I/O, powerful GPU decoding and support for 8K and multi‑4K playback, with flight case and single graphics card

High‑performance professional media server with modular I/O, powerful GPU decoding and support for 8K and multi‑4K playback, with flight case and single graphics card

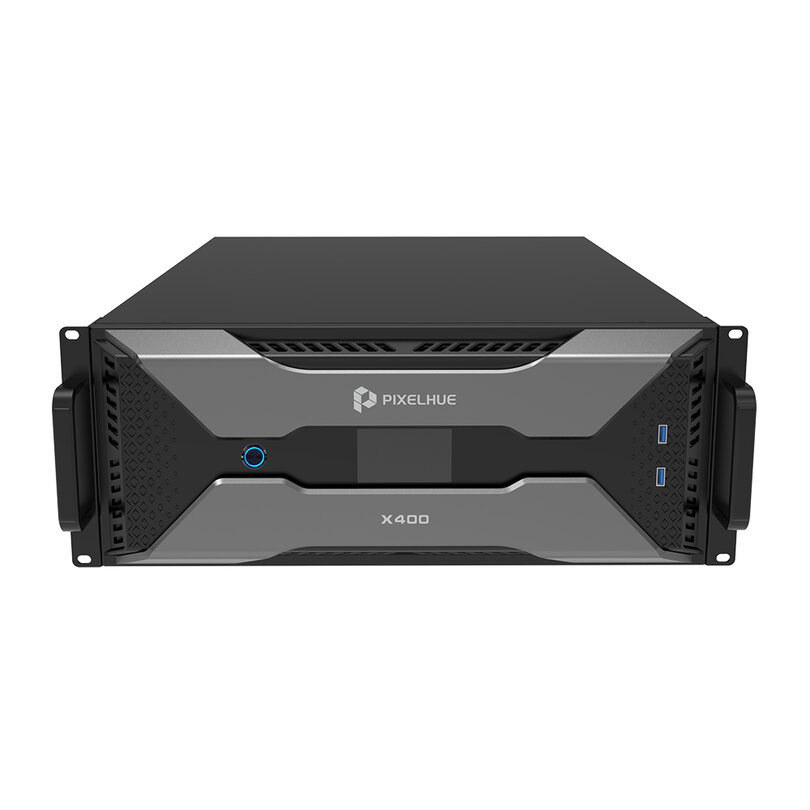

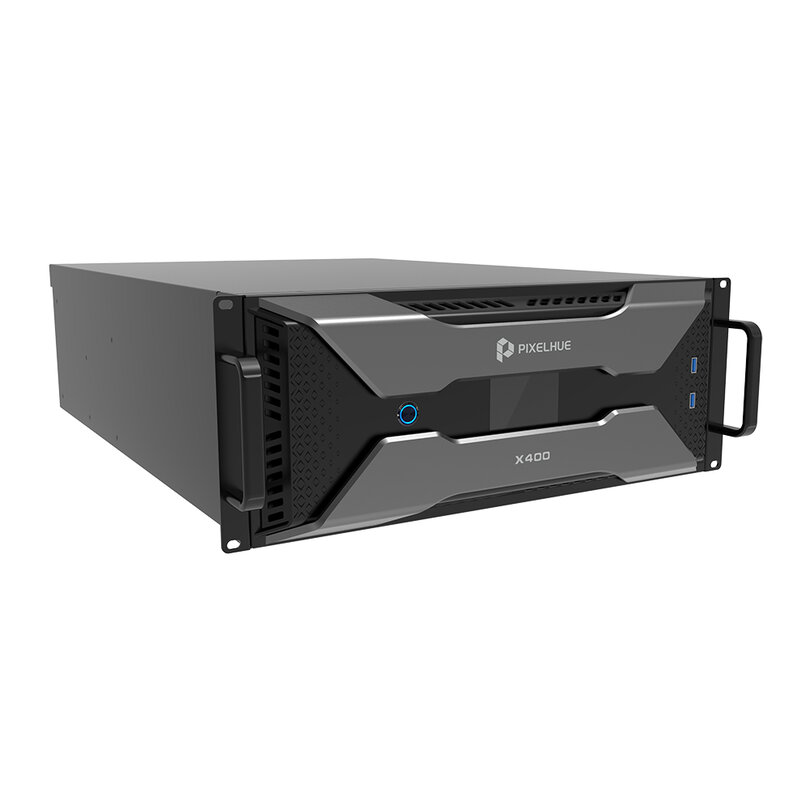

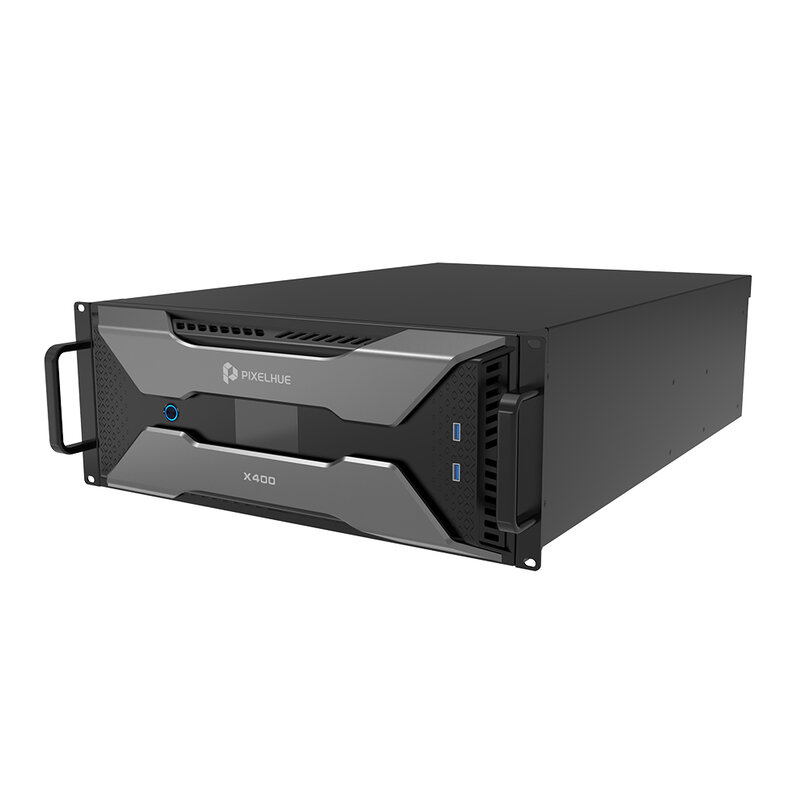

The X400(G1) is a high-end media server designed for large-scale applications requiring high performance, absolute stability, and the flexibility of a modular design. Equipped with the latest-generation Intel processor, server-class motherboard, and high-performance GPU, the system can drive up to four 4K outputs or 16 × 2K outputs from a single chassis, providing processing power suitable for complex events, immersive installations, and live productions where operational continuity is essential.

Thanks to the GPU's hardware decoding capabilities, the X400(G1) supports smooth 8K @ 60 fps playback and simultaneous management of multiple 4K @ 60 fps streams, with extended compatibility for major professional video formats, including H.264, H.265, ProRes, AV1, VP9, ​​HAP, and many others.

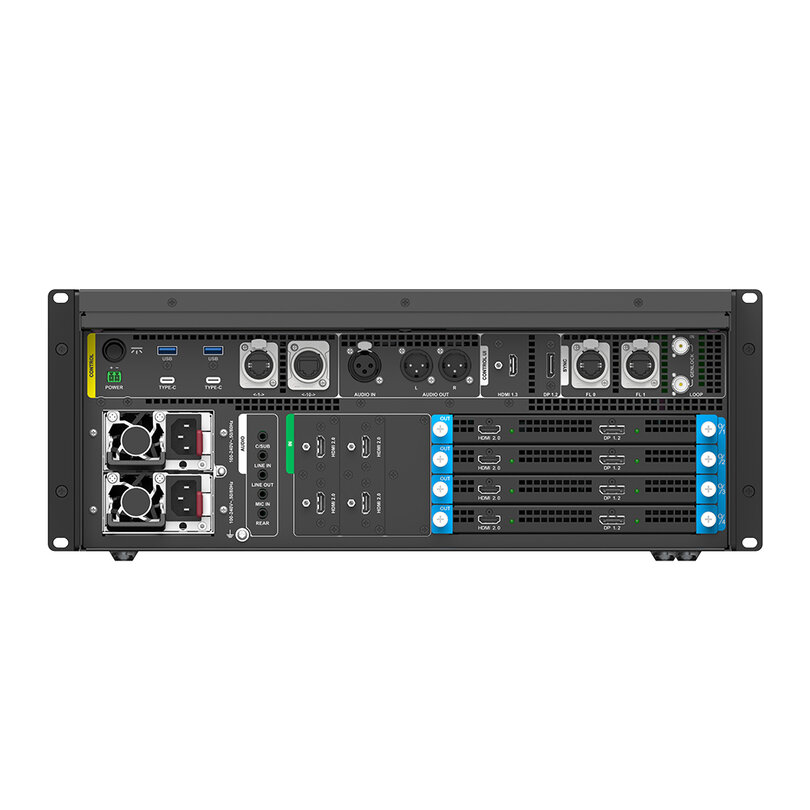

The modular design with 2 input slots and 4 output slots allows the server to be freely configured with HDMI 2.0, 12G SDI, DP 1.2 cards, and Genlock/Framelock synchronization modules, adapting it to any professional video infrastructure. The plug-in design makes it easy to upgrade, replace, and add to systems directly in the field.

The system is designed for maximum reliability thanks to dual SSDs with dual operating systems, redundant power supplies, frame sync, seamless switching, and advanced diagnostics.

The X400(G1) integrates the latest version of Pilot MS3 Pro software, an advanced platform for multimedia playback, timeline management, edge blending, geometric corrections, complex mapping, slicing and control of ultra-wide content. The graphical interface allows operation in live or pre-edit mode, with unlimited layers, multiple programs and dedicated tools for managing complex scenarios and multi-projection displays.

The device comes with a flight case and a single graphics card.

Optional I/O cards: max. 1 input, up to 4 outputs.

Main features

Software

• Separate live and pre-edit working modes, reliable support for live events
• Playback and real-time editing of all categories of media, including videos, pictures, audio, web pages, PowerPoint files, capture devices, NDI and Spout inputs
• Various playback modes, including single program, single media, media collection, cross-program media and jump playback
• Unlimited layers and programs
• Innovative slices for diversified visual applications
• Visualized management of stage, programs, slices, timeline, various media, input sources and playback progress
• More advanced features like edge blending, Time Code synchronization, and special effects, ready for you to explore and experience
• Flexible output segmentation, irrgular slices, layer mapping, edge blending and super-large display and more
• Tailor your UI instantly: Save and access layouts with ease
• Automatic software startup, restart, shutdown and program playback, bring intelligent unattended and automated management
• Media optimization for better media performance
• Media image quality adjustment
• Media flipping, stretching, cropping supported
• Crossfade and cut effects on program switching
• Decoding of various mainstream video formats
• Output mapping and identification for clear screen and connector correspondence
• Project file management and packaging
• Peripheral control and shortcut management, and more powerful features on the way

Hardware

• 8K or multiple 4K hardware decoding and rendering for smooth playback and flawless output
• Plug-in and modular design for higher system stability
• Infinite device cascading, synchronized by Genlock
• Frame sync technology for synchronized and smooth displa
• Seamless primary and backup device switching safeguards your on-site operation
• 10 Gigabit Ethernet
• EDID lock, ensuring no jump of connector resolution and display sequence
• Intelligent thermal solution
• Dual redundant power
• Running status monitoring and fault alarm via LCD display on front panel
• High quality XLR audio inputs and outputs
• Remote or central control via TCP/UDP protocol
• Pass stress and stability tests
• 4U rack mountable chassis
• Industrial ruggedized design

Configuration

• HDMI 1.3 and DP 1.2 connectors dedicated for monitoring and software UI
• Dual SSD built-in with dual OS

Interactive UI

• Fully-visualized and friendly graphical UI, what you see is what you get!
• Customizable graphical UI layout
• UI lock for safer unattended operation

Performance

• 1. Capability
  a. Smooth playback of 1 x 8K4K @ 60 fps video, 4 x 4K2K @ 60 fps, or 16 x 2K1K @ 30 fps videos
  b. Unlimited layers
• 2. Output
  a. 8192 × 1080 @ 60 Hz or 4096 × 2160 @ 60 Hz or 2048 × 1152 @ 60 Hz
  b. 4 × 4K or 16 × 2K outputs
  c. 4:4:4 10-bit color sampling
  d. Genlock and frame sync card
• 3. Input
  a. Up to 4096 × 2160 @ 60 Hz
  b. 4 × 4K inputs
  c. NDI, Spout, streaming media and web page inputs
• 4. Audio
  a. XLR audio: 1 × audio IN, 1 × audio OUT L,  1 × audio OUT R
  b. 1 × 3.5 mm audio input, 1 × 3.5 mm audio output
  c. Formats: mp3, AAC, flac, amr, ape, wav, wma, ogg
• 5. Control
  a. Built-in Pilot MS3 Pro Multimedia Playback Software
  b. 1 × HDMI 1.3 and 1 × DP 1.2, dedicated for monitoring and software UI
  c. Remote and central control via TCP/UDP protocol
  d. 2 × USB on front panel, 4 × USB on rear panel

User benefits

• High reliability thanks to server-class hardware, high-end GPU, and redundant power supply
• Fluid 8K and multi-4K content management with dedicated hardware decoding
• Modular architecture with configurable input and output slots to adapt to any video infrastructure
• Support for a wide range of video formats, including H.264, H.265, ProRes, AV1, VP9, ​​and HAP
• Advanced synchronization features (Genlock/Framelock) for multi-display installations and complex systems
• Integrated Pilot MS3 Pro software for playback, timeline, mapping, edge blending, and complex scenario management
• Unlimited layers and multiple programs for creative workflows and high-intensity live productions
• Dual SSDs with dual operating systems for uptime and rapid recovery
• Rugged design and simplified maintenance thanks to field-replaceable plug-in modules

Areas of use

• Live performances
• Large conferences
• Immersive installations
• Digital exhibitions
• Architectural mapping
• Advanced creative applications
