13BDL4150IW/00 - 13.3", UXGA (1600 x 1200), 24/7 ePaper display designed for power-free digital signage, ultra-clear, easily updatable static content with 60,000 colors, Android 11, Wi-Fi, Bluetooth 5.1, PPDS Wave remote management for seamless updates

13.3", UXGA (1600 x 1200), 24/7 ePaper display designed for power-free digital signage, ultra-clear, easily updatable static content with 60,000 colors, Android 11, Wi-Fi, Bluetooth 5.1, PPDS Wave remote management for seamless updates

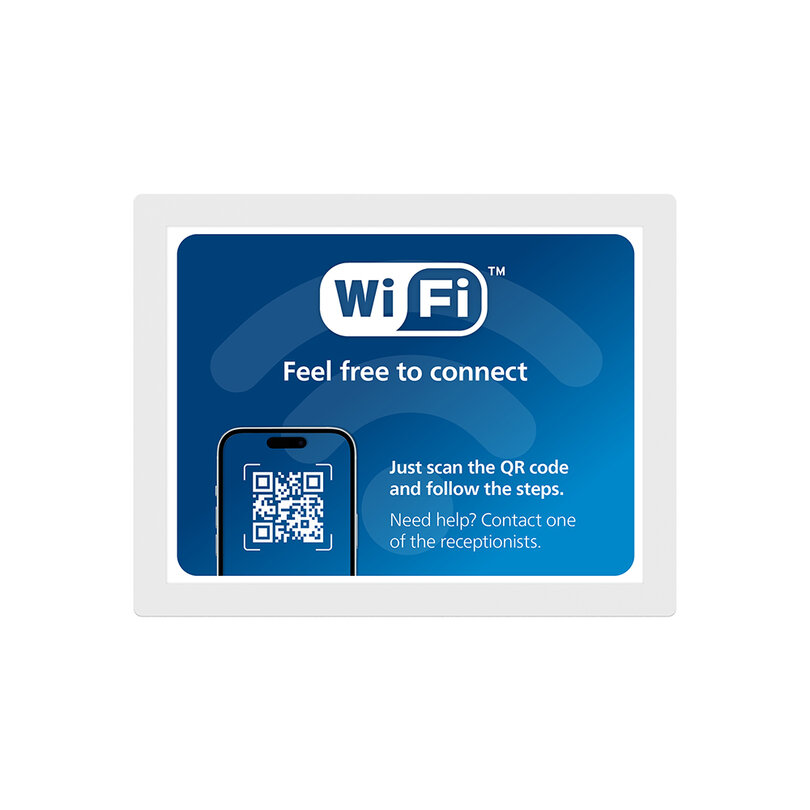

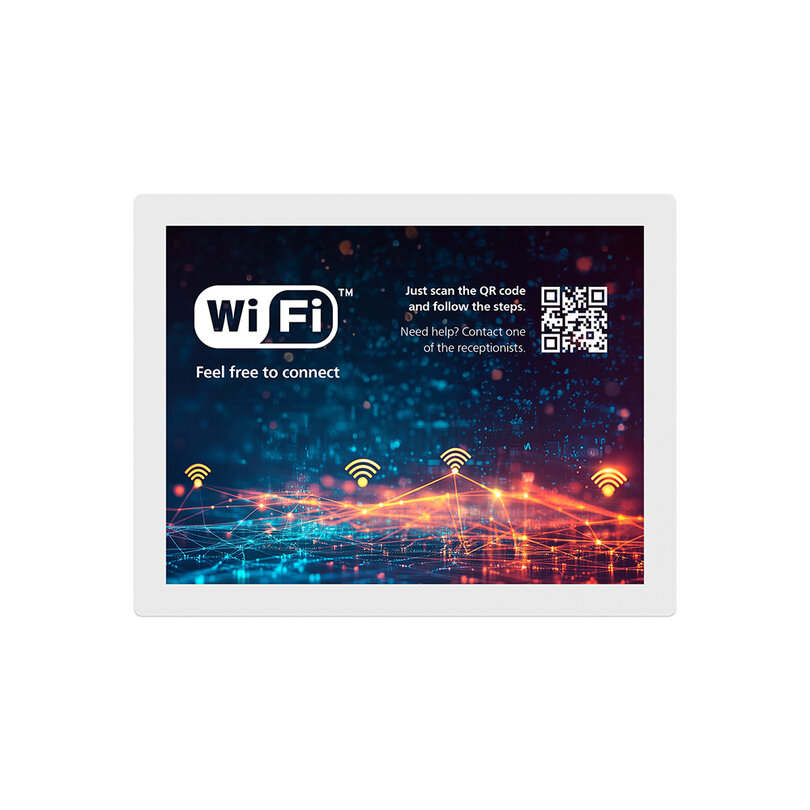

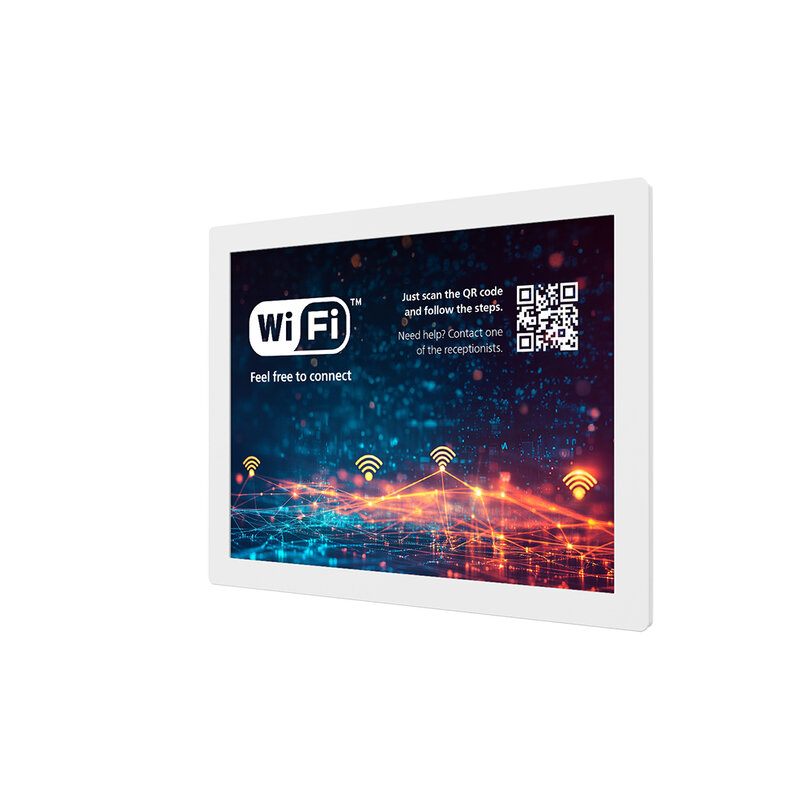

PPDS 13BDL4150IW/00 Tableaux is an innovative ePaper display designed for digital signage, eliminating the need for continuous feeding and paper media. This 13.3" model offers a sustainable solution for displaying static content. The Android 11 operating system allows for intuitive content management, with 16 GB of internal memory for storage without the need for an external media player.

The display uses color ePaper technology, capable of displaying up to 60,000 colors, including blue, for clear and visually appealing communication even under sunlight. The resolution of 1600 x 1200 pixels ensures good sharpness, while the 16:9 format makes it suitable for various applications.

In terms of connectivity, PPDS 13BDL4150IW/00 supports Wi-Fi 802.11 ac/a/b/g/n, Bluetooth 5.1 and 10/100M Ethernet, allowing remote content updates via USB, LAN or Wi-Fi. It is compatible with the PPDS Wave platform, which allows remote management of the device, including content scheduling and firmware updates.

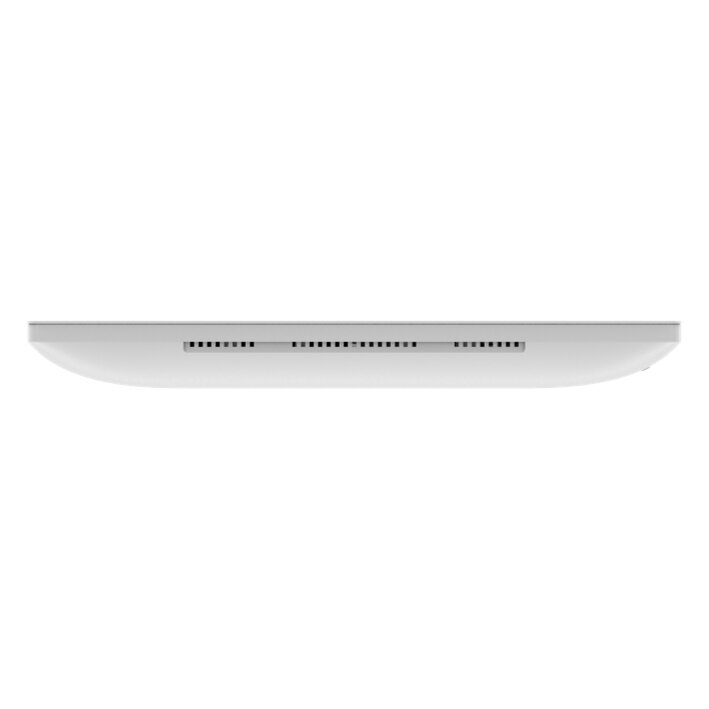

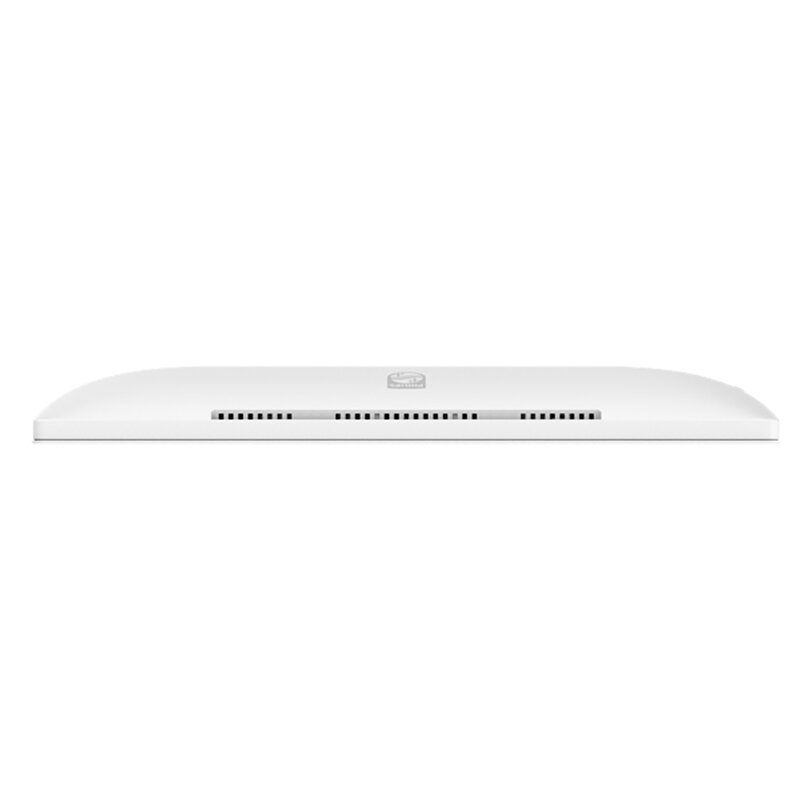

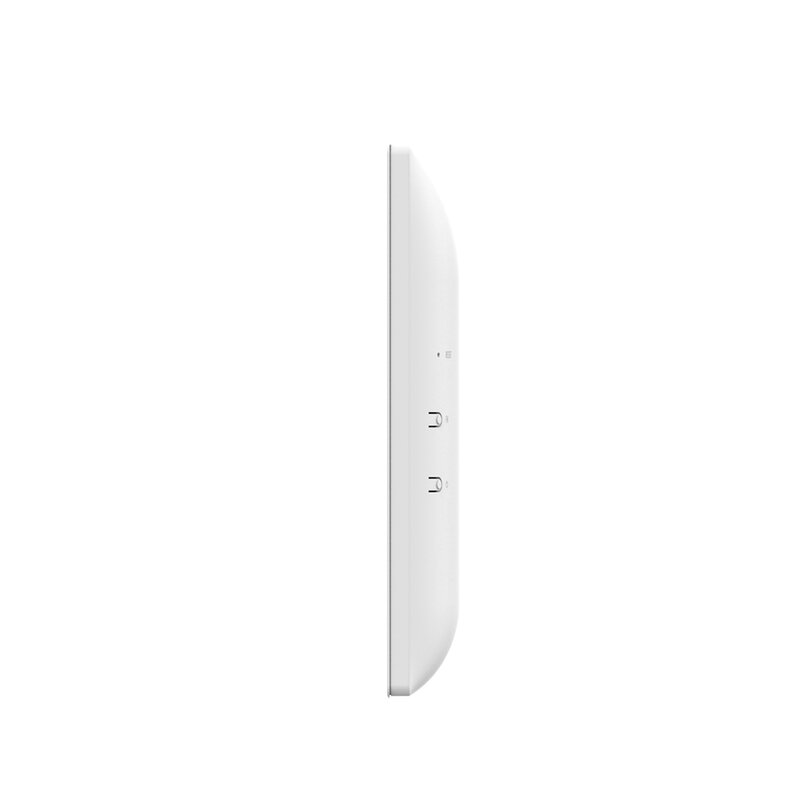

The compact and lightweight design features a 18.5 mm bezel, with dimensions of 30.64 x 23.88 x 3.166 cm and a weight of 1.3 kg, making it easy to install and reposition. The VESA 100 x 100 mm support allows for wall mounting, with the possibility of using it in landscape and portrait mode 24/7.

In terms of energy, the display does not have a continuous power supply, consuming energy only when loading new content. Power is supplied via a 20 V_DC / 2.25 A adapter.

PPDS 13BDL4150IW/00 is also CE, CB, UL and FCC certified and has a 3-year warranty. A digital alternative to paper posters with simple and sustainable management.

Users benefits

• Color ePaper technology
• Environmentally friendly, consumes minimal energy only when turning pages
• Advanced remote management: compatible with the PPDS Wave platform, which allows content updates via USB, LAN or Wi-Fi
• 16 GB memory allows content storage without the need for an external media player
• 24/7 continuous operation

Areas of use

• Room reservations
  Product information in stores, shopping malls, etc.
  Digital Signage (static content)
  Digital communications in professional environments

Technical characteristics

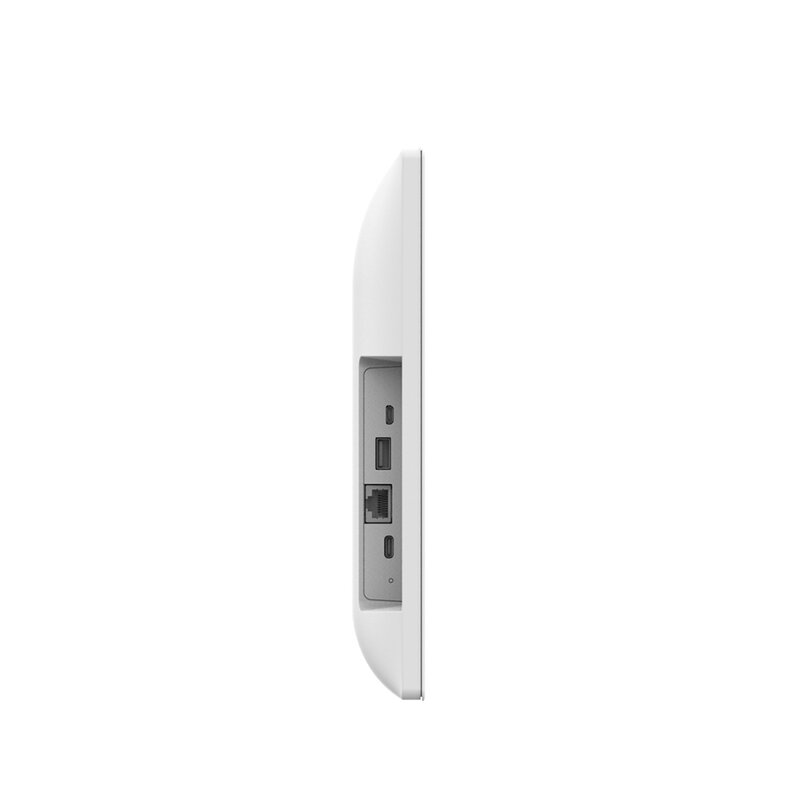

Connectivity

• Audio output: audio left / right (3.5 mm mini-jack)
• Video input: USB
• Other connections: micro USB

Picture / display

• Diagonal screen size: 13.3"
• Aspect ratio: 16:9
• Panel resolution: 1600 x 1200
• Display colors: 60k
• Operating system: Android 11

Communication

• Ethernet: 10/100M
• Wi-Fi / WLAN: 2 Tx / 2 Rx 802.11 ac/a/b/g/n Wi-Fi + BT 5.1 module

Convenience

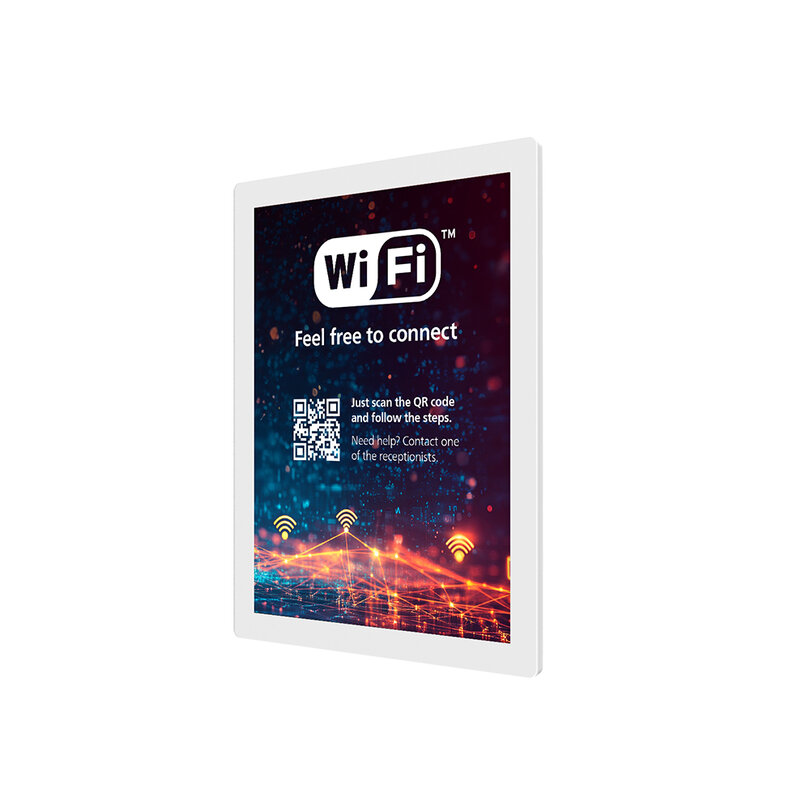

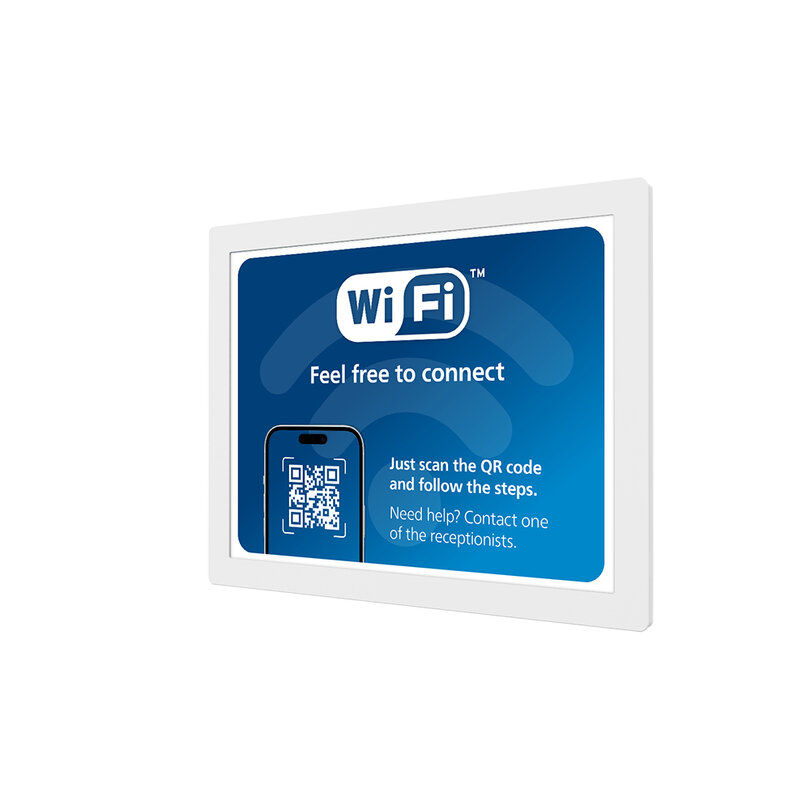

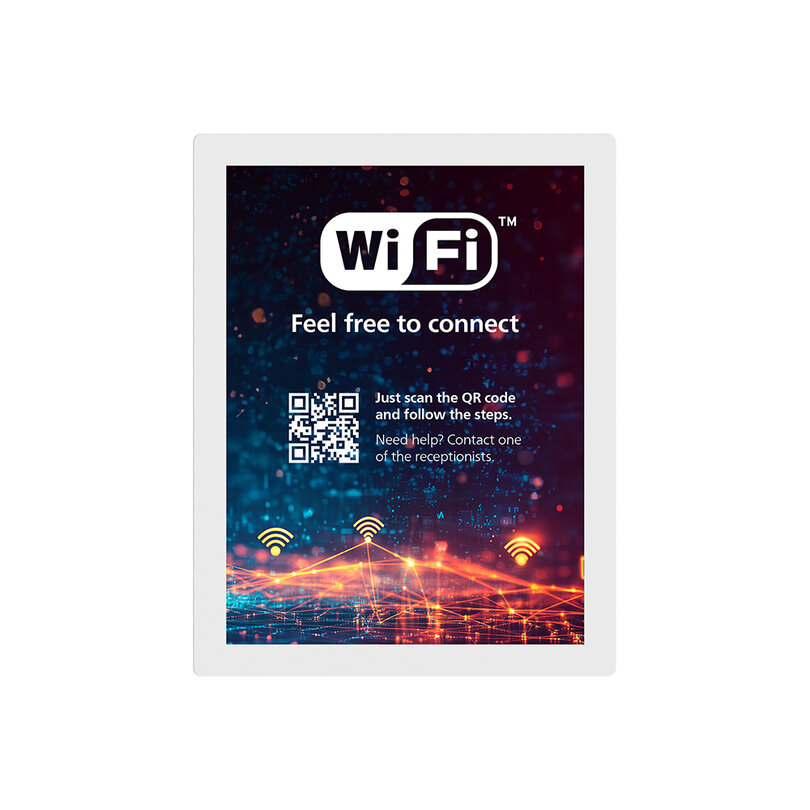

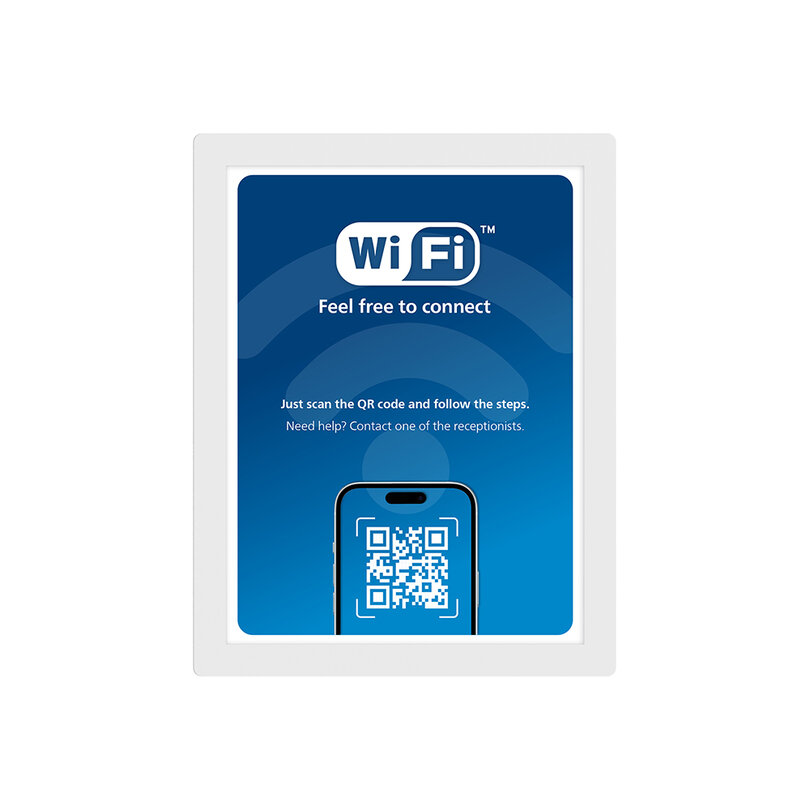

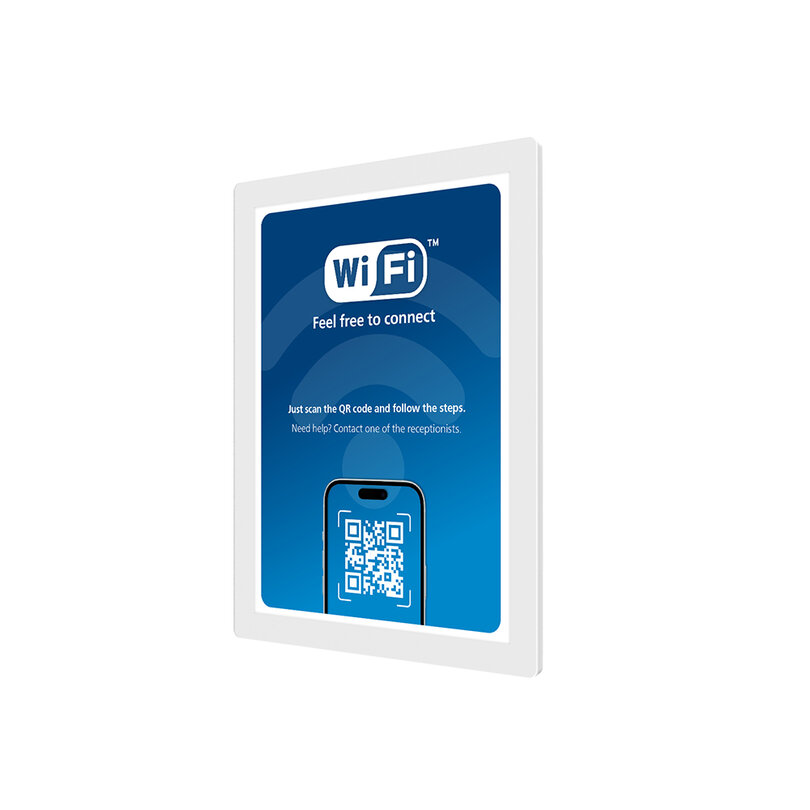

• Placement: landscape, portrait (24/7)
• Network controllable: LAN (RJ45)

Power

• Mains power: 20 V_DC / 2.25 A adapter

Operating conditions

• Altitude: 0 - 3000 m
• Temperature range (operation): 15 - 35 °C
• Relative humidity: 20 - 80%
• Temperature range (storage): -20 - 60 °C

Internal player

• CPU: Rockchip PX30S
• Memory: 2 GB DDR4
• Storage: 16 GB EMMC

Miscellaneous

• On-Screen display languages: english, simplified Chinese
• Warranty: 3 years
• Regulatory approvals: CE, CB, UL, FCC

Dimensions

• Set width: 30.64 mm
• Set height: 23.88 mm
• Set depth: 3.166 mm
• Bezel width: 18.5 mm

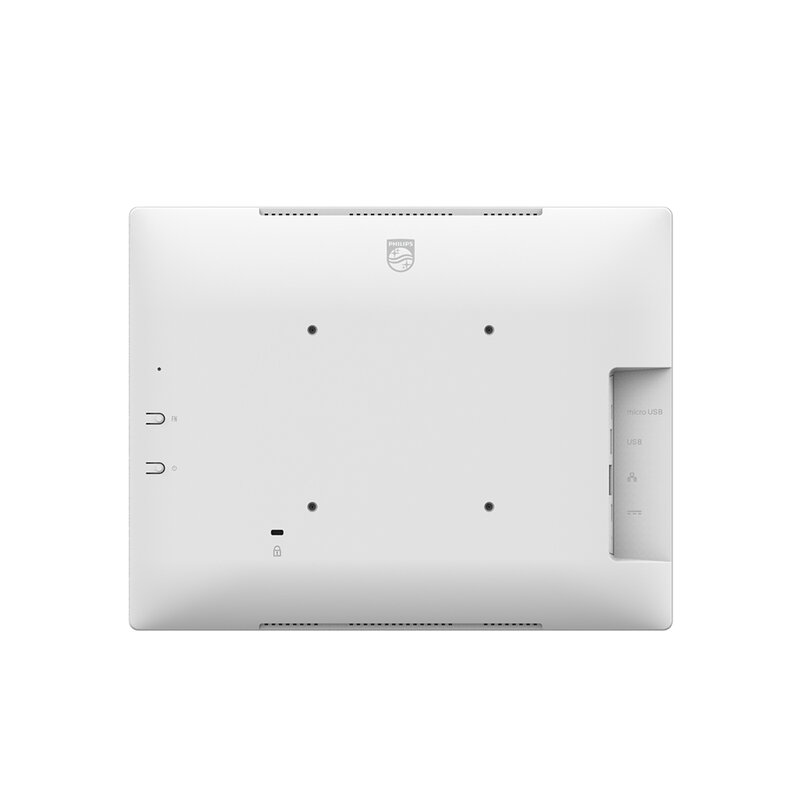

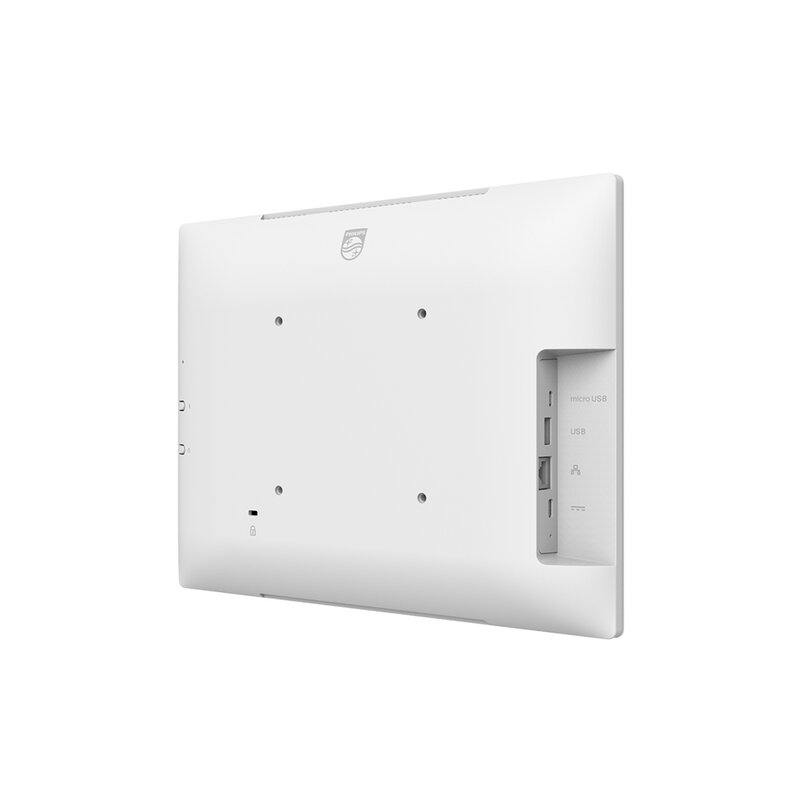

• Wall mount: 100 x 100 mm VESA mount

What's in the box

• 13BDL4150IW/00 ePaper display
• AC power adapter

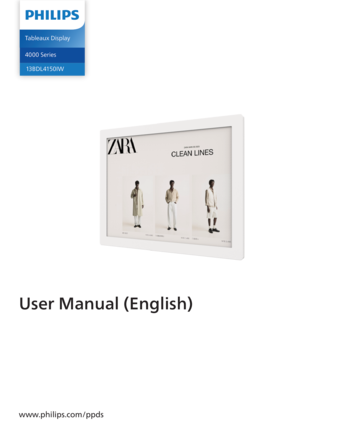

• Quick start guide
