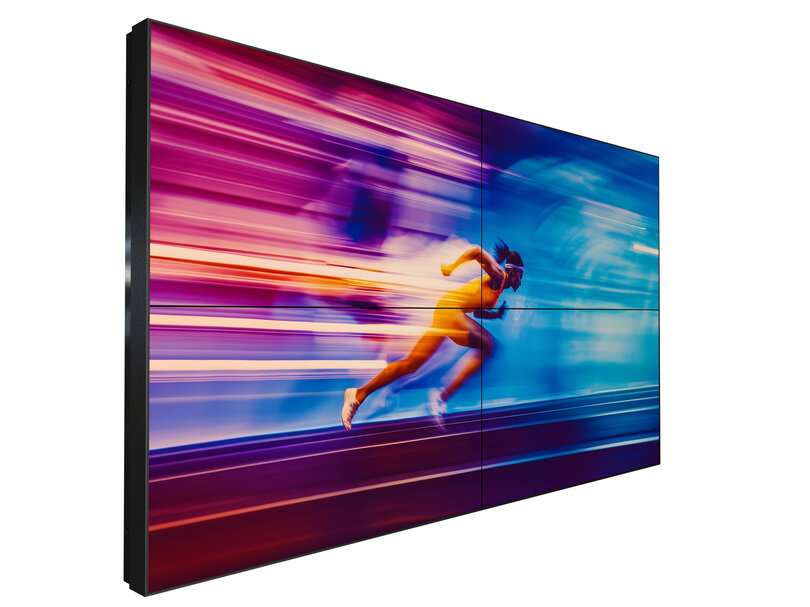

55BDL3305X/00 - 55", Full HD, 500 cd/m2, 16/9 Video wall display designed for continuous 24/7 operation, Pure Colour Pro, FailOver, OPS slot, tiling mode

55", Full HD, 500 cd/m2, 16/9 Video wall display designed for continuous 24/7 operation, Pure Colour Pro, FailOver, OPS slot, tiling mode

The 55BDL3305X is a 55" Full HD video wall display designed for 24/7 continuous use in professional environments, offering brilliant images with a brightness of 500 cd/m² and optimized color rendering thanks to Pure Color Pro technology.

Thanks to the CMND & Control platform, you can easily manage and monitor a network of same-type displays via a LAN connection. The FailOver system ensures that content is always played, even if the main source is inactive, while the tiling mode allows the creation of 4K video walls without the need for external devices.

Equipped with an OPS slot, the 55BDL3305X allows direct integration of a PC or Android module such as the CRD50 for advanced processing without cabling. The Direct LED backlight design, wide viewing angle, and remote control options via RJ45, IR, and RS232 make it a powerful and flexible solution for dynamic installations.

User benefits

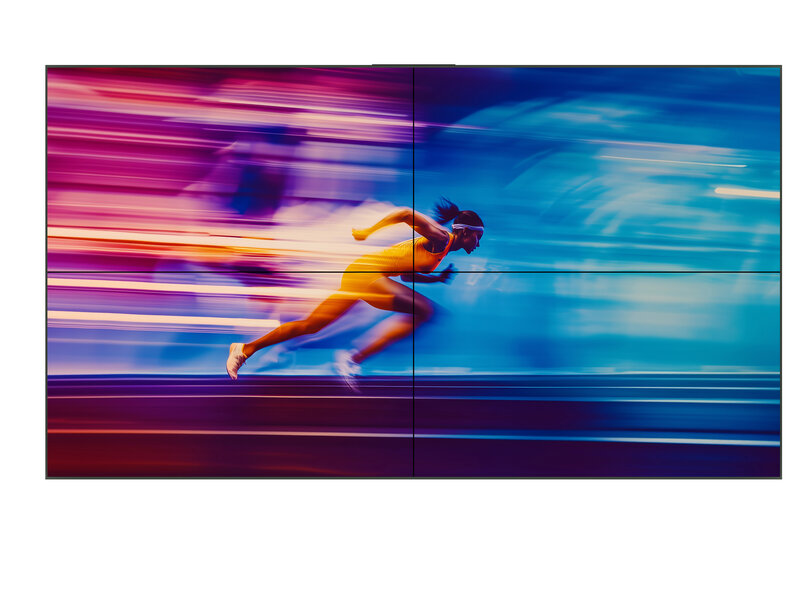

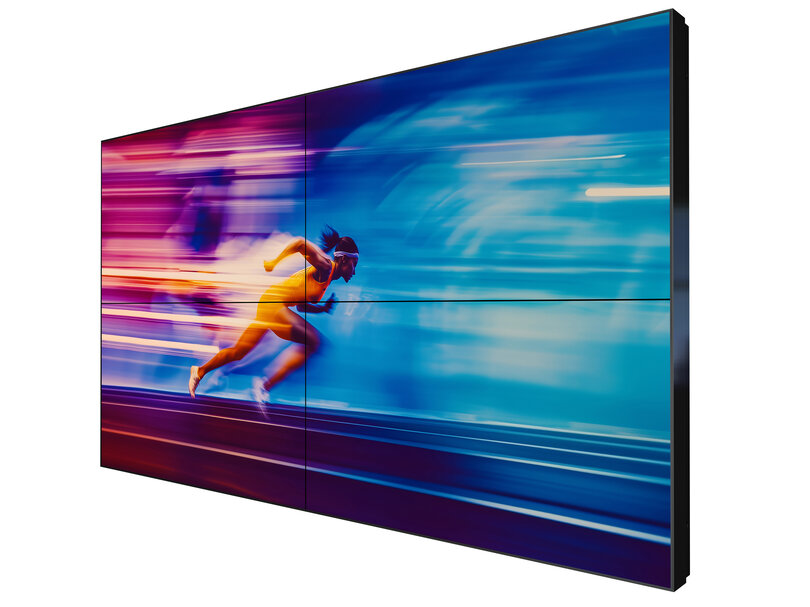

• Mode Integrated tiling to create 4K video walls without external hardware
• Improved color fidelity with Pure Color Pro technology
• OPS slot for integrating PC or Android modules directly into the display
• Simplified remote control with CMND & Control via LAN, IR and RS232

Areas of use

• Retail
• Corporate
• Digital scenarios (webinars, virtual conferences, online trade shows, workshops, cultural events)

Technical characteristics

Picture / display

• Diagonal screen size: 138.7 cm
• Diagonal screen size: 54.5"
• Aspect ratio: 16:9
• Panel resolution: 1920 x 1080p
• Pixel pitch: 0.63 x 0.63 mm
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m²
• Display colours: 16.7 M
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Viewing angle (horizontal): 178°
• Viewing angle (vertical): 178°
• Haze: 25%

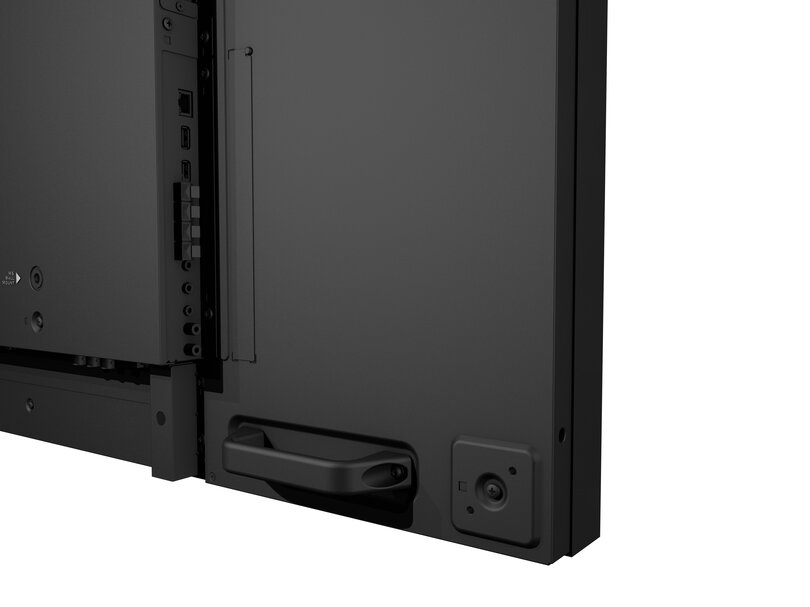

Connectivity

• Audio output: 3.5 mm mini-jack
• Video input: DisplayPort 1.2, DVI-D, 2 x HDMI 2.0, VGA
• Audio input: 3.5 mm mini-jack
• Other connections: OPS, USB 2.0, thermal sensor
• Video output: DisplayPort 1.2
• External control: IR (IN) 3.5 mm mini-jack, 2 x LAN RJ45

Convenience

• Placement: landscape (24/7), portrait (24/7)
• Tiled matrix: up to 15 x 15
• Screen-saving functions: pixel shift, low bright
• Signal loop through: DisplayPort, RJ45

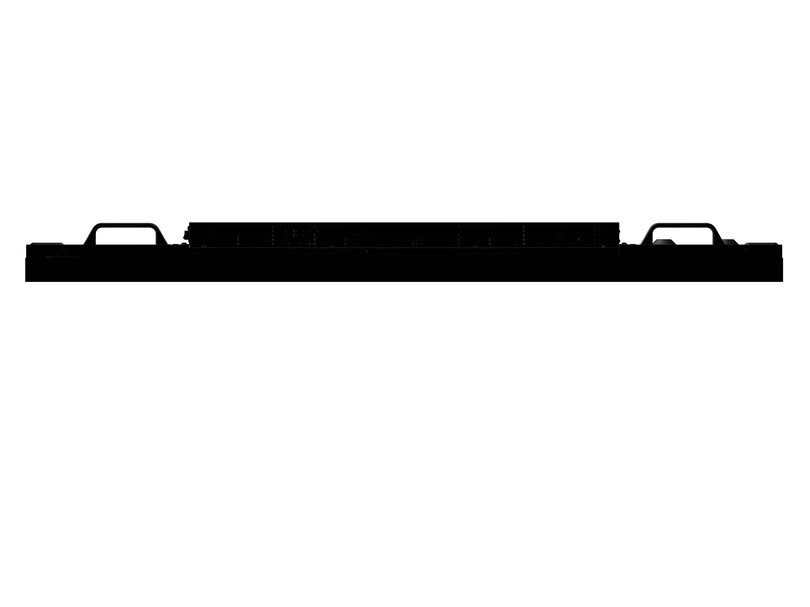

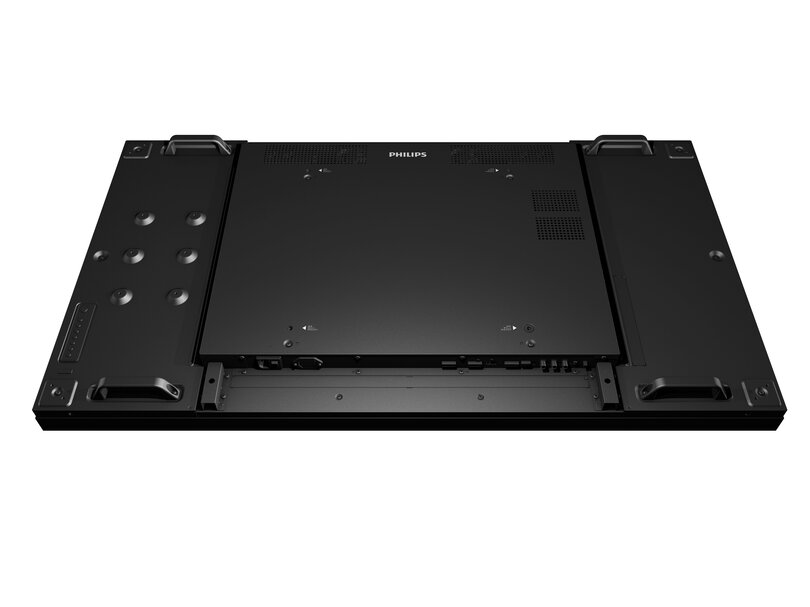

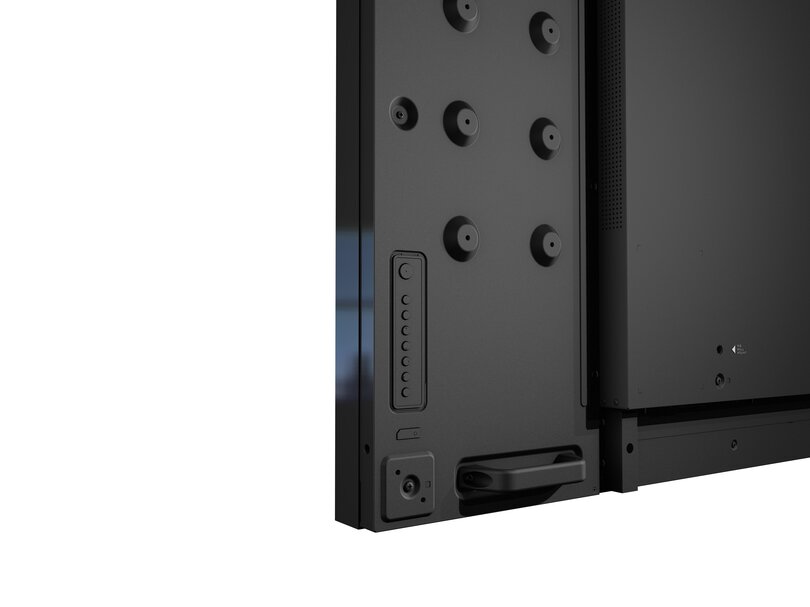

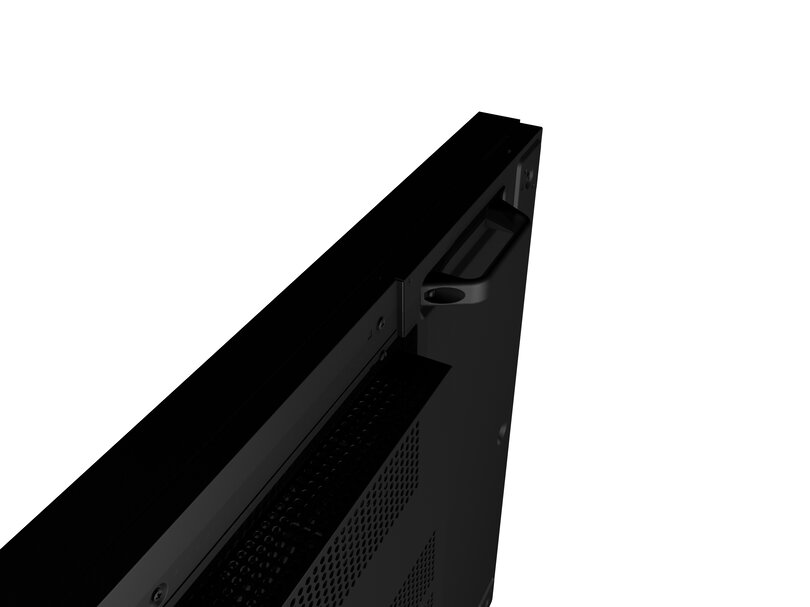

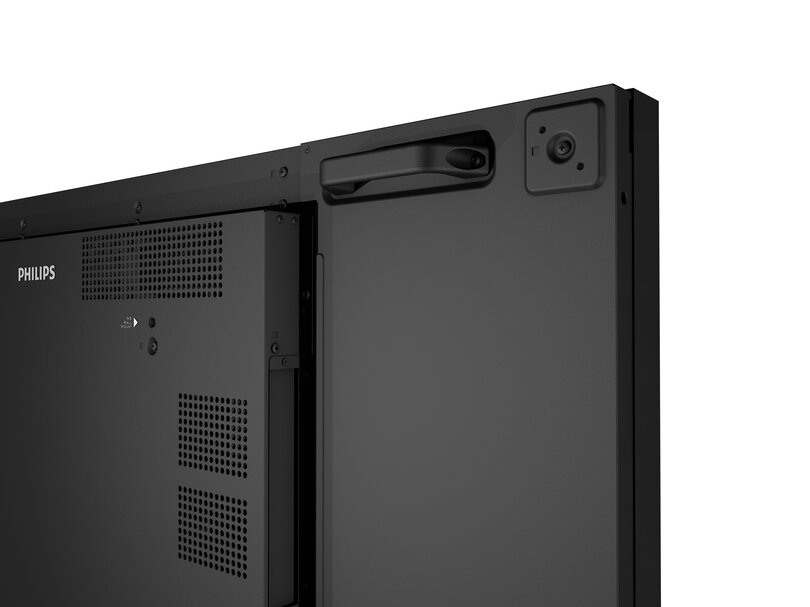

• Ease of installation: carrying handles, smart insert
• Network controllable: LAN (RJ45)

Sound

• Built-in speakers: 2 x 10 W_RMS

Power

• Consumption (typical): 164 W
• Consumption (max.): 228 W
• Standby power consumption: 0.5 W
• Energy-saving functions: Smart Power
• Energy label class: G

Supported display resolution

• Computer formats: 720 x 400 @ 70 Hz, 800 x 600 @ 60 / 75 Hz, 1024 x 768 @ 60 / 75 Hz, 1280 x 768 @ 60 Hz, 1280 x 800 @ 60 Hz, 1280 x 960 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1360 x 768 @ 60 Hz, 1366 x 768 @ 60 Hz, 1600 x 1200 @ 60 Hz, 1920 x 1080 @ 60 Hz, 640 x 480 @ 60 / 72  /75 Hz
• Video formats: 1080p (25 / 30 / 50 / 60 Hz), 720p (50 / 60 Hz), 1080i (50 / 60 Hz), 2160p (25 / 30 / 50 /60 Hz via HDMI / OPS / DP)

Operating conditions

• Altitude: 0 - 5000 m
• Operating temperature range: 0 to 40 °C
• Storage temperature range: -20 to 60 °C
• Humidity (operation): 20 - 80% RH (non-condensing)
• Humidity (storage): 5 - 95% RH (non-condensing)
• MTBF: 50,000 hours

Accessories

• Included accessories: 3 x gap pad, IR sensor cable (1.8 m), quick start guide, remote control & AAA batteries, RJ45 / RS232 converter, 3 x wire clamper, power cord, DP cable, RJ45 cable, 2 x edge alignment, 1 x kit-1, 2 x kit-2
• Optional accessories: edge finishing kit, colour calibration kit, CRD41

Miscellaneous

• OSD languages: Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese
• Warranty: 3 years
• Regulatory approvals: CE, FCC Class A, RoHS, CB, ETL, BSMI

Dimensions & weight

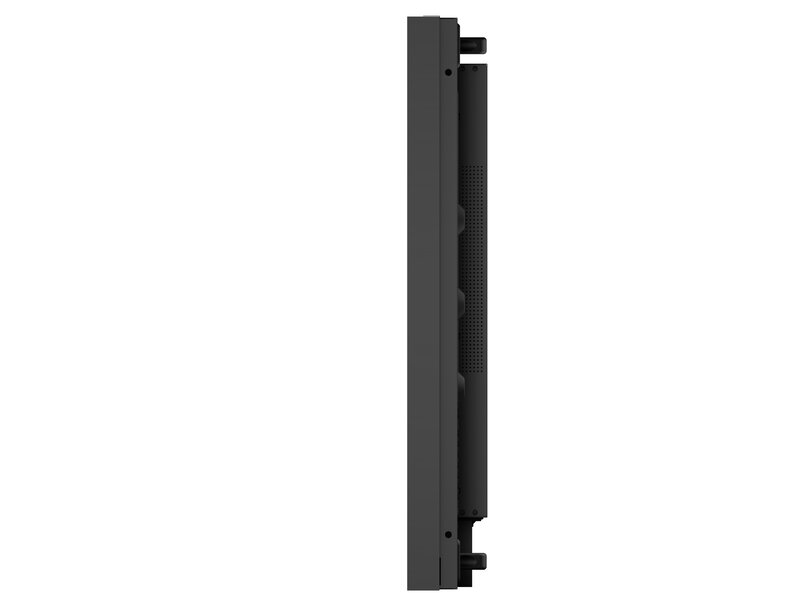

• Dimensions: 121.13 x 68.21 x 9.78 cm

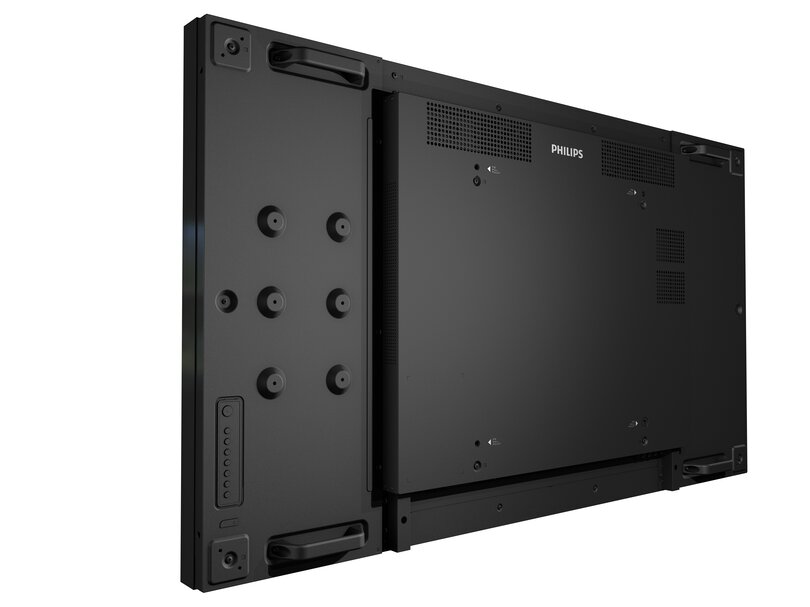

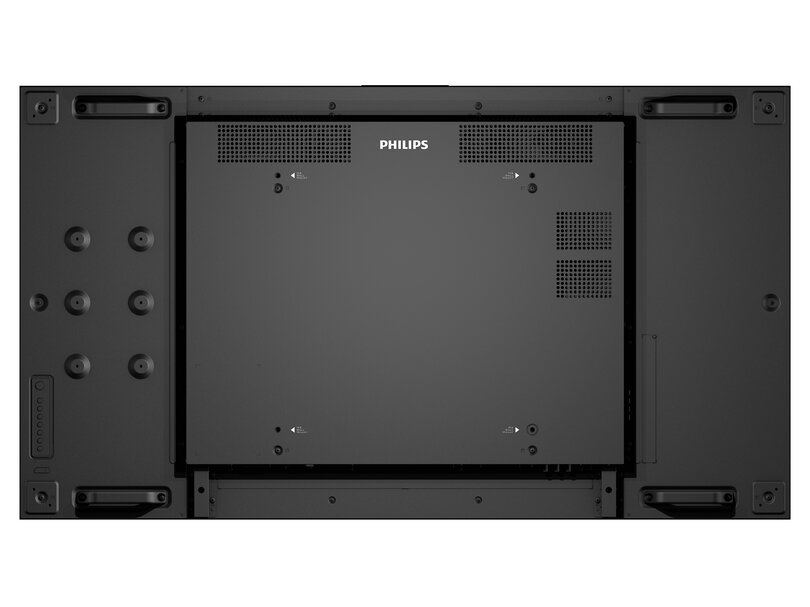

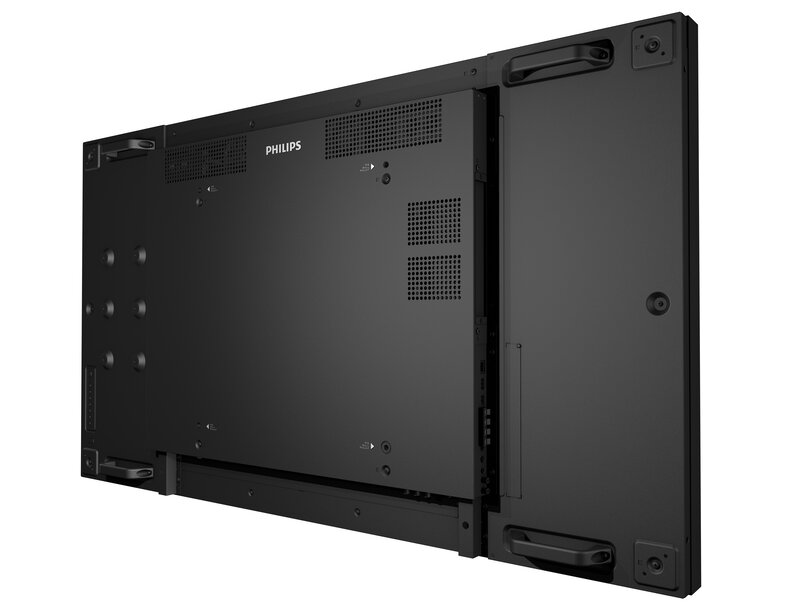

• Smart insert mount: 100 x 100 mm & 100 x 200 mm (6 x M4 x L6)
• Wall mount: 400 x 400 mm (M6)
• Bezel width (combined): < 3 mm
• Weight: 28.7 kg

What's in the box?

• Items: remote control, batteries, AC power cord, quick start guide, edge alignment pins, DVI-D cable, RS232 cable
