55BDL3650QE/00 - 55", Ultra HD (3840 x 2160), 350 cd/m2, 4000:1 contrast, 18/7 display designed for high performance with low energy consumption, PPDS EcoDesign, advanced connectivity, Android 10 OS for seamless App integration

55", Ultra HD (3840 x 2160), 350 cd/m2, 4000:1 contrast, 18/7 display designed for high performance with low energy consumption, PPDS EcoDesign, advanced connectivity, Android 10 OS for seamless App integration

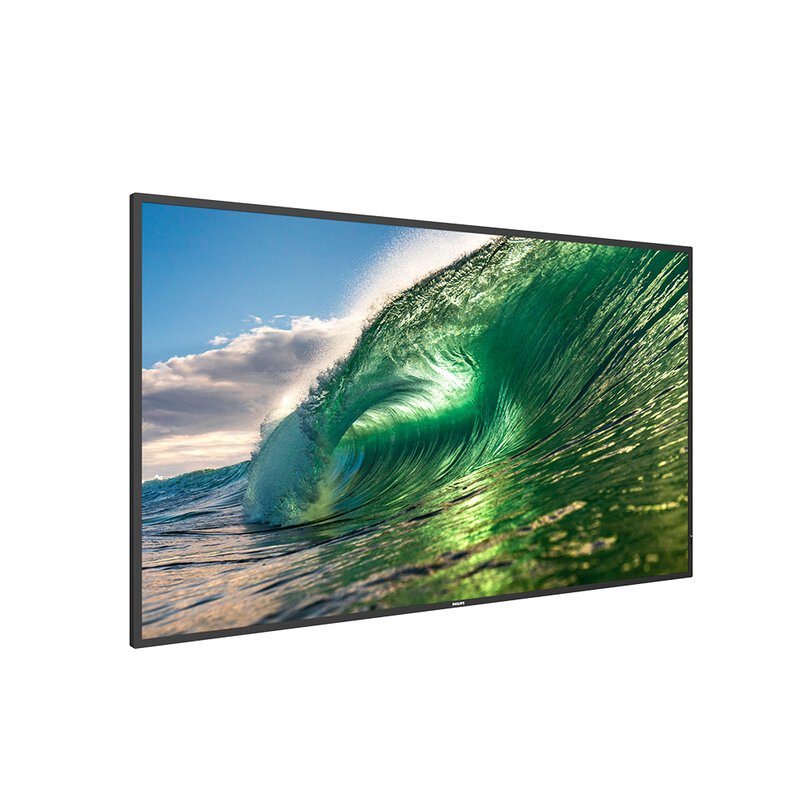

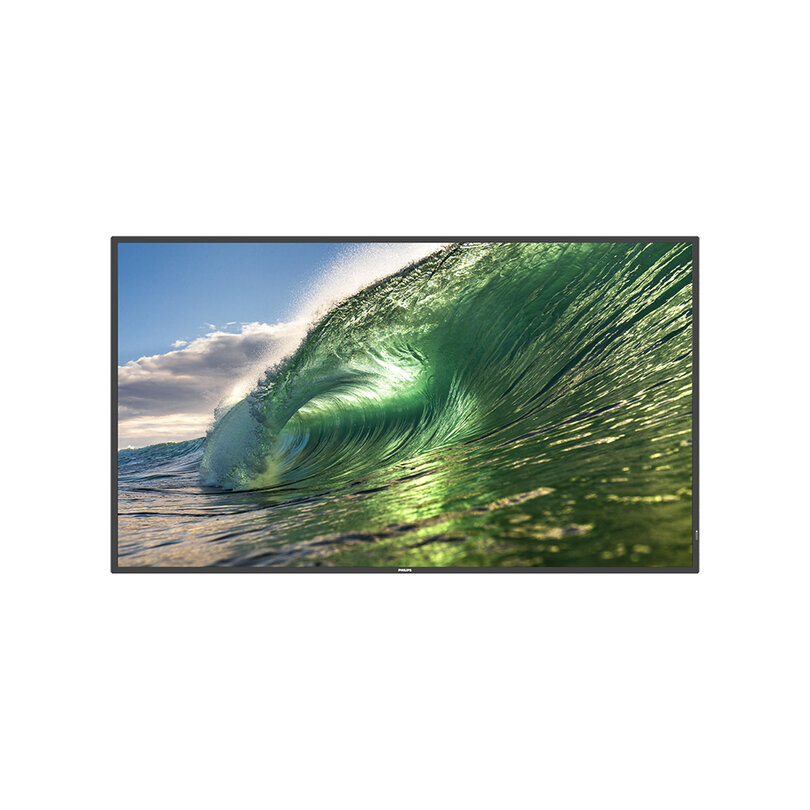

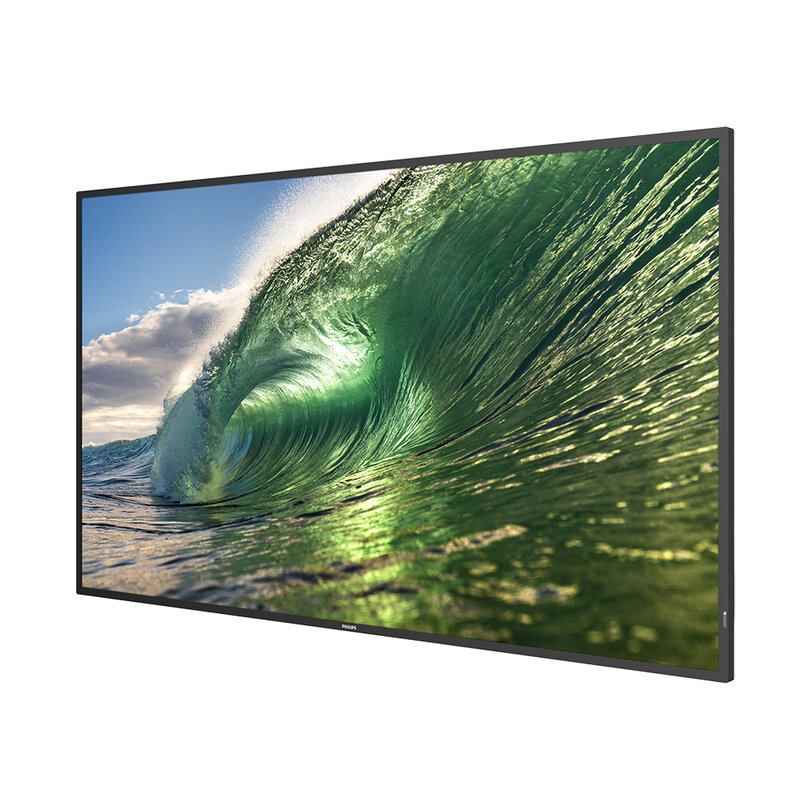

PPDS 55BDL3650QE/00 is a 55" Ultra HD display designed to offer high performance with low energy consumption. Thanks to the innovative PPDS EcoDesign, this model consumes half the energy compared to other similar displays, ensuring a lower environmental impact.

The IPS panel offers a resolution of 3840 x 2160 pixels with a typical contrast ratio of 1200:1 and a brightness of 350 cd/m², ensuring sharp and detailed images. The response time is 8 ms, while the viewing angle is 178° both vertically and horizontally.

The integrated operating system, Android 10, allows the installation of native and web apps directly on the display. Connectivity is guaranteed by several ports, including HDMI 2.0, DVI-I, USB 2.0 and USB 3.0, as well as audio inputs and outputs via 3.5 mm mini-jack.

An option is available Wi-Fi with the CRD22 dongle, which connects the display to the Internet for cloud content management, so using the Chromium-based browser, you can design your content online and connect a single display or your entire network. Plus, you can view content in both landscape and portrait mode, in full HD resolution. You can then share your screen wirelessly using your existing Wi-Fi network to instantly and securely connect your devices, or use the optional Interact HDMI dongle to cast directly to the screen without having to connect to the secure network.

The FailOver function ensures continuous content playback, automatically switching to a backup source in the event of a failure. The display supports JPEG, BMP and PNG image playback, H.263, H.264, H.265, MPEG1/2/4, VP8 and VP9 video, and AAC, HEAAC and MPEG audio.

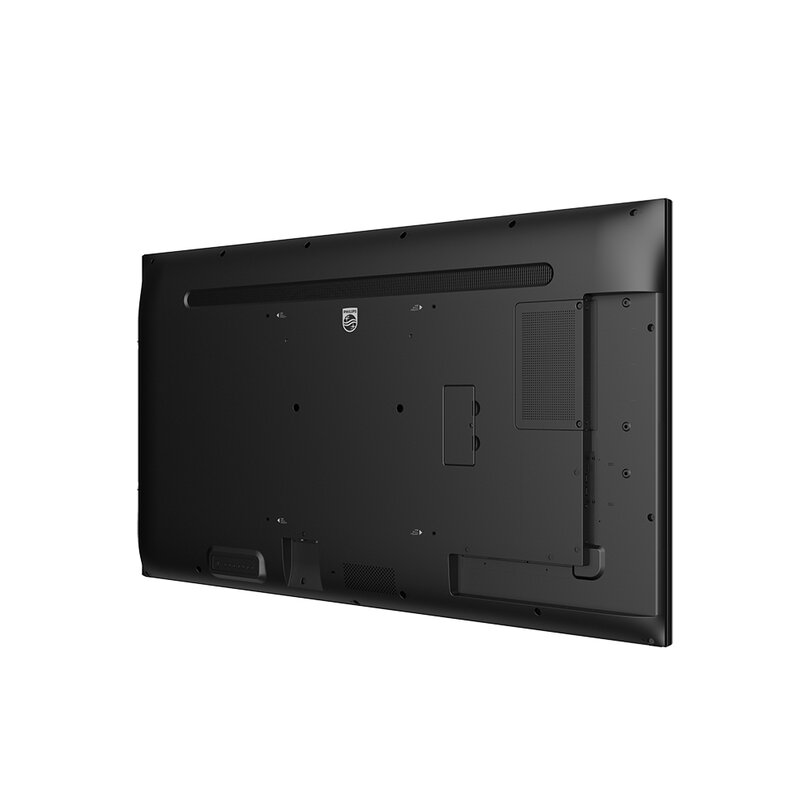

Design-wise, the 55BDL3650QE/00 has a thin 13.9 mm bezel and can be wall-mounted with a 400 x 400 mm VESA mount. The dimensions are 124.18 cm wide, 71.26 cm high and 6.36 cm deep, with a weight of 17.2 kg. The internal player is equipped with a Quad Core Cortex A55 CPU with 16 GB of memory and 3 GB of DDR RAM. The built-in speakers offer a power of 2 x 10 W_RMS, ensuring clear and powerful audio.

The maximum power consumption is 120 W, while the typical consumption is 70 W, with an energy class of D. In standby mode, the consumption is less than 0.5 W.

User benefits

• 50% lower consumption than other similar displays
• Ability to install and manage applications directly on the display for greater flexibility thanks to the Android 10 operating system
• Advanced connectivity
• FailOver functionality with continuous playback guarantee by automatically switching to a backup source in the event of a failure
• Remote control and update of content via integrated HTML5 browser

Areas of use

• Digital Signage
• Corporate, for presentations and collaboration thanks to advanced connectivity
• Hospitality
• Education

Technical characteristics

Picture / display

• Diagonal screen size: 54.6", 138.7 cm
• Aspect ratio: 16:9
• Panel resolution: 3840 x 2160
• Pixel pitch: 0.315 x 0.315 mm
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 350 cd/m²
• Display colours: 1.06 billion
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Viewing angle (horizontal): 178°
• Viewing angle (vertical): 178°
• Picture enhancement: 3/2 - 2/2 motion pull down, dynamic contrast enhancement, motion compensation deinterlacing, progressive scan
• Panel technology: IPS
• Operating system: Android 10

Connectivity

• Audio output: 3.5 mm mini-jack
• Video input: 2 x HDMI 2.0, DVI-I, 2 x USB 2.0, 2 x USB 3.0
• Audio input: 3.5 mm mini-jack
• Other connections: micro SD
• External control: RJ45, RS232C (IN/OUT) 2.5 mm mini-jack, IR (IN/OUT) 3.5 mm mini-jack
• Optional WiFi functionality: CRD22 Wi-Fi dongle

Convenience

• Placement: landscape (18/7), portrait (18/7)
• Tiled matrix: up to 15 x 15
• Keyboard control: lockable, hidden
• Remote control signal: lockable
• Signal loop through: RS232, IR loop through
• Energy-saving functions: Smart Power
• Network controllable: RS232, RJ45

Sound

• Built-in speakers: 2 x 10 W_RMS

Power

• Mains power: 100 - 240 V_AC 50/60 Hz
• Consumption (typical): 70 W
• Consumption (max.): 120 W
• Standby power consumption: < 0.5 W
• Power saving features: Smart Power
• Energy label class: D

Supported display resolution

• Computer formats: 1920 x 1080 @ 60 Hz, 1600 x 1200 @ 60 Hz, 1440 x 900 @ 60 Hz, 1280 x 1024 @  60 Hz, 1280 x 720 @ 60 Hz, 1280 x 800 @ 60 Hz, 1024 x 768 @ 60 / 70 / 75 Hz, 720 x 400 @ 70 Hz, 640 x 480 @ 60 / 67 / 72 / 75 Hz, 1152 x 870 @ 75 Hz, 1680 x 1050 @ 60 Hz, 800 x 600 @ 56 / 60 / 72 / 75 Hz, 1152 x 864 @ 75 Hz, 832 x 624 @ 75 Hz, 3840 x 2160 @ 24 / 25 / 30 / 60 Hz
• Video formats: 480i @ 60 Hz, 480p @ 60 Hz, 1080p @ 50 / 60 Hz, 1080i @ 50 / 60 Hz, 720p @ 50 / 60 Hz, 3840 x 2160p @ 24 / 25 / 30 / 60 Hz

Operating conditions

• Altitude: 0 - 3000 m
• Temperature range (operation): 0 - 40 °C
• MTBF: 30,000 hours
• Temperature range (storage): -20 to 60 °C
• Humidity range (operation): 20 - 80% RH (no condensation)
• Humidity range (storage): 5 - 95% RH (no condensation)

Multimedia applications

• USB playback video: H.263, H.264, H.265, MPEG1/2, MPEG4, VP8, VP9
• USB playback picture: JPEG, BMP, PNG
• USB playback audio: AAC, HEAAC, MPEG

Internal player

• CPU: Dual-core Cortex A53 1.1 GHz, Dual-core Cortex A73 1.15 GHz, Quad-Core Cortex A55
• GPU: G52 MC1
• Memory: 16 GB, 3 GB DDR

Miscellaneous

• OSD languages: English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese
• Warranty: 3-year
• Regulatory approvals: CE, CB, BSMI, FCC, Class A, VCCI, J-Moss, ETL, RoHS

Dimensions & weight

• Set width: 124.18 cm
• Set height: 71.26 cm
• Set depth: 6.36 cm
• Product weight: 17.2 kg

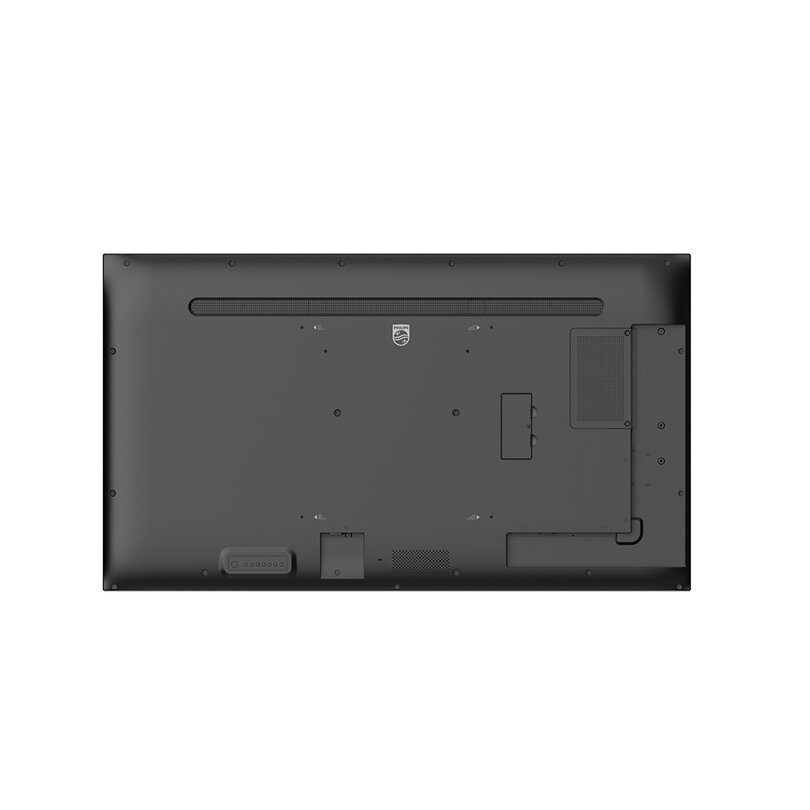

• Wall mount: 400 x 400 mm, M6
• Bezel width: 13.9 mm (even bezel)

What's in the box

• PPDS 55BDL3650QE/00 display
• IR sensor cable (1.8 m)
• RS232 daisy-chain cable
• Philips logo
• AC power cord
• AC switch cover
• 2 x cable clip

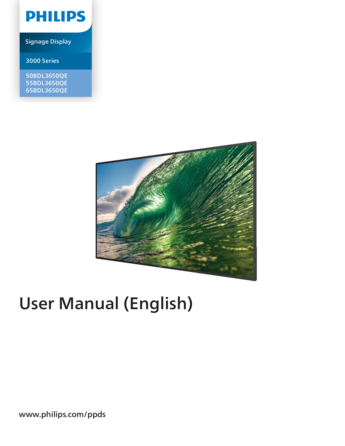

• Quick start guide
• RS232 cable
• USB cover
