65BDL3152E/00 - 65" Ultra HD (3840 x 2160), 400 cd/m2, 5000:1 contrast, 16/7 interactive display designed for collaboration, 50 simultaneous touch points, anti-glare glass, Android 13, PPDS Wave support, OPS compatibility

65" Ultra HD (3840 x 2160), 400 cd/m2, 5000:1 contrast, 16/7 interactive display designed for collaboration, 50 simultaneous touch points, anti-glare glass, Android 13, PPDS Wave support, OPS compatibility

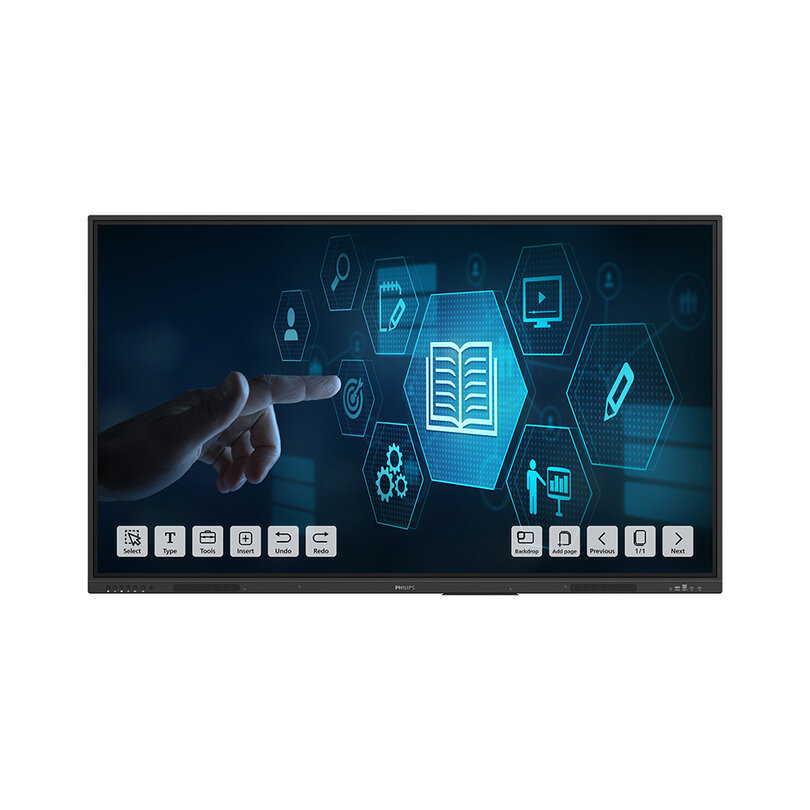

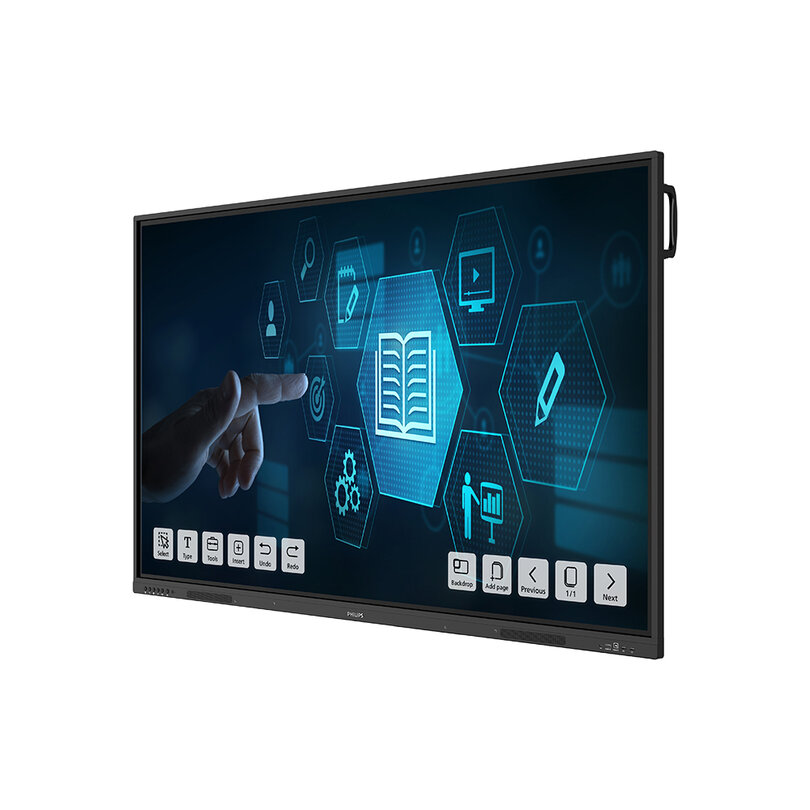

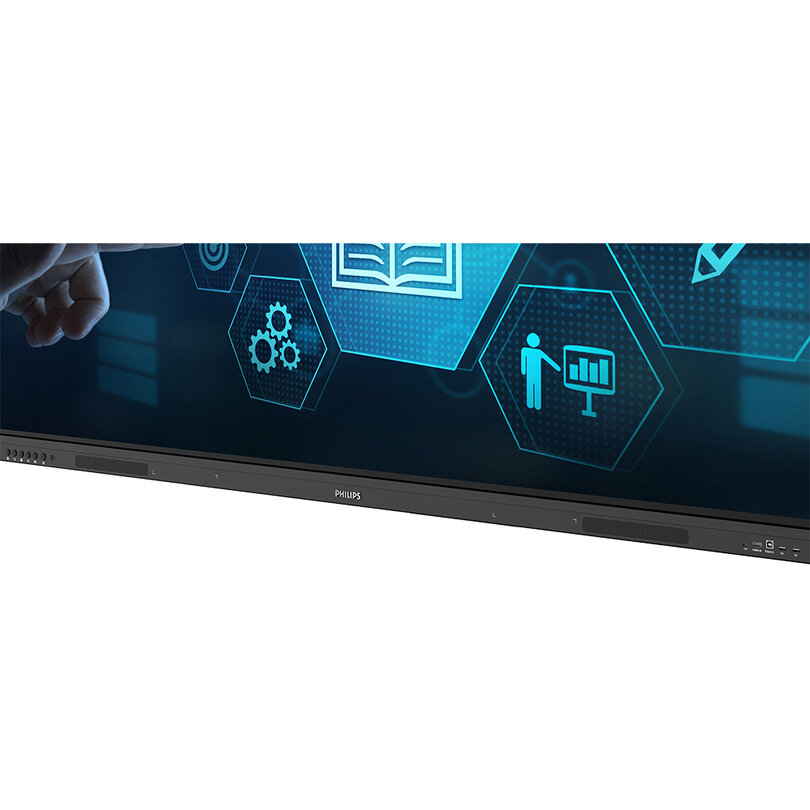

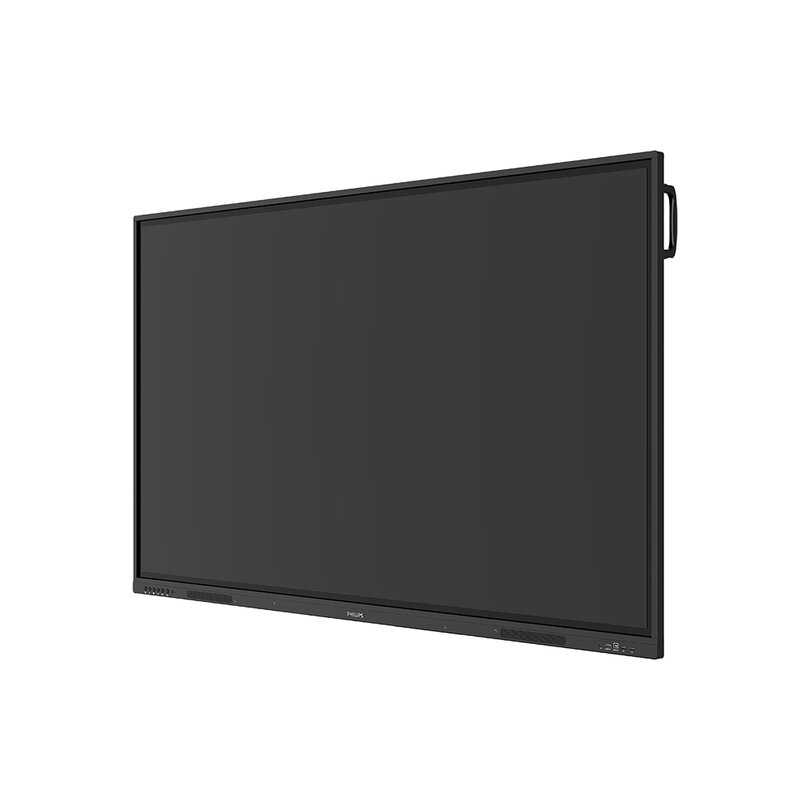

The PDS 65BDL3152E/00 is a 65" interactive display designed to maximize engagement and foster collaboration.

Featuring multi-touch technology with 50 simultaneous touch points, it offers a smooth and precise experience, ideal for educational and professional environments. The VA panel guarantees a 4K UHD resolution of 3840 x 2160 pixels, with a viewing angle of 178° both horizontally and vertically, ensuring sharp images and vivid colors from any perspective. The tempered protective glass (7 MoH hardness) with anti-glare treatment improves visibility and resistance, making it suitable for intensive use. The ambient light sensors help save energy by automatically adjusting the screen brightness.

The integrated Android 13 operating system allows for seamless integration with software and applications, while advanced connectivity includes three HDMI 2.0 ports, a USB-C port with support for up to 65 W, four USB 3.0 ports and two USB-B. The display is compatible with OPS technology for cable-free PC integration, simplifying content management; it is equipped with all the necessary connections to support the slot-based solution, including power.

PPDS Wave support enables remote control of the device. This revolutionary cloud platform offers maximum control with simplified installation and configuration, display monitoring and control, firmware updates, central management of content needs and setting of power saving schedules. The palm recognition function improves interaction precision, while the Smart Power energy saving system optimizes consumption.

With a brightness of 400 cd/m² and a dynamic contrast of 5000:1, PPDS 65BDL3152E/00 offers excellent performance for interactive and digital signage applications in busy and dynamic environments.

User benefits

• Advanced interactive experience with multi-touch technology (up to 50 simultaneous touch points)
• Durability and reliability
• Embedded Android 13 operating system for seamless integration with software and applications
• Versatility in connections
• Remote management with PPDS Wave support
• Integrated ambient light sensors
• Advanced features such as palm recognition
• OPS compatibility

Areas of use

• Digital Signage
• Education
• Corporate
• Public spaces

Technical characteristics

Picture / display

• Diagonal screen size: 65", 163.9 cm
• Aspect ratio: 16:9
• Panel resolution: 3840 x 2160
• Pixel pitch: 0.372 x 0.372 mm
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 400 cd/m²
• Display colours: 1.07 billion
• Contrast ratio (typical): 5000:1
• Response time (typical): 6.5 ms
• Viewing angle (horizontal): 178°
• Viewing angle (vertical): 178°
• Picture enhancement: 3/2 - 2/2 motion pull down, 3D combfilter, motion compens. deinterlacing, progressive scan, 3D MA deinterlacing, dynamic contrast enhancement
• Panel technology: VA
• Operating system: Android 13
• OS UI resolution: 1920 x 1080 @ 60 Hz

Connectivity

• Audio output: 3.5 mm mini-jack, SPDIF
• Video input: VGA (analog D-sub), USB-C (up to 65 W), 3 x HDMI 2.0, USB 2.0, 4 x USB 3.0
• Audio input: 3.5 mm mini-jack
• Other connections: OPS, USB-B
• External control: 2 x RJ45, RS232C (IN) D-Sub9
• Bluetooth: BT5.2

Convenience

• Placement: landscape (16/7)
• Screen saving functions: pixel shift, low brightness
• Keyboard control: lockable, hidden
• Remote control signal: lockable
• Other convenience: carrying handles
• Network controllable: RS232, RJ45

Sound

• Built-in speakers: 2 x 16 W_RMS

Power

• Mains power: 100 - 240 V_AC 50/60 Hz
• Consumption (typical): 140 W
• Standby power consumption: < 0.5 W
• Power saving features: Smart Power
• Energy label class: F

Supported display resolution

• Video formats: 480i @ 60 Hz, 480p @ 60 Hz, 1080p @ 50 / 60 Hz, 1080i @ 50 / 60 Hz, 720p @ 50 / 60 Hz, 3840 x 2160p @ 30 / 60 Hz

Operating conditions

• Altitude: 0 - 5000 m
• Temperature range (operation): 0 to 40 °C
• MTBF: 50,000 hours
• Temperature range (storage): -20 to 60 °C
• Humidity range (operation): 10 - 90% RH (no condensation)
• Humidity range (storage): 10 - 90% RH (no condensation)

Multimedia applications

• USB playback video: H.263, H.264, H.265, MPEG1/2, MPEG4, VP8
• USB playback picture: JPEG, BMP, PNG
• USB playback audio: AAC, HEAAC, MPEG

Internal player

• CPU: Quad-Core Cortex A55
• GPU: Multi-Core Mali-G52
• Memory: 32 GB eMMc, 4 GB RAM
• Wi-Fi: 2.4 / 5 GHz

Miscellaneous

• OSD languages: Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simpli ed Chinese, Turkish, traditional Chinese
• Warranty: 5-year
• Regulatory approvals: CE, FCC, Class A, RoHS, CB, EAC, EMF, ETL, EnergyStar 8.0

Interactivity

• Multi-touch technology: 0-gap Infrared touch
• Touch points: 50 simultaneous touch points (depending on application)
• Plug & Play: HID compliant
• Protection glass: anti-glare, tempered safety glass 7 MOHS

Dimensions & weight

• Set width: 148.84 cm
• Set height: 89.66 cm
• Set depth: 8.62 cm
• Product weight (without stand): 35.45 kg
• Wall mount: 600 x 400 mm, M8
• Bezel width: 16.6 mm (L / F / R) / 45.0 mm (B)

What's in the box

• PPDS 65BDL3152E/00 display
• Power cord (US, UK, EU)
• HDMI cable
• USB A to B cable
• Remote control & AAA batteries
• 2 pcs. stylus
• Quick start guide
• Wall mount
