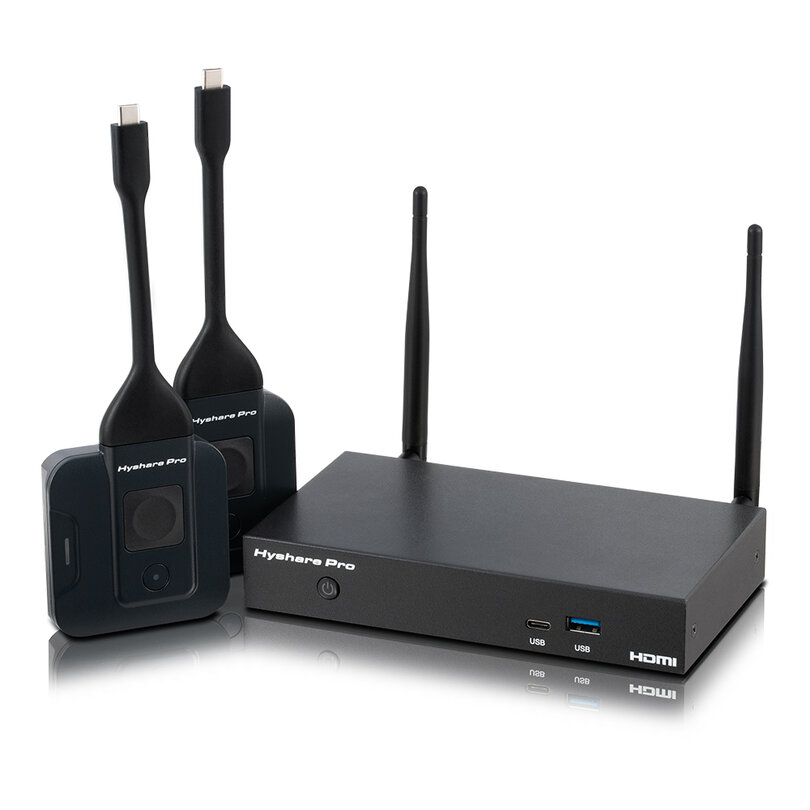

WPS-HP201-KIT - Wireless presentation system kit including Hyshare Pro station and 2 x USB‑C Pods to enable cross‑platform screen sharing, multiview up to 4 sources, collaboration tools, secure connectivity, driver‑free BYOD operation

Wireless presentation system kit including Hyshare Pro station and 2 x USB‑C Pods to enable cross‑platform screen sharing, multiview up to 4 sources, collaboration tools, secure connectivity, driver‑free BYOD operation

Hyshare Pro is a high-performance wireless presentation system designed to offer a seamless screen sharing experience, eliminating cables and complex setups. Thanks to its simple installation and cross-platform compatibility, it allows Windows, macOS, Android, and iOS users to share content instantly via a dedicated App or browser.

The system supports advanced collaboration features such as multiview with up to four sources, annotation, screenshots, interactive whiteboarding, touchback control, and moderation of shared content. The Hyshare Pro Pod, included in the kit, allows wireless transmission up to 10 meters via USB-C, without installing drivers or software, and is also compatible with video conferencing platforms such as Teams, Zoom, and Google Meet.

System composition

• 1 x Hyshare Pro wireless presentation station
• 2 x Hyshare Pro Pod wireless transmitters
• 1 x 12 V_DC / 2 A power supply
• 2 x Wi-Fi antennas
• 1 x quick start guide

Main features

• Video output support up to 4K @ 30Hz
• Screen sharing via browser (Chrome or Edge) or dedicated app, with the option to share the entire desktop or a single window
• Multiview up to four simultaneous sources with manual layout control
• Shared content protection via 4-digit connection code and data encryption
• Support for up to 20 users connected to the same Hyshare Pro station
• Built-in collaboration tools: screenshots, annotation, and whiteboard
• Remote monitoring of the station's video output via App
• Touchback function to control the computer directly from the connected touchscreen
• Moderator mode to manage displayed sources via OSD
• WPA2 and 802.1x EAP support secure Wi-Fi connections
• Cross-platform compatibility: Windows 10+, macOS 10.14+, Android 8.1+, iOS 12+
• Easy setup via WebGUI
• Compatibility with Hyshare Pro Pod via USB-C, without drivers or software
• Video conferencing support via Pod on Teams, Zoom, and Google Meet

User benefits

• Complete elimination of HDMI and USB cables from the meeting room
• Multiple users can collaborate in real time thanks to multiview with up to four sources
• Security and control via passcode, encryption, and moderator mode
• Built-in collaboration tools
• Share from any modern device, without complex installation
• The USB-C Pod allows you to share content and participate in video conferences without additional software
• The WebGUI simplifies system setup, maintenance, and monitoring

Areas of use

• Collaboration in corporate meeting rooms
• Classrooms and interactive training environments
• BYOD (Bring Your Own Device) scenarios where users with heterogeneous devices they must share contents immediately and without cables

Technical characteristics

Hyshare Pro (wireless presentation station)

• HDMI bandwidth: 10.2 Gbps
• VGA bandwidth: 165 MHz
• Output ports: 1 x HDMI (Type-A), 1 x VGA (DE-15), 1 x stereo audio (3.5 mm)
• Bi-directional / control port: 1 x LAN (RJ-45)
• Control ports: 1 x USB 2.0 (Type-A), 1 x USB 3.0 (Type-A), 1 x USB 3.0 (Type-C)
• Wi-Fi support: IEEE 802.11AC 2.4 / 5 GHz
• Power supply: 12 V_DC / 2 A  (US / EU standards, CE / FCC / UL certified) or PoE (802.3AF) via LAN port
• ESD protection (HBM): ±8 kV (air discharge), ±4 kV (contact discharge)
• Chassis material: metal (steel)
• Chassis color: black
• Operating temperature: 0 to 40 °C
• Storage temperature: -10 to 70 °C
• Relative humidity (non-condensing): operating: 20 to 80% RH, storage: 10 to 90% RH
• Power consumption: 24 W
• Dimensions (W x H x D): 17 x 3.05 x 9.55 cm (case only), 17 x 12.75 x 13.1 cm (all inclusive)
• Weight: 530 g

Hyshare Pro Pod (wireless transmitters)

• HDMI bandwidth: 10.2 Gbps
• Input port: 1 x USB 3.2 (Type-C)
• Wi-Fi support: IEEE 802.11AC 2.4 / 5 GHz
• Power supply: 5 V_DC / 900 mA via USB port
• ESD protection (HBM): ±8 kV (air discharge), ±4 kV (contact discharge)
• Chassis material: plastic
• Chassis color: black
• Operating temperature: 0 to 40 °C
• Storage temperature: -10 to 70 °C
• Relative humidity (non-condensing): operating: 20 to 80% RH, storage: 10 to 90% RH
• Dimensions (W x H x D): 19.3 x 6.8 x 1.76 cm (all inclusive)
• Weight: 96 g
