RGB20X-PAI-OL - PoE+ PTZ camera, 20x optical zoom, 16x digital zoom, 4K with HDMI1.4 / 3G-SDI / USB3.0 / LAN, OLED screen, Tally indicator

PoE+ PTZ camera, 20x optical zoom, 16x digital zoom, 4K with HDMI1.4 / 3G-SDI / USB3.0 / LAN, OLED screen, Tally indicator

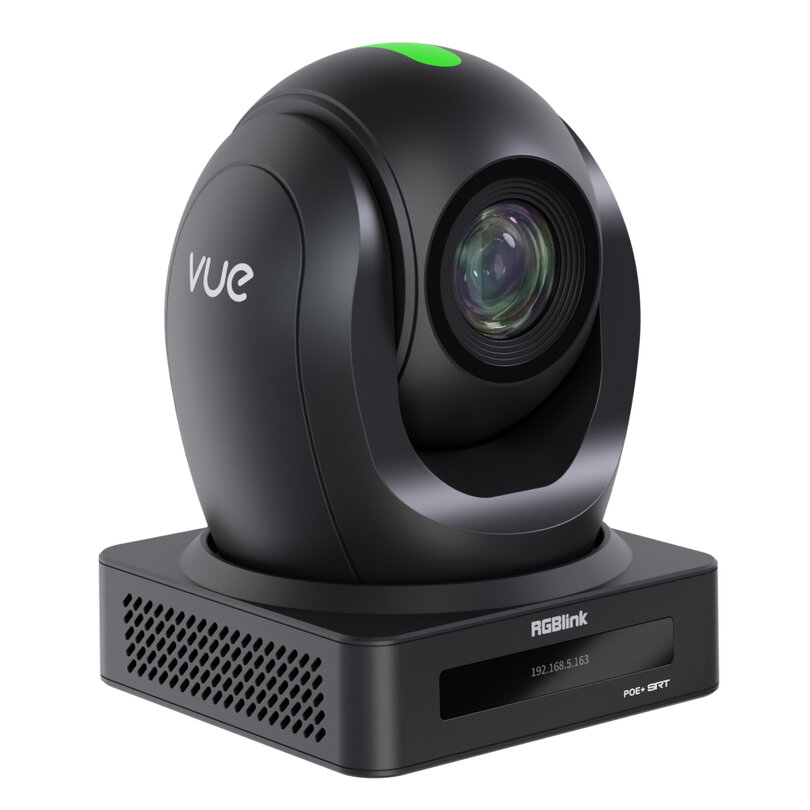

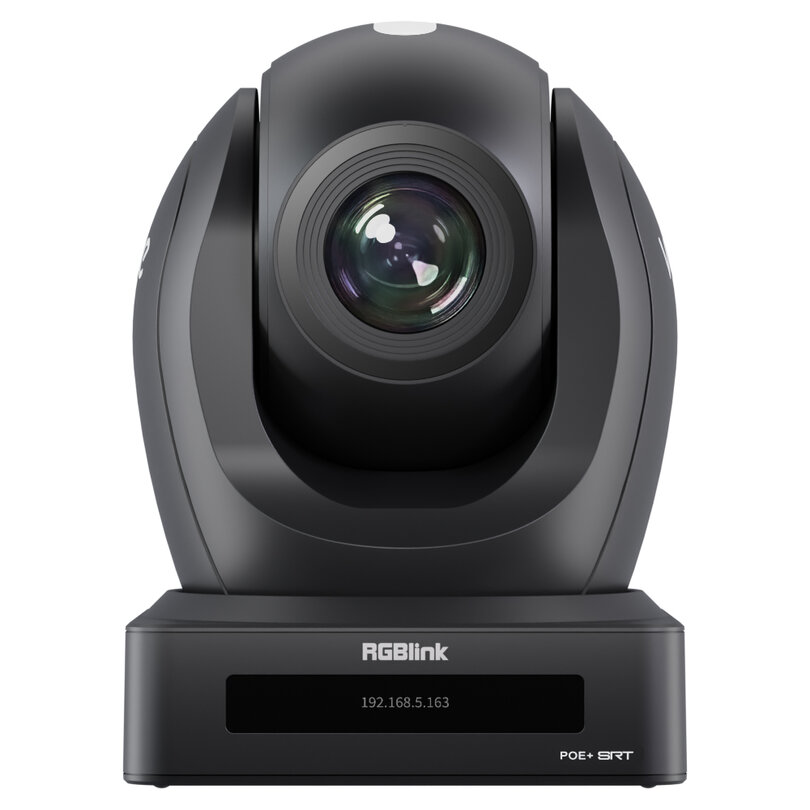

The RGBlink Vue 4K PTZ Gen2 is a PTZ camera equipped with a 1/2.8" 8.42 Mpixel CMOS sensor. It delivers high-definition images with exceptional clarity thanks to 2D / 3D noise reduction and advanced autofocus that ensures fast and reliable focusing.

It supports resolutions up to 4K 30, with H.265 / H.264 video compression, and is compatible with ONVIF, RTSP, and RTMP protocols for direct streaming. The camera integrates AI tracking with facial recognition. It features HDMI, SDI, USB, and LAN outputs, with SDI capable of transmitting 1080p 60 signals up to 100 meters. Control is provided via RS232 and RS485 interfaces with support for VISCA and PELCO-D/P protocols, while the silent gimbal with stepper motor ensures smooth movements. It also features AAC audio input. (16 - 48 kHz) and supports G.711A at 8 kHz.

Up to 255 presets can be stored, ten of which can be recalled directly from the included infrared remote control. The low-power mode reduces power consumption to below 400 mW, making it efficient even during prolonged use.

User benefits

• Resolution up to 4K 60Hz
• Intelligent AI tracking functions
• Wide connection compatibility: HDMI, SDI, USB, and LAN
• Direct streaming for live broadcasts on network platforms and systems
• Smooth and silent optical movement
• Energy efficient

Areas of use

• Education
• Conferences
• Medical environments
• Control systems
• Judicial and legal environments

Technical characteristics

• Video format / resolution
  • HDMI: 3840 x 2160 @ 30 / 29.97 / 25, 1920 x 1080p @ 60 / 59.94 / 50 / 30 / 29.97 / 25, 1280 x 720p @ 60 / 59.94 / 50
  • SDI: 1920 x 1080p @ 60 / 59.94 / 50 / 30 / 29.97 / 25, 1920 x 1080i @ 60 / 50 / 59.94, 1280 x 720p @ 60 / 59.94 / 50
  • USB:
    • YUY2 / NV12: 1920 x 1080, 1280 x 720, 1024 x 576, 800 x 600, 800 x 448, 640 x 480, 640 x 360, 480 x 270, 320 x 180p @ 30 / 25 / 20 / 15 / 10 / 5 fps
    • H264 / H265 / MJPG: 3840 x 2160 @ 30 / 29.97 / 25, 1920 x 1080, 1600 x 896, 1280 x 720, 1024 x 576, 960 x 540, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 480 x 270, 352 x 288, 320 x 240 @ 60 / 30 / 25 / 20 / 15 / 10 / 5 fps
  • LAN:
    • H264 / H265: main code stream 3840 x 2160, 2592 x 1944, 2304 x 1296 @ 30 / 29.97 / 25, 1920 x 1080, 1280 x 720 @ 60 / 30 / 25 / 20 / 15 / 10 / 5 fps, subcode stream 1920 x 1080, 1280 x 720, 640 x 360, 640 x 480, 320 x 240, 320 x 180 @ 30 / 25 / 20 / 15 / 10 / 5 fps
• Image bitstream: dual stream output capability
• Image sensor: 1/2.8" high-quality CMOS sensor
• Effective pixels (approx.): 8.42 Mpixel, 16:9 aspect ratio
• Min. illumination: 0.5 lux @ (F1.8, AGC ON)
• Electronic shutter: 1/30 s - 1/10,000 s
• Zoom ratio: 20x optical, 16x digital zoom
• Iris control: auto / manual
• Digital noise reductions: 2D / 3D
• White balance: auto, manual, one-click white balance, specified color temperature (2400 - 7100 K, 100 K step)
• Focus mode: auto, manual, one-press focus
• Panning / tilting range: Pan ±170°, Tilt -30° to 90°
• Preset: 255 preset positions (10 via remote control)
• Focal length: 20x, f = 4.8 - 96 mm, F1.8 - F2.9
• Field of view: 60° - 3.81°
• Video output:
  • 1 x HDMI
  • 1 x 3G-SDI
  • 1 x LAN RJ45 (PoE+)
  • 1 x USB3.0
• Audio input: dual-channel 3.5 mm audio jack

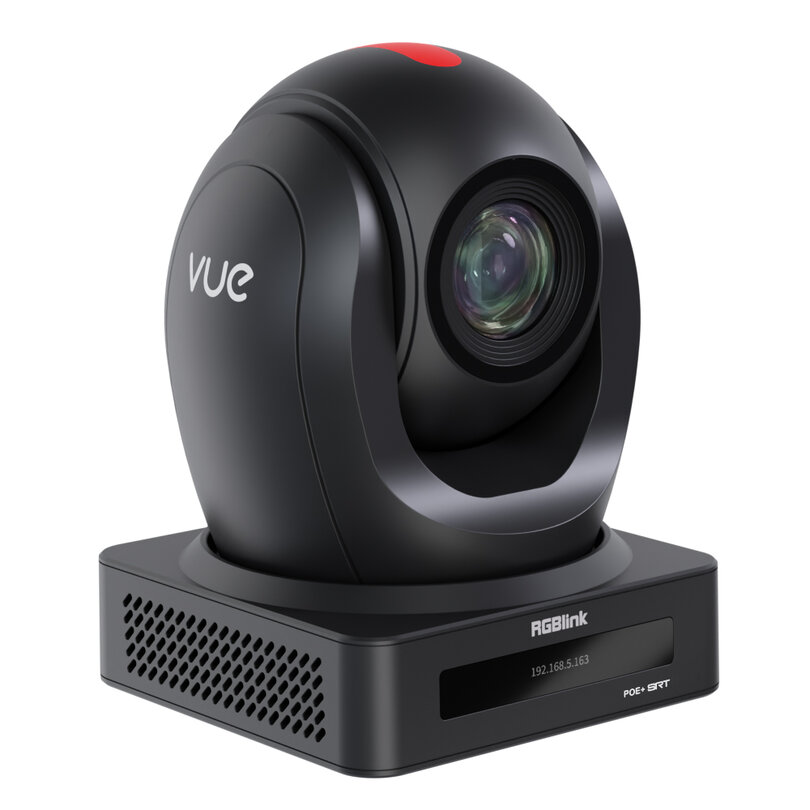

• Tally indicator: yes
• Control protocol: Pelco-D, Pelco-P, VISCA
• Remote control interface: IR, RS-232 / RS-485 (RS232 supports cascading)
• Video compression format: LAN: H.264 / H.265, USB 3.0: MJPG, H.264, H.265, YUY2, NV12
• Audio compression format: AAC (16 - 48 kHz), G.711A (8 kHz)
• Streaming protocols:  RTSP, RTMP, ONVIF, SRT; network VISCA control protocol supported
• Remote firmware upgrade, reboot and reset supported
• USB communication protocol: UVC (USB Video Class) and UAC (USB Audio Class) compliant
• PoE: PoE+
• IR control: yes
• Remote maintenance: firmware upgrade, reboot, reset
• Operating temp. range: -10 to 50 °C
• Power: 12 V_DC 2.5 A
• Power consumption: 18 W max.
• Color: black
• Dimension (W x H x D): 16.7 x 15.2 x 21 cm
• Weight: 1.9 kg
