AL-TU34KA - 34,000 lumen WUXGA laser projector, 3 DLP, > 20% red ratio, 120 Hz refresh rate, 8 optional lenses (0.7 – 8.2:1), 360° installation, 4K decoding, IP5X sealed engine, built‑in warping/blending, APCS remote management

34,000 lumen WUXGA laser projector, 3 DLP, > 20% red ratio, 120 Hz refresh rate, 8 optional lenses (0.7 – 8.2:1), 360° installation, 4K decoding, IP5X sealed engine, built‑in warping/blending, APCS remote management

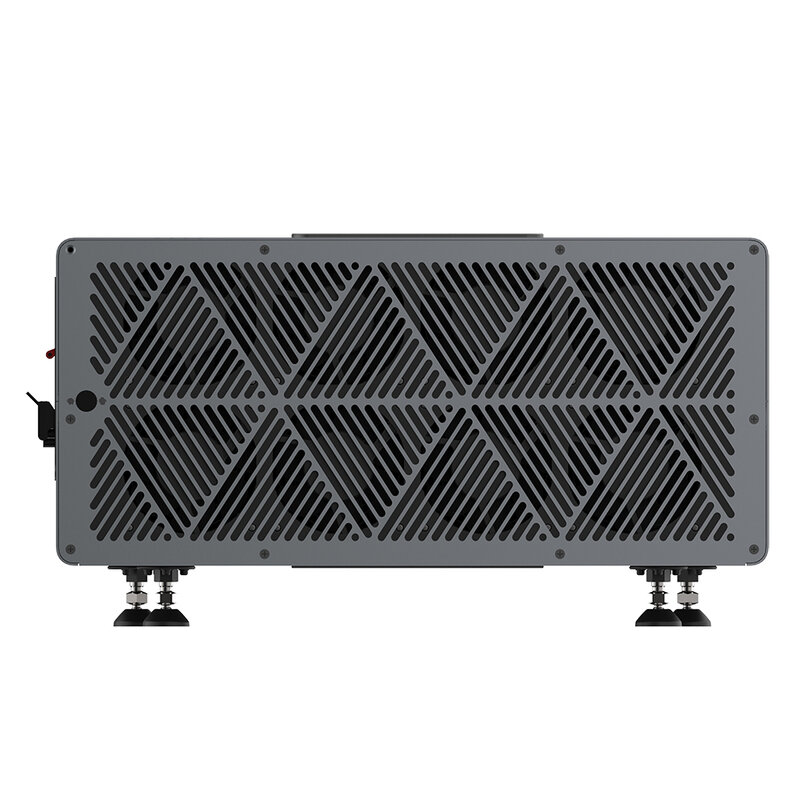

The AL‑TU34KA is a 3DLP professional, ultra-high brightness laser projector from the T Pro series, designed for installations requiring large-format images with accurate colors and consistent performance.

With a brightness of 34,000 lumens (center) and WUXGA resolution (1920 × 1200 pixels), it ensures sharp, bright, and perfectly readable projections even in environments with strong ambient light.

Thanks to the ALPD laser engine and a red ratio greater than 20%, the projector offers exceptionally natural color rendering, with more realistic skin tones and more saturated colors than traditional DLP laser systems. The 120 Hz refresh rate ensures smooth video applications, live performances, and fast-moving content.

The AL‑TU34KA is designed for maximum flexibility: it supports eight optional lenses with throw ratios from 0.7:1 to 8.2:1, allowing for installation in any context, including very large surfaces or extreme throw distances. The 360° installation option allows for mounting in any orientation. Integrated image warping and multi-projector blending software simplifies complex configurations such as mapping, edge-blending, and immersive installations.

The fully sealed optical structure with IP5X certification ensures cinema-grade reliability, reducing maintenance and protecting the system from dust and contaminants. The APCS system allows remote monitoring, diagnostics, and management via an app or web interface, while the new APOS (Appotronics On-screen Display) OSD offers a more intuitive and faster interface for adjustments and setup.

Finally, the AL‑TU34KA's laser light source is rated for 20,000 hours, a lifespan proven by field use, not just lab tests.

User benefits

• Extremely high brightness for large venues and environments with strong ambient light
• Exceptionally natural color rendition thanks to the ALPD laser engine
• Superior video smoothness with a 120 Hz refresh rate
• Maximum installation flexibility
• 8 optional lenses from 0.7:1 to 8.2:1
• Integrated software for warping and multi-projector blending
• IP5X-sealed optical engine for reliability and reduced maintenance
• Full remote management via APCS with app and web interface

Areas of use

• Large venues, theaters, and auditoriums
• Live events, concerts, and shows
• Architectural video mapping
• Museums and exhibitions
• Multi-projector installations with advanced blending and warping
• High-end corporate applications

Technical characteristics

• Display technology: 3 × DLP, DLP projection system
• Resolution: 1920 × 1200 (WUXGA)
• Brightness output: 34,000 lm (center)
• Light source type: ALPD (laser type Class 1)
• Light source lifetime: 20,000 h
• Contrast: 100,000:1
• Uniformity: 95%
• Display gamut: REC.709
• Edge blending: horizontal & vertical
• Optional lenses: powered lenses
• Screen size: 70" – 1000"
• Geometric correction: H+V ±20°, 4-corner and multi-points correction
• Optical axis shift: vertical ±90°, horizontal ±40% (powered)

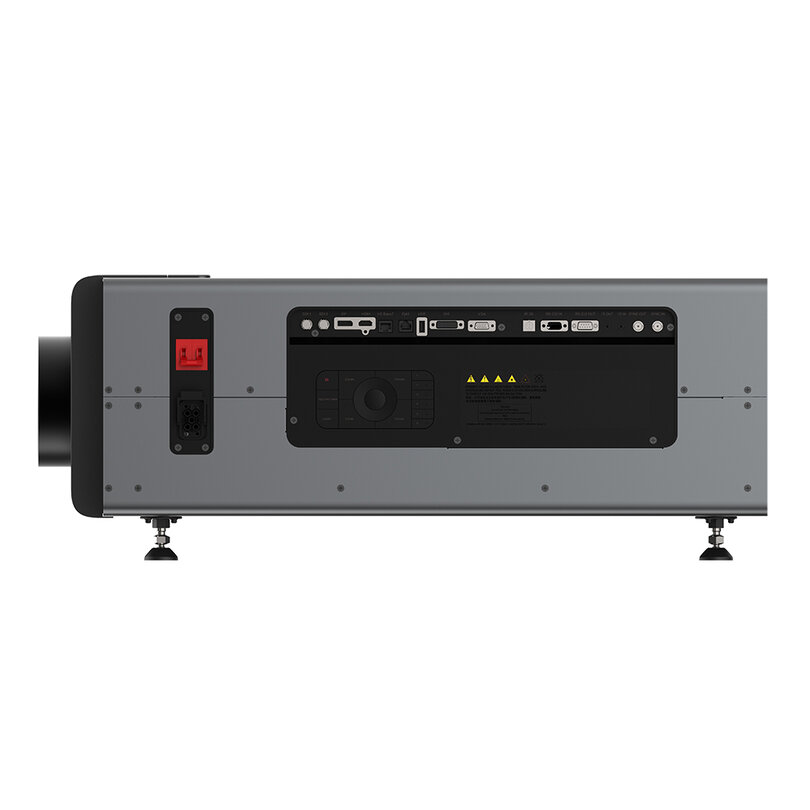

• I/O: 1 × DVI-D, 1 × HDMI, 1 × VGA, 1 x DisplayPort, 2 × SDI, 2 × RS232 (IN/OUT), 1 × RJ45, 1 × USB, 2 × Remote IN/OUT
• Power supply: 100 – 240 V_AC 50/60 Hz
• Power consumption (standard): 2800 W
• Power consumption (standby): < 0.5 W
• Orientation: 360° installation
• Noise: 49 dB (standard mode)
• Operating temperature: 0 to 45 °C
• Operating humidity: 20% – 80% (no condensation)
• Dimensions: 60.8 × 78 × 28 cm
• Weight: 70 kg
