Accsoon CineView M7 Pro - 7" smart monitor with a LCD touchscreen, wireless video transmission and reception, internal video recording, HDMI and SDI connectivity, multiple power options, Android-based interface, integrated transmission module with four antennas, advanced monitoring tools

7" smart monitor with a LCD touchscreen, wireless video transmission and reception, internal video recording, HDMI and SDI connectivity, multiple power options, Android-based interface, integrated transmission module with four antennas, advanced monitoring tools

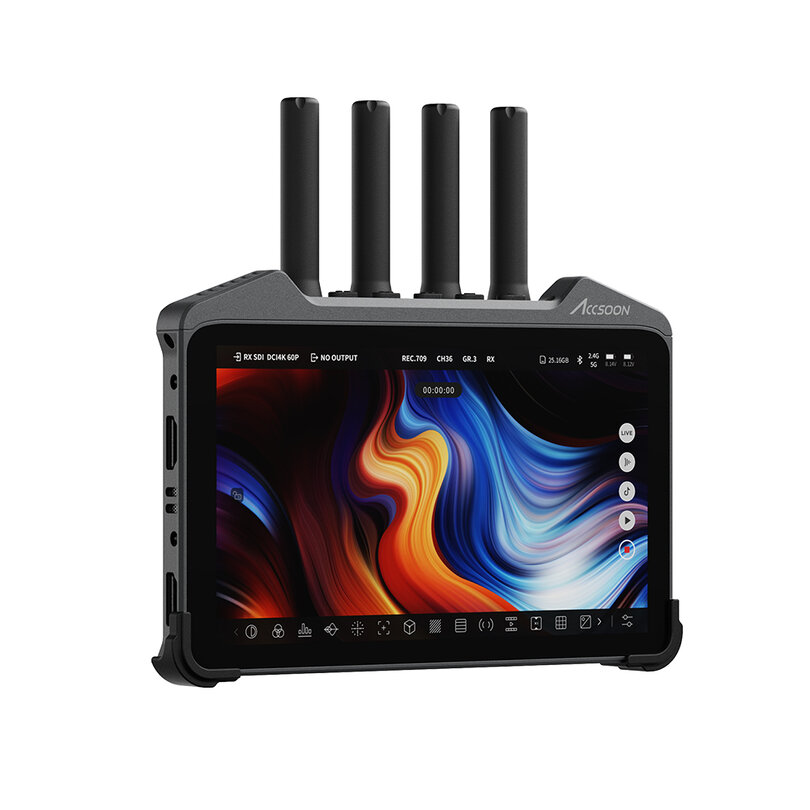

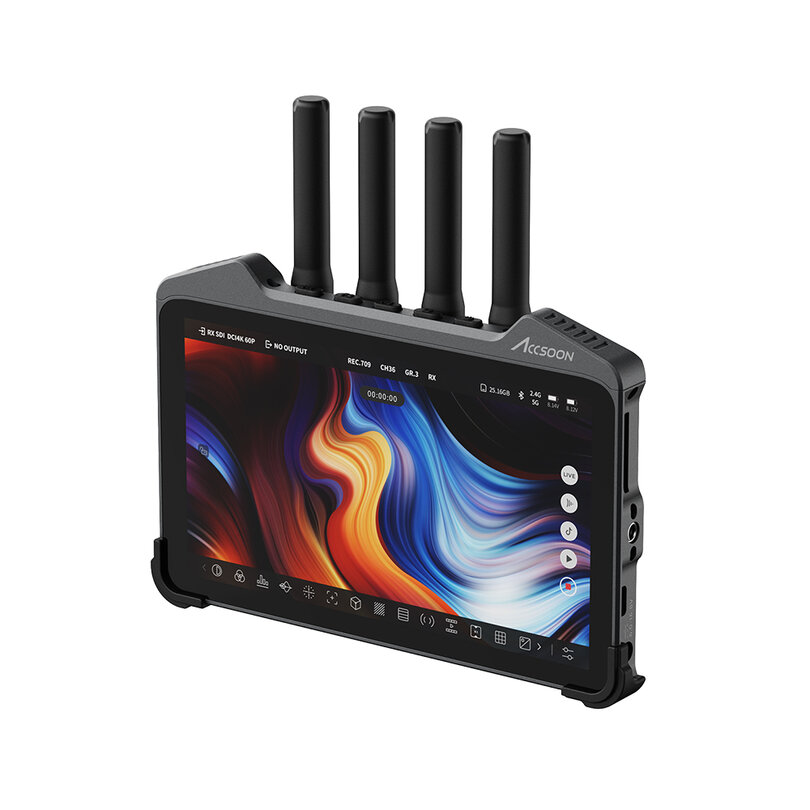

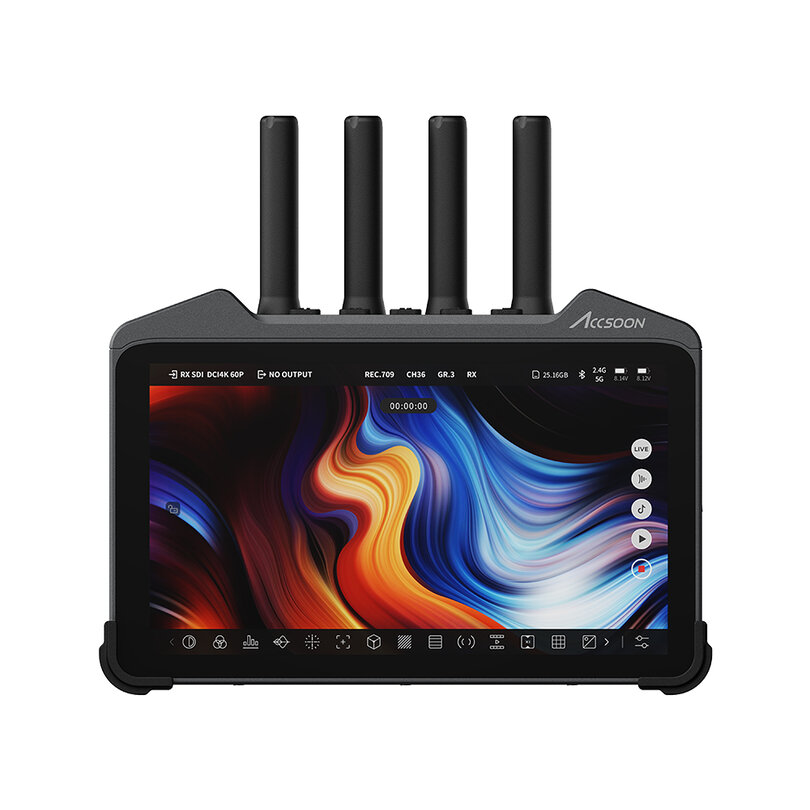

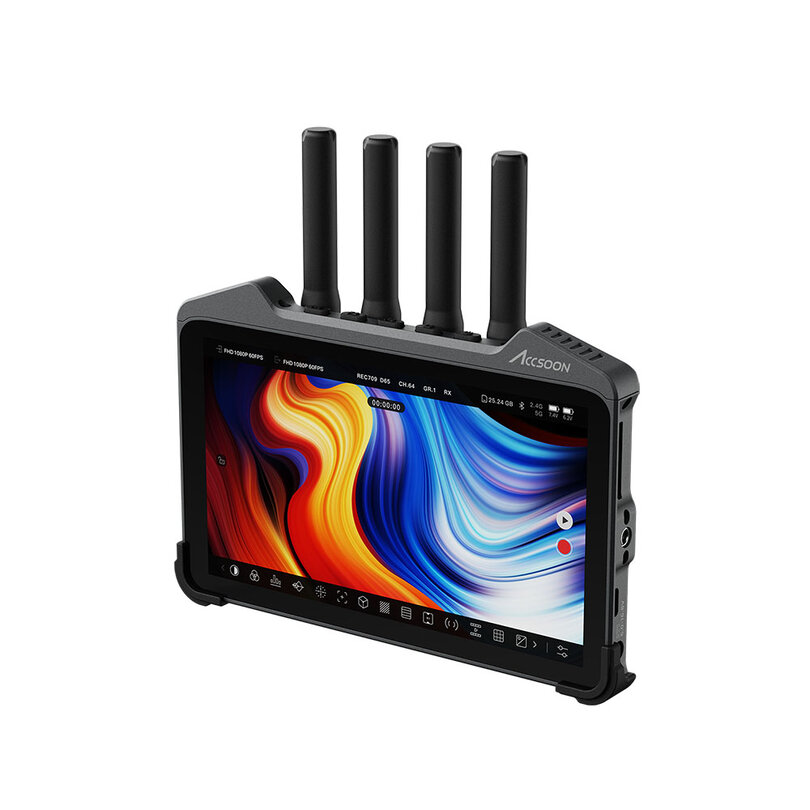

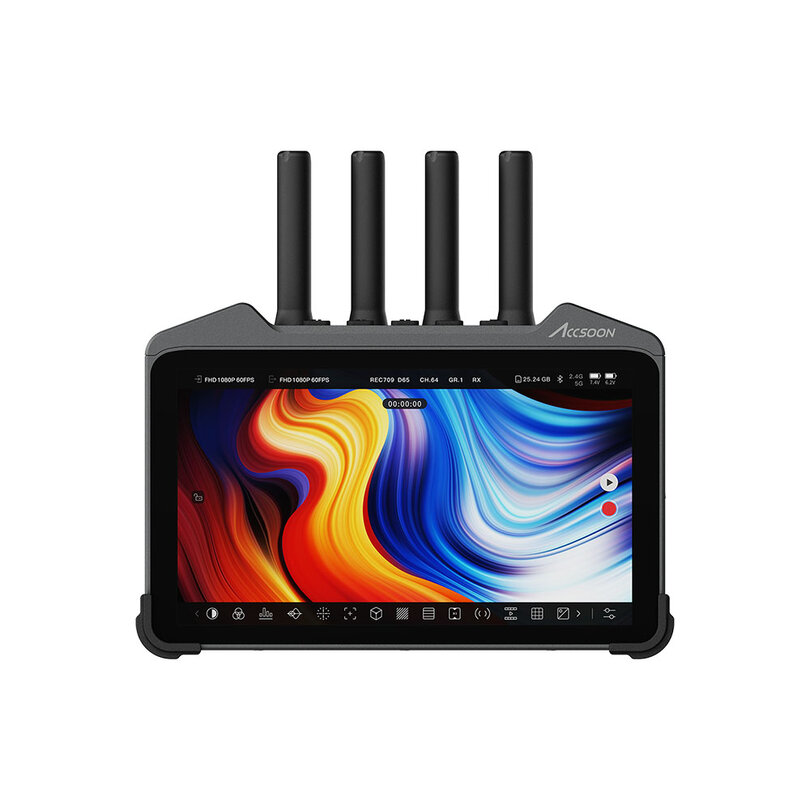

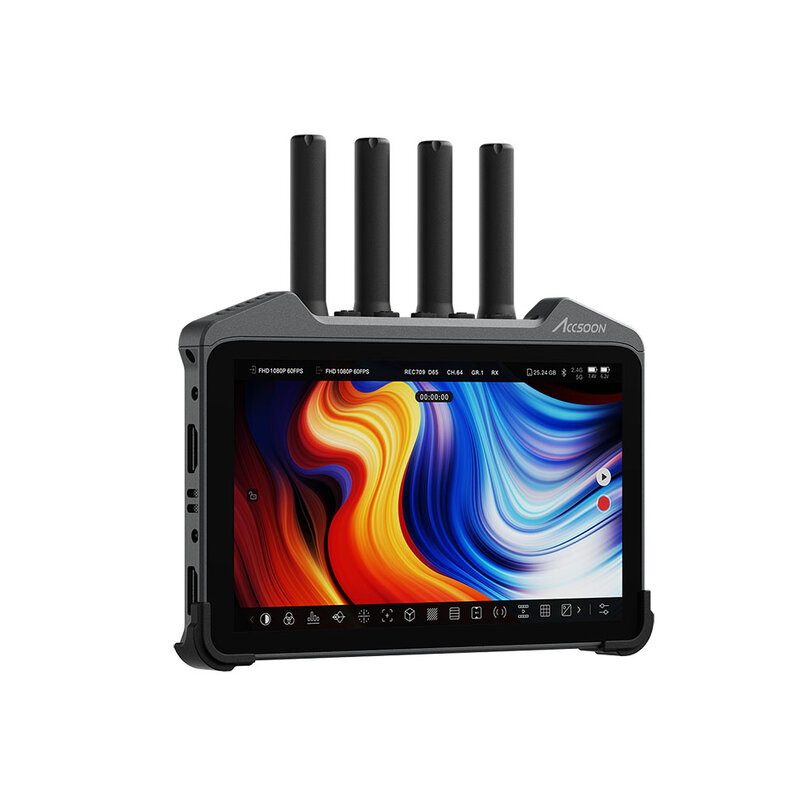

Accsoon CineView M7 Pro is a 7" intelligent touch LCD monitor designed to provide advanced professional monitoring tools and wireless video transmission. With a resolution of 1920 x 1200 pixels, it integrates Wi-Fi 6 to broadcast live streaming directly from the camera via RTMP and SRT protocols, making it ideal for platforms such as YouTube and Facebook. Unlike the basic model, the M7 Pro features a built-in video transmission module, which allows you to receive and transmit video signals up to 4K60 with a latency of approximately 60 ms and a range of 350 m in line of sight.

Thanks to its high-performance chipset, the CineView M7 Pro combines cinematic monitoring tools with advanced transmission features, improving the workflow on set. The Android-based interface allows quick access to visual assistance tools, all of which can be activated via the touchscreen. The monitor supports internal recording of the video signal in H.264 and H.265 formats, with a maximum bitrate of 50 Mbps, and allows you to save files to internal memory, SD card or external SSD via USB Type-C 3.0. You can choose the destination of the recording files, which can be HD or 4K, providing maximum flexibility for professional productions.

It can be used as both a director's monitor and a camera monitor, ensuring cinema-level color accuracy. Each unit is precision-calibrated to ensure accurate control over each frame, meeting different shooting needs.

User benefits

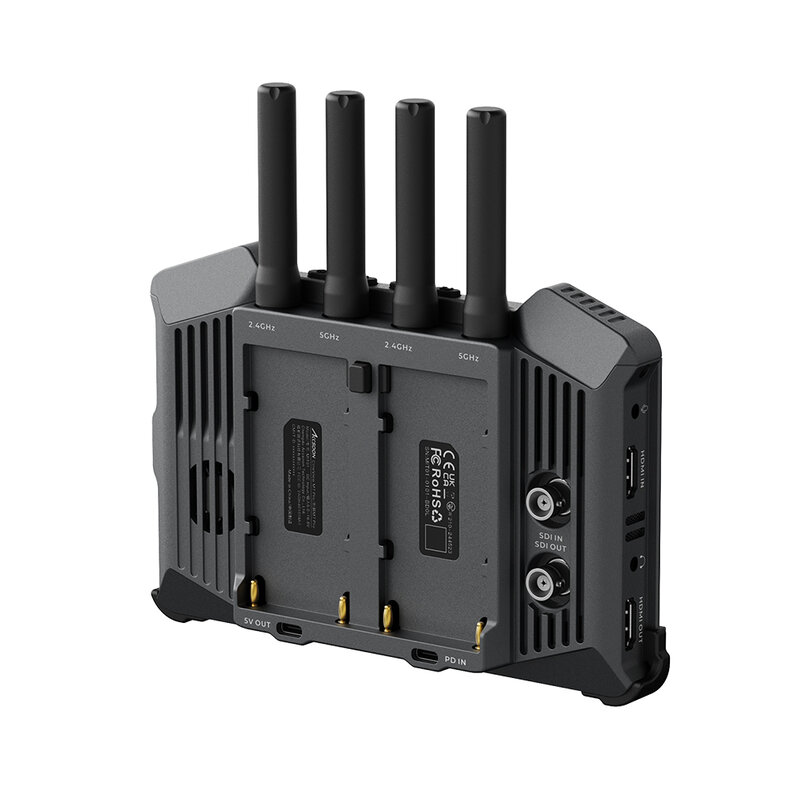

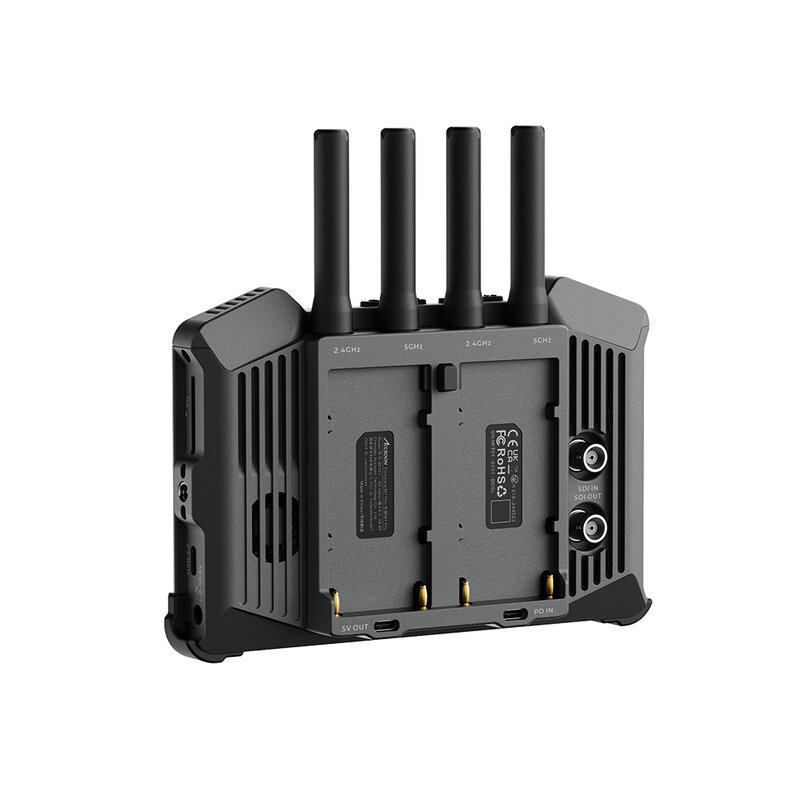

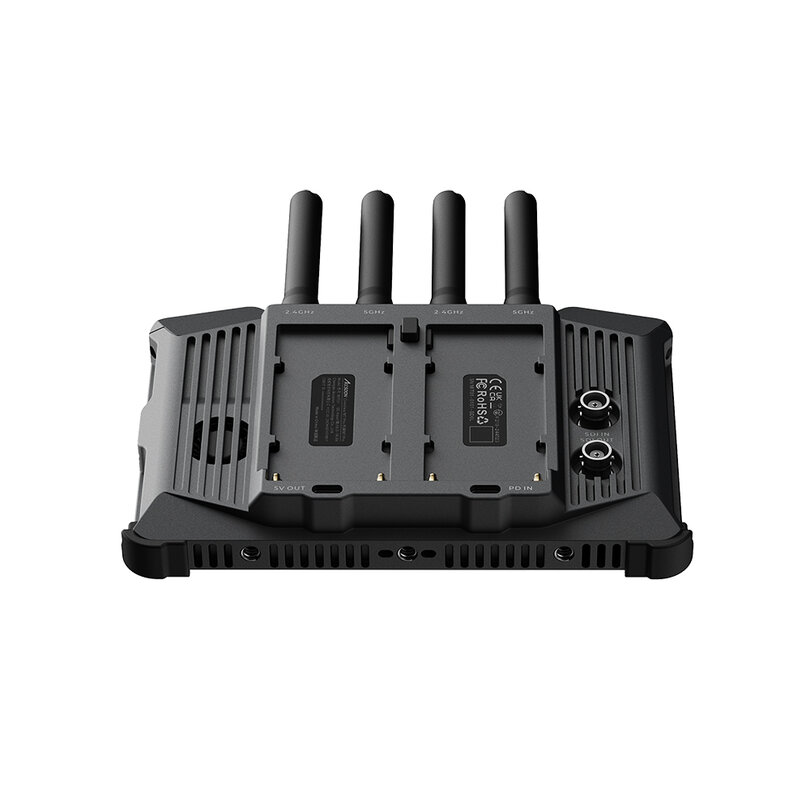

• Built-in video transmission module with four antennas for wireless reception and transmission
• Compatible with the CineView system, allowing reception of signals from Accsoon transmitters
• Accurate color fidelity for professional monitoring
• 4K 60 video inputs and outputs
• SDI and HDMI cross conversion
• Simultaneous SDI and HDMI outputs
• HD / 4K video up / down conversion
• SD card support
• LUT box | real-time viewing application
• Microphone and headphone jack
• USB 3.0 for external storage

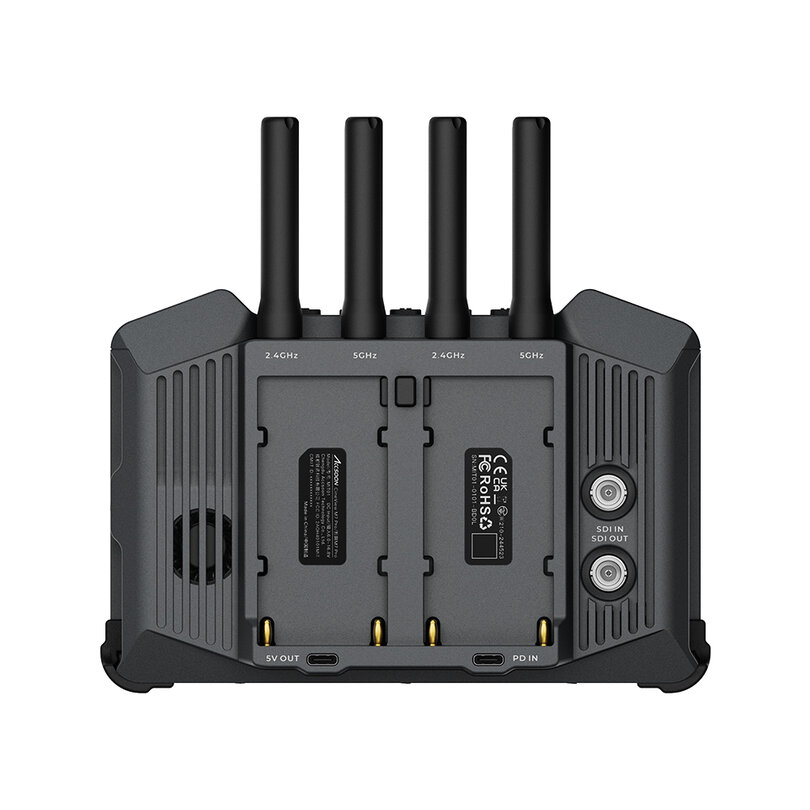

• Supports PD, DC and NP-F power
• Streaming, uploading to cloud, sharing via built-in Wi-Fi

Areas of use

• On-set monitoring, ideal for checking shooting in real time
• Professional multi-camera setups
• Mobile productions
• Instant review of footage

Technical characteristics

• Display screen: 7” LCD
• Touchscreen: ultra high resolution capacitive touchscreen
• Resolution: 1920 × 1080 pixels
• Aspect ratio: 16:9
• PPI: 323
• Brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angle: 176° / 176°
• Backlight type: edge-lit ultra-transparent LED backlight
• Screen color calibration: supported
• LUT: 1D and 3D Cube LUTs supported (1D: up to 4096 points, 3D: up to 127 points)

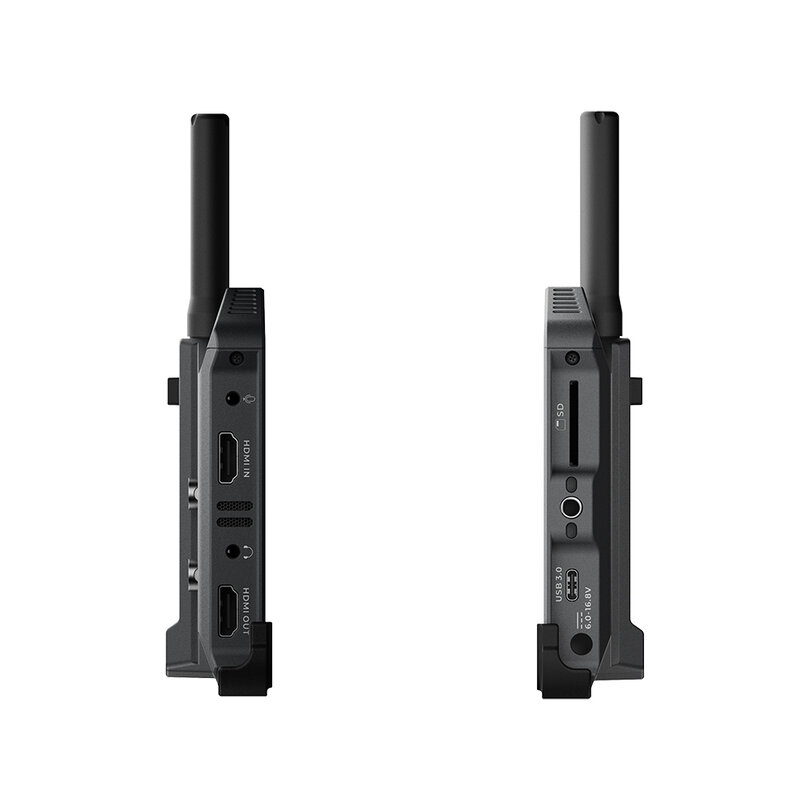

• Video input port: HDMI 2.0 / 3G-SDI
• Video output port: HDMI 2.0 / 3G-SDI
• HDMI video input format:
  • 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080i: 50 / 59.94 / 60
  • 720p: 50 / 59.94 / 60
• SDI video input format:
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A/B)
  • 1080i: 50 / 59.94 / 60
• HDMI video output format:
  • 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080i: 50 / 59.94 / 60
  • 720p: 50 / 59.94 / 60
• SDI video output format:
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A)
  • 1080i: 50 / 59.94 / 60
• DC port: 6.0 - 16.8 V, 5.5 x 2.1 mm, center positive
• Compatible battery: NP-F550, NP-F750, NP-F970
• USB-C power input port: PD 3.0 (9 V 3 A, 12 V 3 A, 15 V 3 A)
• USB-C power output port: max. 5 V / 2 A
• Headphone mini-jack: 3.5 mm CTIA
• Microphone mini-jack: 3.5 mm TRS
• Microphone input audio sampling: 16 bit, 48 kHz
• Power consumption: 12 - 28 W (varies according to actual usage)
• Housing: aircraft-grade aluminium alloy
• Heat dissipation: active + passive cooling
• Wireless transmission latency: 60 ms
• Wireless transmission distance: dual-band connection 350 m
• Work environment temperature: -10 to 40 ℃
• Dimensions: 18.22 × 12.07 × 3.15 cm
• Weight: 494.3 g
