CR-KP4-B - Compact 1‑gang Ethernet keypad, 8 RGB‑backlit buttons, advanced macro execution, scheduling, full customization, black

lei 1.755,21

prices may have variations due to the currency fluctuation

SKU: CR-KP4-B

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Compact 1‑gang Ethernet keypad, 8 RGB‑backlit buttons, advanced macro execution, scheduling, full customization, black

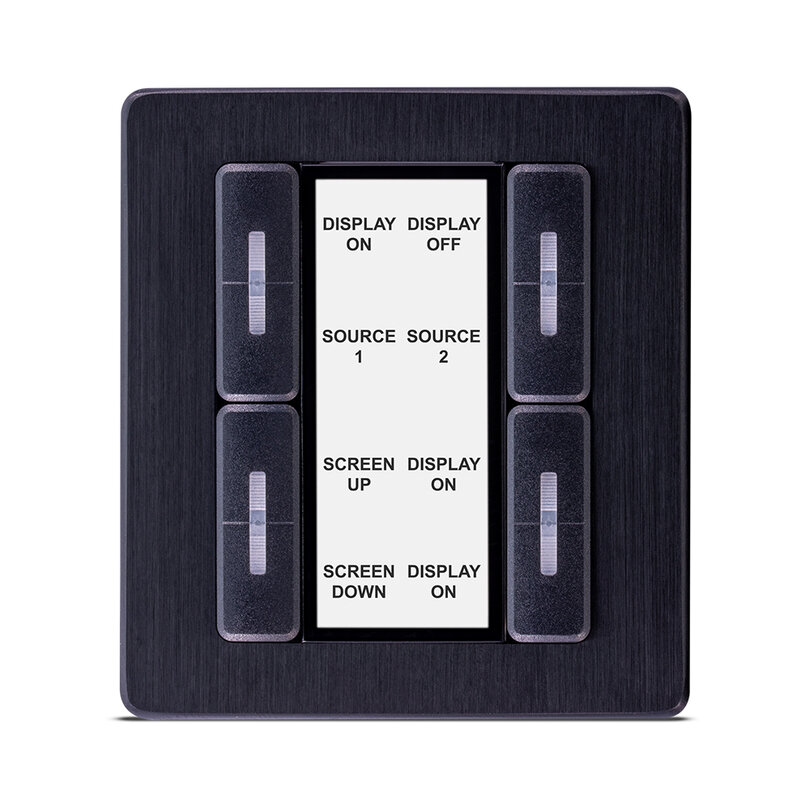

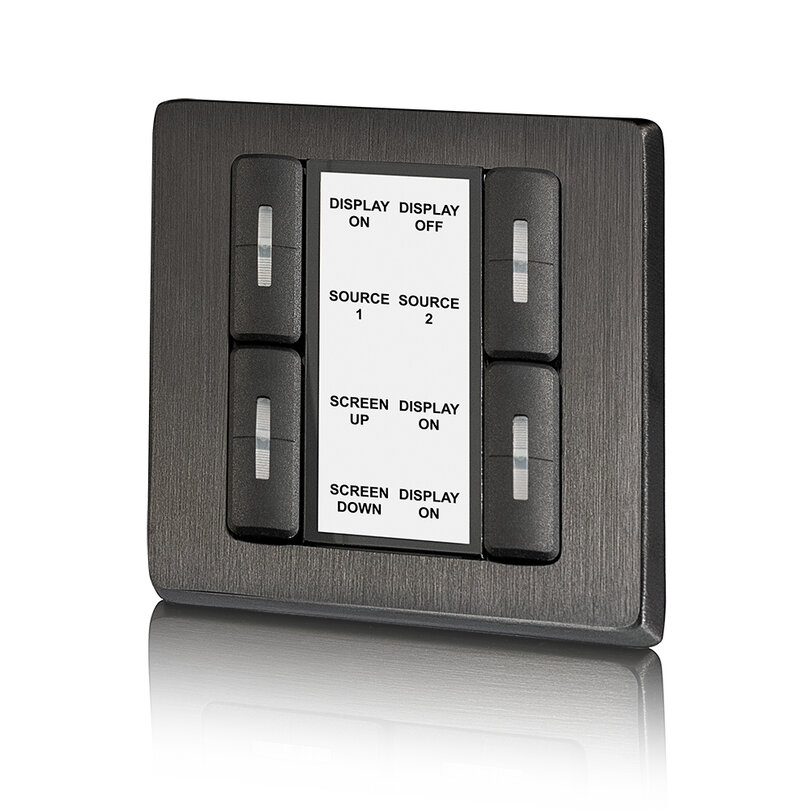

Single-module wall controller with eight RGB backlit buttons, designed to control AV devices and home automation systems via Ethernet.

It can recall up to 32 macros and store up to 128 commands. Control is via WebGUI and Telnet, with the option to program time- and calendar-based events using the internal clock.

PoE support allows for installation without a local power supply, while the RGB backlighting of the buttons ensures high visibility in any environment. The eight-button design offers direct and immediate access to the system's main functions, ensuring simple and intuitive use.

Main features

1-gang design with tri-color LED buttons, available in black (like this one) or white
Up to 32 macros for controlling user equipment
Up to 128 total commands can be stored and used across all system macros (up to 16 per macro)
Programming of date and time-based macros (single and recurring)
Supports condition checking within macro commands for greater flexibility in macro design
One month of backup power for the internal clock and scheduling function, to protect against blackouts and temporary power outages
Supports customizable daylight saving time configuration

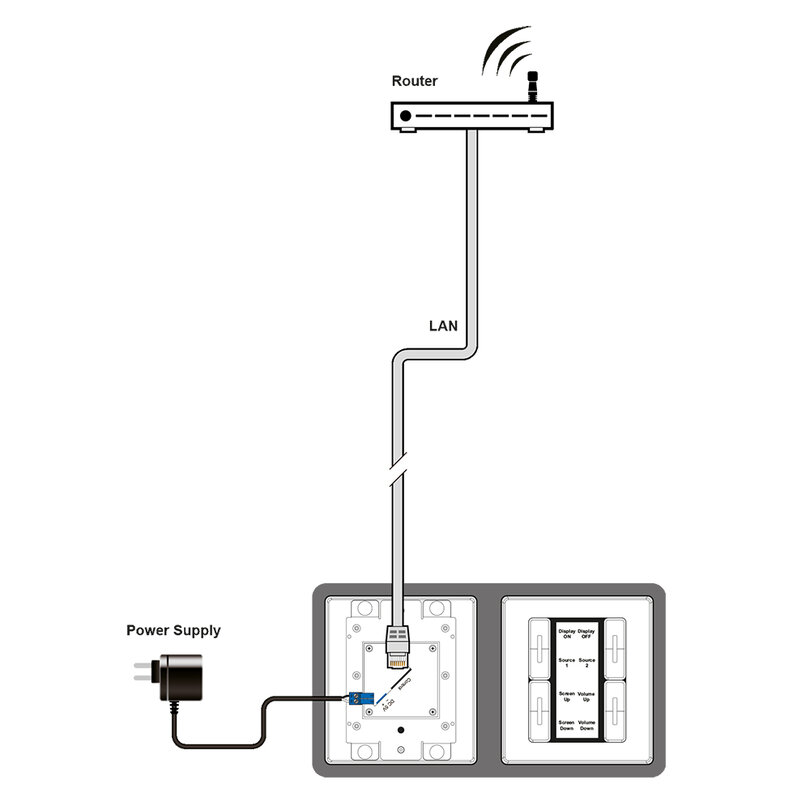

Can be powered by an Ethernet switch that supports the IEEE 802.3af PoE standard
Controllable via keyboard, Telnet, and Web GUI

User benefits

Instant access to key functions with eight dedicated buttons
Clean user experience in any environment with customizable RGB backlighting
Reduce setup times thanks to a simple and intuitive programming interface
Greater reliability in unattended installations
Seamless integration into existing AV and home automation systems via Ethernet
Fully customizable button behavior to adapt to different scenarios

Areas of use

Meeting rooms and conference rooms
Corporate environments with centralized control
Classrooms and training spaces
Advanced residential installations
Showrooms and demonstration spaces
Retail
Hospitality

Technical characteristics

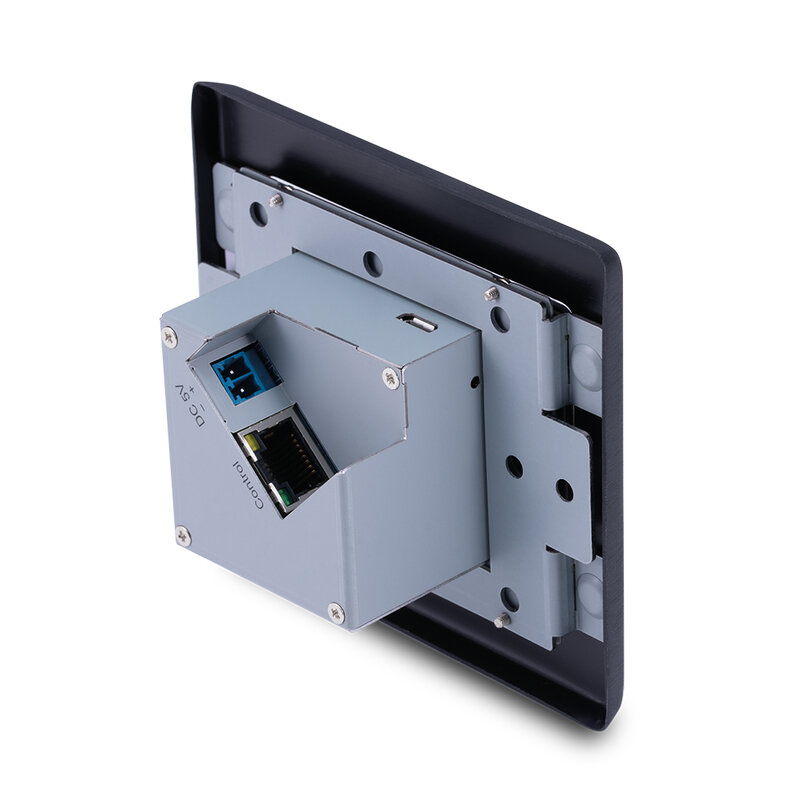

Inputs: 1 × RJ45 (1 × Network IP Control)
POE PSU: PoE
PSU: 5 V 2.6 A
Dimensions (W x H x D): 100 × 90 × 40 mm
Net weight: 160 g

lei 1.755,21

prices may have variations due to the currency fluctuation

SKU: CR-KP4-B

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

CR-KP4-B - Compact 1‑gang Ethernet keypad, 8 RGB‑backlit buttons, advanced macro execution, scheduling, full customization, black

lei 1.755,21

Compact 1‑gang Ethernet keypad, 8 RGB‑backlit buttons, advanced macro execution, scheduling, full customization, black

lei 1.755,21

Download
