PU-507RX - HDBaseT1 receiver with 5‑Play (PoC, LAN, IR, RS 232), up to 100 m over Cat.5e/6/7, 4K UHD support, uncompressed HDMI reception, EDID‑based 4K formats, full control and LAN extension

HDBaseT1 receiver with 5‑Play (PoC, LAN, IR, RS 232), up to 100 m over Cat.5e/6/7, 4K UHD support, uncompressed HDMI reception, EDID‑based 4K formats, full control and LAN extension

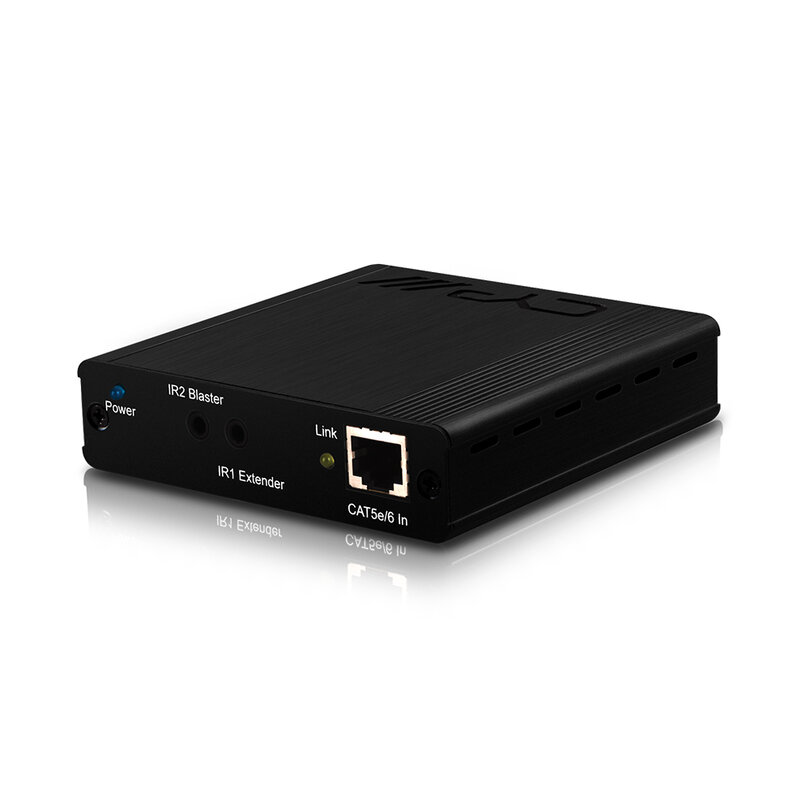

The PU-507RX is an HDBaseT1 receiver designed to receive uncompressed HDMI signals and IP data over a single Cat. 5e/6/7 cable. It works in conjunction with the PU-507TX.

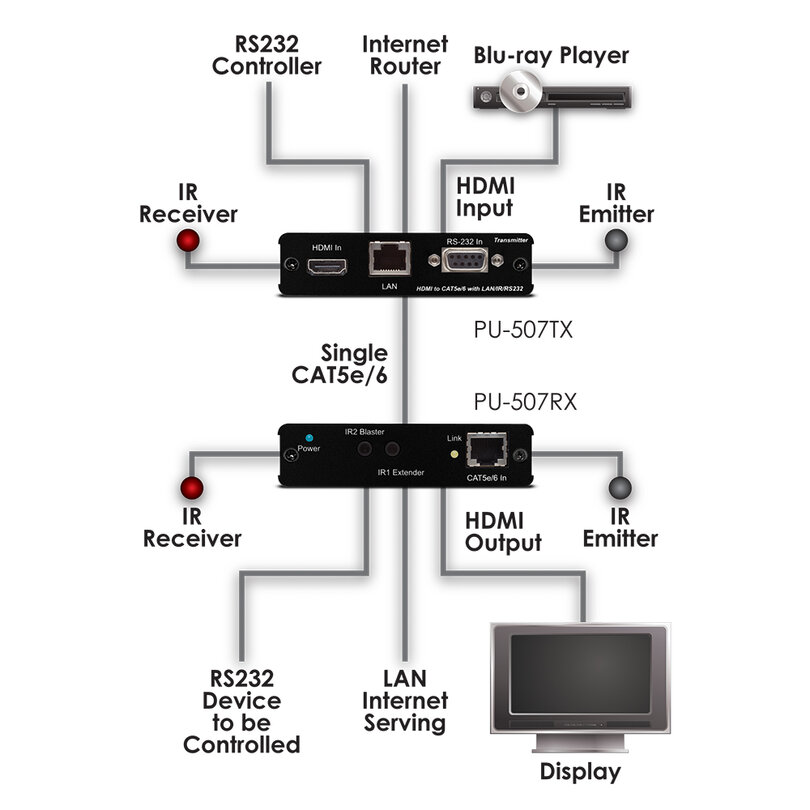

The device integrates 5-Play technology, which enables the combined distribution of video, audio, LAN, PoC, RS-232, and bidirectional IR control over the same Cat.5e/6/7 cable. It supports resolutions up to 4K UHD, with variable distances depending on the cable type and display EDID.

It is suitable for professional AV installations requiring stable HDMI distribution, remote control, and in-line power.

Main features

• HDCP 2.2 compliant
• Supports all HDMI v1.4 resolutions plus 4K
• Uncompressed video/audio up to 10.2 Gbps
• VGA - WUXGA resolutions, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) according to the display's EDID
• HDMI, HDCP, and DVI Compliant
• HDCP Repeating and CEC functions
• 4K/2K and 4K UHD signals can be transmitted up to 70 m via Cat.5e/6 and up to 100 m via Cat.6a/7
• Uncompressed video 1080p 60 Hz 48-bit
• Audio up to 7.1 CH and Dolby TrueHD, DTS-HD
• 5-Play convergence: HDMI, LAN, PoC, and control (IR and RS-232)
• Supports 3D signals

User benefits

• Stable HDMI reception up to 100 m via a single Cat.5 cable
• Combined distribution of AV, LAN, PoC, and control over a single connection
• Compatibility with 4K UHD signals for modern AV installations
• Multi-channel audio support for professional AV systems
• Simplified integration thanks to 5-Play convergence

Areas of use

• Corporate AV (meeting rooms, executive suites, training rooms, conference rooms)
• Educational (classrooms, auditoriums, campus AV)
• Hospitality (hotels, conference centers)
• Rental & staging (live events, service, temporary installations)

Technical characteristics

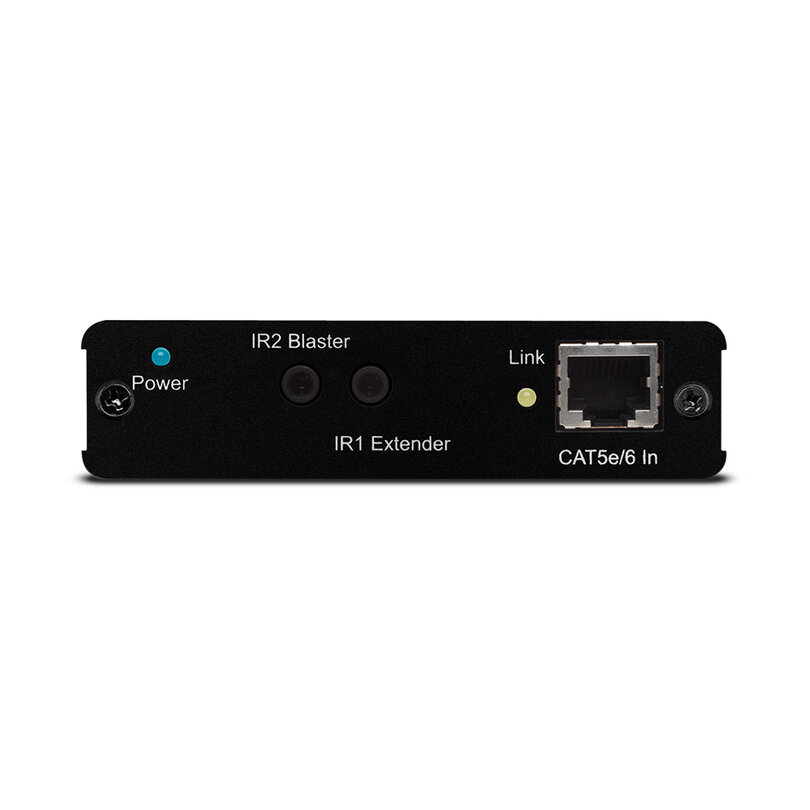

• Inputs:

  • 1 × RJ45 (HDMI and propriety data)
  • 1 × 3.5 mm stereo mini-jack (infrared receiver)

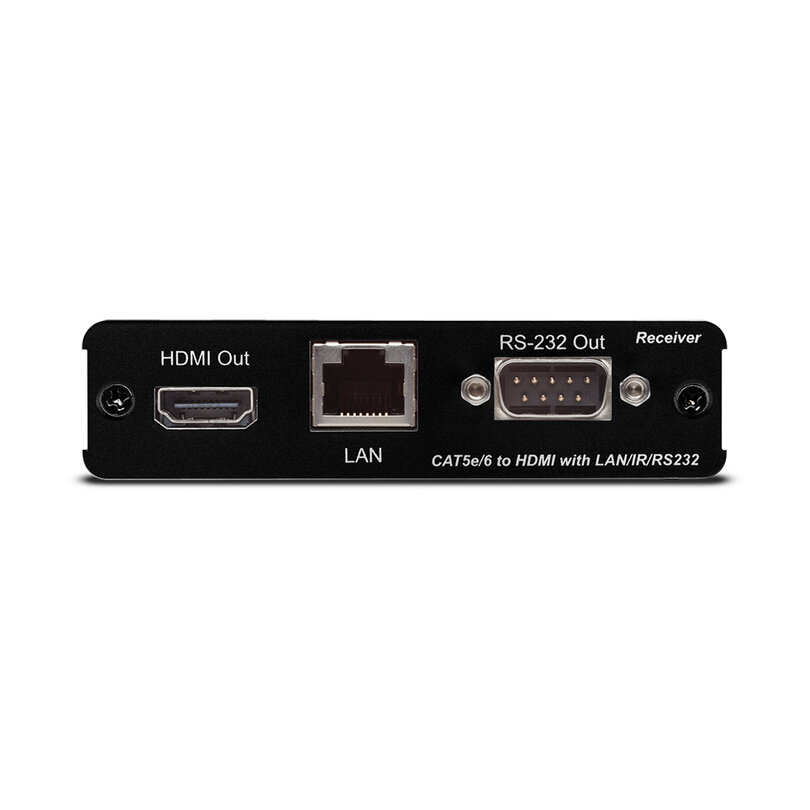

• Outputs:

  • 1 × HDMI (HDMI uncompressed AV and data)
  • 1 × 9-pin Dsub (RS-232 data)
  • 1 × 3.5 mm stereo mini-jack (infrared emitter)
  • 1 × RJ45 [Ethernet (I/O) IP]
• PSU: PoC
• Dimensions (W × H × D): 10.2 × 2.5 × 10.2 cm
• Net weight: 260 g
