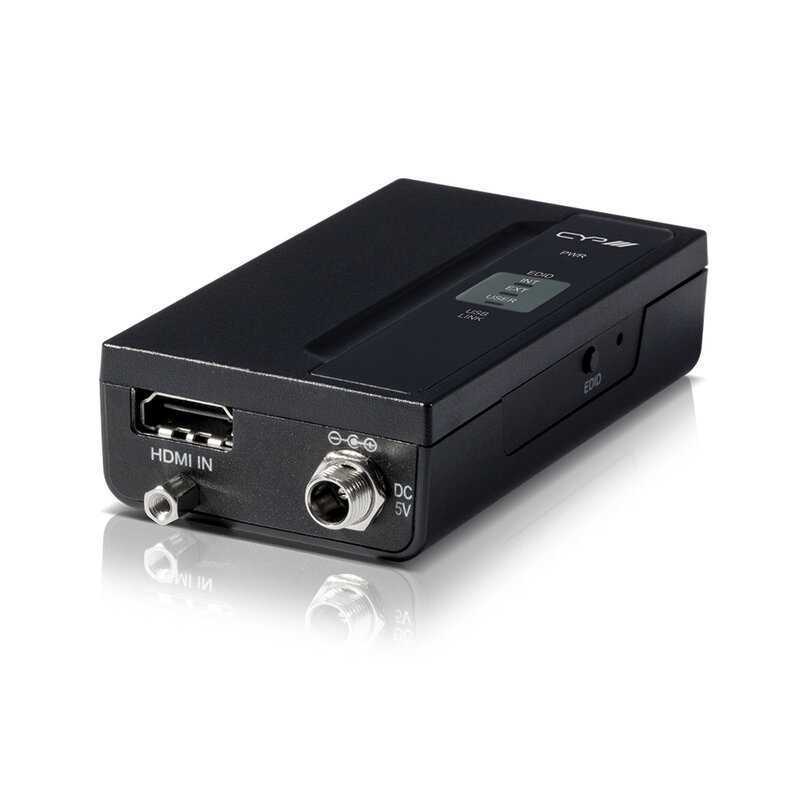

Compact 4K HDMI repeater with EDID management, 18 Gbps signals support, custom EDID creation, stable 4K @ 60 4:4:4 extension up to 5 m
HDMI repeater designed to regenerate, stabilize, and extend up to 5 additional meters of high-bandwidth 4K UHD HDMI signals at up to 18 Gbps. It supports HDMI 2.0, HDCP 1.4/2.2, and resolutions up to 4K @ 60 Hz 4:4:4.
It features an integrated EDID management system that allows you to quickly select between internal, external, or custom EDID. Using the optional PC software, you can create, edit, upload, or download custom EDIDs. The selector switch and LED indicators provide an instant view of the unit's status and the active EDID mode.
The repeater supports Deep Color up to 48-bit at 1080p and 36-bit at 4K, as well as pass-through for major audio formats, including LPCM 7.1, Bitstream, and HD Bitstream.
Main features
- HDMI input and output with 18 Gbps (600 MHz) 4K UHD support
- DVI 1.0 compatible with an HDMI-to-DVI adapter
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 3840 × 2160 @ 60 Hz (4:4:4, 8-bit) and 4096 × 2160 @ 60 Hz (4:4:4, 8-bit)
- 48-bit Deep Color up to 1080p @ 60 Hz and 36-bit Deep Color up to 4K @ 60 Hz (YUV 4:2:0)
- Supports LPCM 7.1, Bitstream, and HD Bitstream audio formats pass-through
- Selectable EDID: internal, external, and custom

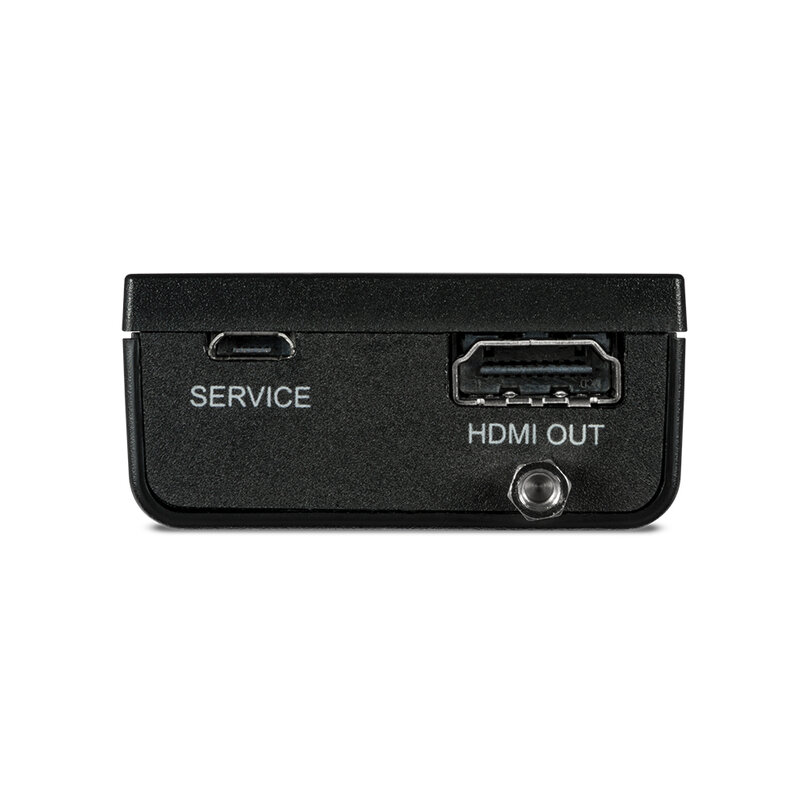

- PC software for EDID management via port Micro-USB
- LED display easily shows the current EDID and unit status
User benefits
- Extension of high-bandwidth 4K HDMI signals without degradation
- Greater compatibility thanks to internal / external / custom EDID management
- Ability to create custom EDIDs via PC software
- Immediate status display via LED and dedicated selector
- Improved signal reliability in installations with critical cabling
Areas of use
- 4K AV installations requiring short-distance HDMI extension
- Integration between sources and displays with incompatible EDIDs
- Conference rooms and meeting rooms
- Where 4K UHD HDMI signal stabilization is required
Technical characteristics

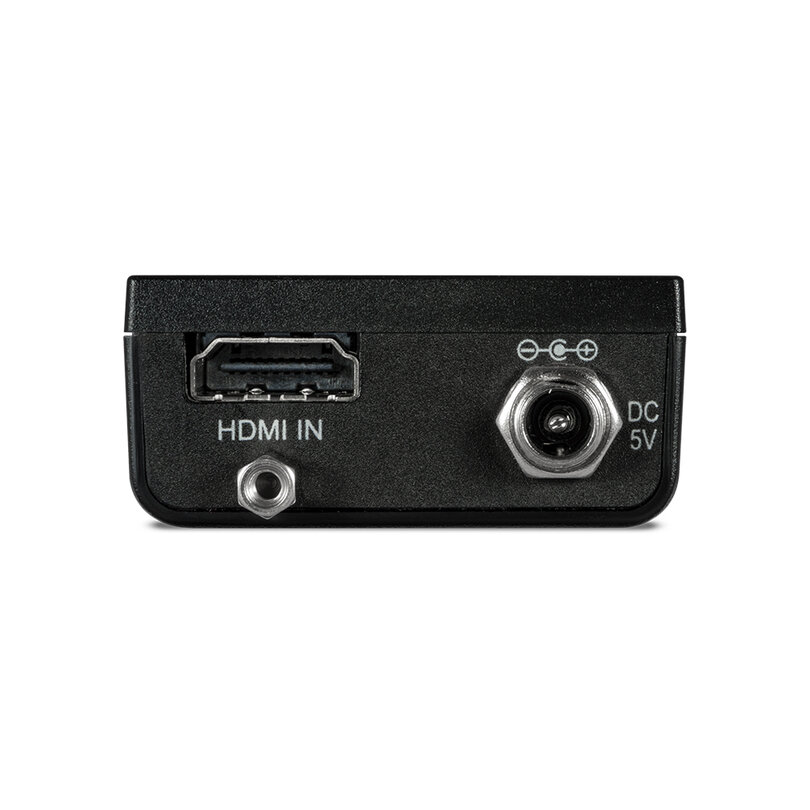

- Inputs:
- 1 × HDMI (1 × HDMI uncompressed AV and data)
- Outputs:
- 1 × HDMI (1 × HDMI uncompressed AV and data)
- PSU: 5 V / 2.6 A
- Dimensions (W × H × D): 5 × 2.25 × 8.5 cm
- Weight: 40 g
