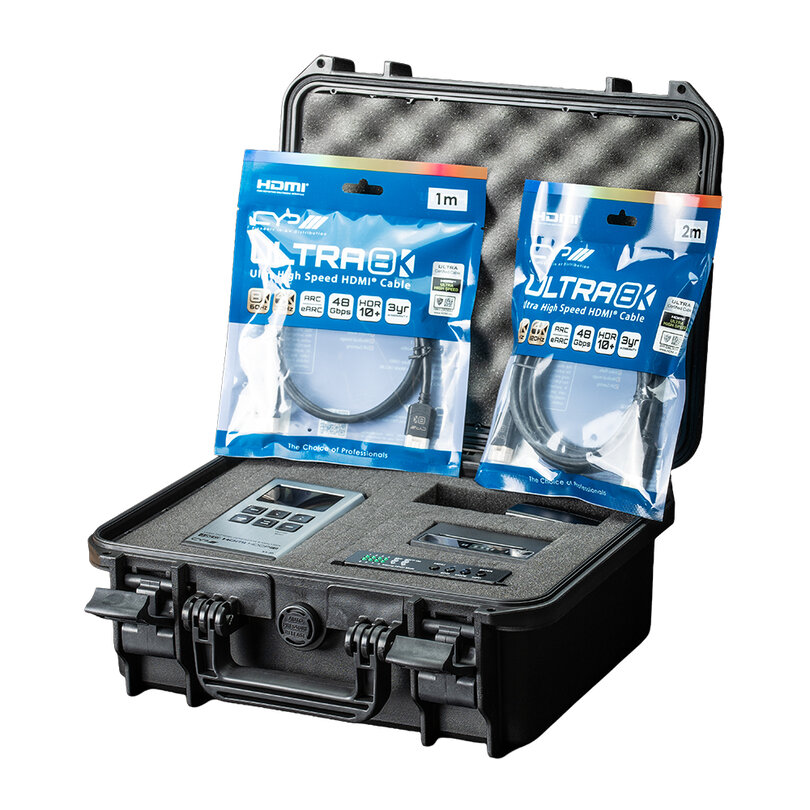

SKU: XA-FAKThe XA-FAK is a quick-fix kit designed for AV installers: a compact bag containing a targeted selection of the CYP products listed below, designed to quickly resolve the most common installation issues.
It's not a classic "toolbox," but a set of essential devices that allows you to address unexpected situations such as short cables, signals that don't lock, audio that doesn't pass, or abnormal source behavior. It's the "just-in-case" kit to keep with you at all times, useful for avoiding delays, maintaining workflow, and resolving unexpected issues typical of professional installations on-site.
Supplied with the XA-CASE (XA Analyzer Hard Case).
Product list:

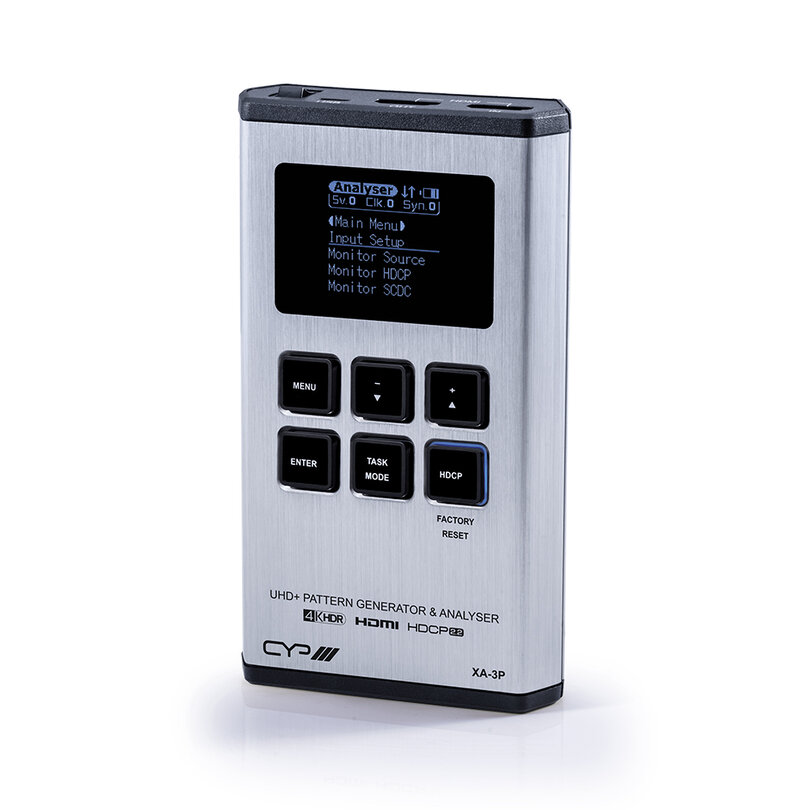

XA-3P
The XA-3P is the ideal partner for quickly verifying and diagnosing all elements of an HDMI signal path, including the source, cable, and display.
Testing the integrity of an HDMI cable is essential for any AV installer, especially with the increasing demands of 4K and HDR content. Cable Testing mode allows you to verify whether an HDMI cable can fully support signals up to 18 Gbps, with results displayed on the built-in LCD or an external monitor.
Compatible with HDMI 2.0a and HDCP 1.4/2.2, the device integrates numerous analysis functions: cable testing up to 18 Gbps, pattern generator with 23 resolutions and 11 selectable patterns, EDID management with presets and user slots, SCDC monitoring, and HDMI packet analysis. Analyzer mode also includes a scaler that allows downscaling from 4K UHD to 1080p. The front controls are simple to use, and the HDMI connections are easily accessible on the top of the unit.
The XA-3P is battery-powered for maximum portability in demanding installations; the battery can be recharged or powered via the USB port.
Ultimately, it's an indispensable tool for installers, technicians, and integrators who need to quickly verify HDMI signal quality and compatibility in the field.

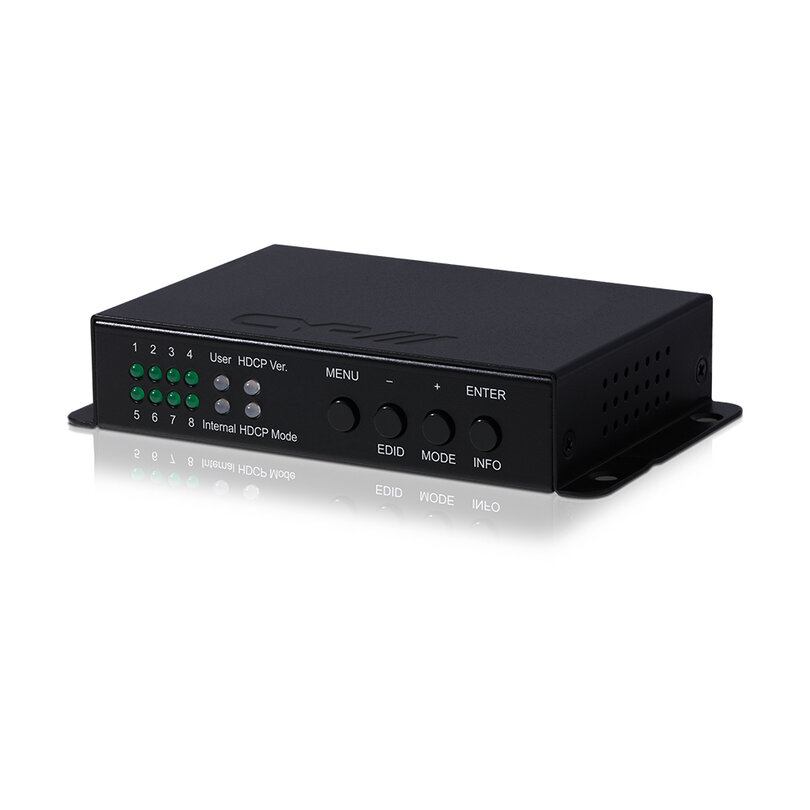

RE-101-4K22
HDMI repeater designed to regenerate, stabilize, and extend up to 5 additional meters of high-bandwidth 4K UHD HDMI signals at up to 18 Gbps. It supports HDMI 2.0, HDCP 1.4/2.2, and resolutions up to 4K @ 60 Hz 4:4:4.
It features an integrated EDID management system that allows you to quickly select between internal, external, or custom EDID. Using the optional PC software, you can create, edit, upload, or download custom EDIDs. The selector switch and LED indicators provide an instant view of the unit's status and the active EDID mode.
The repeater supports Deep Color up to 48-bit at 1080p and 36-bit at 4K, as well as pass-through for major audio formats, including LPCM 7.1, Bitstream, and HD Bitstream.

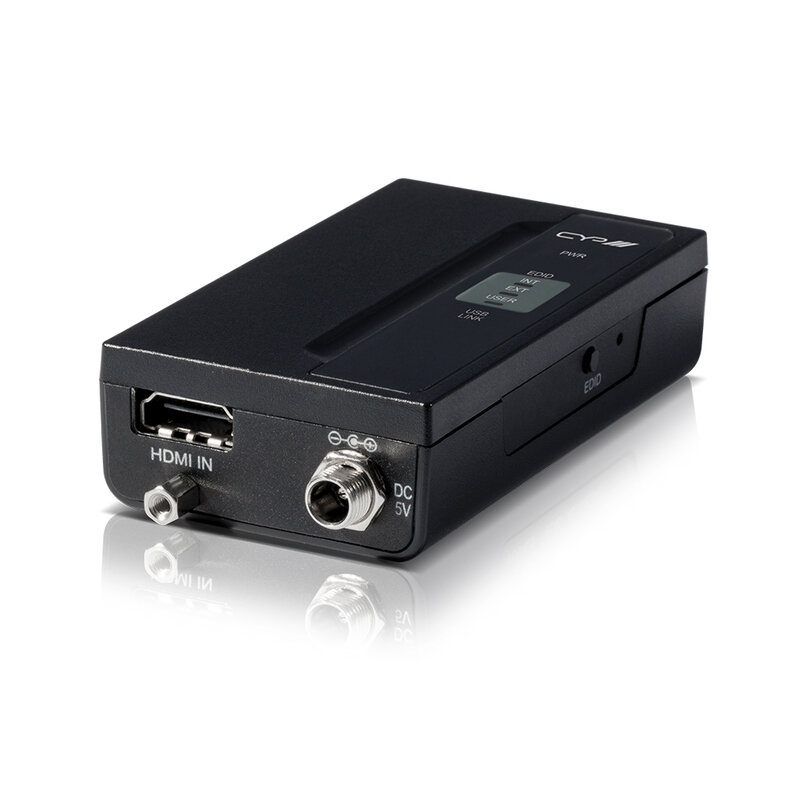

RE-EDID-4K22
RE-EDID-4K22 is designed to manage the HDMI/DVI EDID information supplied to an HDMI source device from a connected display.
The EDID contains critical information about the capabilities of the connected display, including audio and video format support, HDMI feature support, and more. This product aims to simplify the technical complications that often arise during video system integration, home theater installation, commercial display integration, or audio / video equipment testing. It also supports EDID emulation and bypass modes.

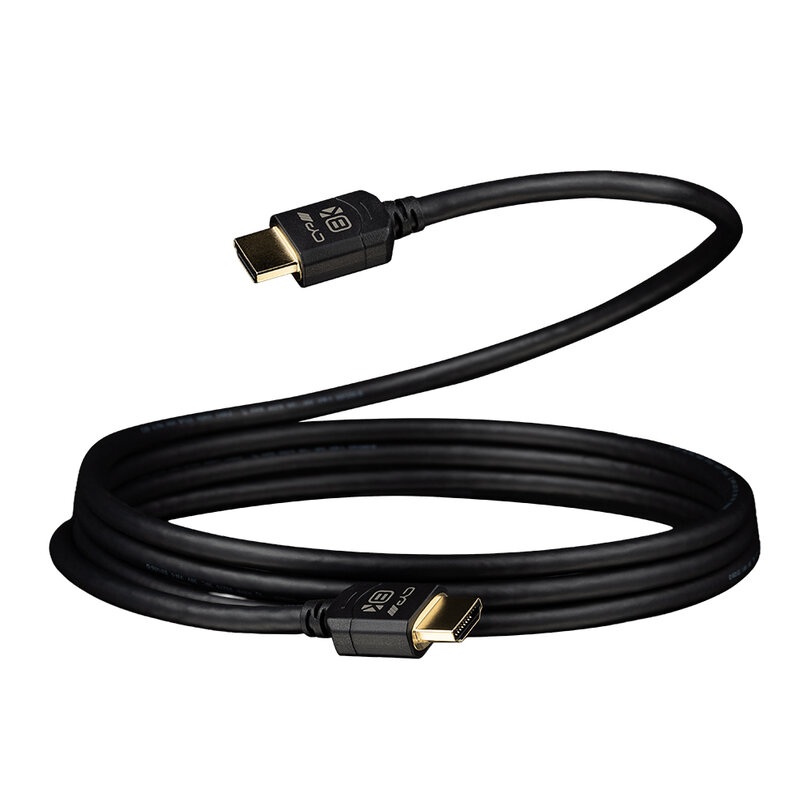

HDMU-100M
The HDMU-100M is a certified 1m Ultra High Speed HDMI cable, designed to ensure the highest quality transmission of AV content up to 8K @ 60 Hz and 4K @ 120 Hz according to HDMI 2.1 specifications. Thanks to insulated metal connectors and advanced shielding, it ensures high performance even in the most demanding installations, where reliability and durability are essential.
The cable supports a bandwidth of 48 Gbps and all the features required by the HDMI 2.1 standard, including HDR, VRR, eARC, CEC, 3D, Deep Color, and HDMI Ethernet Channel. Compatibility with advanced audio formats such as Dolby Atmos, DTS:X, and multi-channel LPCM makes it ideal for home theater systems, AV matrix switchers, and applications requiring high resolution.
Ultra High Speed HDMI certification ensures that each cable has been tested for low EMI emissions and full compliance with standards, reducing interference with wireless networks, Bluetooth devices, and mobile devices.
HDMU-200M
The HDMU-200M is a certified 2 m Ultra High Speed HDMI cable, designed to ensure the highest quality transmission of AV content up to 8K @ 60 Hz and 4K @ 120 Hz according to HDMI 2.1 specifications. Thanks to insulated metal connectors and advanced shielding, it ensures high performance even in the most demanding installations, where reliability and durability are essential.
The cable supports a bandwidth of 48 Gbps and all the features required by the HDMI 2.1 standard, including HDR, VRR, eARC, CEC, 3D, Deep Color, and HDMI Ethernet Channel. Compatibility with advanced audio formats such as Dolby Atmos, DTS:X, and multi-channel LPCM makes it ideal for home theater systems, AV matrix switchers, and applications requiring high resolution.
Ultra High Speed HDMI certification ensures that each cable has been tested for low EMI emissions and full compliance with standards, reducing interference with wireless networks, Bluetooth devices, and mobile devices.
Technical characteristics
XA-3P
RE-101-4K22
RE-EDID-4K22
HDMU-100M
HDMU-200M
