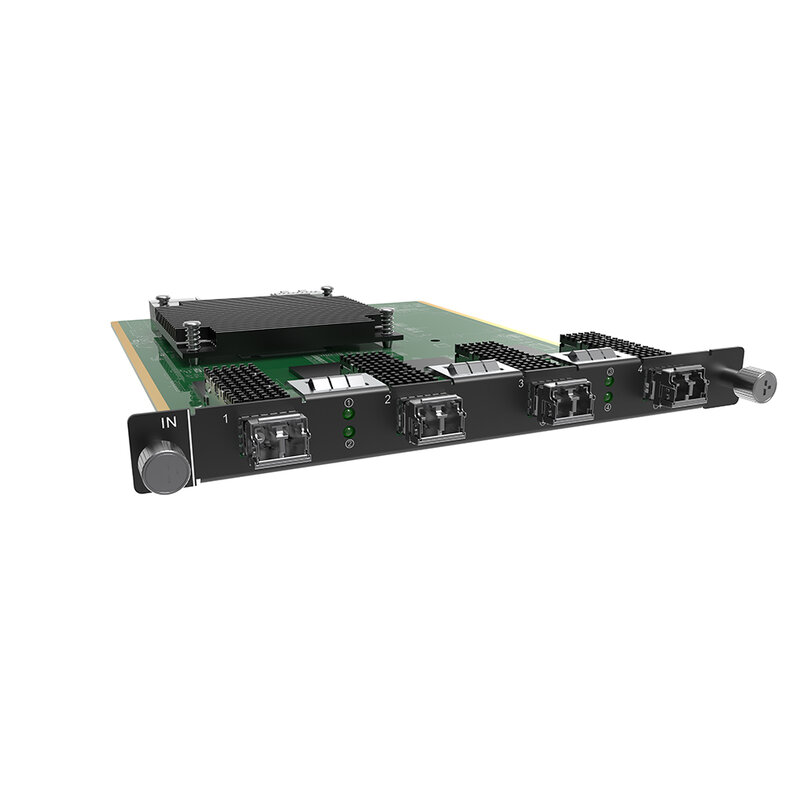

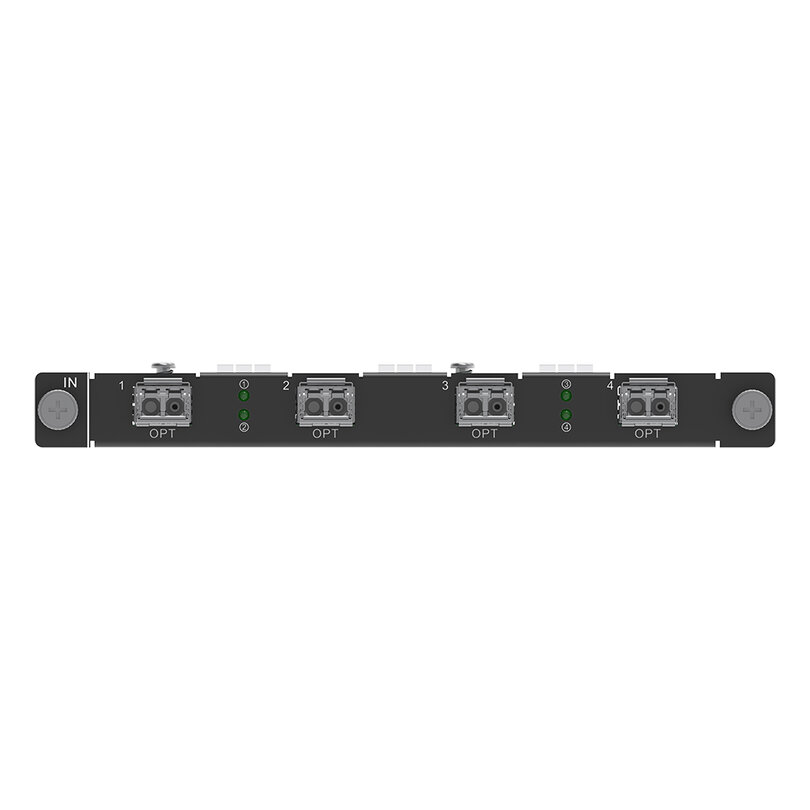

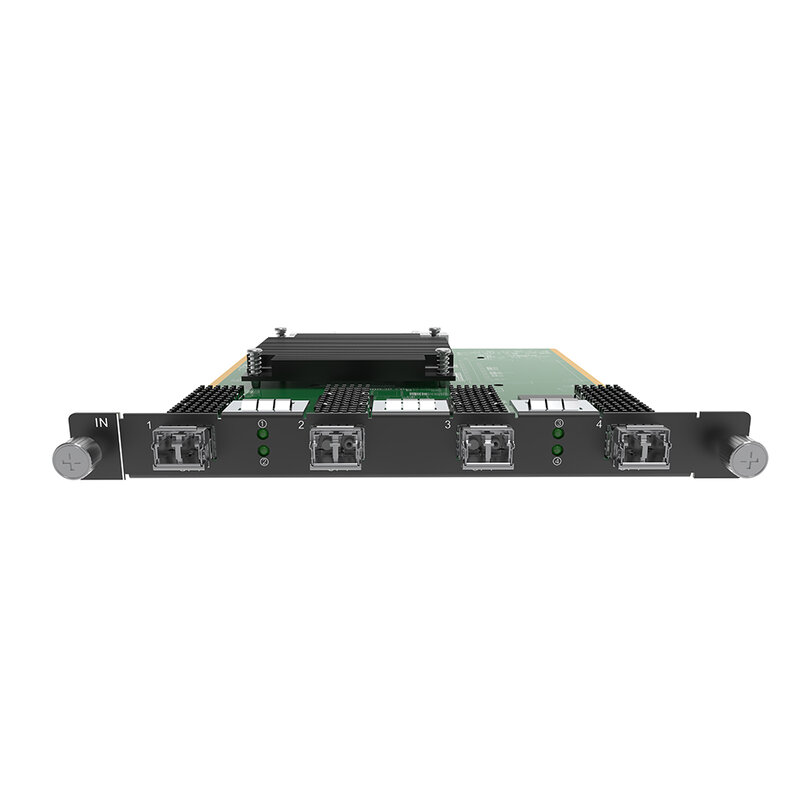

H_4xFiber input card - 4 x 10G OPT ports, each connector supports the max. resolution of 4096 x 2160 @ 30 Hz, up to 2 x SL inputs or 1 x DL input for each connector, use with NovaStar's H series

zł 11.570,76

prices may have variations due to the currency fluctuation

SKU: M09090054

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

4 x 10G OPT ports, each connector supports the max. resolution of 4096 x 2160 @ 30 Hz, up to 2 x SL inputs or 1 x DL input for each connector, use with NovaStar's H series

4 x OPT 10G input card. Each connector supports a maximum resolution of 4096 x 2160 @ 30 Hz, up to 2 SL inputs or 1 DL input. Supports input mosaic. For use with NovaStar H series.

Main features

4 x 10G OPT ports
- Each connector supports a maximum resolution of 4096 x 2160 @ 30 Hz
- Up to 2 SL inputs or 1 DL input per connector
- Supports mosaic input
- Two input modes: independent and mosaic
- Supports automatic identification of input source resolution and color space
- Supports 144 Hz input
- The optical module supports SFP+ encapsulation. Supported module specifications include the following:
  - Multi-mode optical module: 10G SFP+ SR optical module
  - Single-mode optical module: 10G SFP+ LR optical module
- No input resolution settings are allowed
- In standalone mode, only two OPT ports (OPT 1-2 or OPT 3-4) can be used for SL input
Status LED:
- ON: The corresponding port has a signal
- OFF: The corresponding port has no signal

Notes:

For the H_4xfiber input card, four 10G SFP+ LR optical modules are included with the card and are already installed in the OPT ports
For the H_4xfiber-M input card, four 10G SFP+ SR optical modules are included with the card and are already installed in the OPT ports

Technical characteristics

Dimensions: 19.3 x 24.71 x 2.11 cm
Weight: 550 g

zł 11.570,76

prices may have variations due to the currency fluctuation

SKU: M09090054

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

H_4xFiber input card - 4 x 10G OPT ports, each connector supports the max. resolution of 4096 x 2160 @ 30 Hz, up to 2 x SL inputs or 1 x DL input for each connector, use with NovaStar's H series

zł 11.570,76

4 x 10G OPT ports, each connector supports the max. resolution of 4096 x 2160 @ 30 Hz, up to 2 x SL inputs or 1 x DL input for each connector, use with NovaStar's H series

zł 11.570,76
