Seamless Professional Scaler and Switcher - Video processor for seamless conversion and switching between multiple video sources, advanced EDID management, Picture-in-Picture (PIP)

Video processor for seamless conversion and switching between multiple video sources, advanced EDID management, Picture-in-Picture (PIP)

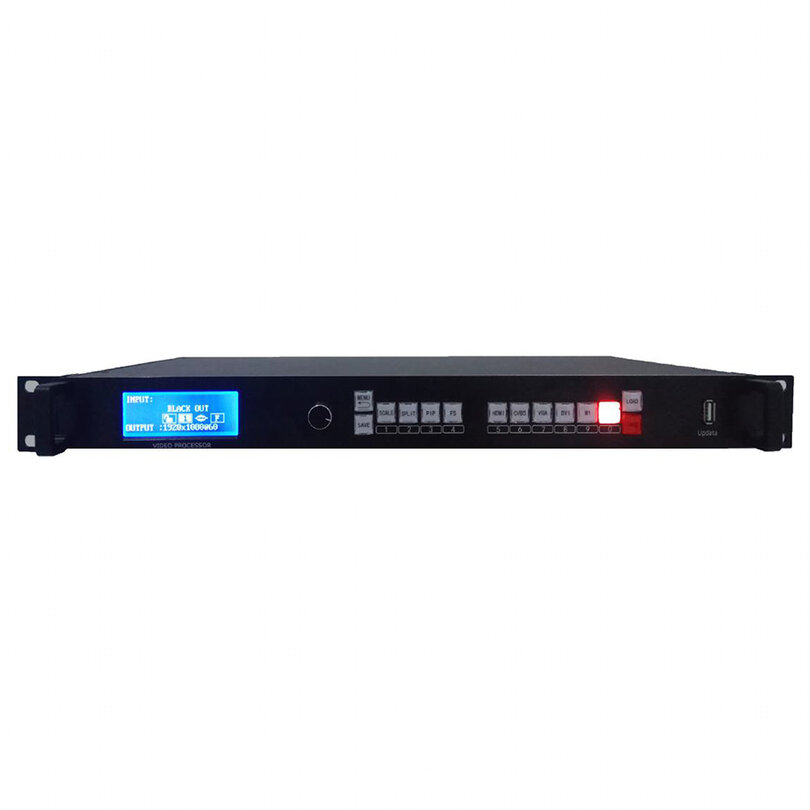

The 2K L1-S video processor is a professional device designed for seamless conversion and switching between different video sources.

It offers advanced EDID management, allowing optimal compatibility with various devices. It supports the Picture-in-Picture (PIP) function, allowing multiple sources to be displayed simultaneously in any position and size. In addition, it is equipped with two integrated transmission cards and an automatic input backup system, ensuring reliable operation even in the event of problems with the main source.

The device allows advanced customization, with over 2.5 million possible combinations of output resolutions, and supports cascading, useful for complex configurations. Finally, control is via an open protocol, offering flexibility in integration with other systems.

User benefits

• Smooth switching between video sources without visible interruptions
• Picture-in-Picture (PIP) for displaying multiple contents simultaneously in any position and size
• Advanced EDID management for optimum compatibility with various devices
• Cascading for complex and scalable configurations
• Two built-in transmission cards for greater operational efficiency
• Automatic input backup for reliable operation even in the event of failure
• Open protocol control for flexible integration with other systems

Areas of use

• Live events
• Presentations
• Broadcast and video production
• Control and monitoring

Technical characteristics

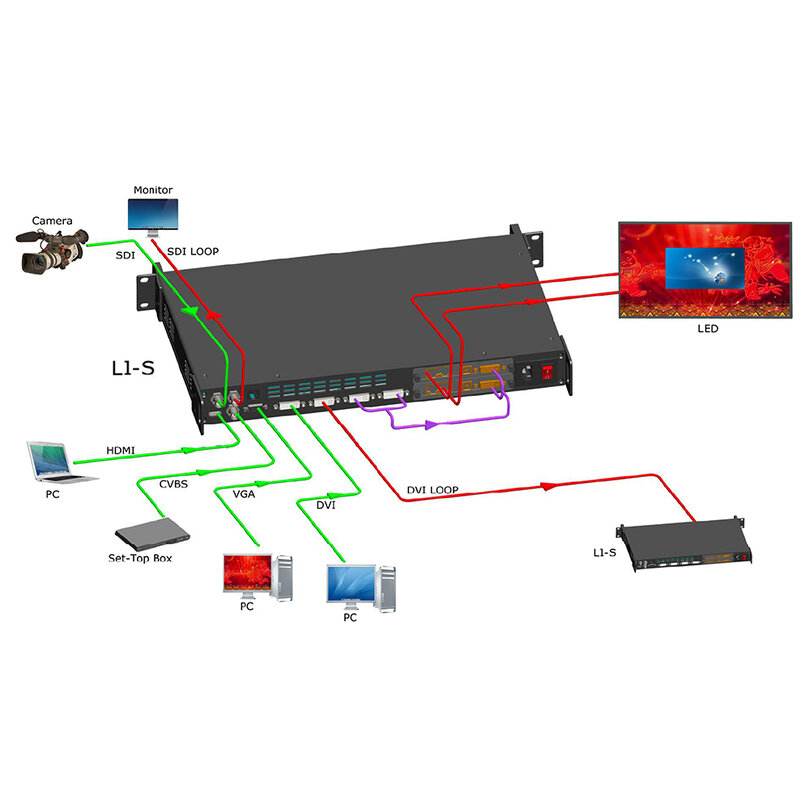

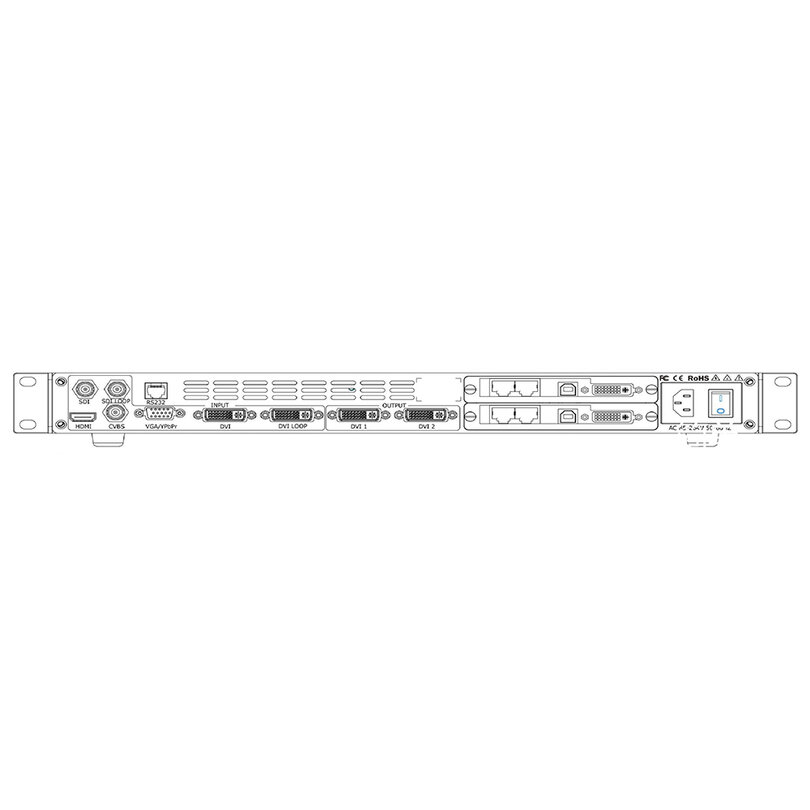

• Inputs (standard):
  • 1 x DVI
  • 1 x HDMI
  • 1 x VGA
  • 1 x CVBS
• Inputs (optional):
  • 1 × SDI
• Outputs (standard):
  • 2 x DVI
  • 1 x VGA
• Operation: RS232  open protocol control
• Input formats:
• • DVI - VESA: 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200, 2048 x 1152
  • HDMI - SMPTE standards:  480i, 576i, 720p, 1080i, 1080p - VESA: 800 x 600, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 960, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1920 x 1080, 1920 x 1200, 2048 x 1152
  • VGA - 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200
  • CVBS -  SMPTE: 480i, 576i
  • YPbPr - SMPTE: 480i, 576i, 480P, 576P, 720p, 1080i, 1080p
  • SDI - 480i, 576i, 720p, 1080i, 1080p, 1080psf
• Output formats:
  • SMPTE: 720p, 1080p
  • VESA: 1024 x 768, 1280 x 720, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1920 x 1080, 1920 x 1200, 2048 x 1152, 2560 x 816, 1024 x 1280, 1152 x 1152, 1280 x 1280, 1536 x 1536, 2560 x 1024, 2560 x 1600, 3840 x 540
• Standards support:
  • SDI: SD-SDI, HD-SDI, 3G-SDI
  • VGA: VGA-UXGA
  • HDMI 1.3
  • DVI: single link, dual link
• Input power: 100 - 264 V_AC (typical 110 / 220 V_AC) 50/60 Hz
• Max. power: 20 W
• Temperature: -25 to 55 ℃ (typical 25 ℃)
• Operating humidity: 20 - 90%

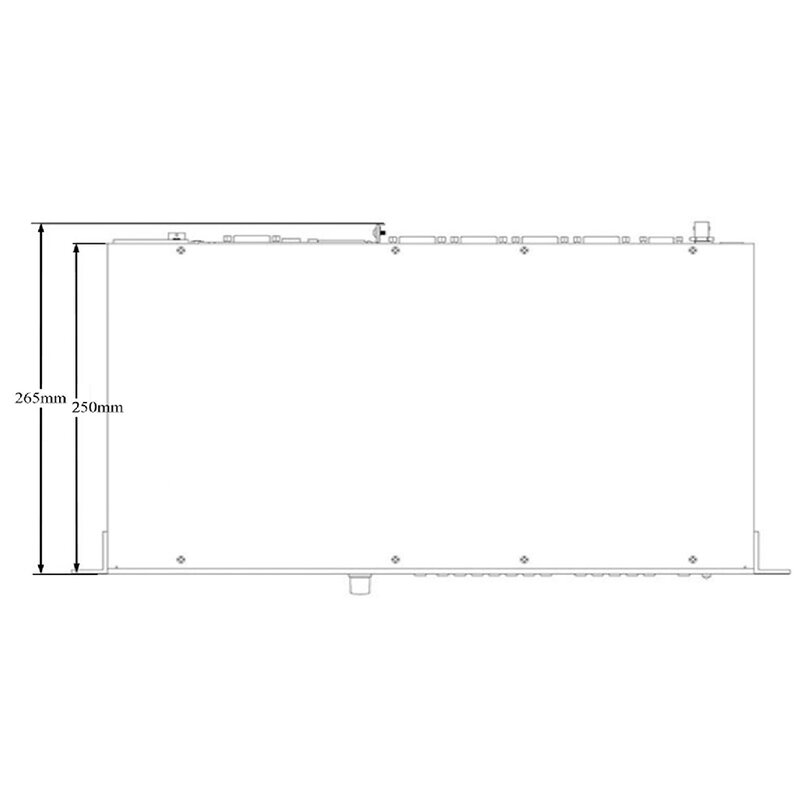

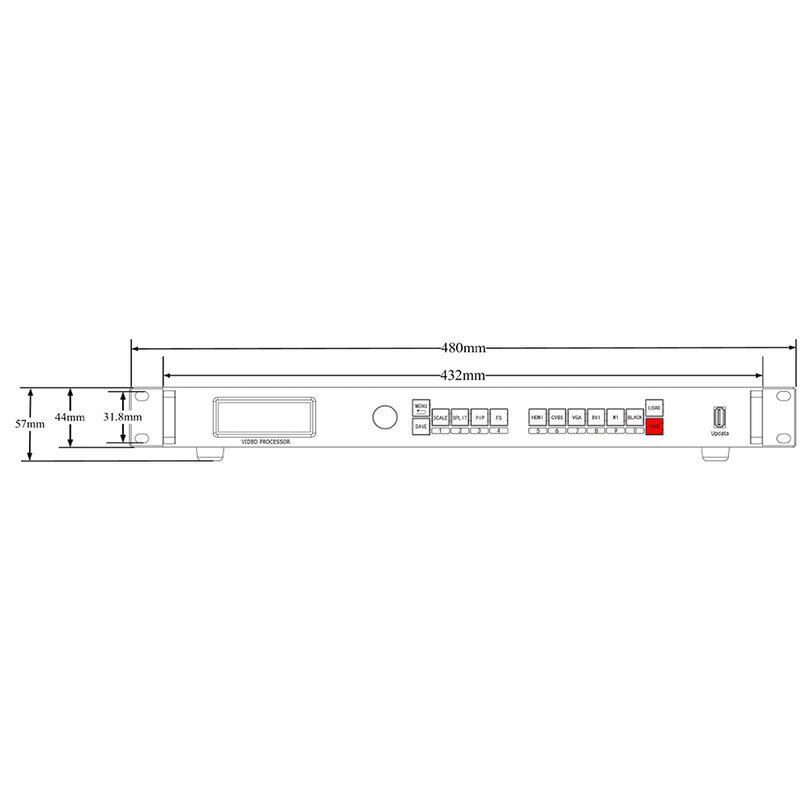

• Device dimensions: 48 x 26.5 x 4.4 cm
• Packed dimensions: 52 x 40 x 15 cm
• Device weight: 2 kg
• Packed weight: 3 kg
