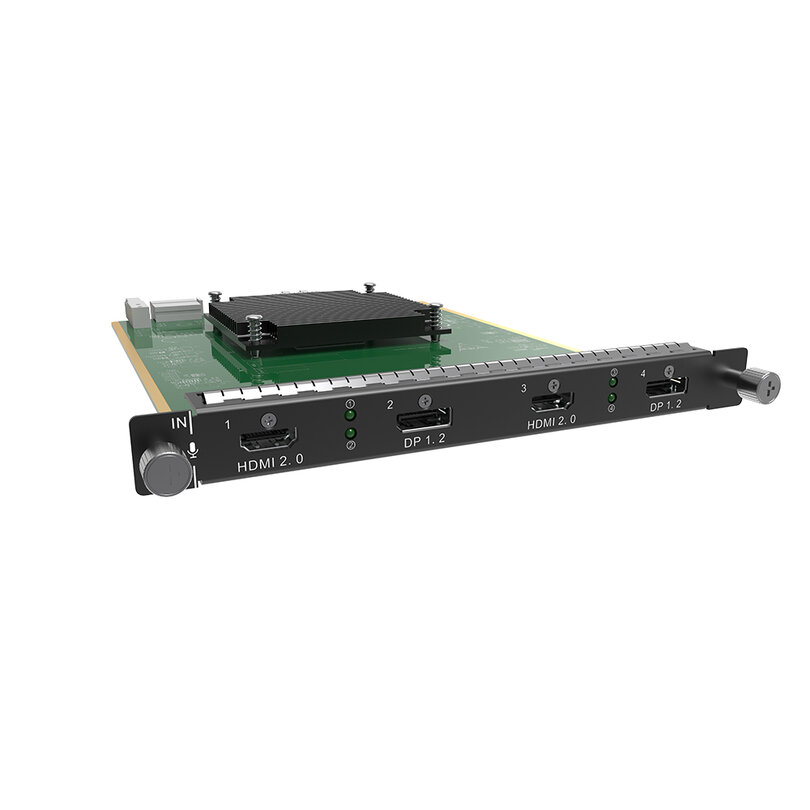

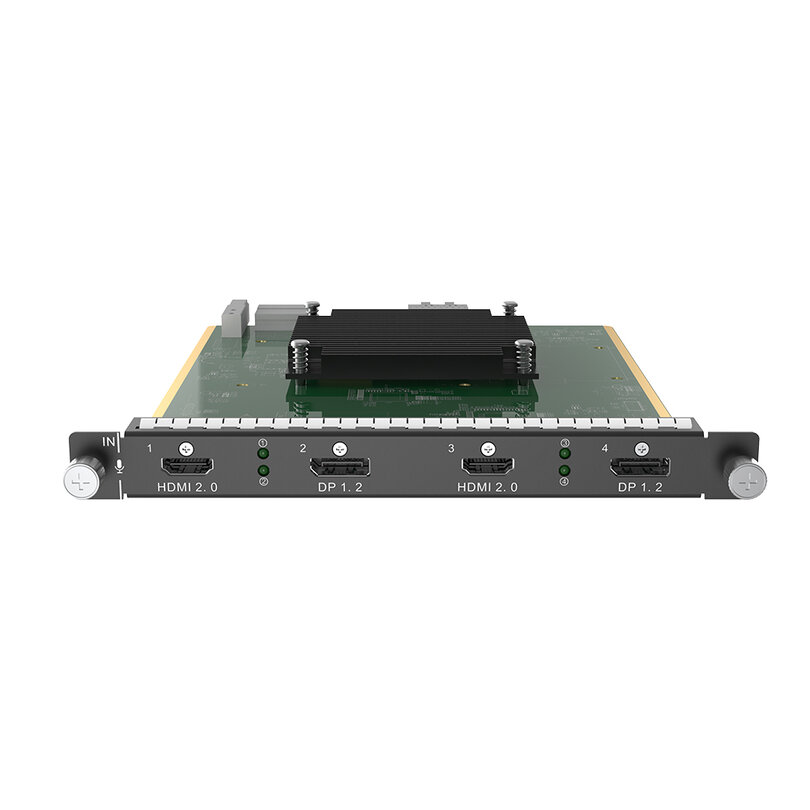

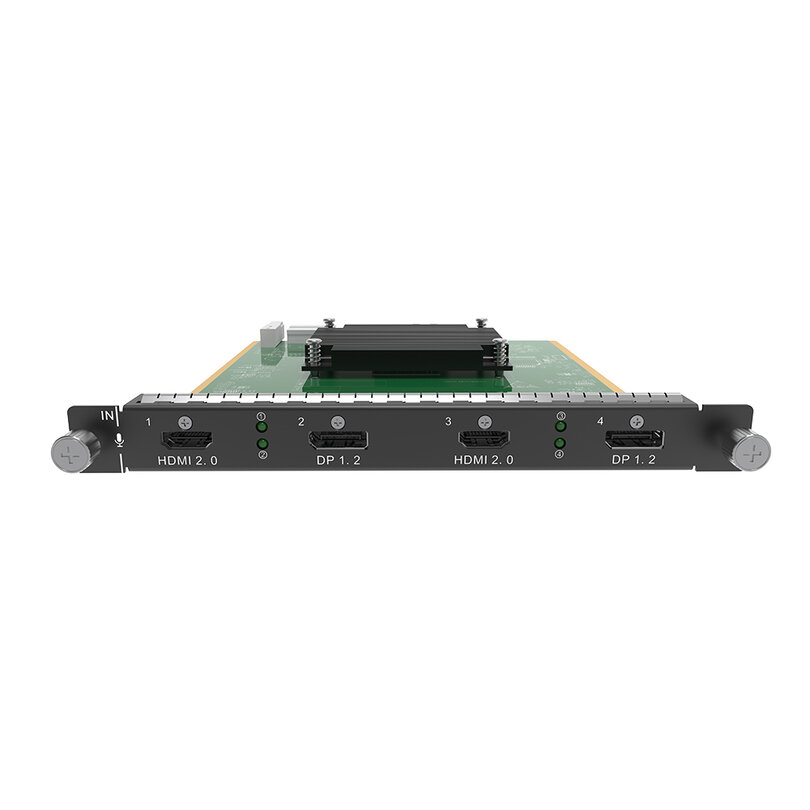

H_2xHDMI2.0+1xDP1.2 input card(Only used on the f - 1 x HDMI2.0 + 1 x DP1.2 input card, supporting high-res audio and 144 Hz, no interlaced signals, use with NovaStar's H series

lei 15.257,07

prices may have variations due to the currency fluctuation

SKU: M04020191

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

1 x HDMI2.0 + 1 x DP1.2 input card, supporting high-res audio and 144 Hz, no interlaced signals, use with NovaStar's H series

1 x HDMI 2.0 + 1 x DP 1.2 input card, supporting high-resolution audio and 144 Hz. For use with the NovaStar H series.

Only one connector can be used at a time. The default option is HDMI 2.0. Interlaced signal input is not supported.

Main features

1 x HDMI 2.0:
- Backward compatible with HDMI 1.4 and HDMI 1.3
- Supports a maximum resolution of 3840 x 2160 @ 60 Hz
- Compliant with HDCP 2.2
- Custom resolutions:
  - Max. width: 4092 pixels (4092 x 2261 @ 60 Hz)
  - Max. height: 4095 pixels (2188 x 4095 @ 60 Hz)
1 x DP 1.2:
Backward compatible with DP 1.1
Supports a maximum resolution of 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 HzCompliant with HDCP 2.2
Custom resolutions:
- Max. width: 8192 pixels (8192 x 1146 @ 60 Hz)
- Max. height: 4095 pixels (2188 x 4095 @ 60 Hz)
Status LED:
- ON: the input source is accessible normally
- OFF: no input source is accessible or the input source is abnormal

lei 15.257,07

prices may have variations due to the currency fluctuation

SKU: M04020191

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

H_2xHDMI2.0+1xDP1.2 input card(Only used on the f - 1 x HDMI2.0 + 1 x DP1.2 input card, supporting high-res audio and 144 Hz, no interlaced signals, use with NovaStar's H series

lei 15.257,07

1 x HDMI2.0 + 1 x DP1.2 input card, supporting high-res audio and 144 Hz, no interlaced signals, use with NovaStar's H series

lei 15.257,07
