H_2×Audio In+2×Audio Out Output Card - 2 x audio input + 2 x audio output card, 48 kHz sampling, single / dual channels, advanced output options, use with NovaStar's H Series

$ 1.658,23

prices may have variations due to the currency fluctuation

SKU: M09090052

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

2 x audio input + 2 x audio output card, 48 kHz sampling, single / dual channels, advanced output options, use with NovaStar's H Series

2 input + 2 output audio card with 48 kHz sampling rate, single/dual channels, and advanced output options. For use with the NovaStar H Series.

Main features

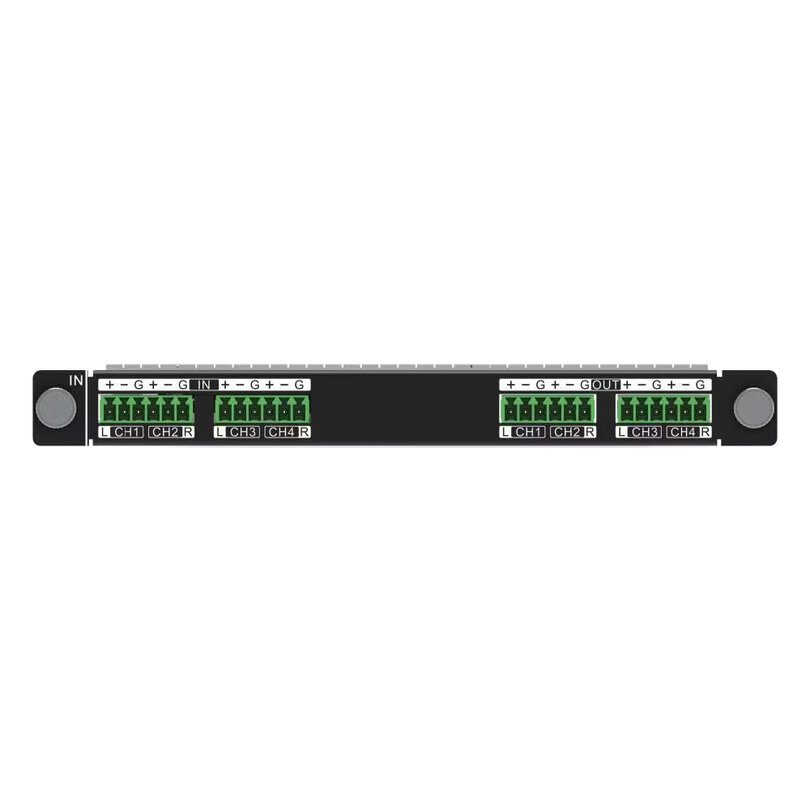

Single channel: 4 Phoenix audio inputs, 4 Phoenix audio outputs
Dual channel: 2 Phoenix audio inputs, 2 Phoenix audio outputs
Audio sampling rate: 48 kHz
When using single-channel balanced audio as the audio source, both the input and output channels are four
When using dual-channel balanced audio as the audio source, both the input and output channels are halved
The card can output both the audio embedded in the video signals input to the H Series frame and the audio from its analog inputs
Supports output volume adjustment and one-click mute
Single-channel and dual-channel switching
Audio output delay supported

Technical characteristics

Power consumption: 9.4 W
Dimensions: 19.3 x 24.71 x 2.11 cm
Weight: 550 g
