FAST 2 con alimentatore ridondante interno.
Technical characteristics
Connectivity & interface

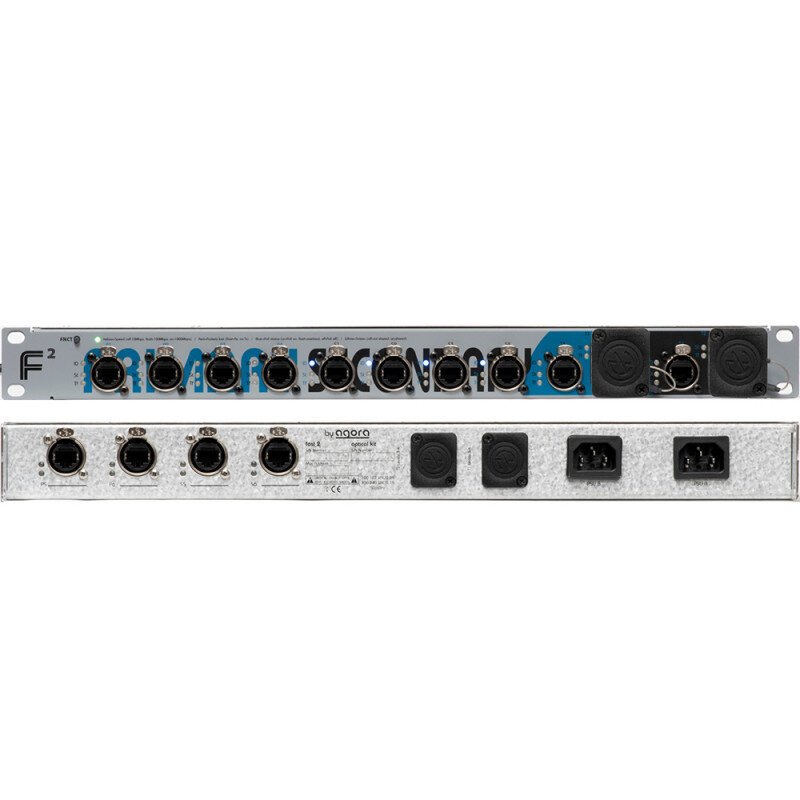

| Front panel | 8 x 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (4 primary / 4 secondary) 2 x 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (1 primary / 1 secondary) 3 LEDs (STATUS, TRAFFIC, ID) on each etherCON port 1 x multipurpose LED 1 x configuration and navigation function switch |
| Rear panel | 4 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON ports (2 primary / 2 secondary) 2 x power cord (redundant internal power supply option - 10/16 A – connectors IEC13 lock) |
| Software | Telnet protocol for up to 100 devices connected Offline editor mode Service and maintenance window |
Processing
| Motherboard | l x ARM9E: 800 MHz 2 x 64 MB DDR3 SDRAM 128 MB flash memory Dataflow: up to 2 x 14.9 Mbps Switching capacity: 2 x 20 Gbps |
| Network | 99 x groups available Capacity of 2 x 8 K MAC Address IEEE 802.lp Oos |
General
| Power consumption | 100 - 127 VAC 3.2 A, 200 - 240 VAC 1.6 A |
| Power supply | 100 - 240 VAC 50/60 Hz |
| Idle power (1) | 8 W |
| Maximum power rating (2) | 17 W |
| Storage temperature / humidity | -40 °C to 70 °C / 10 - 90% without condensation |
| Operating temperature / humidity | 0 °C to 40 °C / 10 - 90% without condensation |
| Acoustic | without fan |
| Altitude | up to 3000 m |
| Size (W x D x H) | 400 x 482.6 x 43.6 mm |
| Weight (without options) | 3.8 kg |
1 - Idle power is the actual power consumption of the device with no ports connected
2 - Maximum power
Agora
F2 - FAST 2 - 12 x 1 Gbit user ports (6 x primary + 6 x secondary) with 2 x 1 Gbit transmit ports (1 x primary + 1 x secondary)
Agora
F2.GM - FAST 2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik with multi-mode (front panel)
Agora
F2.GM.R - FAST 2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik with multi-mode (front panel) and internal redundant power supply
Agora
F2.GMQ - FAST 2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC Neutrik with multi-mode (front panel) and recovery of fiber 3/4 on the rear DUAL OC
Agora
F2.GMQ.R - FAST 2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC Neutrik with multi-mode (front panel), recovery of fiber 3/4 on the rear DUAL OC and internal redundant power supply
Agora
F2.GS - FAST 2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik with single-mode (front panel)
Agora
F2.GS.R - FAST 2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik with single-mode (front panel) and internal redundant power supply
Agora
F2.GSQ - FAST 2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC Neutrik with single-mode (front panel) and recovery of fiber 3/4 on the rear DUAL OC
Agora
F2.GSQ.R - FAST 2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC Neutrik with single-mode (front panel), recovery of fiber 3/4 on the rear DUAL OC and internal redundant power supply
