Disponibile

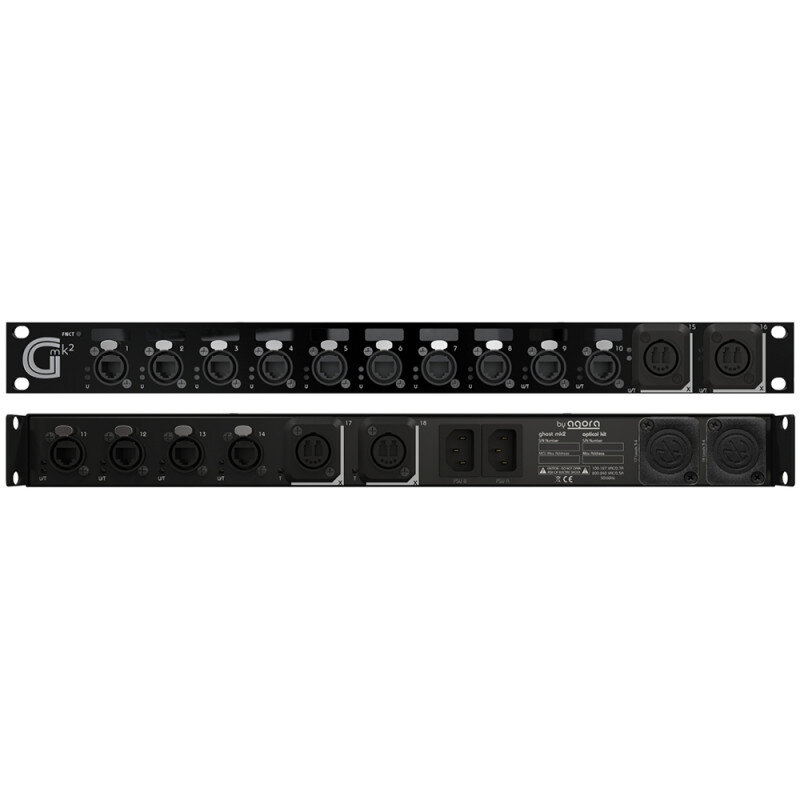

GHOST MK2 con 2 porte di trasmissione da 10 Gbit - F.O. DUAL opticalCON multi-modale (sul pannello frontale) + 2 porte di trasmissione da 10 Gbit - F.O. DUAL opticalCON multi-modale (sul pannello posteriore).
Technical characteristics
Connectivity & interface
| Front panel | 10 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON 10 x 8 caracters LCD sceens 2 x 1000 or 10,000 Mbps opticalCON DUAL ports 2 LEDs (Status-Traffic, ID) on each port 1 x configuration and navigation function switch |
| Rear panel | 4 x 10 Base-T / 100 Base-TX / 1000 Base T-etherCON ports 2 x 1000 or 10,000 Mbps opticalCON DUAL ports 2 x IEC power sockets (internal redundant power supply) |
| Software | SNMPv3 & SSH remote protocol Emulate Mode |
Processing
| Mother board | 1 x Marvell 98DX Data flow : up to 95.23 Mbps Switching capacity: 128 Gb/ |
| Network | 250 x Groups available 16000 MAC Address capacity IEEE 802.1p traffic priority |
General
| Size (W x D x H) | 482.60 x 368 x 43.60 mm |
| Weight (without options) | 1.7 kg |
| Power consumption | 100 - 127 VAC 0.6 A, 200 - 240 VAC 0.4 A |
| Power supply | 100 - 240 VAC 50/60 Hz |
| Idle power | 19.5 W |
| Maximum power rating | 26.6 W |
| Thermal dispersion (without options) | 80.36 BTU/h (110 V 60 Hz) |
| Storage temp. / humidity | -40 °C to 70 °C / 5 - 90% without condensation |
| Operating temp. / humidity | 0 °C to 45 °C / 10 - 90% without condensation |
| Altitude | up to 3 km |
| Operating noise | without FAN |
Package
| Package includes | 1 x GHOST MK2 engine 2 x power cord IEC13 lock |
Disponibile
Agora

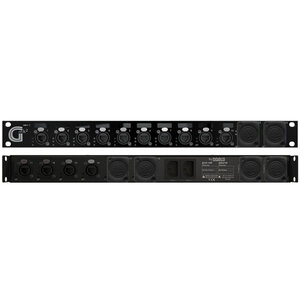

GMK2 - GHOST MK2 -14X USER 1 Gbit ports - etherCON - 19" rackmount + Internal redundant power supply (standard)
Agora
GMK2.GM.GM - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (rear panel)
Agora
GMK2.GM.GMQ - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.GM.GS - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Agora
GMK2.GM.GSQ - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora

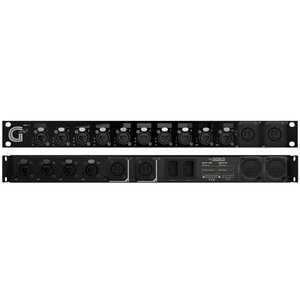

GMK2.GM.XM - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (back panel).
Agora
GMK2.GM.XMQ - GHOST MK2 + 2 X transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) and 2 X transmit 10 Gbit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.GM.XS - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Agora
GMK2.GM.XSQ - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora

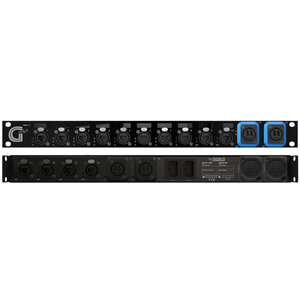

GMK2.GS.GM - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (rear panel).
Agora

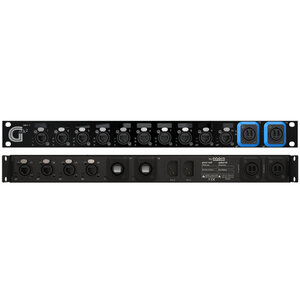

GMK2.GS.GMQ - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.GS.GS - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Agora
GMK2.GS.GSQ - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC port (rear panel)
Agora

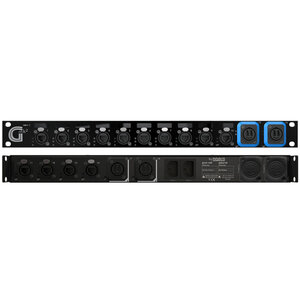

GMK2.GS.XM - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (back panel)
Agora
GMK2.GS.XMQ - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. QUAD OC multi-mode + report F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.GS.XS - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Agora

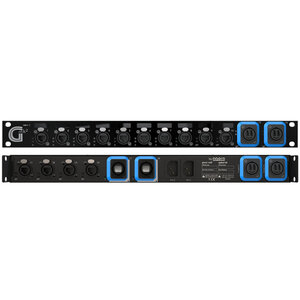

GMK2.GS.XSQ - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora

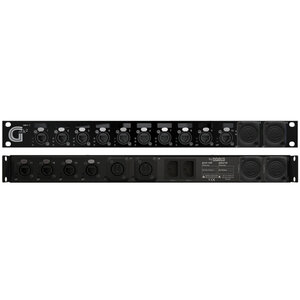

GMK2.NA.GM - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (rear panel)
Agora

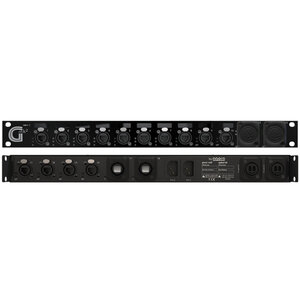

GMK2.NA.GMQ - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC multi-mode + F.O. report 3/4 to 2 x DUAL OC (rear panel)
Agora

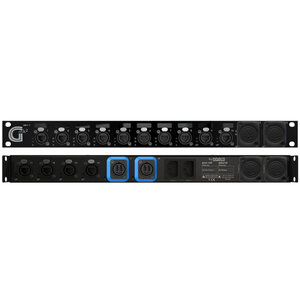

GMK2.NA.GS - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Agora

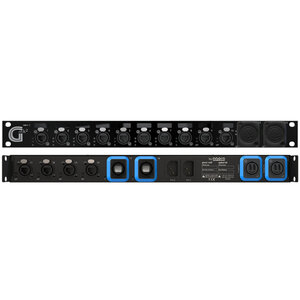

GMK2.NA.GSQ - GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC single-mode + F.O. report 3/4 to 2 x DUAL OC (rear panel)
Agora

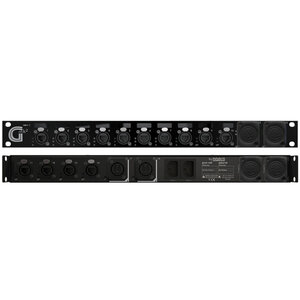

GMK2.NA.XM - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (rear panel)
Agora
GMK2.NA.XMQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. QUAD OC multi-mode + F.O. report 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.NA.XS - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Agora
GMK2.NA.XSQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. QUAD OC single-mode + F.O. report 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.XM.GM - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (rear panel)
Agora
GMK2.XM.GMQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.XM.GS - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Agora
GMK2.XM.GSQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.XM.XMQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. QUAD OC multi-mode and F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora

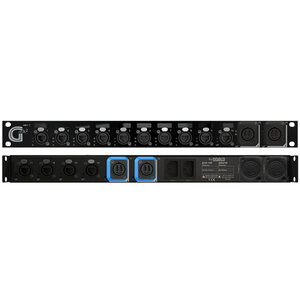

GMK2.XM.XS - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Agora

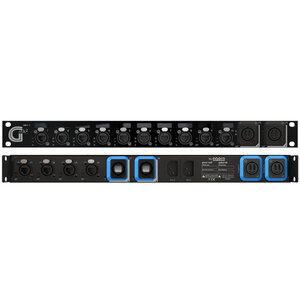

GMK2.XM.XSQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. QUAD OC single-mode + transfer F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.XS.GM - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (back panel).
Agora

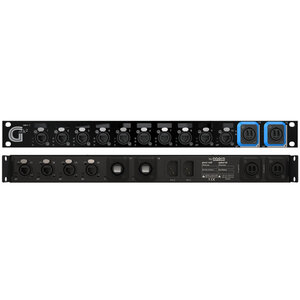

GMK2.XS.GMQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel).
Agora
GMK2.XS.GS - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel).
Agora
GMK2.XS.GSQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.XS.XM - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (rear panel)
Agora
GMK2.XS.XMQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. QUAD OC multi-mode + transfer F.O. 3/4 to 2 x DUAL OC (rear panel)
Agora
GMK2.XS.XS - GHOST MK2 + 2 x transmit 10 Gbps ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Agora

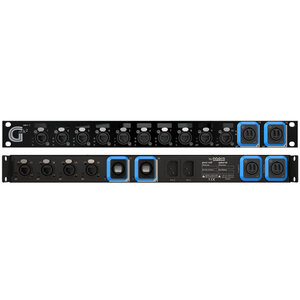

GMK2.XS.XSQ - GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)
