MCTRL660 - Sending box - Independent Model

€ 1.071,90
Prezzo di listino da scontare (IVA esclusa) SKU: SENDBOX660

Disponibile

Per scoprire il prezzo riservato a te, segui il link e registrati su audioeffetti.com. Verrai ricontattato al più presto dai nostri commerciali per studiare il profilo più adatto a te.

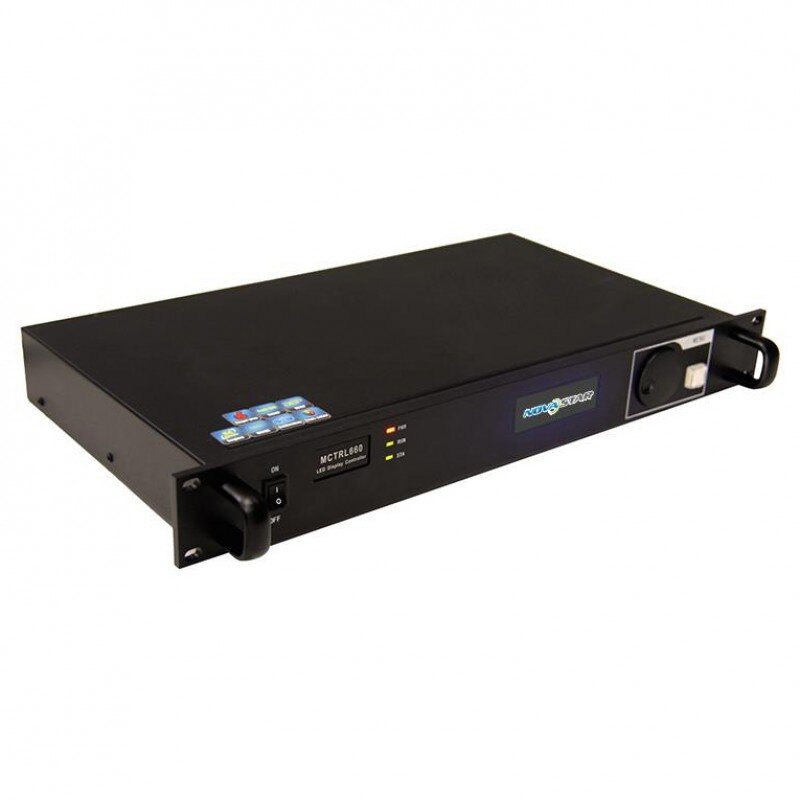

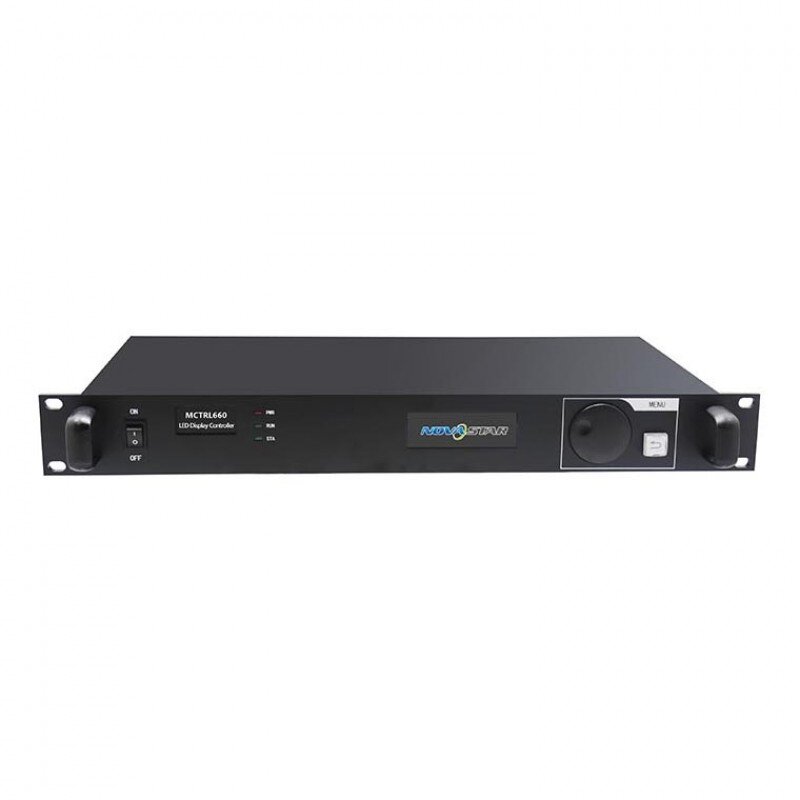

Sending box - Independent Model

MCTRL660 è un controller sviluppato da NovaStar con una capacità di carico per ogni singola unità di 1920×1200 @ 60 Hz. MCTRL660 utilizza le porte UART per mettere in cascata e controllare più unità.

  • No PC required for LED display configuration.
  • LED display brightness adjustable directly with knob.
  • 12-bit / 10-bit HDMI input, DVI input.
  • HDMI / DVI output, for cascading or monitoring.
  • HDMI / external audio unput
  • HDCP Blu-Ray input
  • Resolutions supported 2048×1152 @ 60 Hz, 1920×1200 @ 60 Hz, 2560×960 @ 60 Hz. @ 8-bit
  • Resolutions supported 1440×900 @ 60 Hz. @ 12-bit / 10-bit
  • Customized resolution supported: maximum width / height up to 3840 pixels.
  • Cascading supported.
  • Video formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4.
  • Independent power supply.
  • 19 × 1.5U standard cabinet.

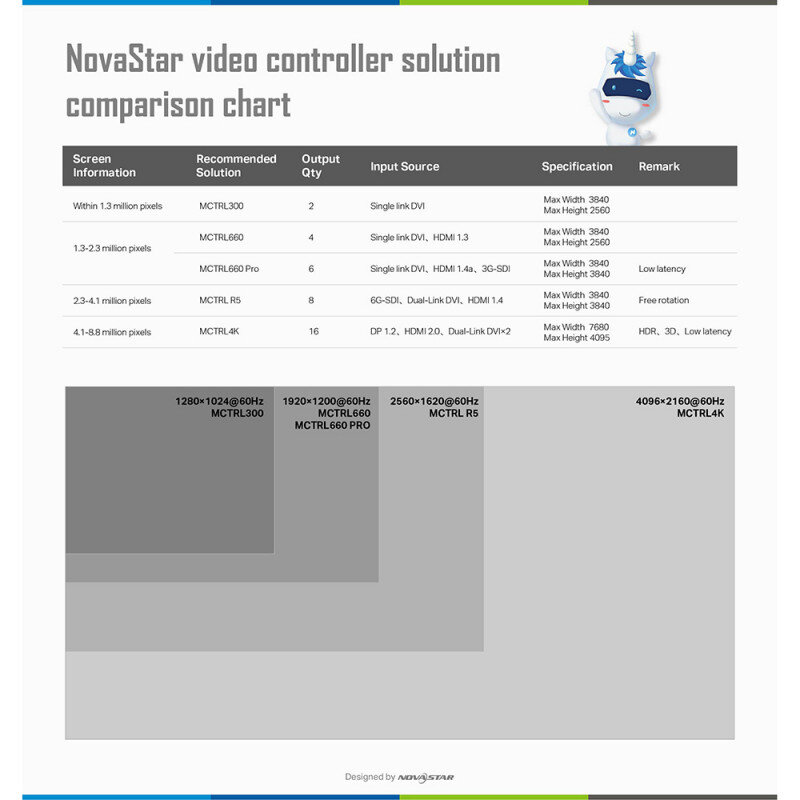

Screen pixels 1.3-2.3 million pixels
Output qty. 4
Input source Single link DVI, DVI LOOP, HDMI 1.3, HDMI LOOP
Max width & height

Max width 3840

Max height 2560

Input resolution Up to 1920x1200 @ 60 Hz
