100G SMPTE‑2110 bridge designed for dual‑100G redundant broadcast infrastructures supporting HD, Ultra HD and 8K immersive workflows, dual 100G camera ports, dedicated 10G accessory channel, NMOS control, dual redundant 100–240V AC power supplies
La Blackmagic StudioBridge 100G converte una singola connessione Ethernet SMPTE‑2110 da 100G in un sistema broadcast ridondante con doppia connessione 100G.
Dispone anche di due connessioni Ethernet 100G per camere, combinabili finché la banda totale non supera 100 Gb/s, permettendo di integrare due camere come URSA Cine 12K 100G in un sistema broadcast ridondante. Include inoltre un canale Ethernet 10G separato per gli accessori, una porta di controllo NMOS e due alimentatori interni ridondati.
Vantaggi per gli utenti
- Affidabilità operativa grazie alla ridondanza completa 100G e alla doppia alimentazione AC interna
- Integrazione immediata nei workflow SMPTE‑2110 con ridondanza 2022‑7 per continuità del servizio
- Gestione di flussi ad altissima banda per collegare camere 12K
- Monitoraggio rapido tramite display LCD frontale per verifiche immediate senza strumenti esterni
- Scalabilità futura grazie al supporto nativo di HD, Ultra HD e 8K immersive
Ambiti di utilizzo
- Produzione broadcast IP basata su SMPTE‑2110 con ridondanza 2022‑7 per continuità operativa
- Integrazione di camere URSA Cine 12K 100G in infrastrutture 100G ad alta banda
- Collegamento di sistemi multicamera 100G in studi televisivi, regie e centri di produzione live
- Trasporto di flussi Ultra HD e 8K immersive in reti 100G per workflow avanzati di post e live
- Infrastrutture broadcast ridondate che richiedono alimentazione AC doppia e failover di rete
- Installazioni in OB van e ambienti mobili che necessitano di bridging 100G compatto in 1 RU
- Sistemi misti 100G/10G con separazione dei flussi per accessori, controllo e dispositivi esterni
Technical characteristics

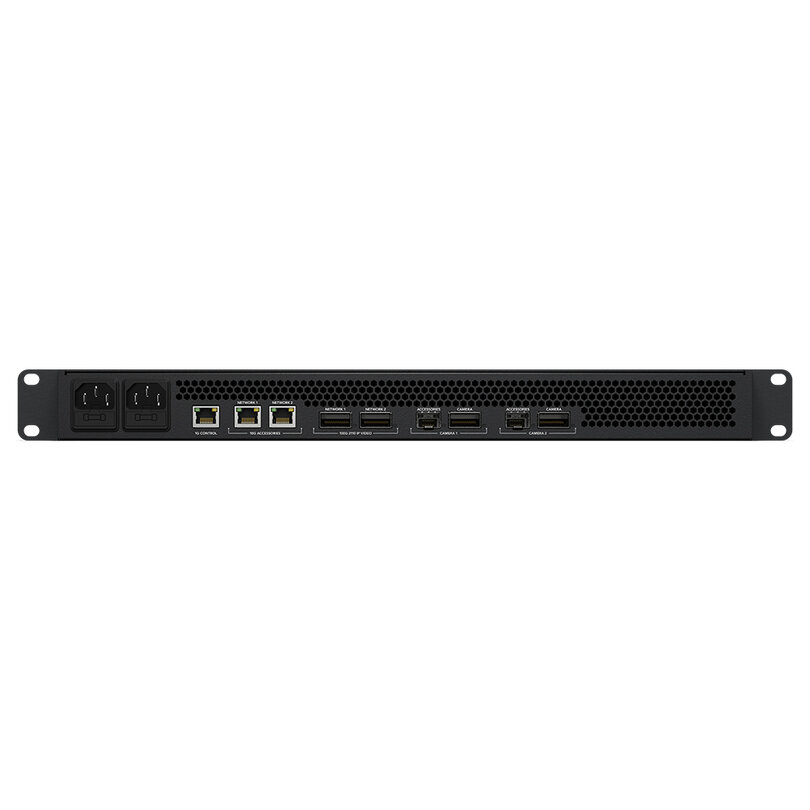

Connections
- 100G 2110 IP networks: 2 × 100G QSFP28 network connections, supports ST 2022‑7 redundant delivery of IP streams over the two ‘100G 2110 IP video’ network connections
- 100G 2110 IP camera: 2 × 100G QSFP28 camera connections
- Senders and receivers per 100G pair: 1 × 100G URSA Cine or 2 × URSA Cine Immersive / URSA Immersive
- 10G 2110 IP networks: 2 × 10G SFP optical fiber connections, 2 × 10G RJ45 connections
- Senders and receivers per 10G pair: 8 × Ultra HD or HD
- 1G control network: 1 × 1G RJ45 for NMOS control, configuration and software updates
- SMPTE ST 2110 IP audio inputs: 16 ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet
- SMPTE ST 2110 IP audio outputs: 16 ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet
- Multi rate support: auto detection of HD, Ultra HD and 4K
- Computer interface: 1 × USB‑C for configuration and firmware updates
- Power: 2 × IEC C14 power inputs
Video standards
- HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
- Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
- 8K video standards: 8160 × 7200 × 2 stereo immersive
- SMPTE compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
- Color precision: 10‑bit 4:2:2 YUV
- Color space: REC 709, REC 2020
- SDI auto switching: automatically detects HD and Ultra HD
IP video compliance
- IP video compliance: SMPTE 2110‑20 (uncompressed video), IGMP v2, SMPTE 2110‑21 (traffic shaping) sender narrow, receiver narrow, wide synchronous, asynchronous, SMPTE 2110‑30 (PCM) audio conformance level C, SMPTE 2110‑40 (ancillary data) full access to entire SMPTE ancillary data stream including RP 188 / SMPTE 12M‑2, closed captioning and HDR static metadata
- Codec: Blackmagic IP10 codec optional for 2160p 59.94 and 2160p 60 as 2110 IP video
- Precision time protocol: IEEE 1588‑2008 (PTP v2), ST 2059‑1, ST 2059‑2
- NMOS IS‑04 discovery and registration: version 1.3.2, peer‑to‑peer via mDNS / DNS‑SD
- NMOS IS‑05 connection management: version 1.1.2
- NMOS BCP‑002‑01: natural grouping
- NMOS BCP‑004‑01: receiver capabilities
Displays

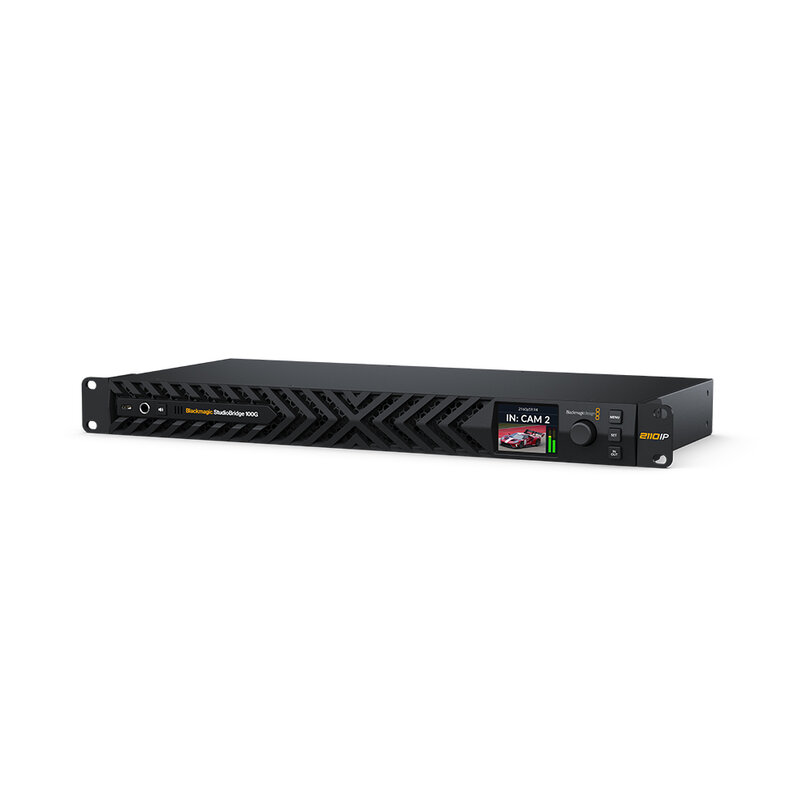

- Display: built in 2.2" LCD for monitoring video, audio, video standard and timecode plus menu settings, use search dial to scrub between all available inputs and monitor on front panel
Control
- Built in control panel: 2.2" color display, 3 button control panel and spin knob for source and destination setup and menu settings
- External control: RJ45 Ethernet and USB‑C
Operating systems
- Mac: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later
- Windows: Windows 11
Power requirements
- Power supply: 2 × 100 - 240 VAC 50/60 Hz internal power supplies
- Power inputs: 2 × IEC C14 sockets
- Power usage: TBC
Environmental specifications
- Operating temperature: 5 to 40 °C
- Storage temperature: −20 to 45 °C
- Relative humidity: 0% to 90% non‑condensing
Physical specifications
- Dimensions: 4.4 × 48.2 × 22.1 cm
- Weight: 3.2 kg
What’s in the box
- Blackmagic StudioBridge 100G
- Welcome wallet with QR code for software download
