AV processing center with 16 x 8 analog I/O, 16 x 16 AES67 I/O, 4 x 1 + 1 seamless 4K 60 HDMI switching, USB‑C AV capture, USB 3.0 hub, advanced DSP with AEC, feedback suppression, automix, camera auto‑tracking and multi‑window video output

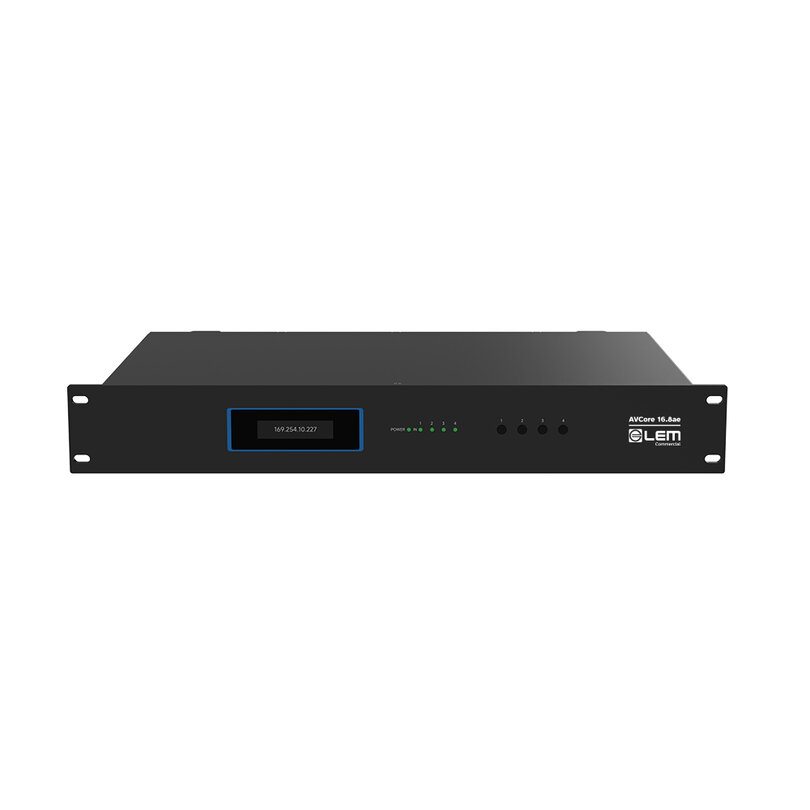

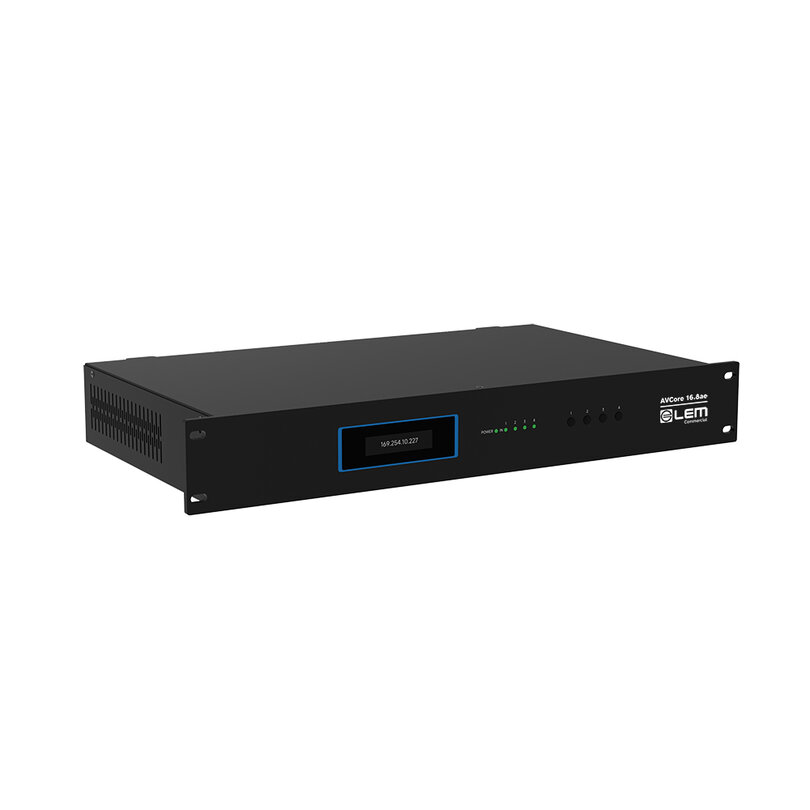

AVCore 16.8ae is a next-generation AV processing center designed to combine high-performance audio DSP, 4K video switching, USB-C AV capture, and centralized room management in a single, compact 19" rack-mount unit. It's not just a simple audio matrix with automix for conferences, but a fully automated audio/video control center, capable of managing shots, priorities, presets, and transitions intelligently and in sync with the loudspeaker.
As mentioned, the unit integrates advanced audio processing, seamless 4 x 1 + 1 HDMI switching, a USB 3.0 hub, USB Type-C AV capture, and a comprehensive set of DSP functions: HP/LP filters, EQ, AGC, compressors, feedback suppressors, limiters, delays, and multi-level automix. Thanks a total of 33 input channels (16 channels of AES67 + 16 channels of analog + 1 channel of USB soundcard) and 25 output channels (16 channels of AES67 + 8 channels of analog + 1 channel of USB soundcard), AVCore 16.8ae easily manages conference rooms. complex, integrating microphones, speakers, UC systems, and AV devices of all kinds.
Its true uniqueness lies in its automatic video direction: through programmable presets, the system can automatically frame the speaker, switch cameras based on audio automix priority, activate Picture-in-Picture when two people are speaking simultaneously, and independently manage video direction for local monitors and for those following the conference remotely (Zoom, Teams, etc.). The native integration between audio automix and video switching allows for extremely natural behavior: the speaker is framed, the speaker takes center stage, and the room manages itself!
The Windows-based DSP Controller software allows for complete system configuration: routing, editing of DSP modules, RS-232/RS-485 management, presets, custom panels, and advanced security. The 16 preset slots allow you to save complex configurations and recall them instantly. The most powerful feature is the custom UI, which allows integrators to create customized interfaces for technicians and end users, limiting access to authorized functions only.
With its extremely competitive price compared to high-end integrated AV solutions, AVCore 16.8ae is truly unique on the market, capable of offering intelligent, automated, and professional audio-video control in a single compact unit.
Main features
- It integrates the functions of a professional audio processor and an HDMI matrix in a single unit, offering complete AV signal management to meet diverse application needs
- Supports up to 16 analog audio inputs and 8 analog audio outputs
- Supports up to 16 x AES67 digital audio inputs and 16 x AES67 digital audio outputs
- It includes advanced algorithms such as Acoustic Echo Cancellation (AEC), Feedback Suppression, and Auto-mixer, ensuring the elimination of echo, noise, and feedback in multi-participant interactions
- The integrated seamless HDMI matrix handles different types of video signals and allows smooth switching between multiple sources, ensuring uninterrupted high-resolution output
- ATS automixing technology, combined with communication with the cameras' auto-tracking modules, enables automatic adjustment of angle and zoom, synchronizing the Tracking with video output
- Supports direct control of IP cameras via ONVIF protocol, with the ability to log in, manage, and quickly recall presets within the software
- The video output supports multi-window configurations (1 / 2 / 3 / 4 windows) with different layouts in dual-window mode, allowing the simultaneous display of fixed and voice-activated views
- Compatible with Zoom, Microsoft Teams, Webex, and major video conferencing platforms, ensuring a seamless and integrated meeting experience.
User benefits
- Drastically reduces meeting room setup thanks to unified audio, video, and control management in a single device and intuitive management software
- Ensures clearer conferences thanks to automatic elimination of echo, noise, and feedback, all automatically without manual intervention
- Offers a smooth and continuous video experience, with imperceptible source changes that improve the quality perceived by participants
- Automates room control, adapting framing and zoom based on who is speaking, without the need for manual intervention. of a dedicated operator
- It allows you to easily control IP cameras and recall presets, simplifying management even for non-technical users.
- It increases presentation flexibility thanks to multi-window modes, which allow you to show multiple contents or multiple speakers simultaneously.
Areas of use
- Corporate meeting rooms with integrated AV management
- Conference rooms for hybrid and multi-participant meetings
- Classrooms and training rooms with multi-video requirements
- Boardrooms and institutional environments with intervention tracking
- Corporate installations with centralized control of audio, video, and cameras
Technical characteristics
- Analog input / output channels: 16 x 8
- AES67 input / output channels: 16 x 16
- Processor: ADI SHARC 21489 @ 450 MHz SIMD
- DSP processing capability: 400 MIPS, 1.6 GFLOPS
- Input gain: 0 / 3 / 6 / 9 / 12 / 15 / 18 / 21 / 24 / 27 / 30 / 33 / 36 / 39 / 42 / 45 / 48 dB
- Frequency response: 20 Hz – 20 kHz (+0.04 / –0.3 dB)
- Maximum level: +18 dBu
- Sampling rate: 48 kHz, 24‑bit
- THD+N: < 0.001% (1 kHz, +4 dBu, A‑weighted)
- Device noise: ≤ –95 dB (A‑weighted)
- Input common mode rejection ratio (CMRR): ≥ 81 dB @ 1 kHz, 0 dBu
- Output crosstalk: < –92 dB @ 1 kHz, 0 dB gain
- Input dynamic range: 113 dB
- Output dynamic range: 113 dB
- HDMI inputs: 4
- USB 3.0 input: 1
- Type‑C output: 1
- HDMI output: 1
- Video resolution: 4K @ 60 Hz 4:4:4
- Switching mode: seamless switching
- Operating voltage: 110 – 240 VAC
- Dimensions (W x H x D): 48.2 x 6.6 x 26.1 cm
- Weight: 3.96 kg
