WiCASTplay+ - Wicast play with RJ45 and IR remote

Wicast play with RJ45 and IR remote

WICASTplay+ is a wireless audio transmitter that can transform your active speakers and your home cinema system into a multi-room audio system thanks to the Wi-Fi network.

In the case of multi-room use, you need to have a WICASTplay+ for each room, connected to one, or a pair, of loudspeakers or in any case to an audio system that has an analog line input. The device is in fact equipped with a stereo audio output on RCA connectors, a 3.5 mm mini-jack analog input for connection to a telephone, or any other device with a stereo analog audio output, and is powered by an external 12 V_DC 2 A power supply.

WICASTplay+ also reads audio files from a USB stick and is compatible with various music streaming services such as Spotify, Napster, Tidal, TuneIn etc. Thanks to the presence of an RJ45 port, you can enjoy more stable playback of your files thanks to the Ethernet protocol. The WiiM Player app for iOS and Android gives you full control and offers the simplest and most intuitive streaming experience. With the app, everyone can listen to their favorite music in all rooms or separately.

WICASTplay+ is equipped with DLNA technology and offers the possibility of sharing files between various multimedia devices.

Main features

• 1 analogue 3.5 mm mini-jack input for telephone or other device with volume control
• Works with a LinkPlay card compatible with many streaming and multiroom Apps
• Powered by a 15 V_DC 2 A
• Adjustable Wi-Fi antenna
• RJ45 port
• Output on 2 RCA connectors
• Compatible with AirPlay 2 and major streaming services
• USB drive
• Alarm clock function
• Programmed stop function

Technical characteristics

• Type: wireless audio transmitter
• Wi-Fi frequency: 2.4 GHz
• SAR Value: 95 dB
• Antenna: external, adjustable
• Antenna gain: 3 dBi
• Audio input: 1 analog 3.5 mm mini-jack (for phone or other device with volume control)
• Audio output: 2 RCA connectors
• Compatible streaming platforms: AirPlay 1, major streaming and multiroom services via LinkPlay card
• Wireless connectivity: Wi-Fi, Bluetooth 5.0
• Wired connectivity: RJ45 Ethernet port
• USB: USB drive support
• Special features: alarm clock function, programmed stop function
• Operating voltage: adapter 100 – 240 V_AC ➝ 12 V_DC 1 A  or 15 V_DC – 2A connector
• Volume control: master volume
• Frequency response: 20 Hz – 20 kHz
• Functions: Wi-Fi play, USB play, AUX input, RJ45 socket, Bluetooth 5.0
• Dimensions: 145 x 75 x 33 mm
• Weight: 215 g
• What's in the box
  • The WICASTplay+
  • 1 x 100 - 240 V_AC 12 V_DC 1 A adapter
  • 1 x antenna
  • 1 x infrared remote control

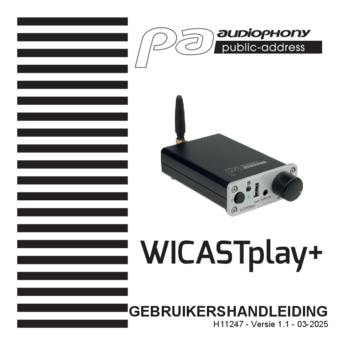

  • User guide (for the devices from serial number 139120001...)
