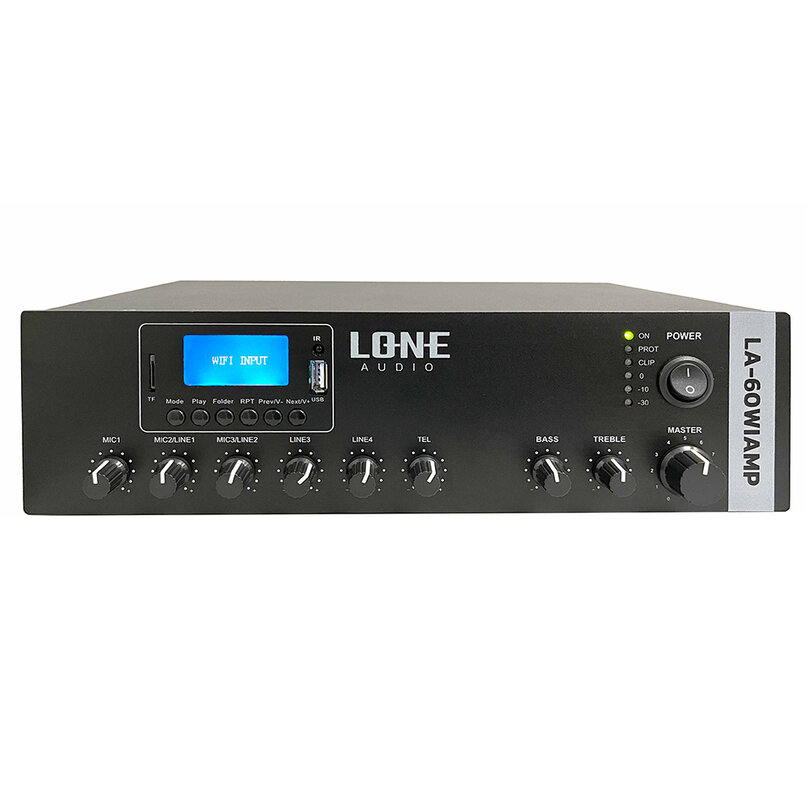

LA-60WIAMP - 60 W, 70 / 100 V or 4 ohm, Wi-Fi Internet streaming amplifier with multimedia player

60 W, 70 / 100 V or 4 ohm, Wi-Fi Internet streaming amplifier with multimedia player

The LA-60WIAMP is a compact 60 W Wi-Fi amplifier designed for multi-room audio installations of up to eight rooms. It can operate both at low impedance (4 / 8 / 16 ohm) and with constant voltage systems at 70 / 100 V, and can be powered by both 230 V_AC and 24 V_DC.

Wi-Fi means that it integrates a media player compatible with streaming via Wi-Fi network thanks to Linkplay technology, and can be controlled with the 4STREAM App available for Android and iOS. In addition to Wi-Fi and Bluetooth connectivity, it has AM / FM radio, TF and USB inputs, and various input options almost identical to those of the AME-60-2Z model.

Sound control is very flexible thanks to independent volume controls for each input, a general master volume and bass and treble adjustments. It is equipped with RCA line OUT output and a “Music On Hold” output.

The device is protected against overloads, short circuits and overheating, and a remote control is included for more practical management. With compact dimensions (32 x 21 x 9 cm) and a weight of 4.1 kg, it can be easily integrated into any type of professional installation.

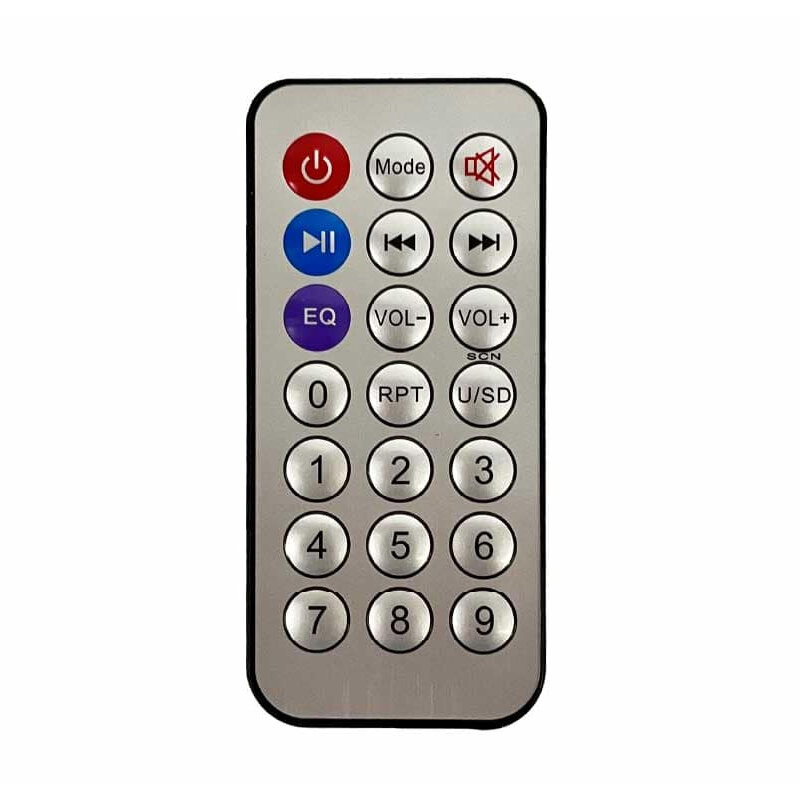

The remote control is included.

Users benefits

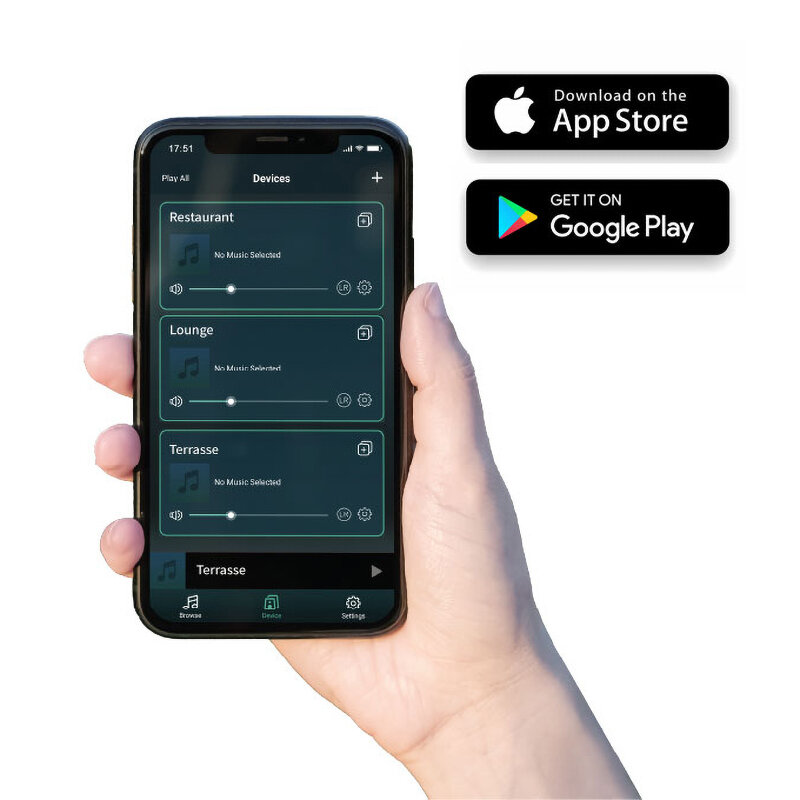

• Smart and remote control via the 4STREAM app on mobile devices, thanks to Wi-Fi connectivity
• Wide compatibility of audio sources: Bluetooth, AM / FM radio, USB, TF, MIC, line and TEL inputs
• Multiroom functionality for up to 8 rooms, ideal for distributed installations in commercial spaces
• Compact size and low weight
• Works at both 230 V_AC and 24 V_DC
• "Music On Hold" output useful for company telephone systems

Areas of use

• Restaurants
• Shops and boutiques
• Hotels

Technical characteristics

• Wi-Fi audio amplifier with built-in media player (Linkplay technology)
• Power output: 60 W_RMS
• Supports 4 / 8 / 16 ohm loudspeakers and 70 / 100 V constant voltage systems
• Streaming control via 4STREAM App (Android / iOS)
• Bluetooth, USB, TF, AM / FM radio playback supported

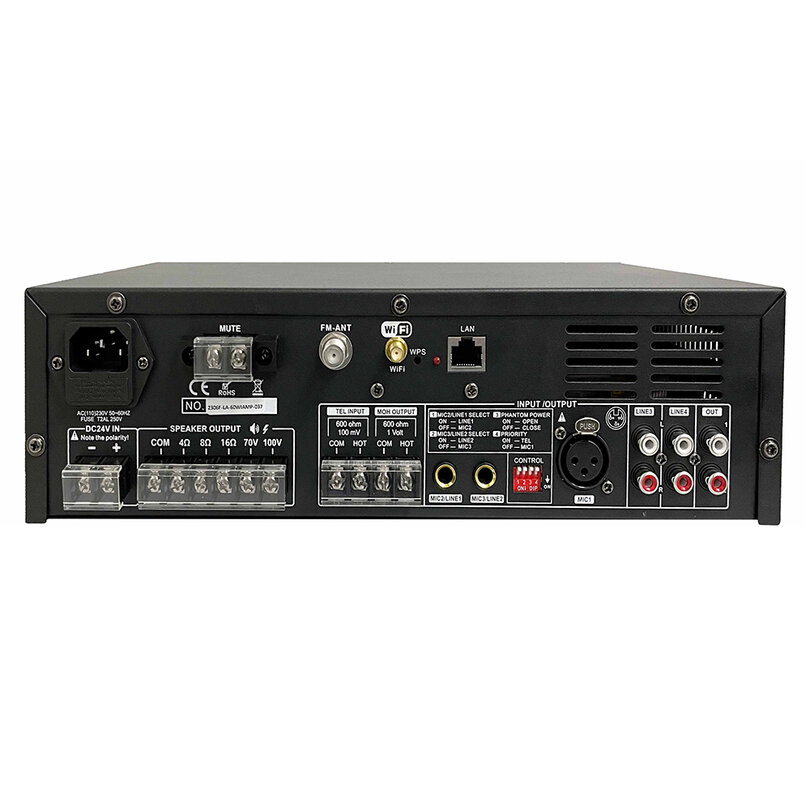

• 1 MIC (XLR), 2 MIC / line inputs (6.35 mm), 2 line (RCA)
• TEL input with absolute priority
• RCA line OUT and Music On Hold output for phone systems
• Independent volume controls for each input and master volume
• Tone controls: bass and treble adjustment ±10 dB
• Frequency response: 60 Hz – 15 kHz (±3 dB)
• THD: < 0.5%
• SNR: MIC > 72 dB / line > 85 dB
• Phantom power +24 V switchable for MIC inputs
• Cooling system with fan
• Thermal, overload, and short-circuit protection
• Power supply: 230 V_AC 50/60 Hz or 24 V_DC
• Power consumption: 100 W
• Remote control included
• Size: 32 x 21 x 9 cm
• Weight: 4.1 kg
