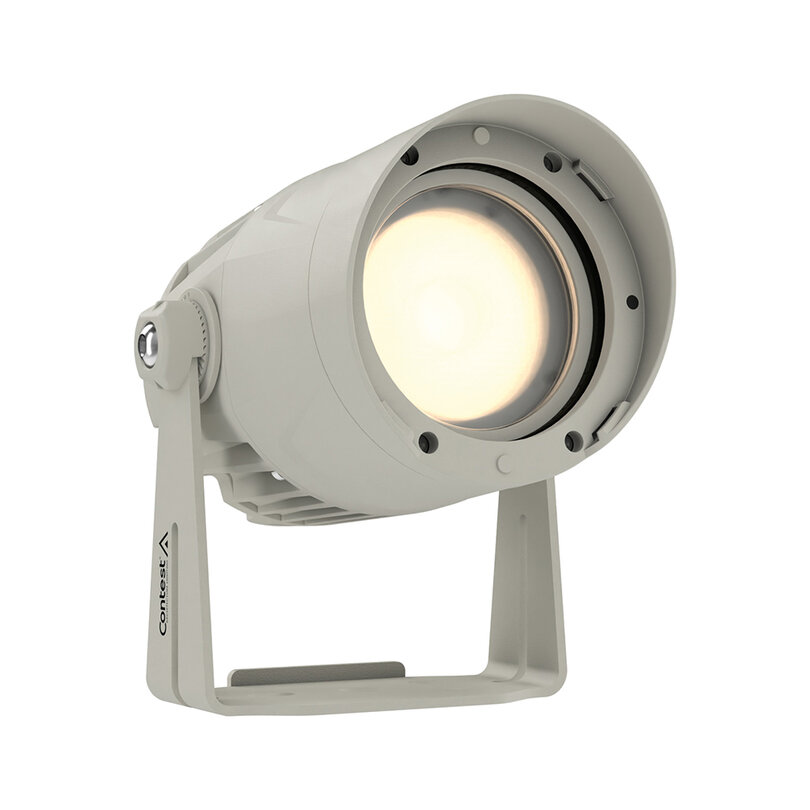

VPAR-40DW - Compact 40 W LED spotlight with Dynamic White (2900 – 5800 K), 10° optics and optional filters, IP66-rated, DMX / RDM control, passive cooling

Compact 40 W LED spotlight with Dynamic White (2900 – 5800 K), 10° optics and optional filters, IP66-rated, DMX / RDM control, passive cooling

This 40 W LED projector features a Dynamic White light source capable of modulating the color temperature between 2900 and 5800 K, offering versatile lighting that can be adapted to different scenic needs.

The 10° optics ensure a precise beam, while the 12° and 26° filters allow for wider diffusion when required. With a light output of 1730 lux at three meters, the fixture ensures high performance even outdoors, thanks to its IP66 protection and sturdy RAL 9002-coated aluminum housing. Passive cooling eliminates the need for fans, making it quiet and reliable over time.

It can be controlled via DMX on 2 or 4 channels, or in standalone mode, with Master/Slave or single options. It is compatible with the RDM protocol via an external box and features IP67 connectors for power and signal, ensuring durability even in harsh environmental conditions. The universal 110 to 240 V power supply facilitates integration into existing systems. The projector comes complete with accessories, including the VC-Start cable and barndoor (flags).

User benefits

• Adjustable color temperature from 2900 to 5800 K thanks to the Dynamic White source
• Versatile optics
• Weather resistance with an IP66 rating
• Passive fanless cooling
• Robust construction

Areas of use

• Architectural lighting
• Theatrical sets and artistic installations
• Public spaces and permanent installations, including in exposed environments
• Trade fair stands and showrooms

Technical characteristics

• Power: 40 W
• LEDs: 1 x 40 W LED, Dynamic White 2900 - 5800 K
• Lens aperture: 10° (diffusion filters available: 12° and 26°)
• Brightness: 347 lm – 400 lux at 5 m
• Connections: DMX / power via hybrid IN and OUT cables with IP67 plugs
• Parameterization: VRDM-Control external box for RDM parameterization
• RDM console compatibility: yes, for basic parameters (DMX address, DMX mode, version, etc.).
• How to use :
  • Standalone: Master/Slave and single
  • DMX: 2 to 4 channels
• Macro: create your own macros for use in Master/Slave or single mode
• Power supply: 110 - 240 V 50/60 Hz
• Refresh rate: selectable from 900 Hz to 3600 Hz
• Cooling: convection
• Finish: cast aluminium, epoxy-painted grey-white RAL 9002
• Degree of protection: IP66 (protected against dust and splashing water)
• Shock resistance: IK06
• Pressure control: sealed diaphragm depressurization valve
• Accessories: VC-Start power cord, IP plugs, flow switch
• Power consumption: 50 W
• Dimensions: 14.5 x 11.7 x 14.4 cm
• Weight: 2 kg
