VPAR-40RGBL - High-performance 150 W RGBL LED spotlight, 6285 lm output, 25° beam angle, IP66-rated, aluminum housing, DMX / RDM control, passive cooling

High-performance 150 W RGBL LED spotlight, 6285 lm output, 25° beam angle, IP66-rated, aluminum housing, DMX / RDM control, passive cooling

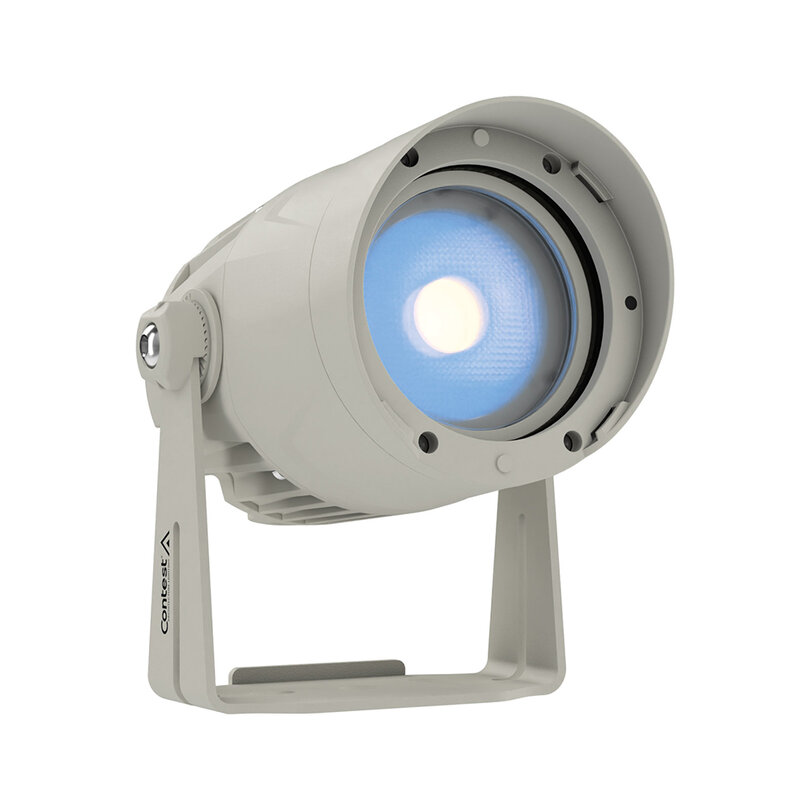

The VPAR-150RGBL is a 150W LED projector designed for versatile architectural applications.

It is equipped with 18 x 20W LEDs, featuring 4-in-1 RGBL (red, green, blue, lime) technology, providing 6,285 lumens of brightness and a 25° beam angle. The RAL 9002 painted aluminum housing is weather-resistant, with an IP66 rating and IK07 impact resistance. It features completely passive cooling, with no fans.

The fixture can operate in standalone mode or be controlled via DMX, with configurations of 2 to 8 channels. It is RDM compatible via an external box and features IP67 connections for power and signal. It comes complete with a VC-Start cable, IP connectors, and flags.

User benefits

• High brightness of 6285 lumens for professional indoor and outdoor applications
• 4-in-1 RGBL technology with the addition of Lime color
• Passive cooling, silent operation
• IP66 rating and IP67 connections for greater reliability in harsh environments
• Included accessories for immediate installation

Areas of use

• Architectural lighting for buildings, facades, and monuments
• Scenographic installations for theaters, concerts, and live performances
• Temporary events and mobile installations
• Commercial environments such as showrooms, conference centers, and trade shows
• Nightclubs, clubs, and DJ sets

Technical characteristics

• Power: 150 W
• LEDs: 18 x 20 W 4-in-1 LEDs (red, green, blue, lime)
• Lens opening: 25°
• Brightness: 6285 lm – 1270 lux at 5 m
• Power consumption: 153 W
• Connections: DMX / Power via hybrid IN and OUT cables with IP67 plugs
• Parameterization: VRDM-Control external box for RDM parameterization
• RDM console compatibility: yes, for basic parameters (DMX address, DMX mode, version, etc.)
• How to use :
  • Stand-alone: Master/Slave and single
  • DMX: 2 to 8 channels
• Macro: macros can be created for use in Master/Slave or single mode
• Power supply: 110 - 240 V_AC 50-60 Hz
• Refresh rate: selectable from 900 Hz to 3600 Hz
• Cooling: convection
• Finish: cast aluminium, epoxy-painted grey-white RAL 9002
• Degree of protection: IP66 (protected against dust and splashing water)
• Shock resistance: IK07
• Pressure control: sealed diaphragm depressurization valve
• Accessories: VC-Start power cord, IP plugs, flow switch
• Dimensions: 15.7 x 26.9 x 29.1 cm
• Weight: 7 kg
