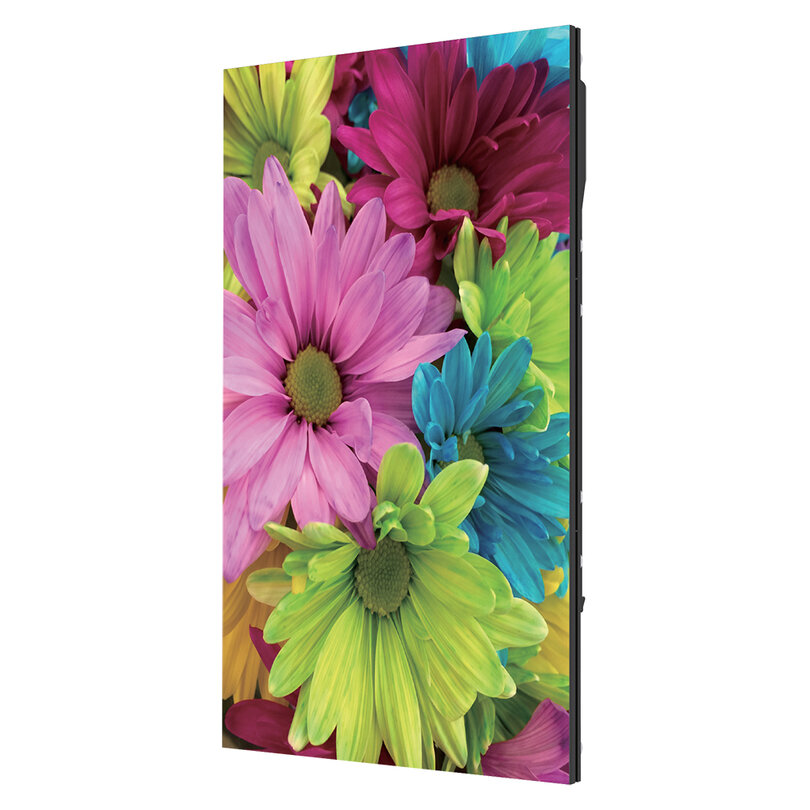

P3 LED display with 320 x 480 mm cabinet, SMD1515, for indoor fixed installations (800 nits) with 3000:1 contrast.
The possible application scenarios are in the commercial, retail, corporate, conference, entertainment, meeting rooms and hospitality fields.

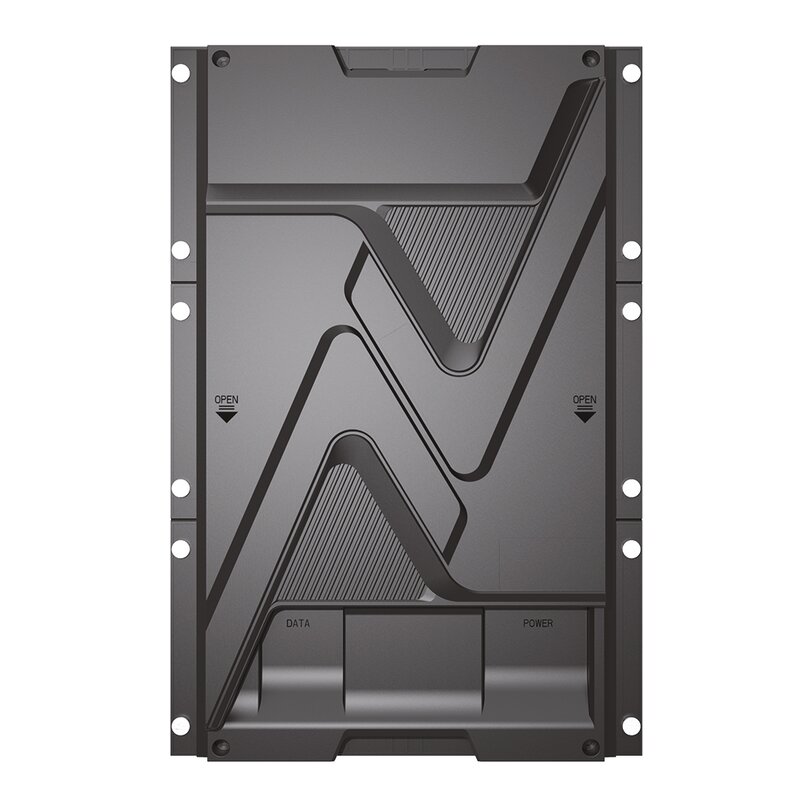

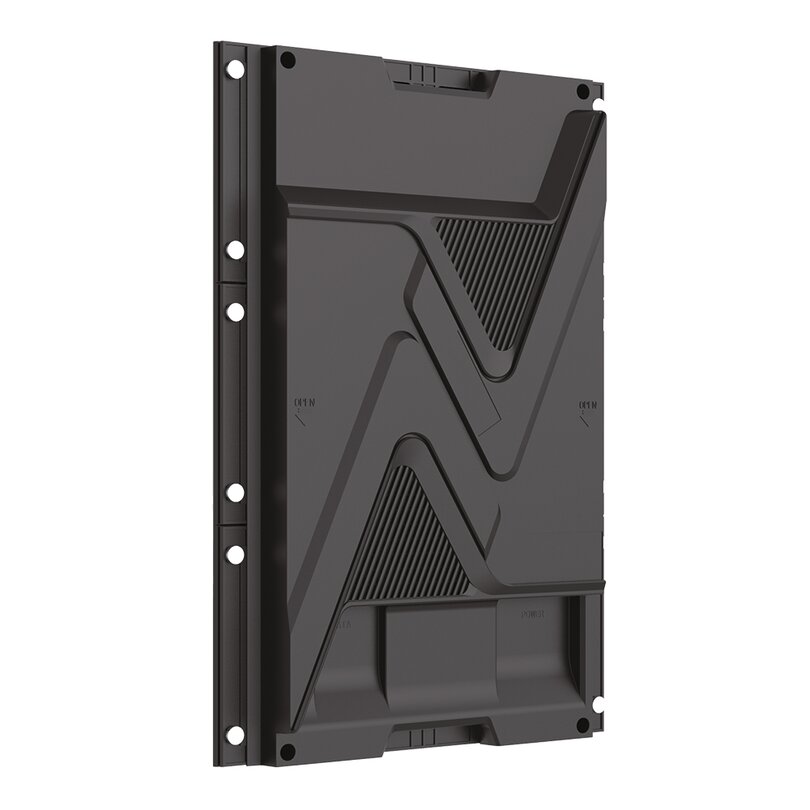

The very light cabinet, weighs only 2 kg, houses 3 modules of 320 x 160 mm each. and is only 55 mm thick. Its sandwich structure features an easily removable rear cover for quick maintenance, an integrated design for power supply and receiving cards, 8-screw fixing system between two modules.
The cabinets and magnetic modules allow for quick installation and assembly, reducing installation time and labor by 30%. A safety rope (optional) is also available to hook the cabinets together.
They do not have a self-supporting structure; for use it is necessary to build a support structure/frame.
The high refresh rate of 3840 Hz ensures an excellent viewing experience, allowing you to take pictures and record displays with cameras without viewing scan lines. Also, the grayscale is 14-bit. The wide viewing angle of 160° horizontally and 140° vertically and the small pixel pitch optimize close observation of the LED wall.
Finally, EasyPro-P3 allows frontal maintenance: the modules can be easily removed with the special dedicated vacuum tool.
Technical specifications
| LED Type | black SMD 1515 |
| Pixel Pitch | 3 mm |

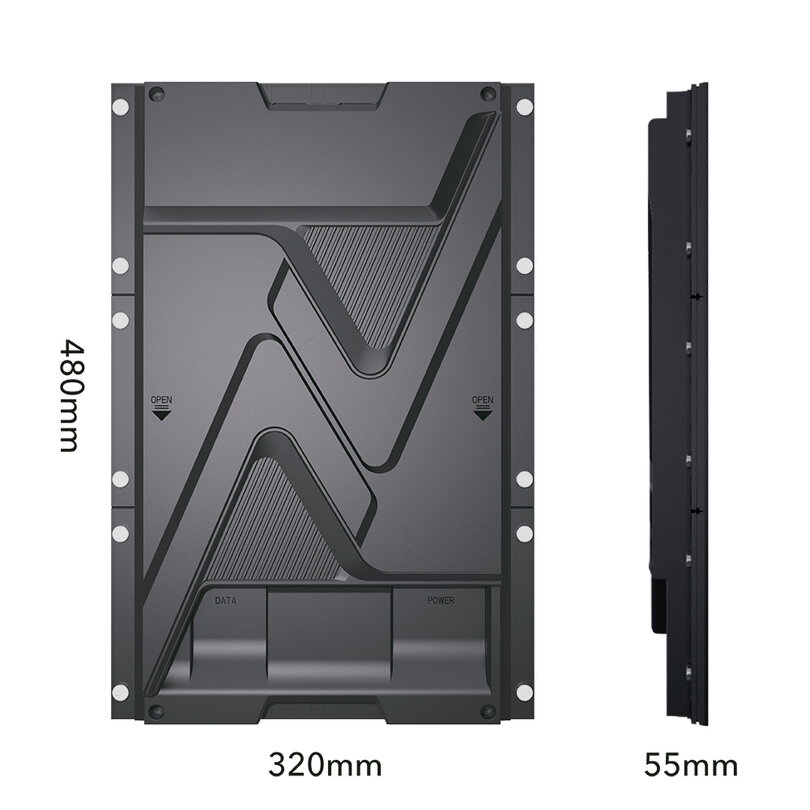

| Cabinet dimensions (W x H x D) | 320 x 480 x 55 mm |
| Pixel per cabinet | 128 x 192 |
| Cabinet weight | 2 kg |
| Cabinet material | plastic |
| Module dimensions (W x H) | 320 x 160 mm |
| Modules x cabinet | 3 |
| Brightness | 800 nit |
| Refresh rate | 3840 Hz |
| Gray scale | 14 bit |
| Contrast ratio | 3000:1 |
| Color temperature | 8300 K |
| Viewing angle (H/V) | 160/140° |
| AC operating voltage | 100 ~ 240 V |
| Power consumption (max./avg.) | 330 / 110 W/m² |
| Storage temperature | -40 ~ +60 °C |
| Operating temperature | -10 ~ +40 °C |
| IP rating (front/rear) | IP40 / IP21 |
| Module maintenance | front |
| PSU & others maintenance | front |
| Panel installation type | front |
| Certificate | CCC/ CE |
