EasyFLEX-P2.5-25x75 - Indoor, 3-in-1 SMD, 800 nit, 5000:1, ≥ 3840 Hz, 250 x 750 mm, 4.5 kg high-performance LED panel, flexible design, right angle splicing for option

Indoor, 3-in-1 SMD, 800 nit, 5000:1, ≥ 3840 Hz, 250 x 750 mm, 4.5 kg high-performance LED panel, flexible design, right angle splicing for option

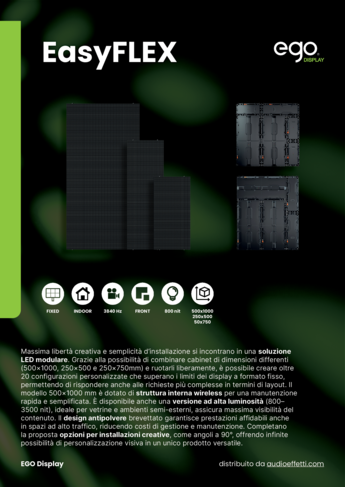

EasyFLEX P2.5-25x75 is an innovative P2.5 LED panel designed for installations in professional and commercial environments.

Its main peculiarity is the system of cabinets and modules that can be rotated at will, allowing up to 20 mixed flexible configurations, adapting to different installation needs. In this specific case, the cabinet format is 250 x 750 mm.

The structure integrates a rigid connection between the modules and a compact design with a combined receiver board and HUB. The Plug-in power system simplifies installation and maintenance, while the possibility of assembling with 90° angles allows great versatility in configurations.

The display supports front maintenance, facilitating rapid interventions and reducing downtime. Dust protection ensures greater durability over time, maintaining optimal performance even in demanding environments. It can be permanently mounted on a structure or a wall, positioned directly on the floor or suspended.

User benefits

• Enables creative shape configurations, delivering greater design freedom
• Rotatable modules and cabinets for flexible configuration (up to 20 mixed splicing sizes)
• Rigid connection between modules for improved signal stability, quick disassembly
• No cables inside the cabinet
• Compact design with combined receiver board and HUB
• Plug-in power supply system
• Simple front and rear maintenance
• Dust protection for longer life
• Semi-outdoor high-brightness option (up to 3500 nits)

Areas of use

• Shopping malls
• Airports
• Subways
• Exhibitions
• Broadcasting

Technical characteristics

• Pixel pitch: 2.5 mm
• LED Type: 3-in-1 SMD
• Cabinet resolution (W x H): 100 x 300
• Maintenance: full front maintenance
• Protection: IP30
• Cabinet material: die-casting aluminum
• Brightness: 800 cd/m²
• Viewing angle (H / V): 160° / 160°
• Contrast ratio: 5000:1
• Max. power consumption: 450 W/m²
• Typical power consumption: 150 W/m²
• Processing depth: 14 bit
• Refresh rate: ≥ 3840Hz
• Standard mounting configuration: fixed / floor-mounted / hanging
• Optional mounting configuration: round shape, corner shape
• Input voltage: 100 - 240 V_AC
• Operating temperature / humidity: -10 to 45 ℃ / 10 to 80% RH
• Storage temperature / humidity: -20 to 55 ℃ / 10 to 85% RH
• Cabinet dimensions: 250 x 750 mm
• Weight: 4.5 kg
