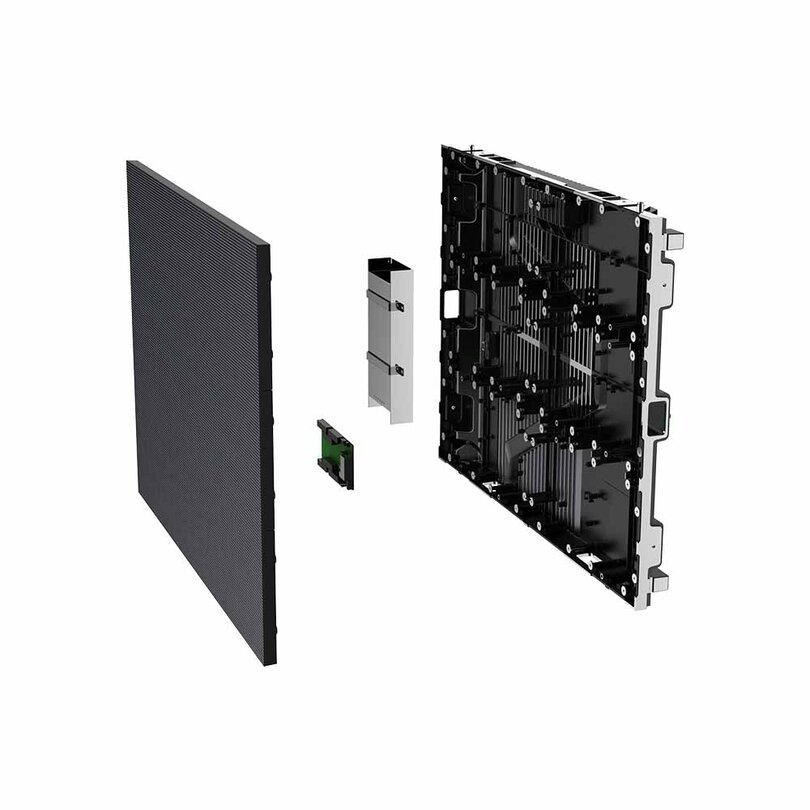

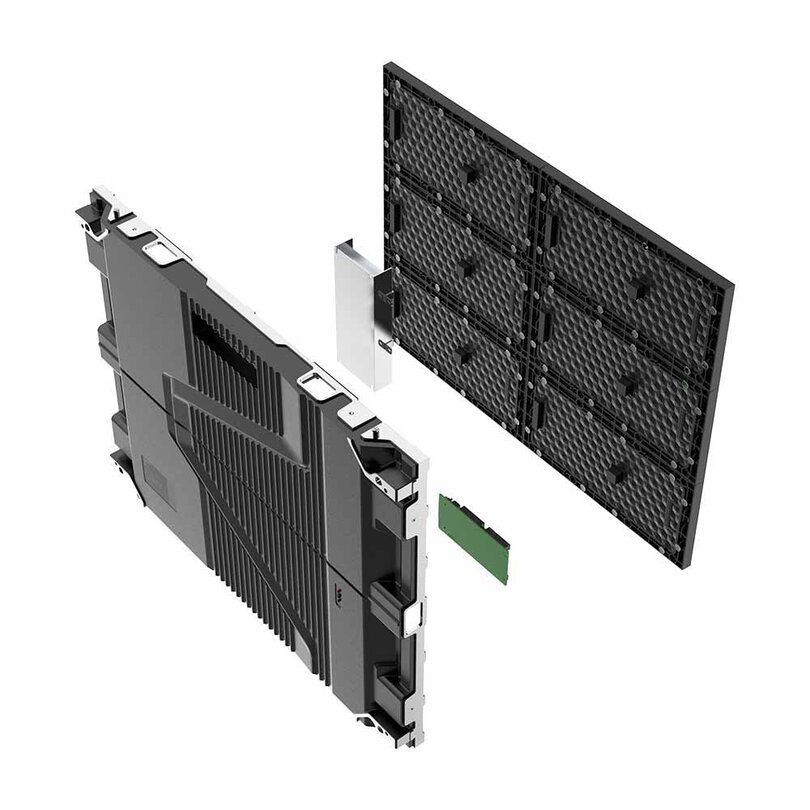

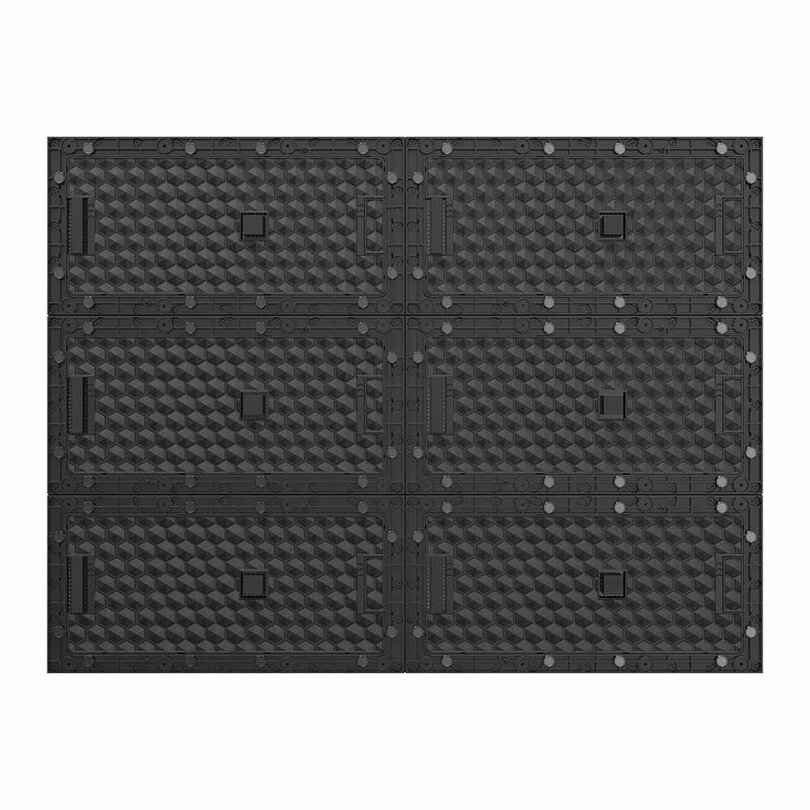

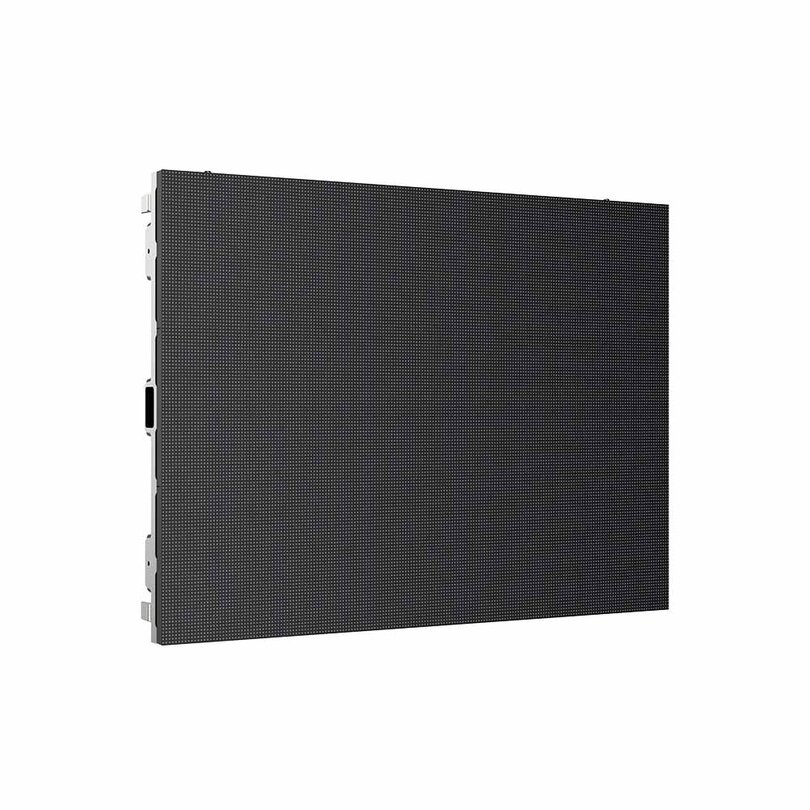

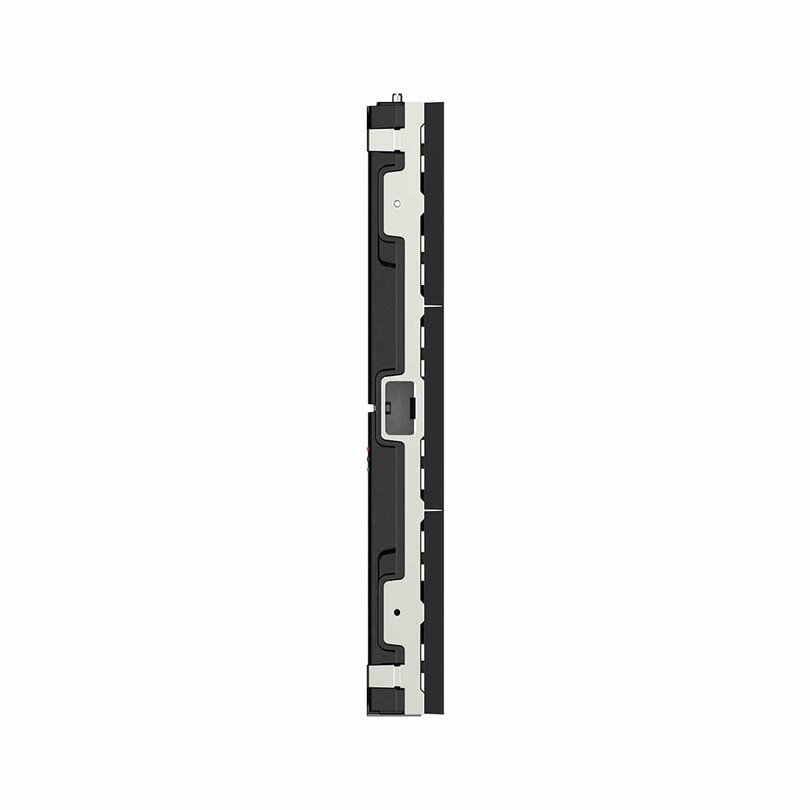

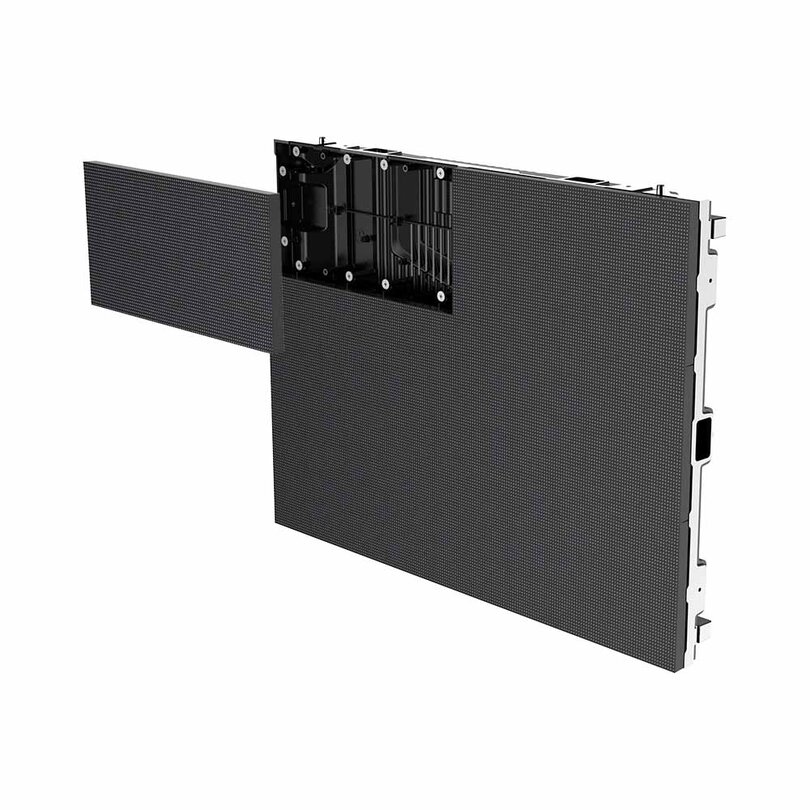

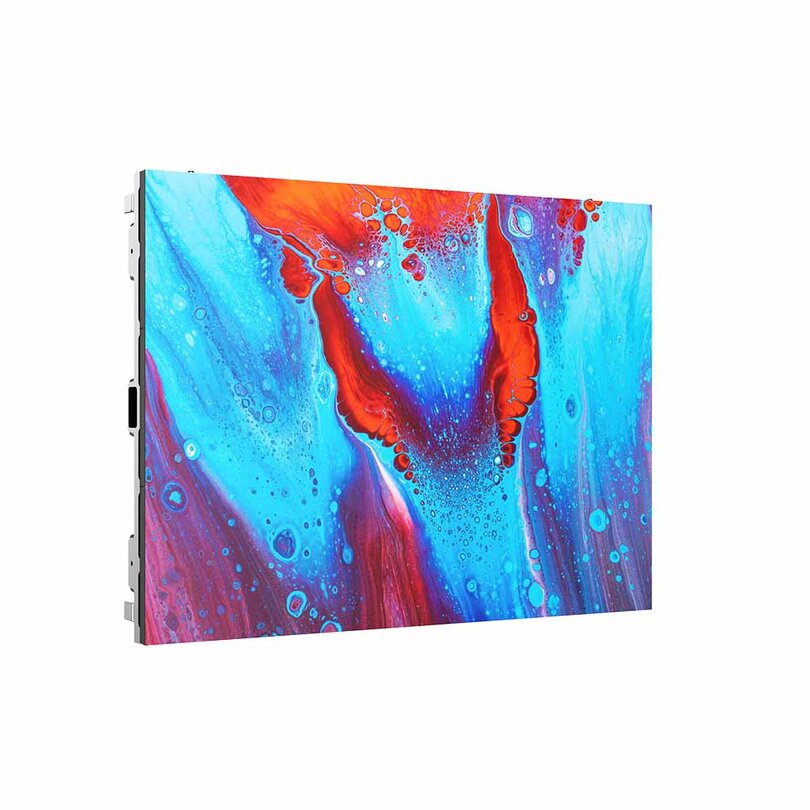

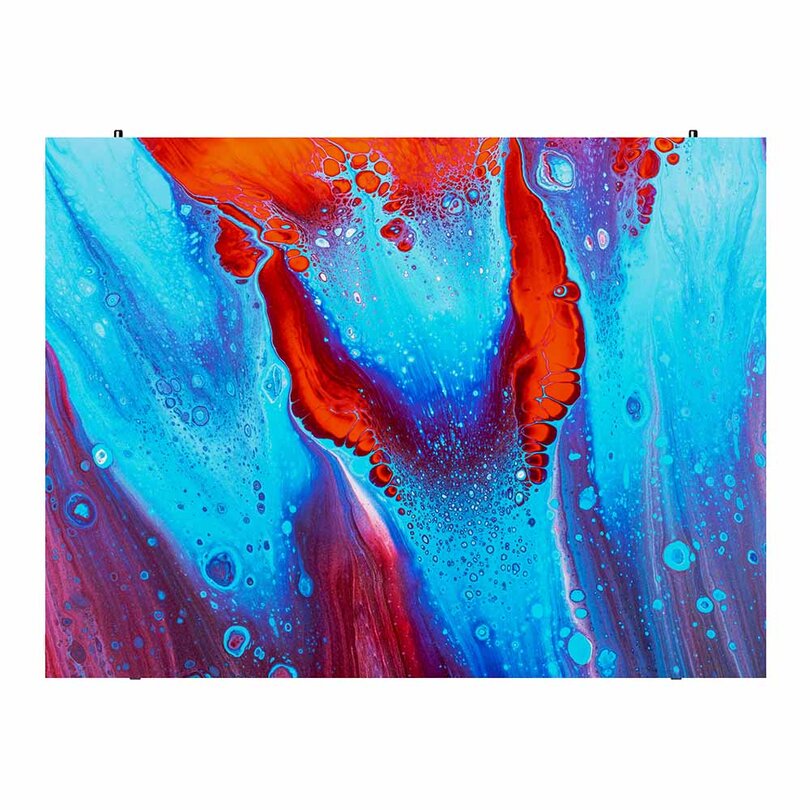

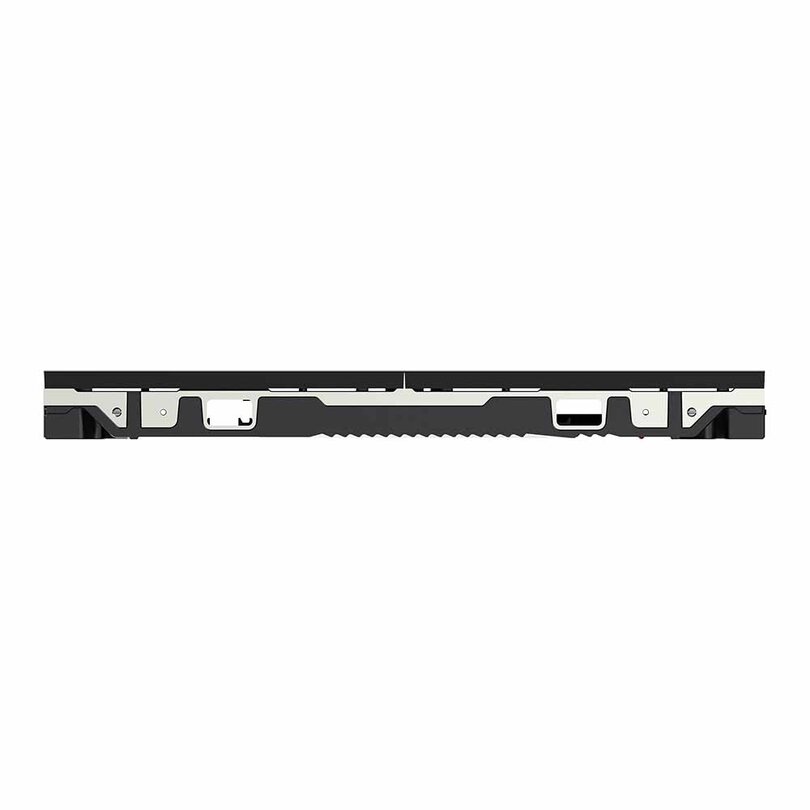

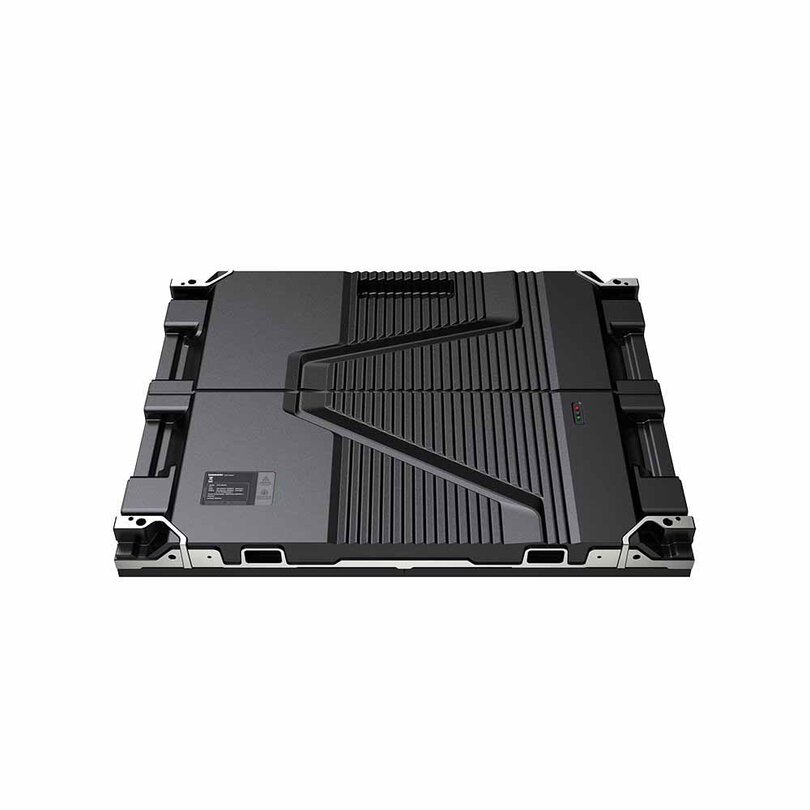

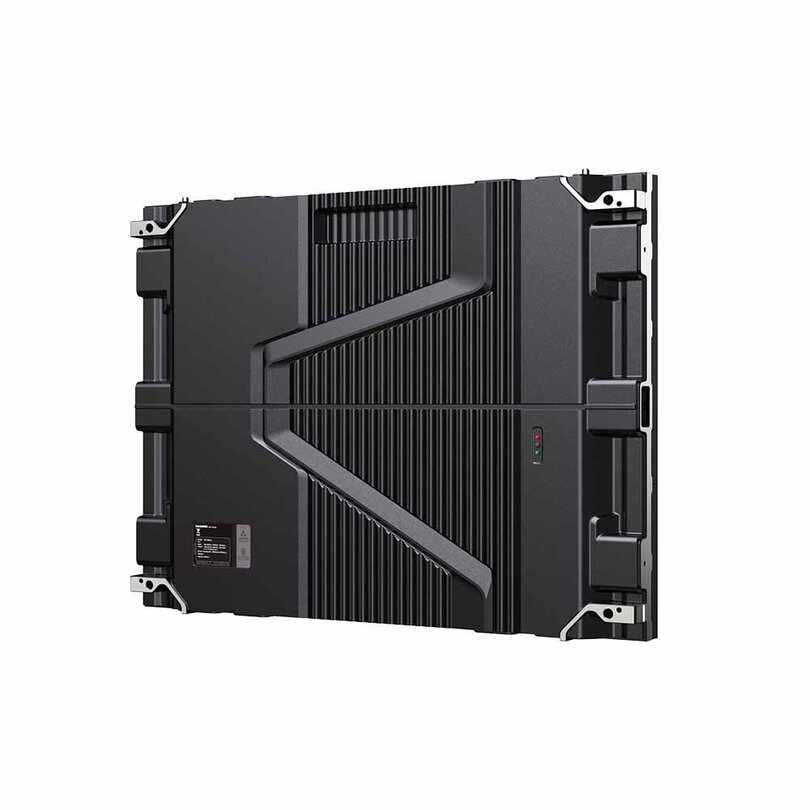

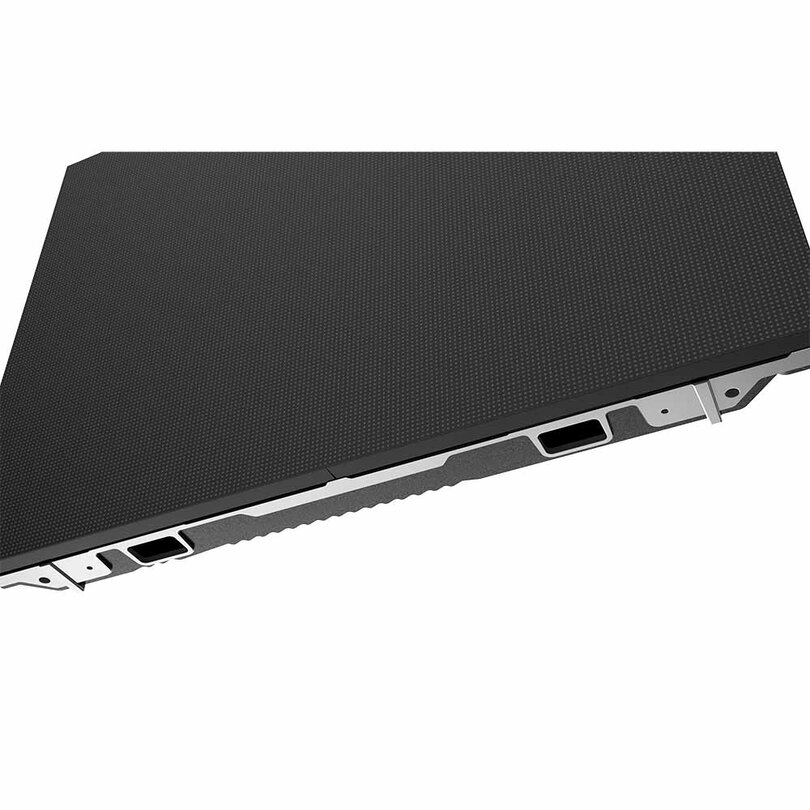

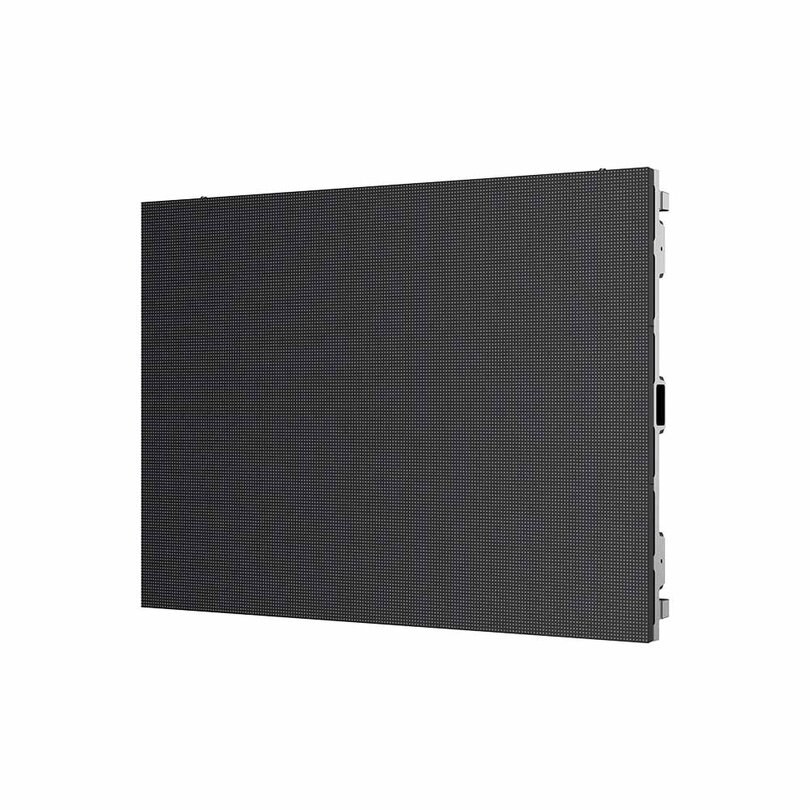

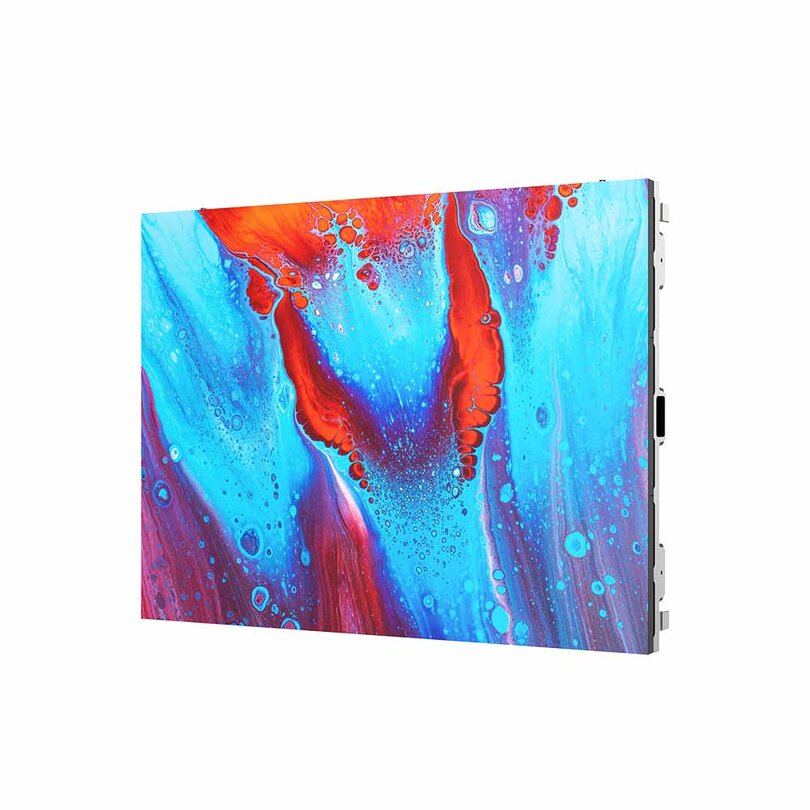

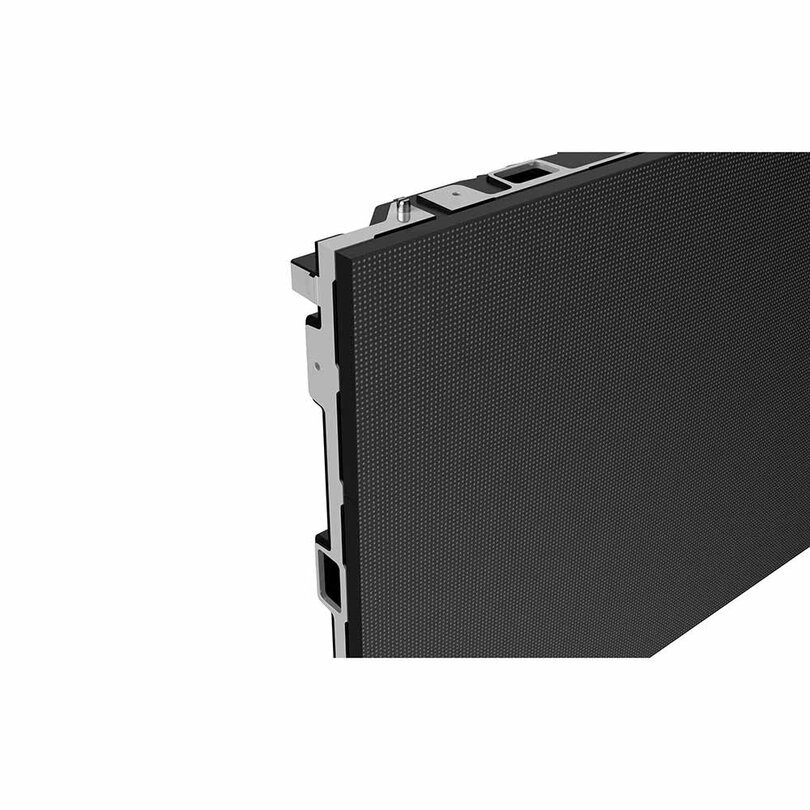

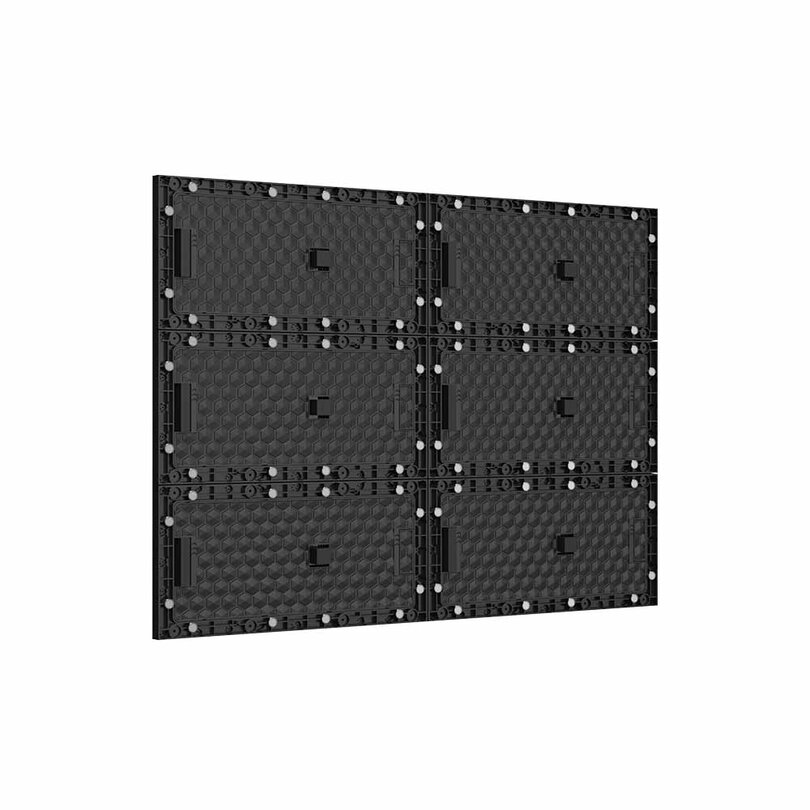

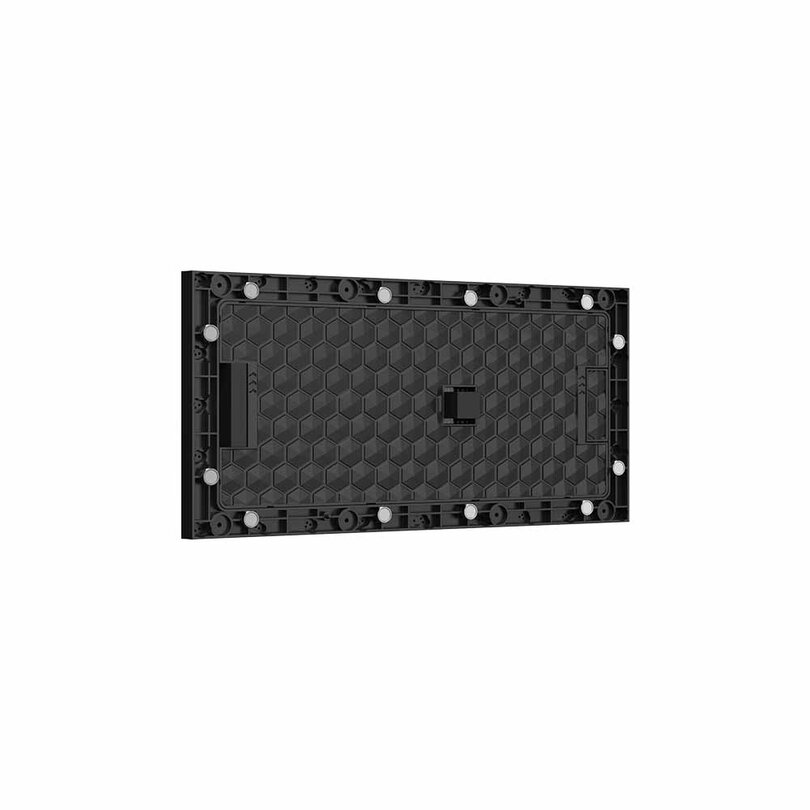

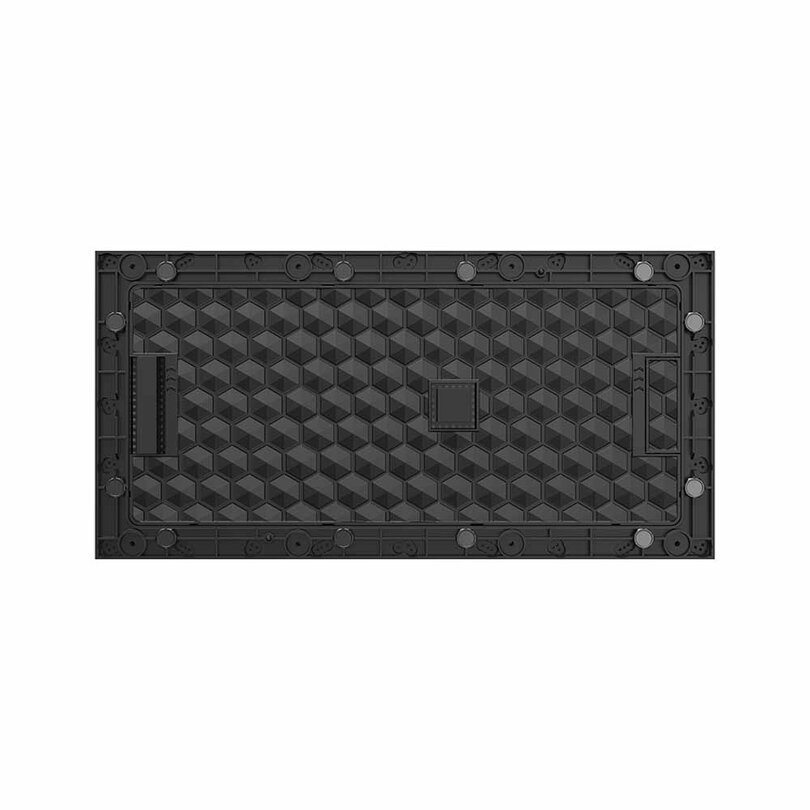

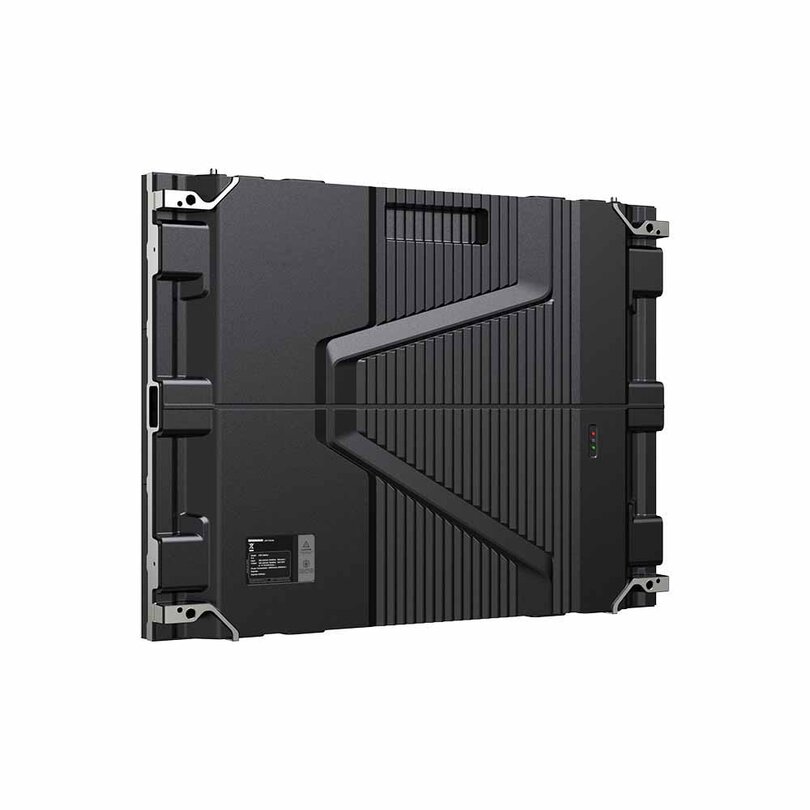

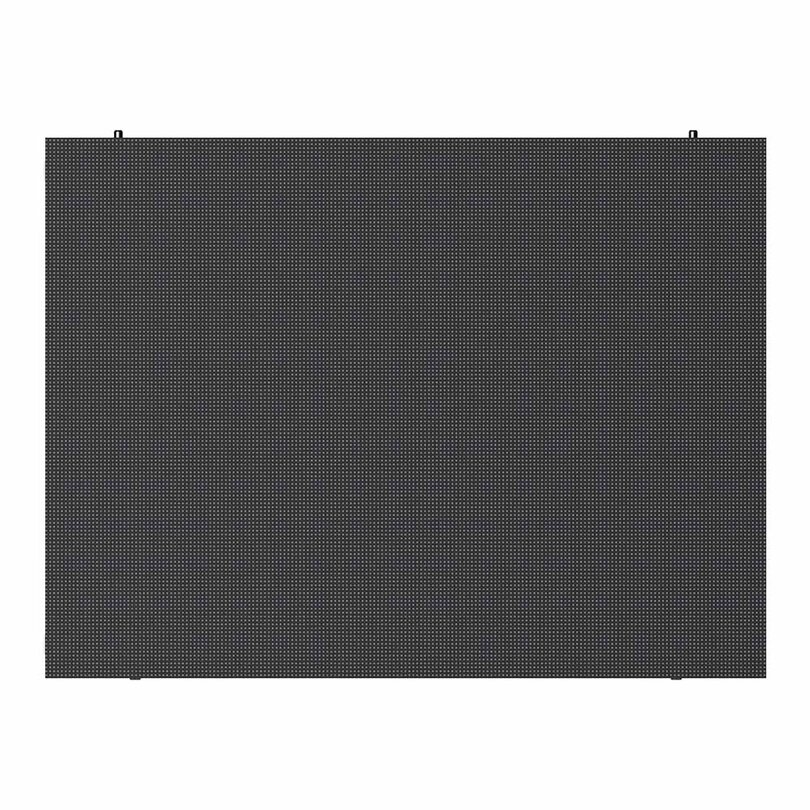

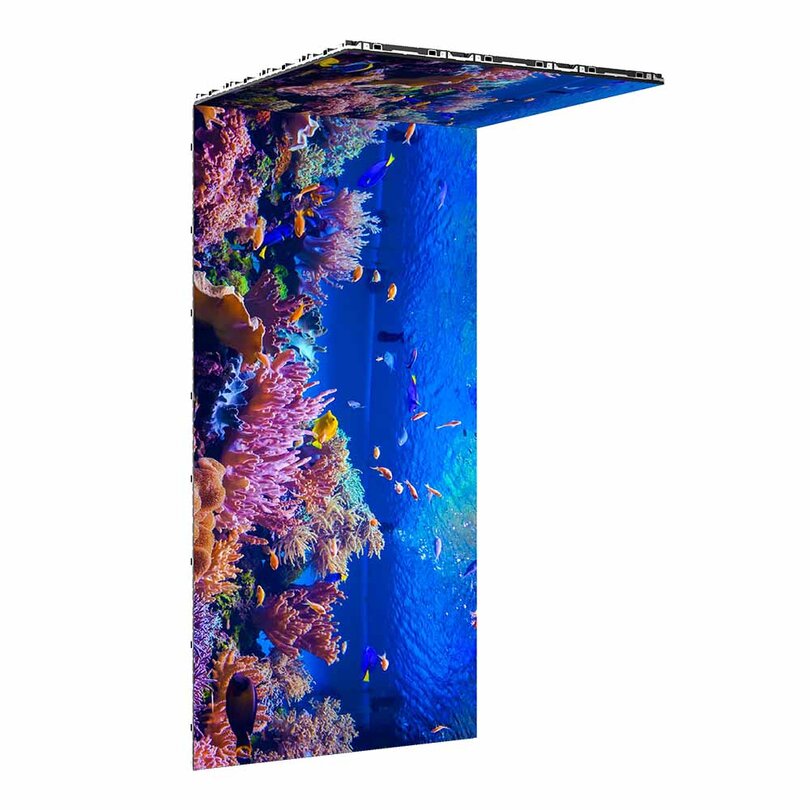

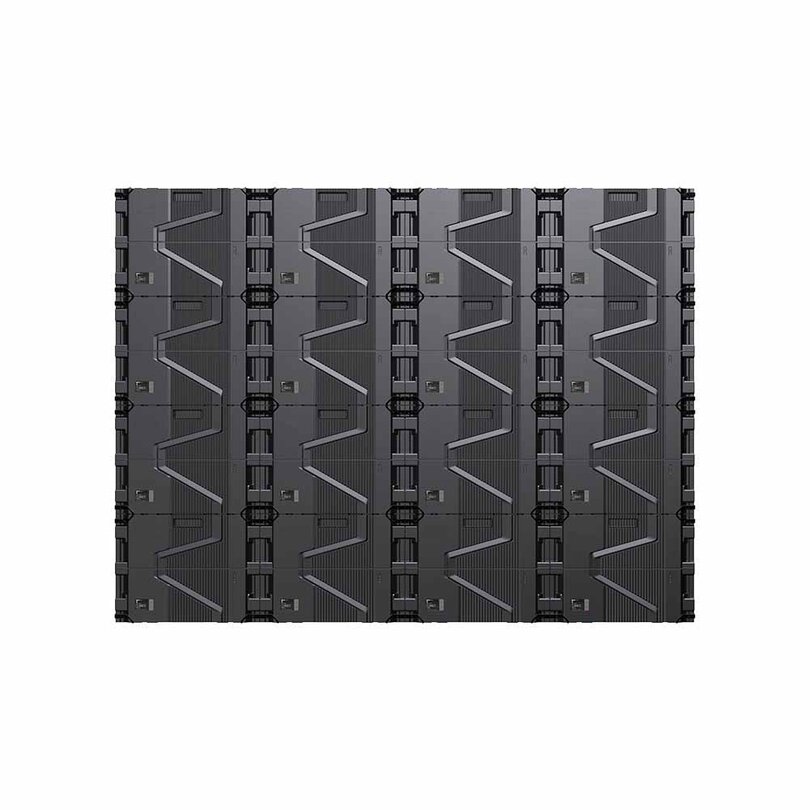

The EASYHP-P1.8 is an indoor LED panel with a 1.86 mm pitch (IP30 front protection rating) that offers a balance between visual quality and versatility, with a resolution of 344 x 258 pixels per cabinet. The cabinet measures 640 x 480 x 61.5 mm and weighs 7.8 kg, making it relatively light for its size and easy to install. Six modules are mounted on it with non-contact magnets, which greatly aid in module alignment by allowing the magnets to slide slightly on the metal.

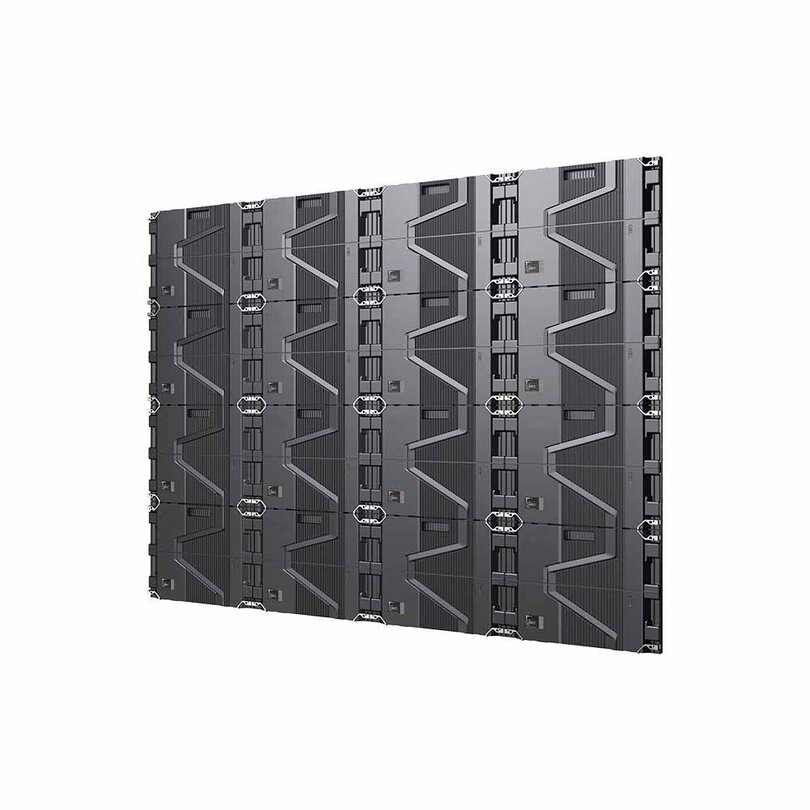

The aspect ratio is a native 4:3, but when scaled to usable screen sizes, it's easy to achieve a 16:9 aspect ratio. For example, with six horizontal x four vertical modules, you get a perfect 16:9 aspect ratio.
The EASYHP-P1.8 uses 1515 SMD LEDs, with a maximum brightness of 600 nits and a contrast ratio of 5000:1, ensuring vivid colors. The 12 - 14 bit grayscale and 4200 Hz refresh rate contribute to excellent visual fluidity, reducing flickering and improving image quality.

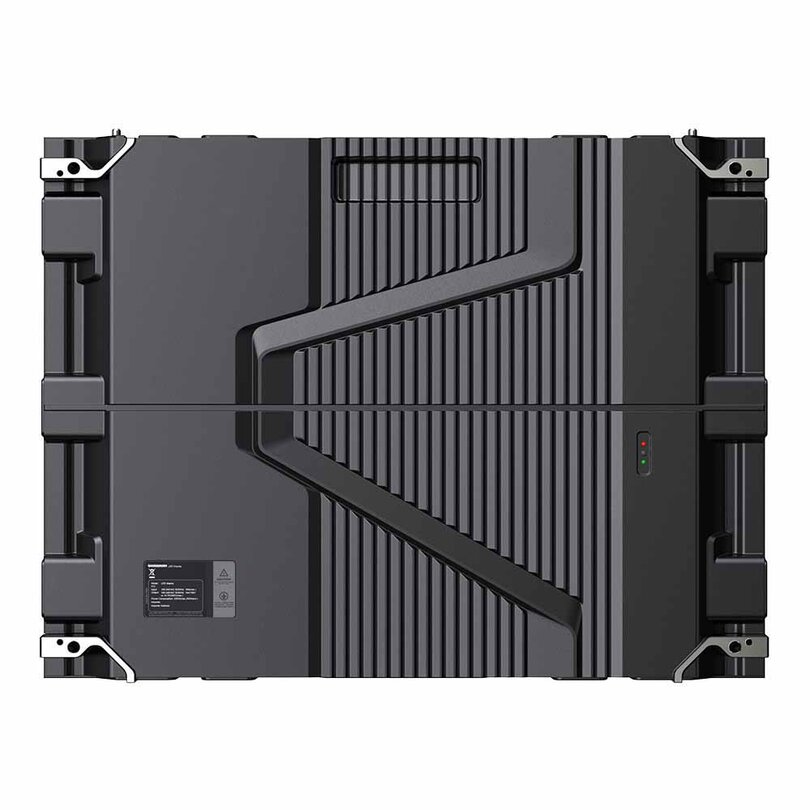

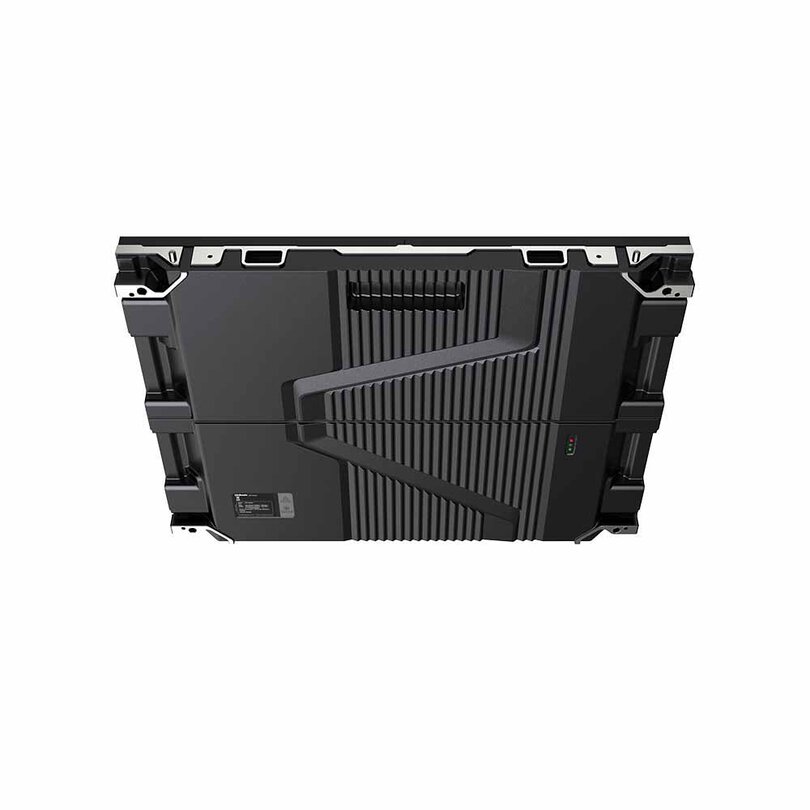

Energy efficiency is another strong point, with a maximum consumption of 420 W/m2 and an average of 140 W/m2, supported by an advanced heat dissipation system. This unique energy conservation technology reduces power consumption by 30%, improving system stability and longevity.

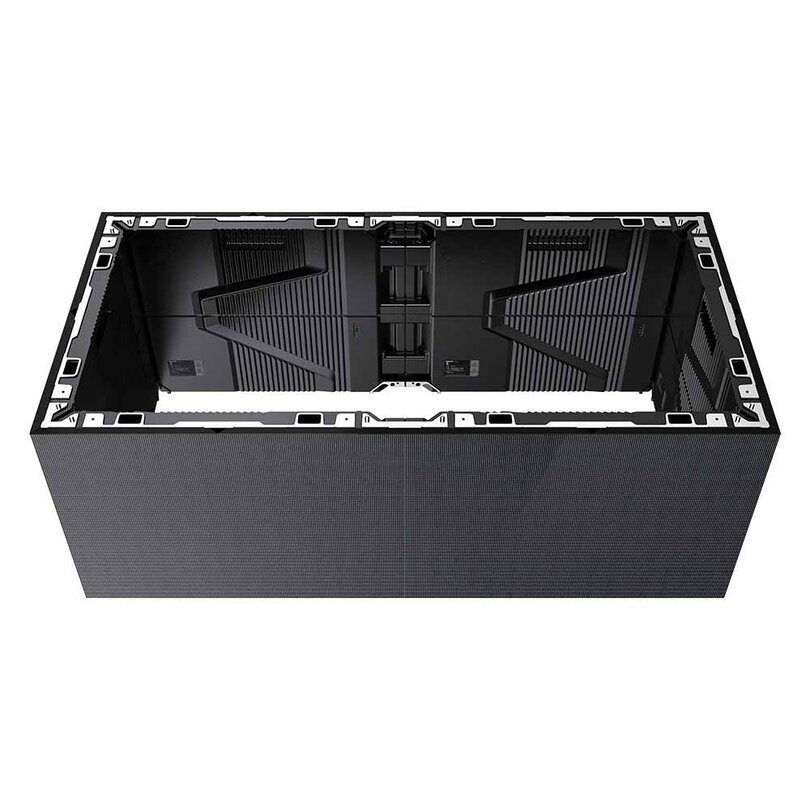

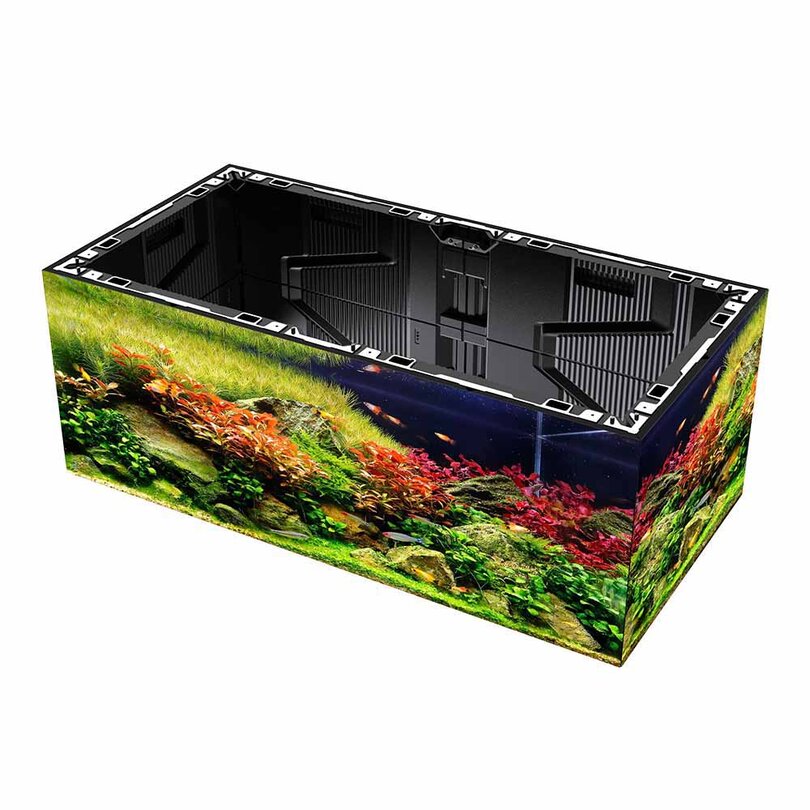

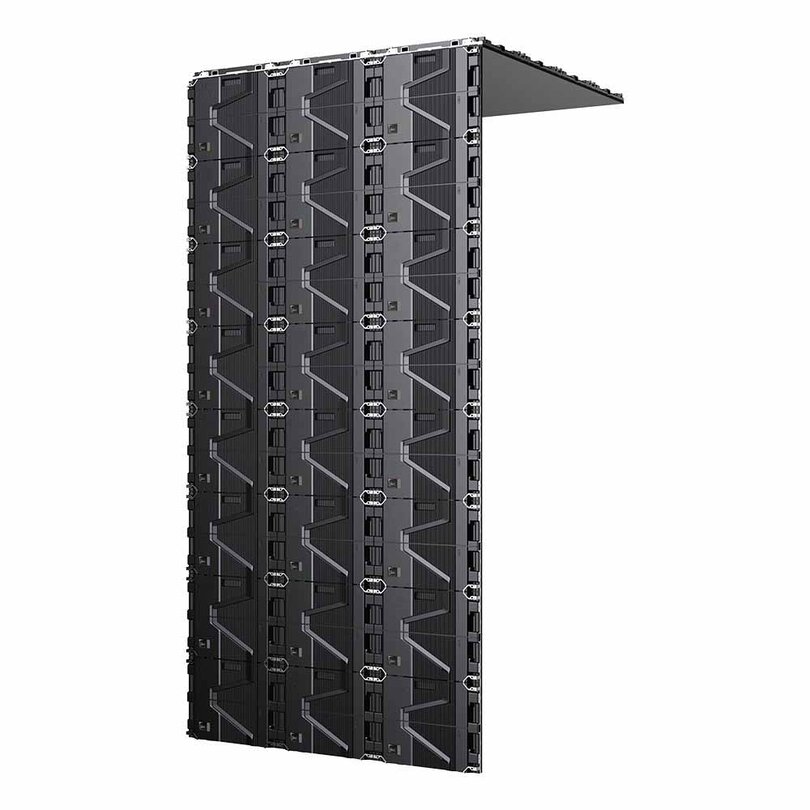

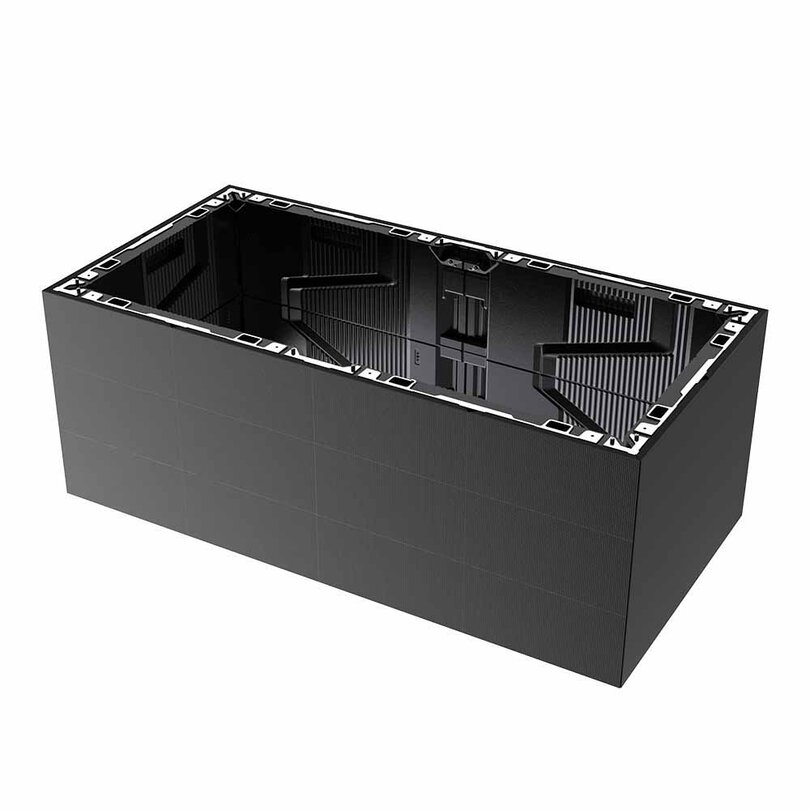

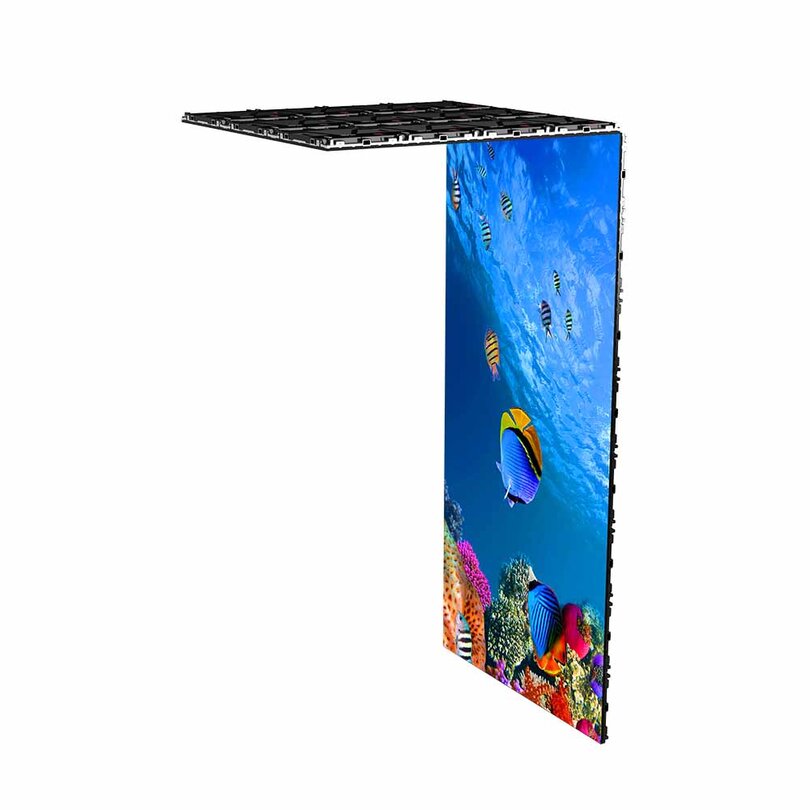

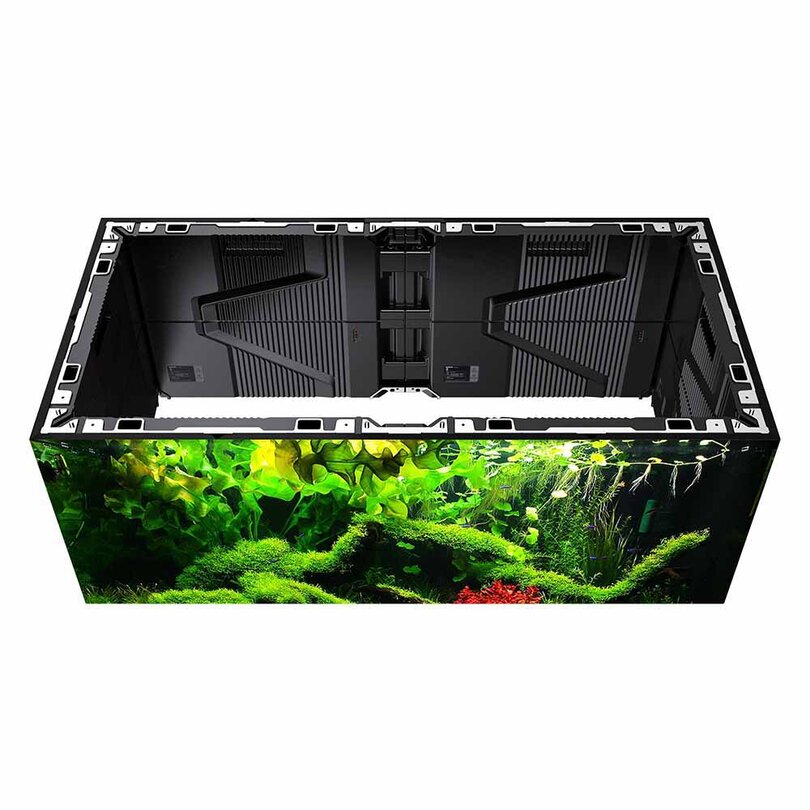

The freestanding aluminum frame, or rear-mounted on a flat wall, simplifies installation, as it can be mounted in various configurations, with adjustments to ensure a perfectly flat surface. All mechanical parts are included.

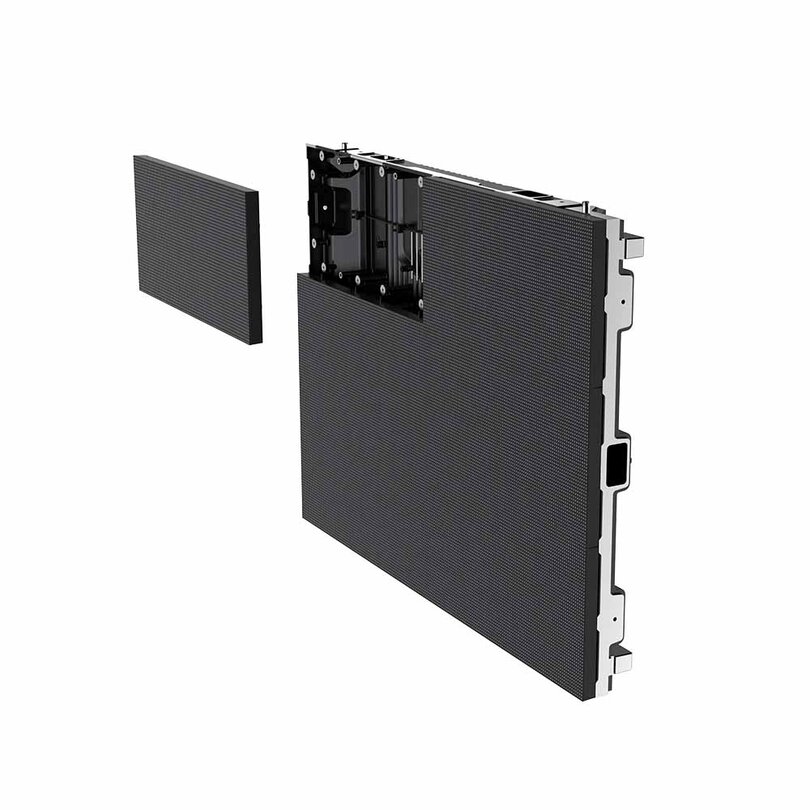

Maintenance is frontal.
The EASYHP-P1.8 is ideal for commercial and professional applications requiring a display with excellent visual performance, reliability, and simplified maintenance.
