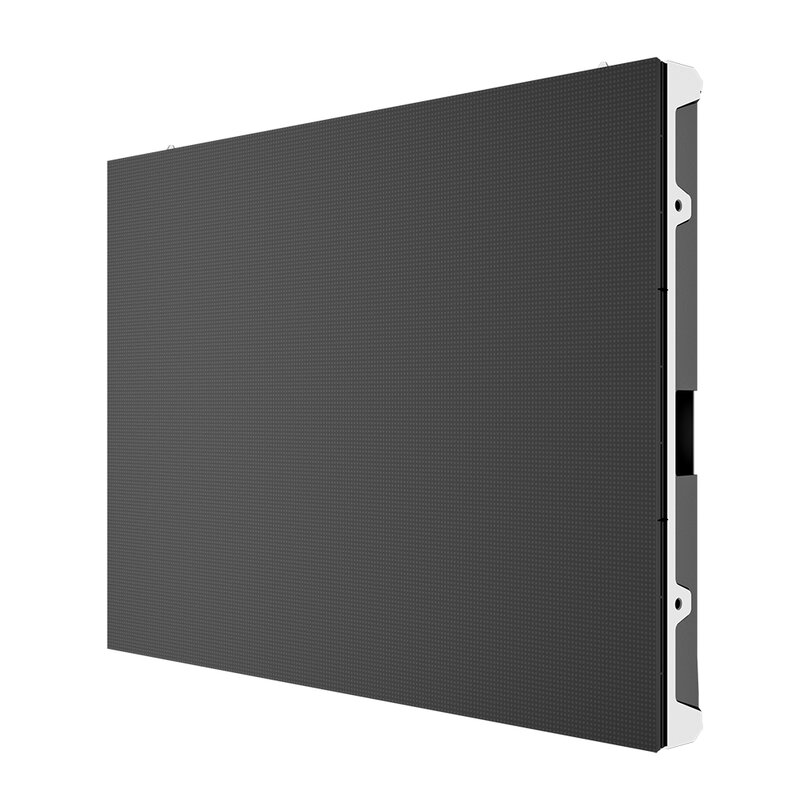

P2.5 LED panel with 640 x 480 mm die-cast aluminum cabinet weighing only 6.7 kg, ideal mix of quality, exceptional visual performance even at short distances and price. It features a refresh rate of 3840 Hz, 13 / 14 bit gray scale and ultra-wide viewing angle of 160° horizontally.
Cabinet with steel pins for alignment, front maintenance for modules, power supply, receiving card and the possibility of suspended or hanging installation, stacked or fixed on a surface, such as a wall or a structure.
User benefits
Areas of use
Technical characteristics
| Physical parameters | |
| LED type | SMD 3-in-1 1515 |
| Pixel Pitch | 2.5 mm |
| Panel dimensions (W x H x D) | 640 x 480 x 60 mm |
| Module dimensions (W x H) | 320 x 160 mm |
| Pixel per panel | 256 x 192 |
| Panel weight | 6.7 kg |
| Panel material | die casting aluminum |
| Optoelectronic parameters | |
| Brightness | 1000 nit |
| Refresh rate | 3840 Hz |
| Gray scale | 13 / 14 bit |
| Contrast ratio | 4000:1 |
| Color temperature | 6500 K |
| Viewing angle (H/V) | 160° / 160° |
| Driving type | 1/32 |
| Operating voltage | 200 - 240 VAC |
| Power consumption (max. / avg.) | 516 / 172 W/m2 |
| Application parameters | |
| Storage temperature | -40 to 60 °C |
| Operating temperature | -10 to 40 °C |
| Storage humidity | 10 - 85% RH |
| Operating humidity | 10 - 80% RH |
| IP rating (front / rear) | IP40 / IP21 |
| LED lifetime | 100,000 h |
| Module maintenance | front |
| PSU & others maintenance | front |
| Panel installation type | hanging / stacking / fixed |
| Max. rigging QTY | 12 |
