EasySQUARE-P3.9-O-100x100 - Outdoor, 5500 nit, 5000:1, 3840 Hz, 1000 x 1000 mm, 22.3 kg high-performance LED panel, full die-casting cabinet, excellent strength and flatness , front & rear maintenance

Outdoor, 5500 nit, 5000:1, 3840 Hz, 1000 x 1000 mm, 22.3 kg high-performance LED panel, full die-casting cabinet, excellent strength and flatness , front & rear maintenance

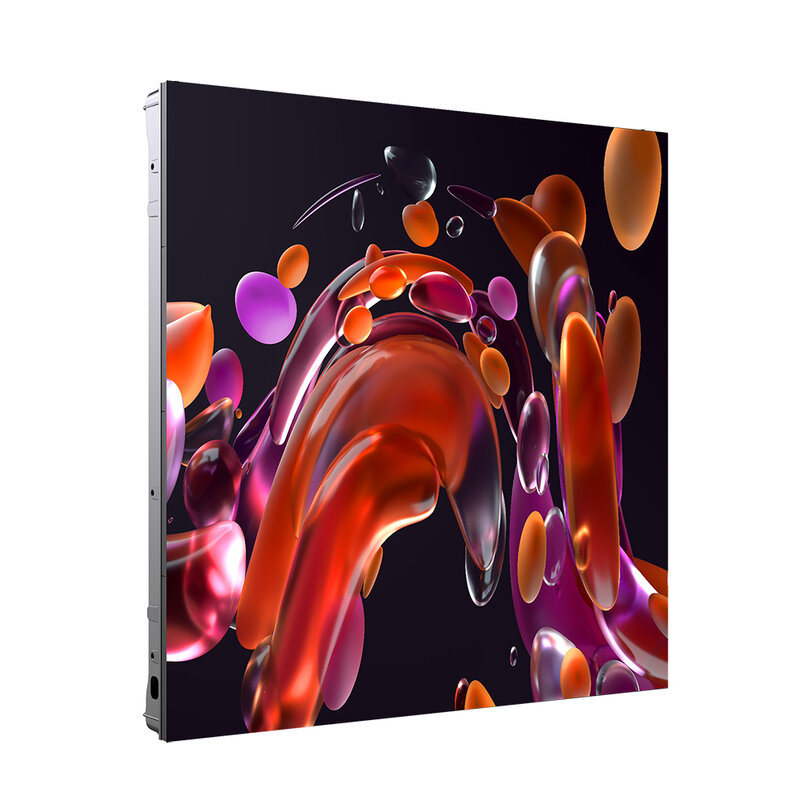

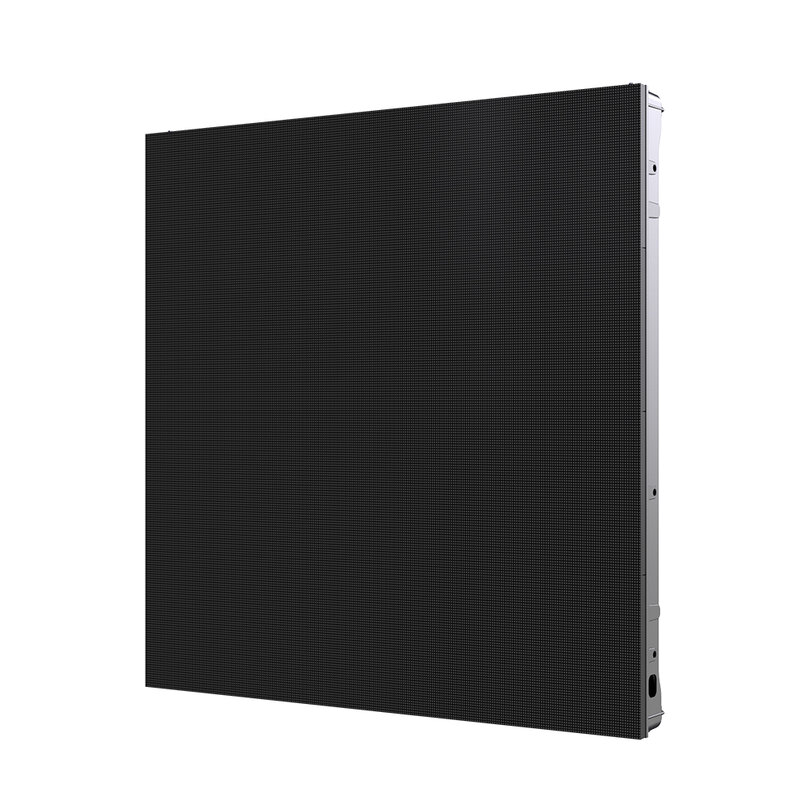

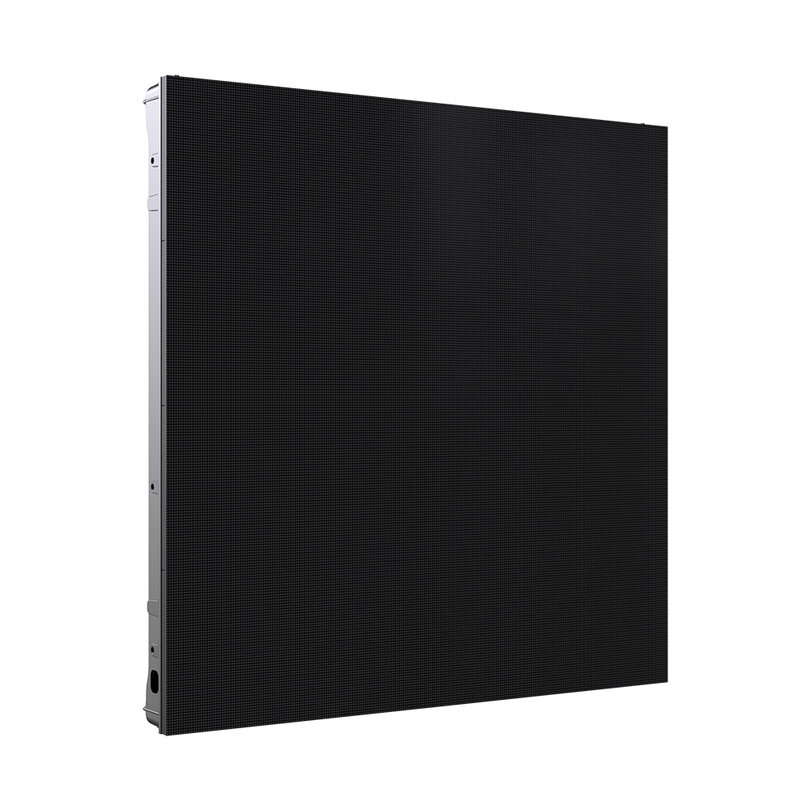

The EasySQUARE-P3.9-O-100x100 is an LED panel designed for fixed installations in outdoor environments (IP65), where reliability and visibility are essential. With a brightness of 5500 nits, it guarantees sharp images even in bright sunlight, while the die-cast aluminum construction ensures robustness and mechanical precision.

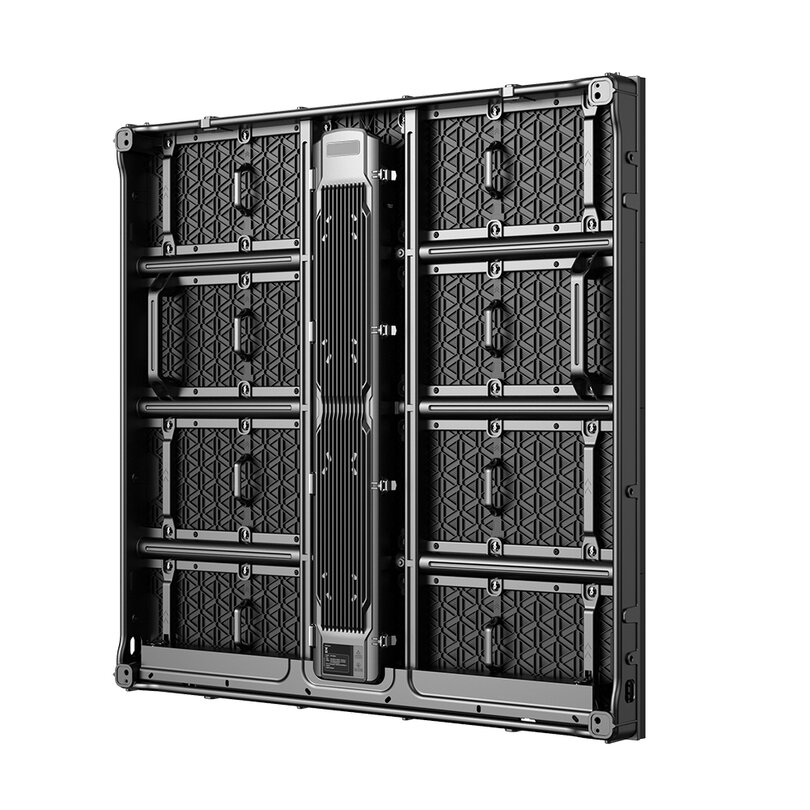

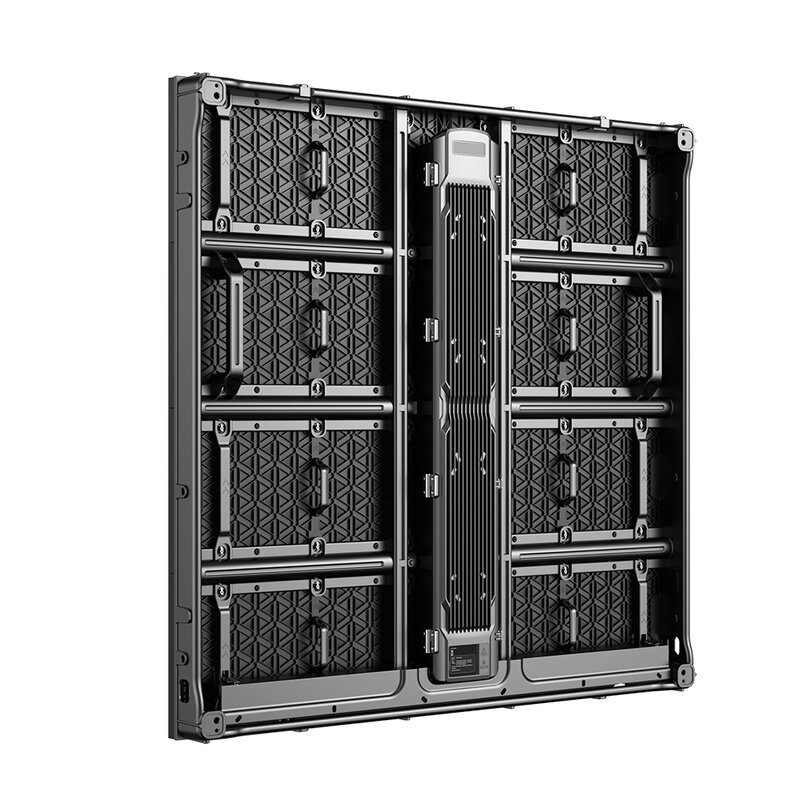

The 1000 x 1000 mm cabinet has a resolution of 256 x 256 pixels, with a 3.91 mm pitch that balances definition and viewing distance. The IP65 front panel makes it weatherproof, while front and rear access simplify maintenance.

Compatible with major video control systems and a refresh rate exceeding 3840 Hz, this LED panel is ideal for advertising, events, and permanent architectural installations.

Customer benefits

• High visibility even in direct sunlight thanks to 5500 nits of brightness
• Versatile installation: supports front, rear, suspended, and floor mounting

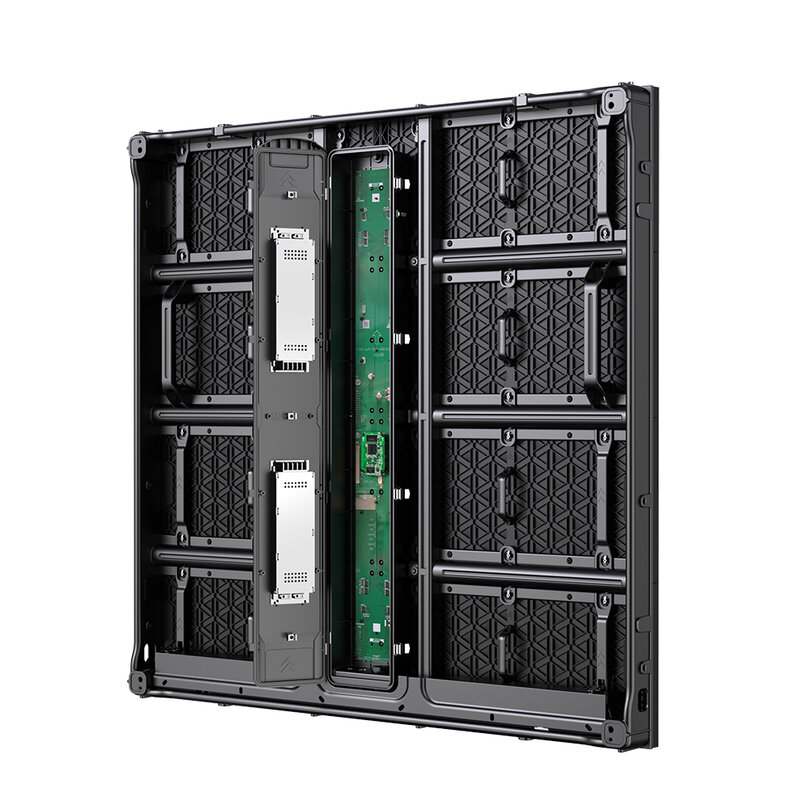

• Simplified maintenance: front and rear access
• Weather resistance: IP65 certified for outdoor use
• Rugged and lightweight die-cast magnesium alloy structure
• Compatible with NovaStar controllers and professional video systems

Areas of use

• Outdoor advertising installations (totems, facades, digital signs)
• Live events and outdoor concerts
• Permanent architectural installations
• Shopping centers and public spaces
• Stadiums and sports facilities
• Trade fairs and temporary events
• Museums and outdoor multimedia installations

Technical characteristics

• Pixel Pitch: 3.9 mm
• LED type: 3-in-1 SMD
• Pixel density: 65,536 pixels/m²
• Pixels per module: 128 x 64 pixels
• Module size (W x H): 500 x 250 mm
• Pixels per panel: 256 x 256 pixels

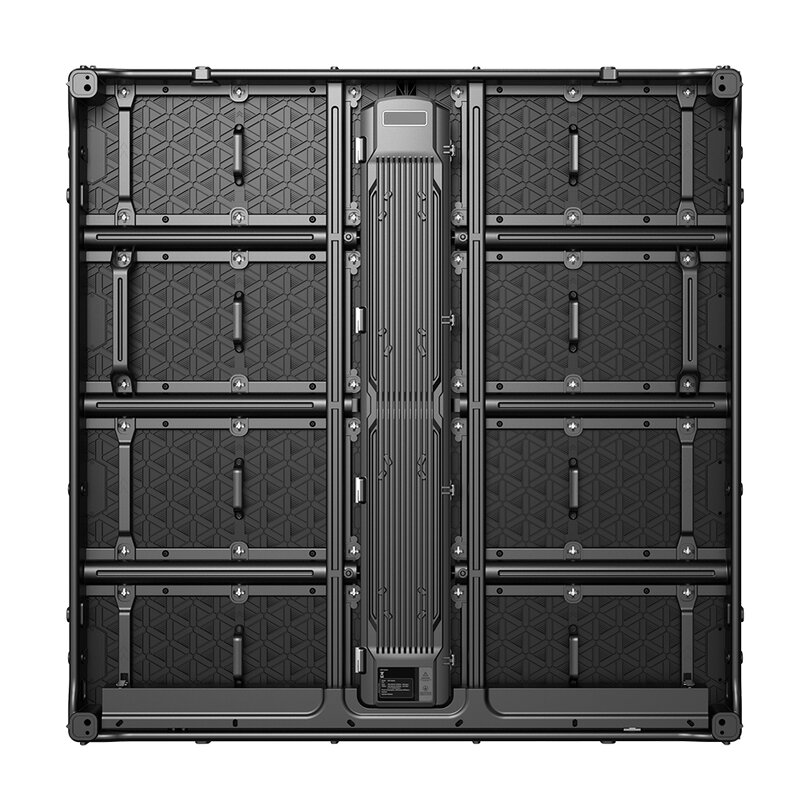

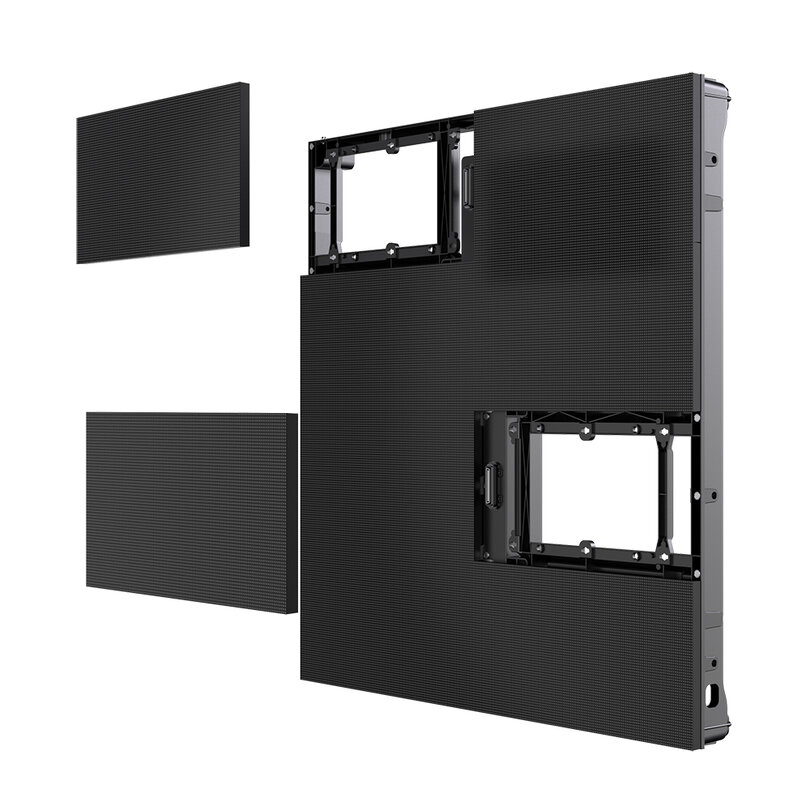

• Maintenance: front & rear
• Ingress protection: IP65
• Planeness: ≤ 0.3 mm
• Recommended viewing distance: ≥ 3.9 m
• Material: die casting magnesium alloys
• Brightness: 5500 nit
• Calibration: support brightness and chroma
• Brightness control: manual / automatic
• Color temperature: 2500 – 9000 K adjustable
• Viewing angle (horizontal / vertical): 160° / 140°
• Contrast ratio: 5000:1
• Gray scale: 14 bit
• Input power (max.): 660 W/m²
• Input power (typical): 220 W/m²
• Input voltage: 100 – 240 V_AC
• LED lifetime: 100,000 hours
• Refresh rate: 3840 Hz
• Video frame rate: 50/60 Hz
• Operating temperature / humidity: -20 to 50 ℃ / 10 to 90% RH
• Storage temperature / humidity: -40 to 60 ℃ / 10 to 90% RH
• Standard mounting configuration: fixed, floor-mounted, hanging
• Optional mounting configuration: concave, convex, round shape, L shape
• Panel size (W x H x D): 1000 x 1000 x 90.4 mm
• Weight: 22.3 kg/m²
