Outdoor, fixed, IC MBI5124, SMD3535, ≥6500 nit, ≤1920 Hz, 960 x 960 mm, 50 ±1 kg/m2

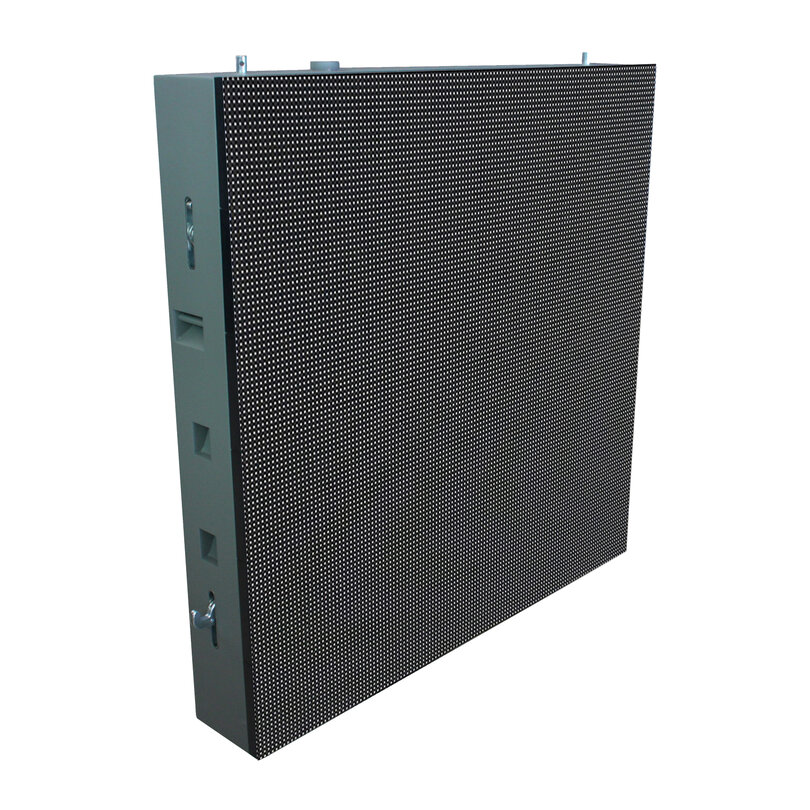

P10 LED display equipped with robust self-supporting structure with 960 x 960 mm cabinet, SMD3535 1R1G1B LED, IC MBI5124, for fixed outdoor installations (6500 nit), IP65/IP54.

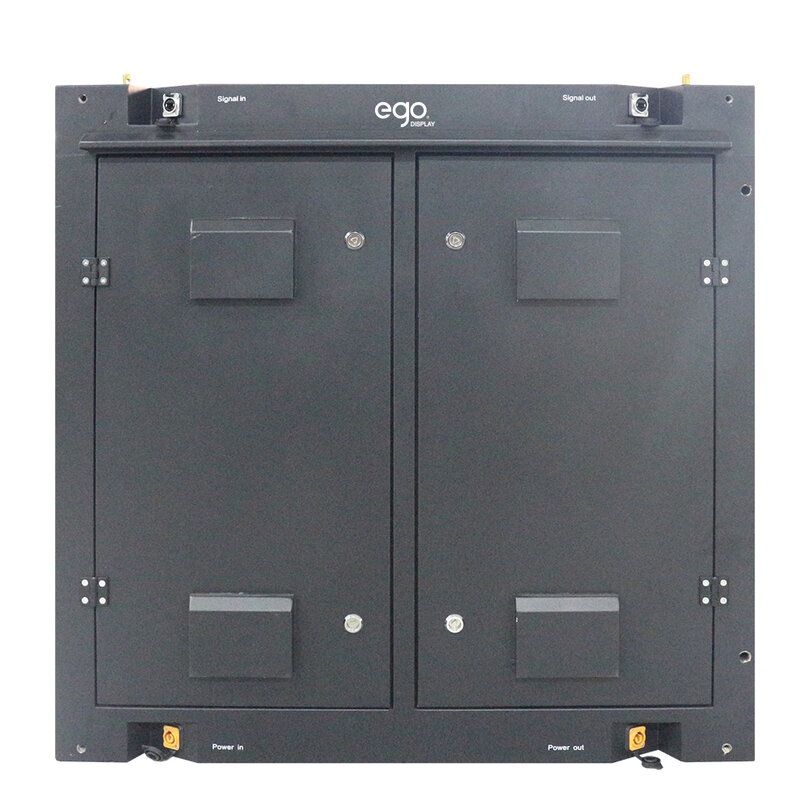

Cabinet with pins for precise alignment, fast security lock, locking rear doors for easy maintenance and high protection and integrated retractable handle for transportation. The high refresh rate of 3840 Hz ensures an excellent viewing experience.
Since this display resists to bad weather and is very bright, it is suitable for fixed installations such as advertising stations, digital signage for commercial activities, maxi-screens for stadiums, LED walls on the roof and on building facades.
Technical characteristics
IC |
MBI5124 |
Dimension |
960 x 960 mm |
Pixel pitch |
10 mm |
LED Configuration |
1R1G1B
|
LED type |
SMD3535 |
Cabinet resolution |
96 x 96 pixel |
Physical density |
10,000 pixel/m2 |
Brightness |
≥ 6500 cd/m2 |
Contrast |
≥ 2000:1 |
Scan method |
1/2 |
Max. power consumption |
1200 W/m2 |
Avg. power consumption |
400 W/m2
|
Cabinet weight |
50 ±1 kg/m2 |
Refresh rate |
≤ 1920 Hz |
IP rating |
IP65/IP54, outdoor |
Control mode |
synchronous display with control PC by DVI |
