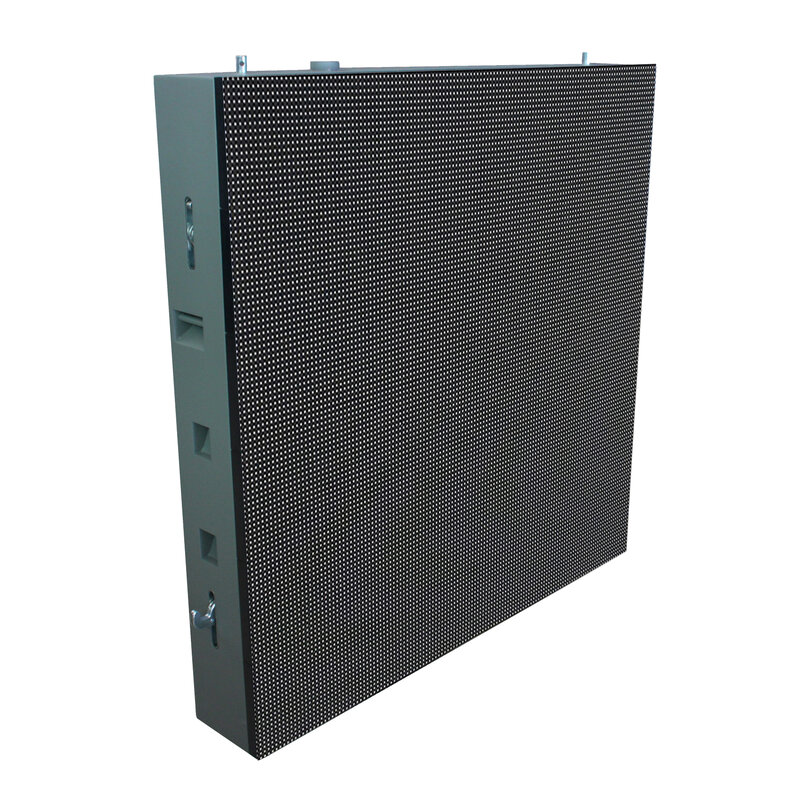

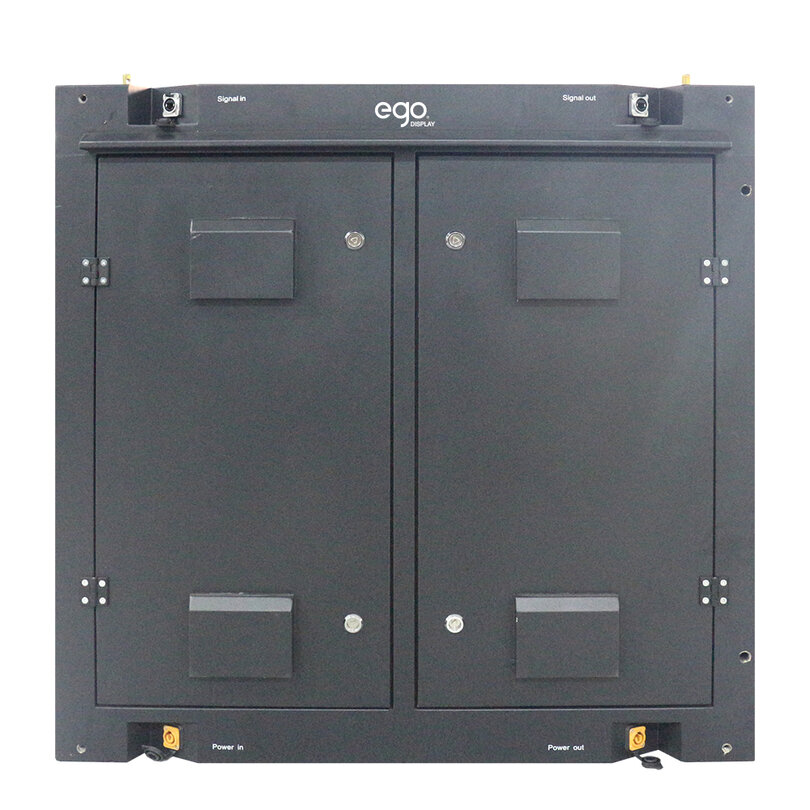

P5 LED display equipped with robust self-supporting structure with 960 x 960 mm cabinet, SMD1921 1R1G1B LED, IC CS2017, for fixed outdoor installations (6000 nit), IP65/IP54.
Technical characteristics
| IC | CS2017 |
| Pixel pitch | 5 mm |
| LED Configuration | 1R1G1B |
| LED type | SMD1921 |
| Cabinet resolution | 192 x 192 pixel |
| Physical density | 40,000 pixel/m2 |
| Brightness | ≥ 6000 cd/m2 |
| Contrast | ≥ 2000:1 |
| Scan method | 1/8 |
| Max. power consumption | 1200 W/m2 |
| Avg. power consumption |
400 W/m2 |
| Refresh rate | ≤ 1920 Hz |
| IP rating | IP65/IP54, outdoor |
| Control mode | synchronous display with control PC by DVI |
| Dimension | 960 x 960 mm |
| Cabinet weight | 50 ±1 kg/m2 |
