Iridah-1.9 - P1.9 indoor LED panel, HOB technology, SMD 3-in-1, 800 nit, 7680 Hz, 500 x 500 mm, 7.5 kg

P1.9 indoor LED panel, HOB technology, SMD 3-in-1, 800 nit, 7680 Hz, 500 x 500 mm, 7.5 kg

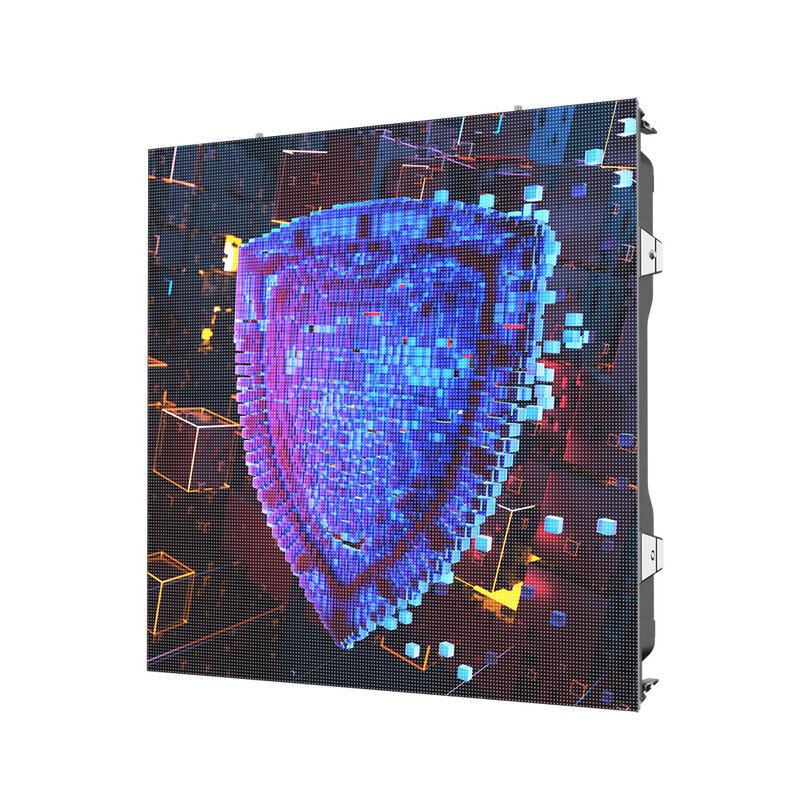

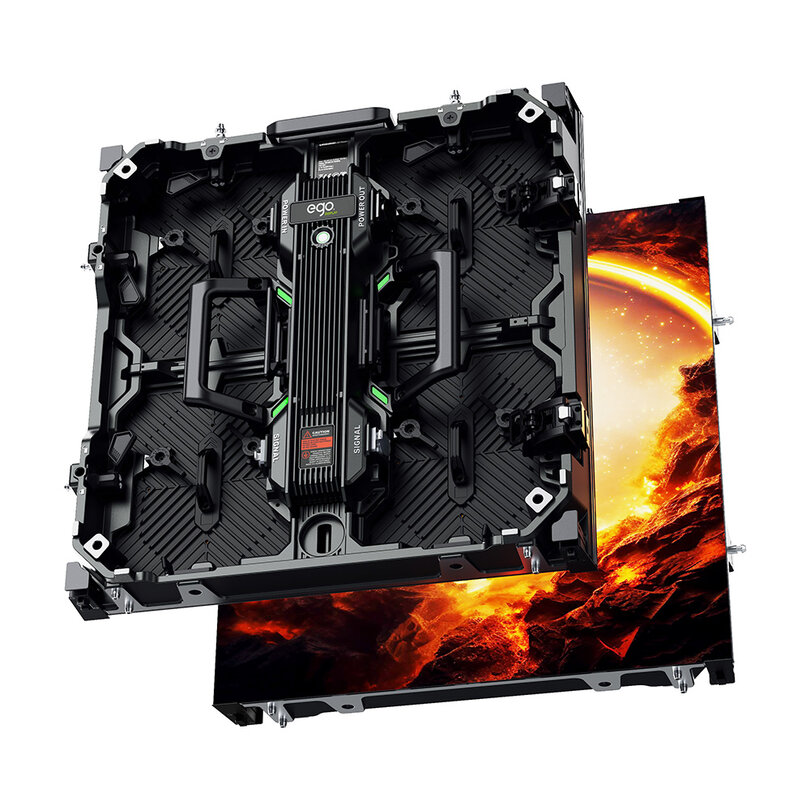

The IRIDAH-1.9 is a 500 x 500 mm P1.9 indoor rental LED panel designed for applications requiring high robustness, quick maintenance, and superior visual quality.

The HOB technology used to create these panels was created to solve the main problems of LEDs for rental applications: shock, oxidation, humidity, poor color uniformity, and difficult maintenance. It combines nanometer-level thermally conductive materials and high-temperature molding to create a seamless, protective, and opaque surface over the LEDs.

The main advantages of this technology are:

• More accurate color reproduction thanks to improved thermal uniformity and a matte layer that increases contrast
• Ink uniformity (N.B. this refers to the black ink applied to the circuit board and the surface of the LED module to uniform the color of the surface when the display is off and increase contrast)
• Five protections: waterproof, dustproof, anti-static, anti-humidity, anti-oxidation
• Impact resistance thanks to a harder surface
• Greater stability and durability compared to traditional SMD modules
• Simplified maintenance: unlike COB / GOB technology, individual LEDs can be repaired by the customer with a dedicated kit

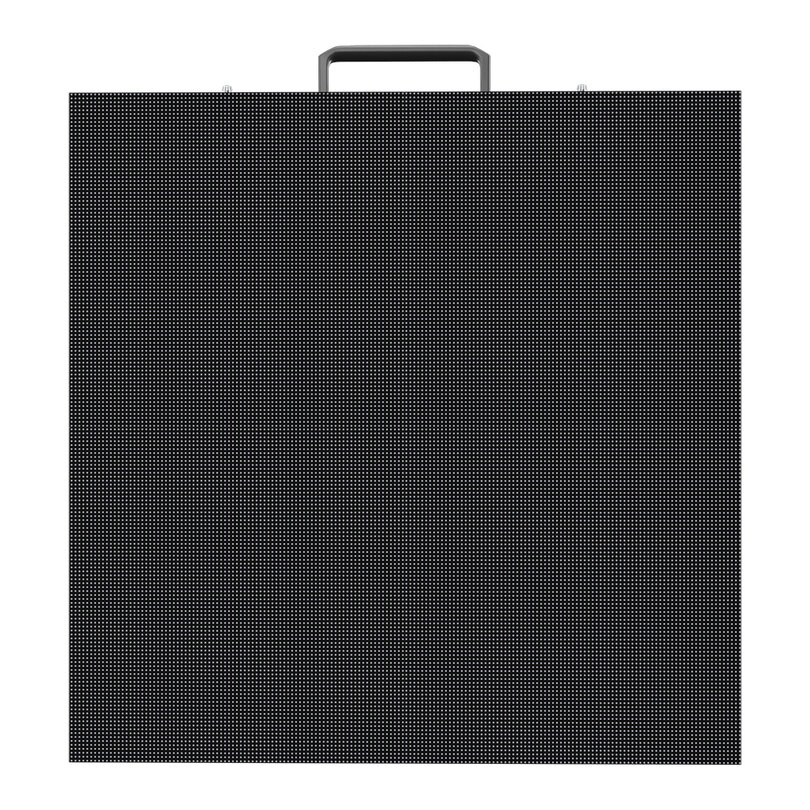

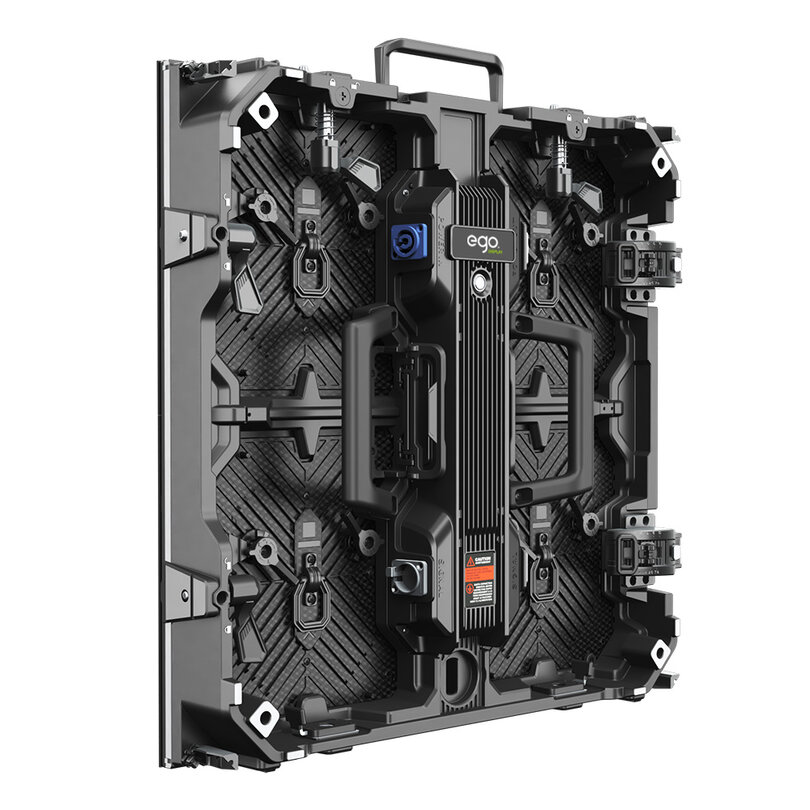

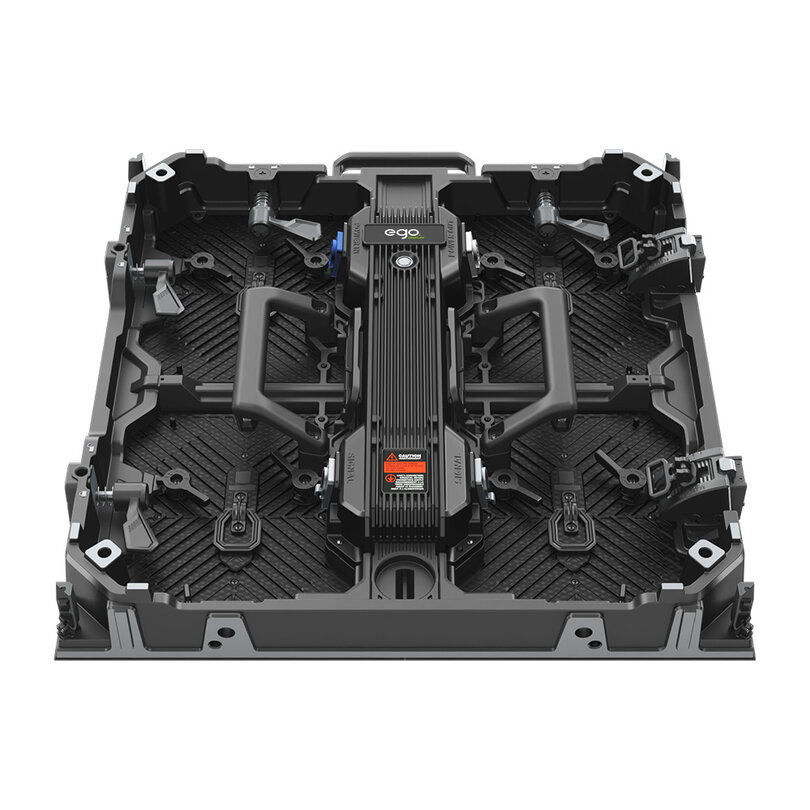

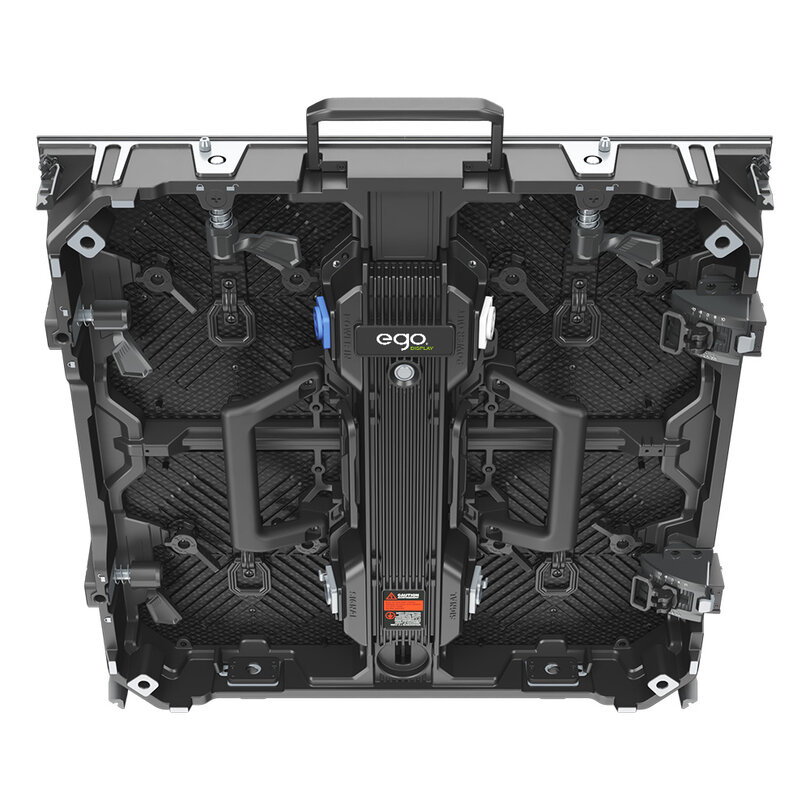

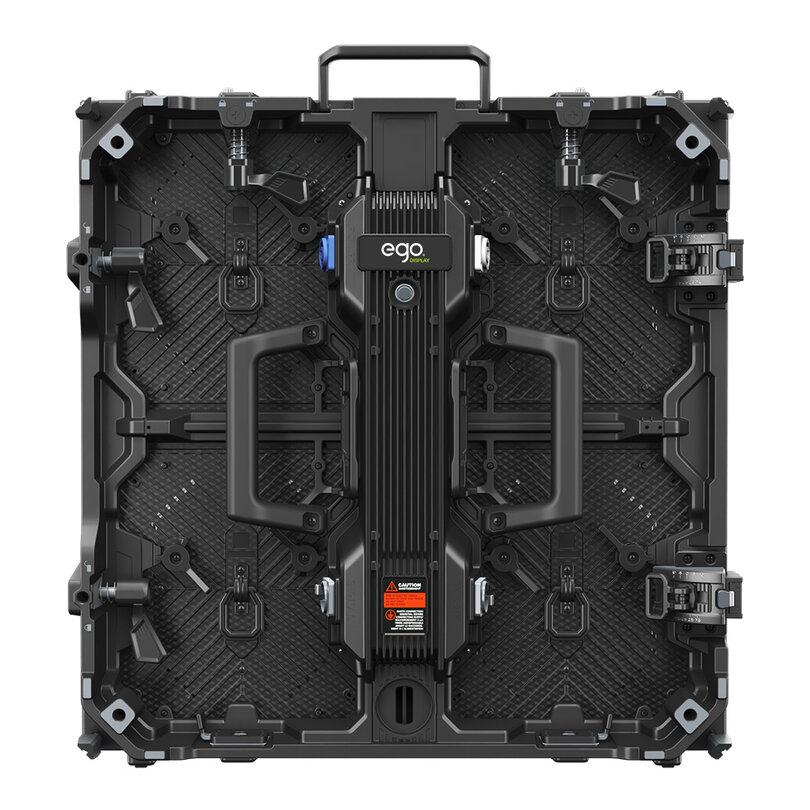

The cabinet is made of high-precision die-cast aluminum with the possibility of bending from -7.5° to +7.5° between each cabinet, with magnetic modules for quick installation and maintenance, a top handle and two central handles for easy transport / assembly, and an independent control unit.

User benefits

• HOB technology
• Cabinet resistance up to 16,000 N

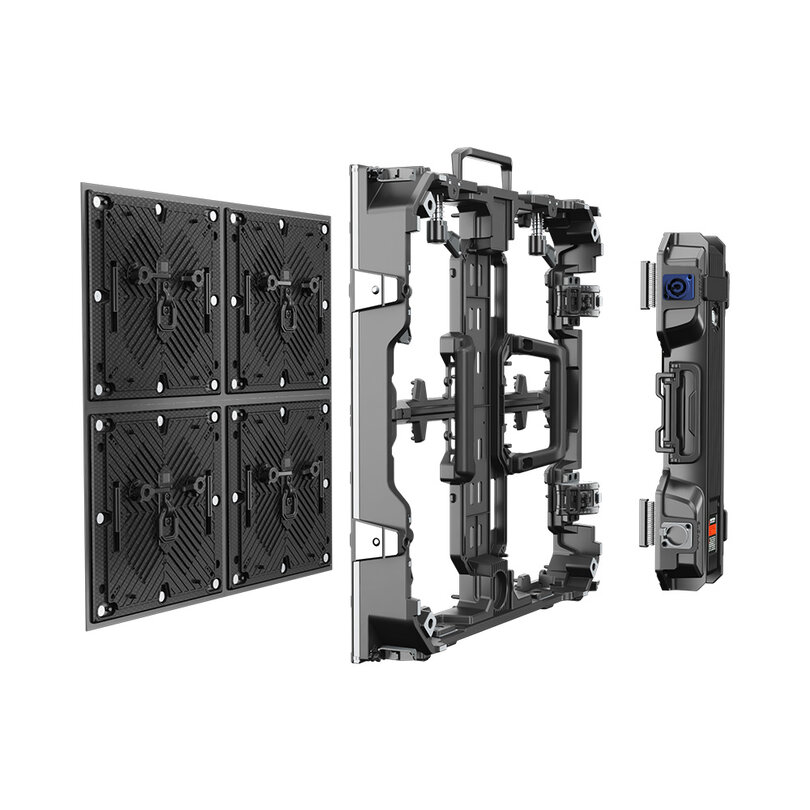

• Fully modular design: modules + frame + control unit
• Independent control unit, including power supply + receiving card + hub card (3-in-1)

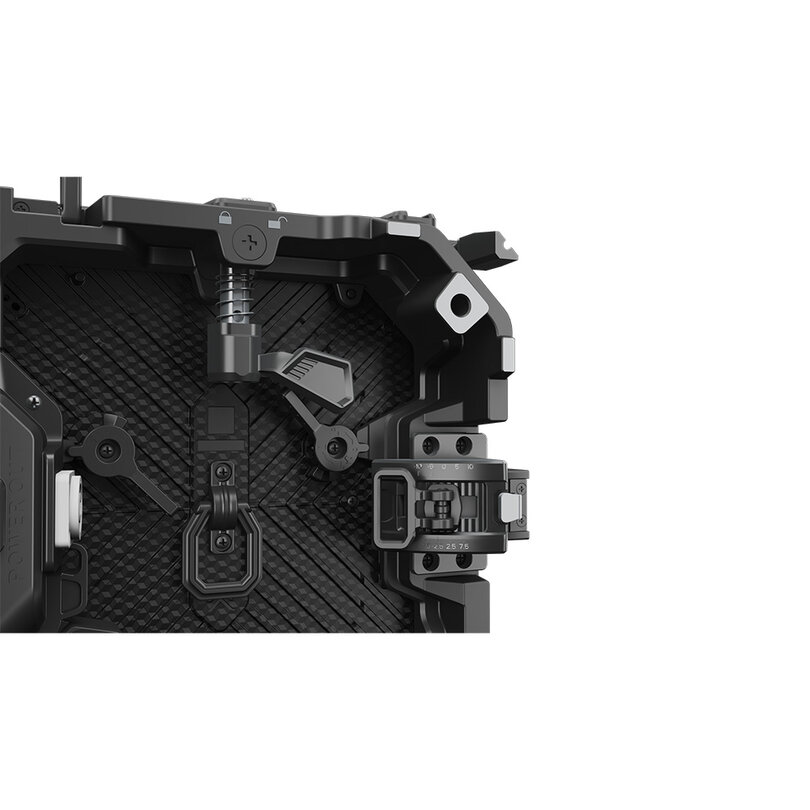

• Top mounting system with a pre-lock function that allows a single operator to safely hang the panel

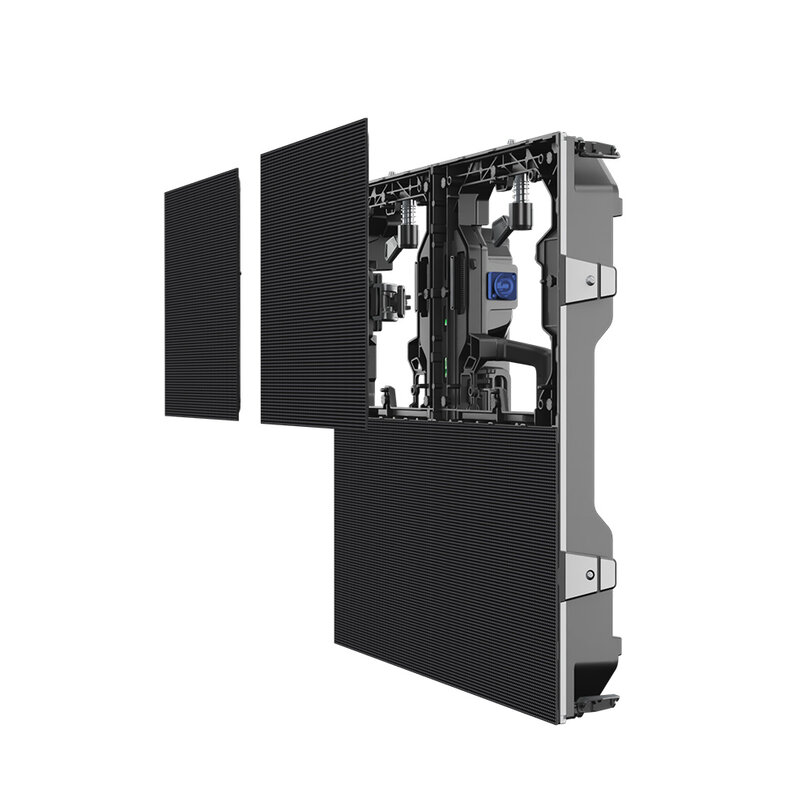

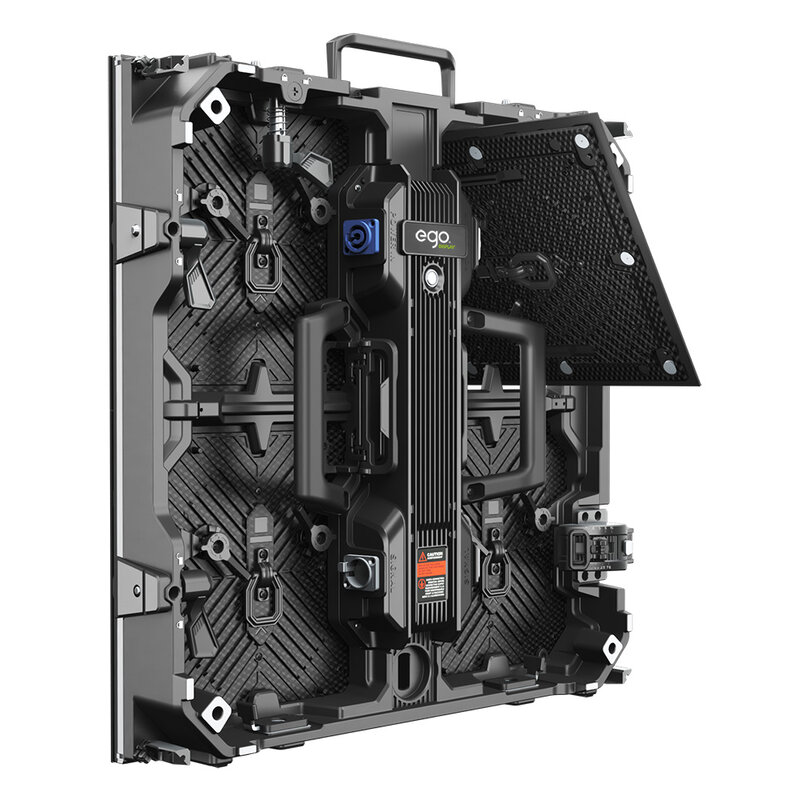

• Simplified maintenance: the modular design allows for complete maintenance, both front and rear, of the LED modules and control unit

Areas of use

• Rental (indoor)
• Corporate events and conventions
• Touring
• Indoor broadcasting, television studios
• Temporary installations with high assembly frequency

Technical characteristics

Cabinet parameters

• Pixel pitch: 1.9 mm
• LED type: SMD 3-in-1
• Surface treatment: HOB
• Module size (W x H): 250 x 250 mm
• Pixels per panel: 256 x 256
• Panel size (W x H x D): 500 x 500 x 74 mm
• Pixel density: 262,144 pixels/m²
• Weight: 7.5 kg
• Maintenance: front & rear
• Ingress protection: IP30
• Material: die‑casting aluminum

Electrical parameters

• Input power (max): 540 ±10% W/m²
• Input power (typical): 180 ±10% W/m²
• Input voltage: 100 – 240 V_AC
• Refresh rate: 7680 Hz
• Video frame rate: 50/60 Hz

Optical parameters

• Brightness: 800 cd/m²
• Calibration: supports brightness and chroma
• Brightness control: manual
• Color temperature: 2000 – 9300 K adjustable
• Viewing angle (H / V): 160° / 160°
• Contrast ratio: 5000:1
• Gray scale: 14‑bit

Operation conditions

• Operating temperature / humidity: –20 to 50 °C / 10 to 90% RH
• Storage temperature / humidity: –30 to 60 °C / 10 to 80% RH
• Max stacking: 12 pcs for 500 x 500 mm (6 m)
• Max hanging: 20 pcs for 500 x 500 mm (10 m)
• Certification: CE / CB / FCC / ETL / ROHS
