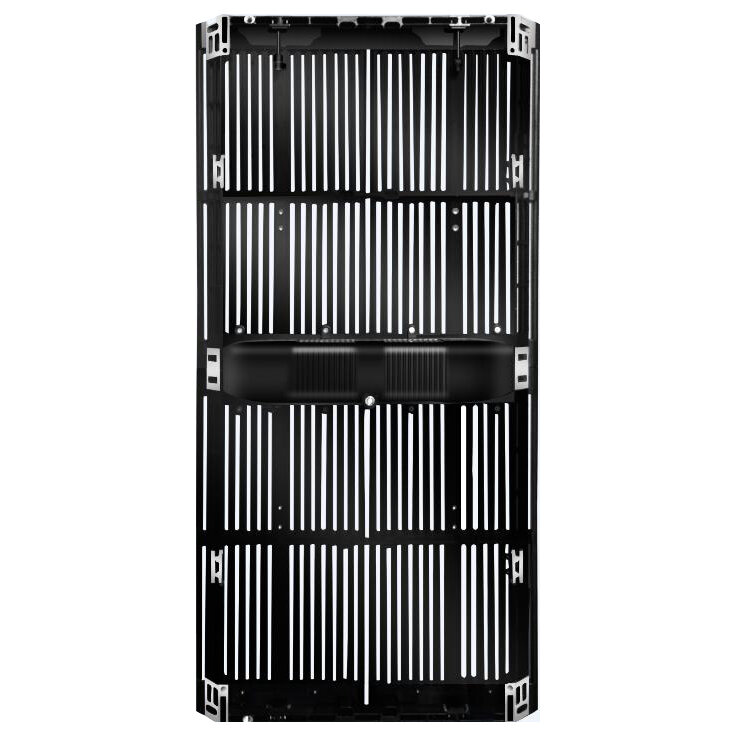

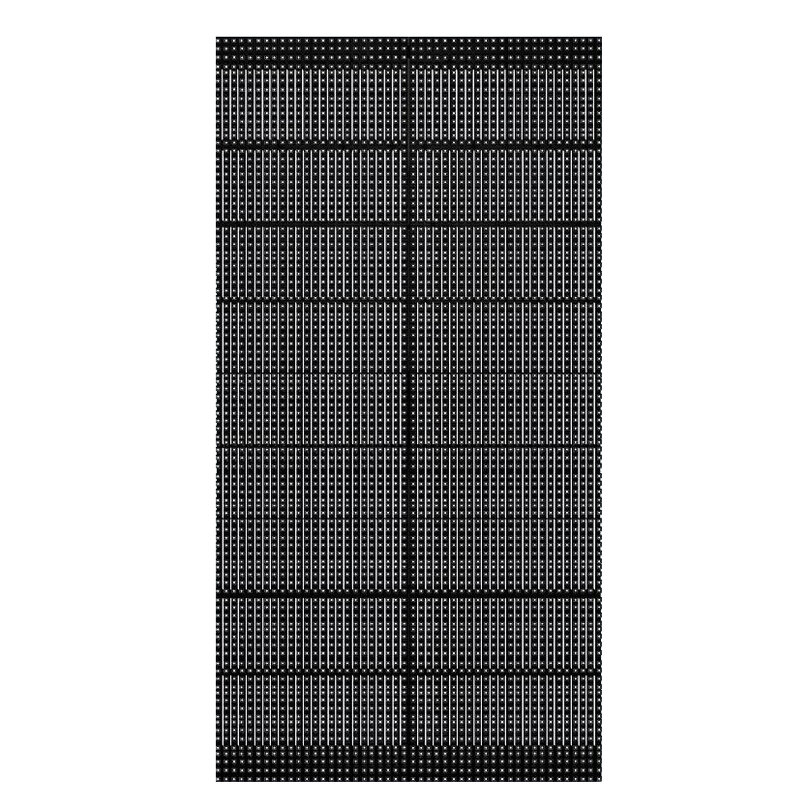

P10.42 LED mesh screen - Curved, outdoor, front service, IC SMM16237, SMD3535, ≥ 6000 nit, ≤ 3840 Hz, 500 x 1000 mm, 9.5 kg

Ask for price

SKU: MS01-P10.42O-C

Ask for price To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Curved, outdoor, front service, IC SMM16237, SMD3535, ≥ 6000 nit, ≤ 3840 Hz, 500 x 1000 mm, 9.5 kg

500 x 1000 mm outdoor (6000 nit) curved P10.42 LED mesh screen, SMM16237 IC, SMD3535 LED.

Main features

High light transmission:
- Light transmission 20 - 60%
- Low wind resistance
- Excellent heat dissipation
Light and thin:
- Weight: 9.5 kg
- Thickness: 45 mm
Maintenance:
- Both front and rear maintenance
- All parts can be disassembled from the front
Easy maintenance:
- Just loosen 8 screws to disassemble each module
- Just loosen 8 screws to remove the front cover, the power supply, the receiving card and the HUB board
Seamless 90° joint
Optional curve lock (concave and convex curve, -15° to +15°)
Integrated power and signal cable (saving 50% in cable connection time)
One product, multiple uses (fixed installation and rental)

Technical characteristics

IC	SMM16237
LED configuration	1R1G1B
Pixel pitch	10.42 mm
Driving method	3S
LED type	SMD3535
Physical density	10,000 pixel/m²
Brightness	6000 cd/m²
Max. power consumption	600 W/tile
Ave. power consumption	280 W/tile
Maintenance way	front / rear service
Refresh rate	≤ 3840 Hz
Control mode	synchronous display with control PC by DVI
Protection level	IP65, outdoor
Dimension	500 x 1000 mm
Weight	9 kg/panel

Ask for price

SKU: MS01-P10.42O-C

Ask for price To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

P10.42 LED mesh screen - Curved, outdoor, front service, IC SMM16237, SMD3535, ≥ 6000 nit, ≤ 3840 Hz, 500 x 1000 mm, 9.5 kg

Ask for price

Curved, outdoor, front service, IC SMM16237, SMD3535, ≥ 6000 nit, ≤ 3840 Hz, 500 x 1000 mm, 9.5 kg

Ask for price

Related products

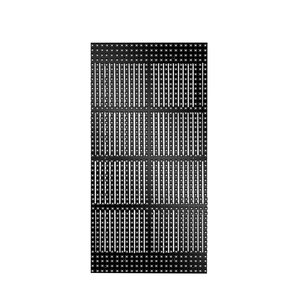

P15.6 LED mesh screen - Outdoor, front service,...
