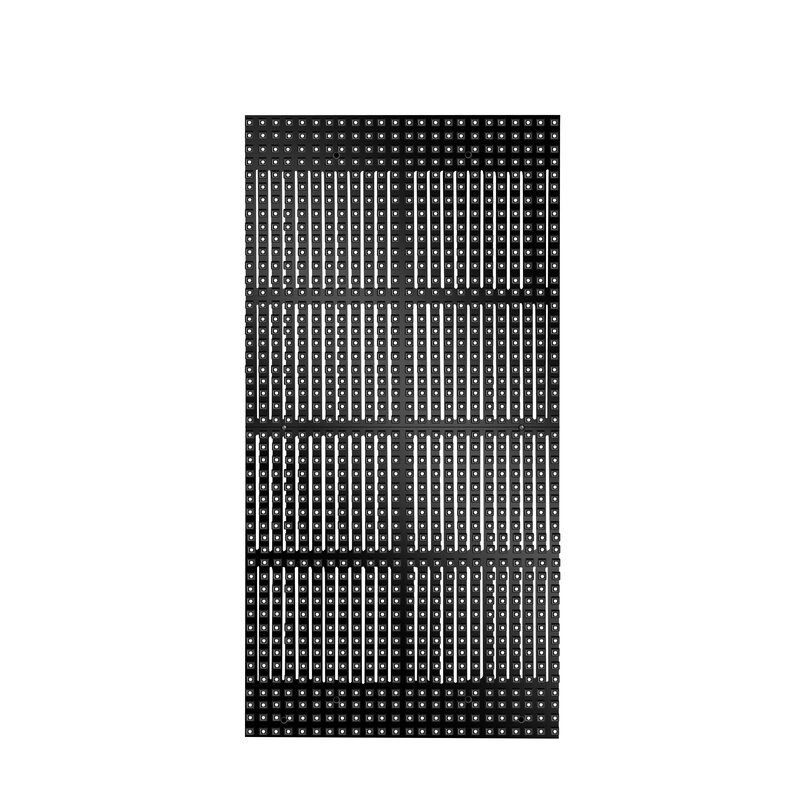

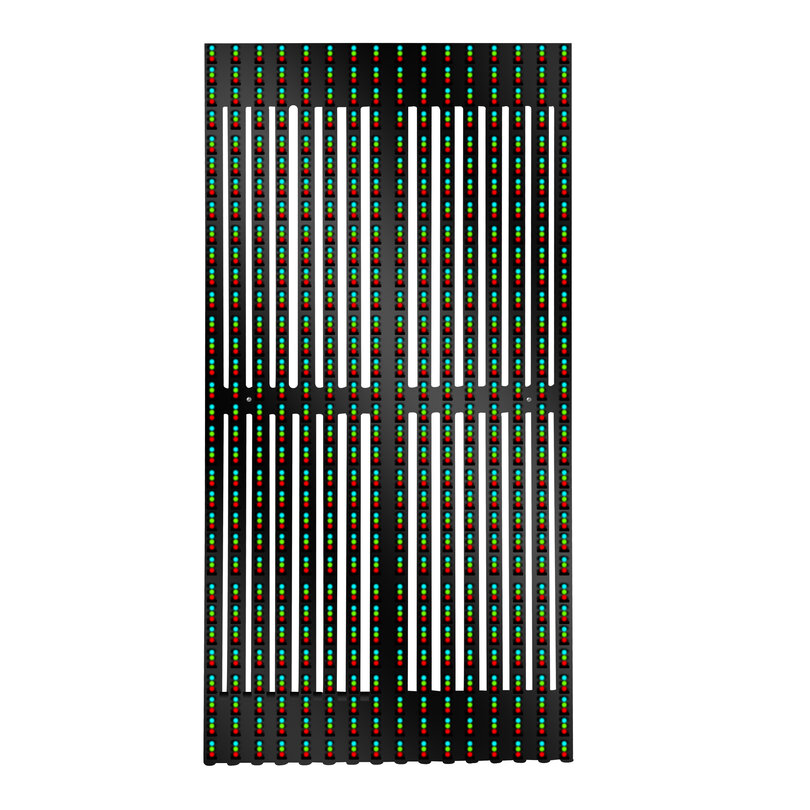

P15.6 LED mesh screen - Outdoor, front service, IC SMM16237, DIP346, ≥8000 nit, ≤3840 Hz, 500 x 1000 mm, 11 kg

Ask for price

SKU: MS01-P15.6O

Ask for price To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Outdoor, front service, IC SMM16237, DIP346, ≥8000 nit, ≤3840 Hz, 500 x 1000 mm, 11 kg

500 x 1000 mm outdoor (8000 nit) P15.6 LED mesh screen, SMM16237 IC, DIP346 LED.

Main features

High light transmission
- light transmission 20-60%
- low wind resistance
- excellent heat dissipation
Light and thin
- weight: 11 kg
- thickness: 45 mm
Maintenance

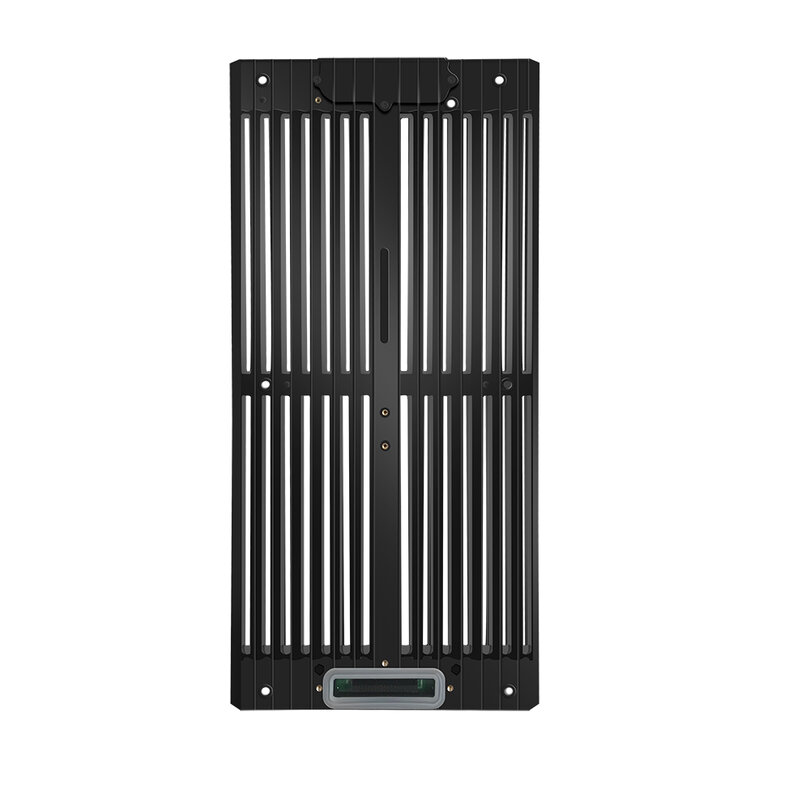

- both front and rear maintenance
- all parts can be disassembled from the front
Easy maintenance

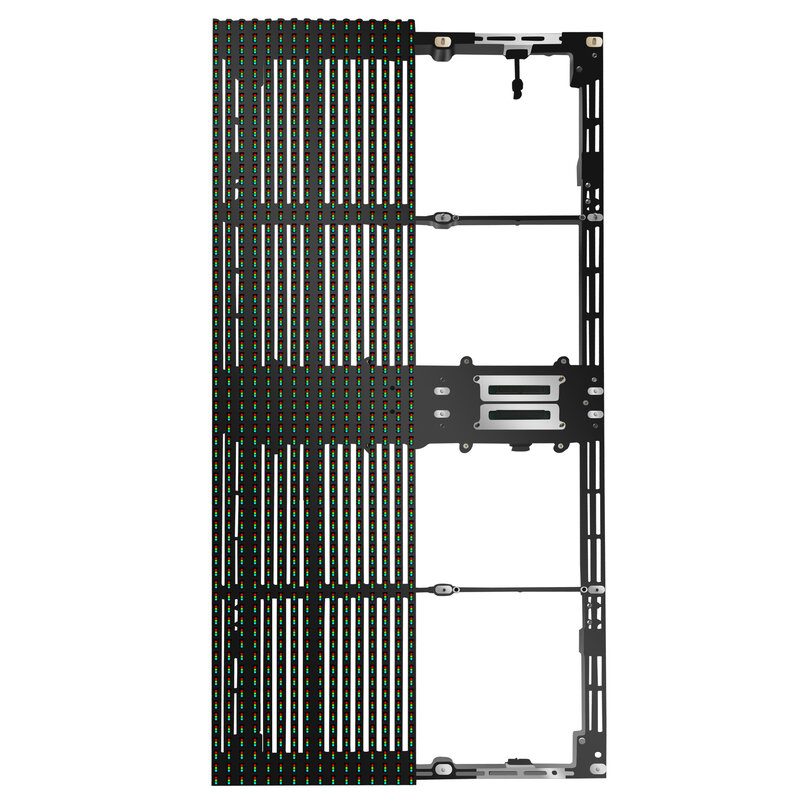

- just loosen 8 screws to disassemble each module
- just loosen 8 screws to remove the front cover, the power supply, the receiving card and the HUB board

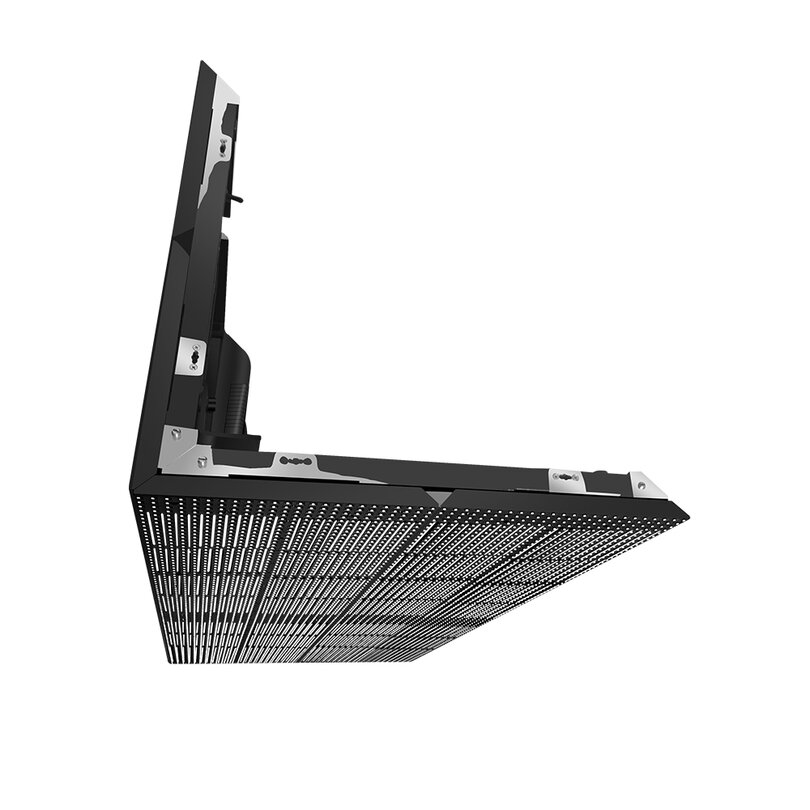

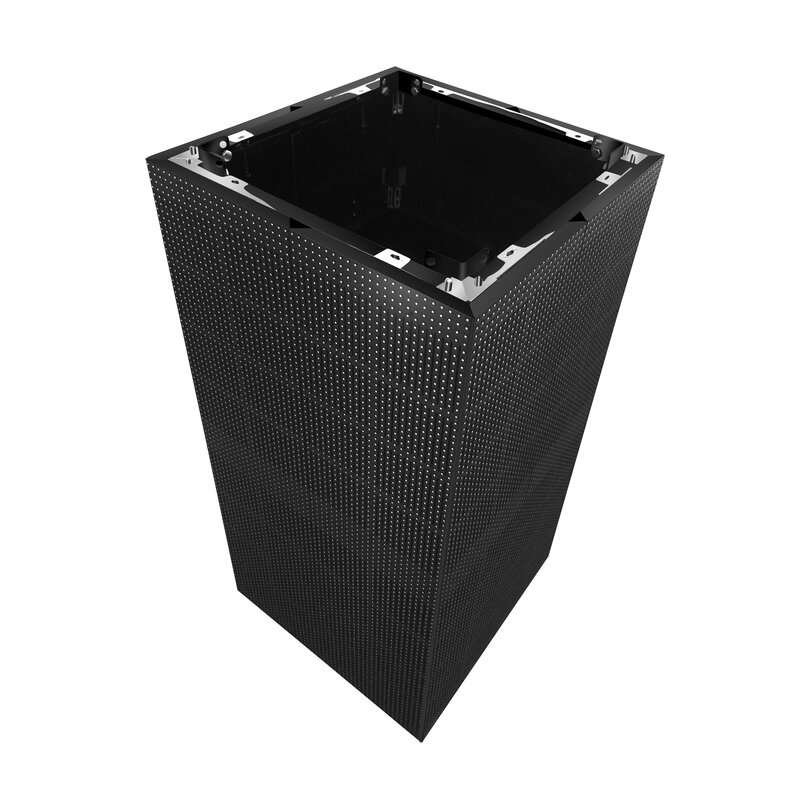

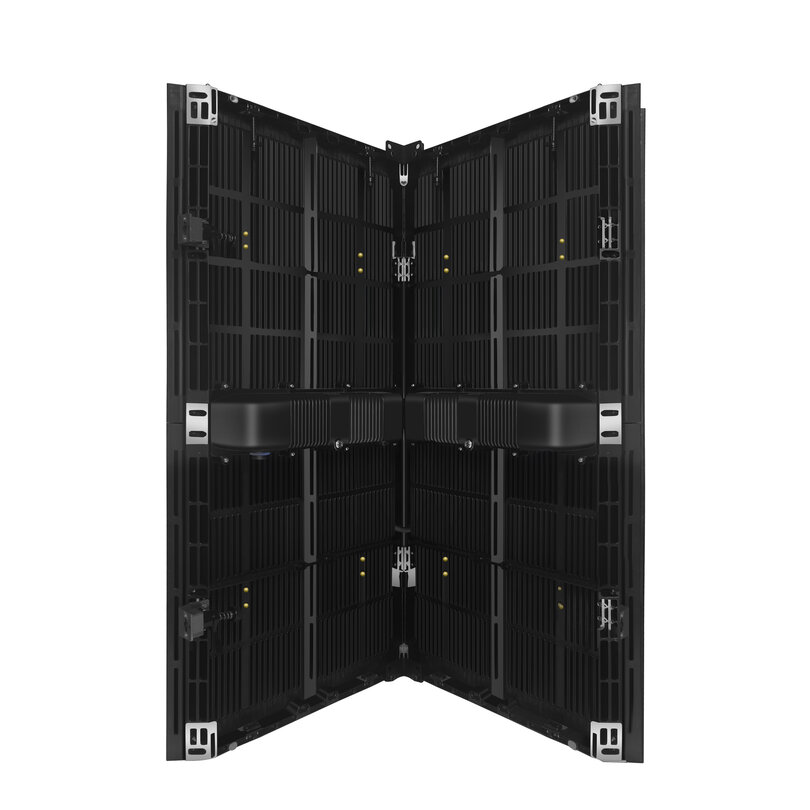

Seamless 90° joint
Integrated power and signal cable (saving 50% in cable connection time)
One product, multiple uses (fixed installation and rental)

Technical characteristics

IC	SMM16237
Dimension	500 x 1000 mm
LED configuration	1R1G1B
Pixel pitch	15.6 mm
Driving method	static
LED type	DIP346
Panel resolution	32 x 64 pixel
Physical density	4.096 pixel/m²
Brightness	8000 cd/m²
Max. power consumption	600 W/tile
Ave. power consumption	280 W/tile
Maintenance way	front / rear service
Weight	11 kg/panel
Refresh rate	≤3840 Hz
Control mode	synchronous display with control PC by DVI
Protection level	IP65, outdoor

Ask for price

SKU: MS01-P15.6O

Ask for price To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

P15.6 LED mesh screen - Outdoor, front service, IC SMM16237, DIP346, ≥8000 nit, ≤3840 Hz, 500 x 1000 mm, 11 kg

Ask for price

Outdoor, front service, IC SMM16237, DIP346, ≥8000 nit, ≤3840 Hz, 500 x 1000 mm, 11 kg

Ask for price

Related products

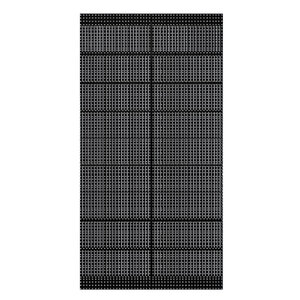

P10.42 LED mesh screen - Curved, outdoor,...
