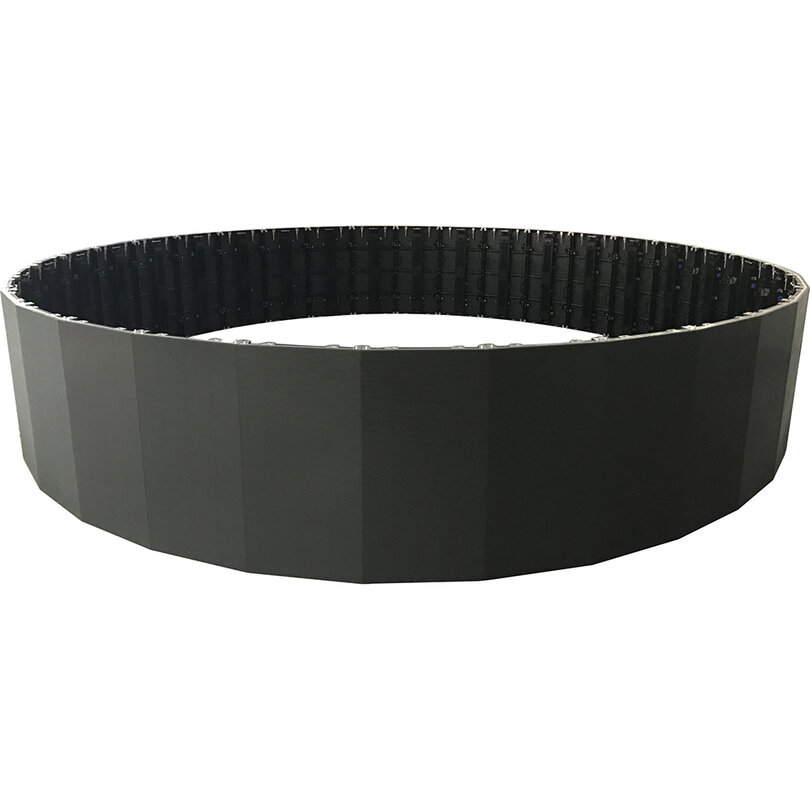

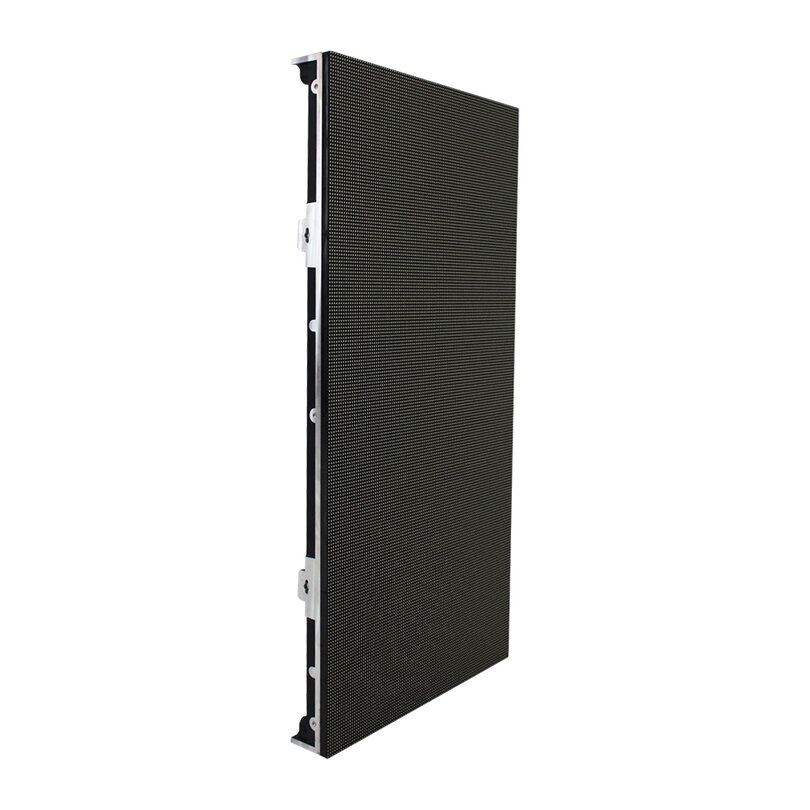

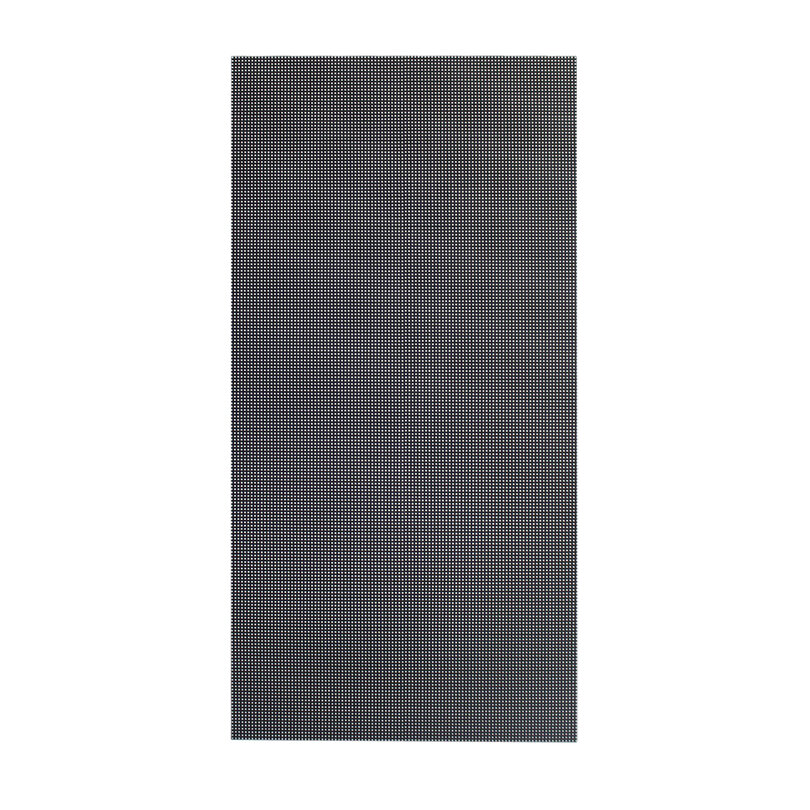

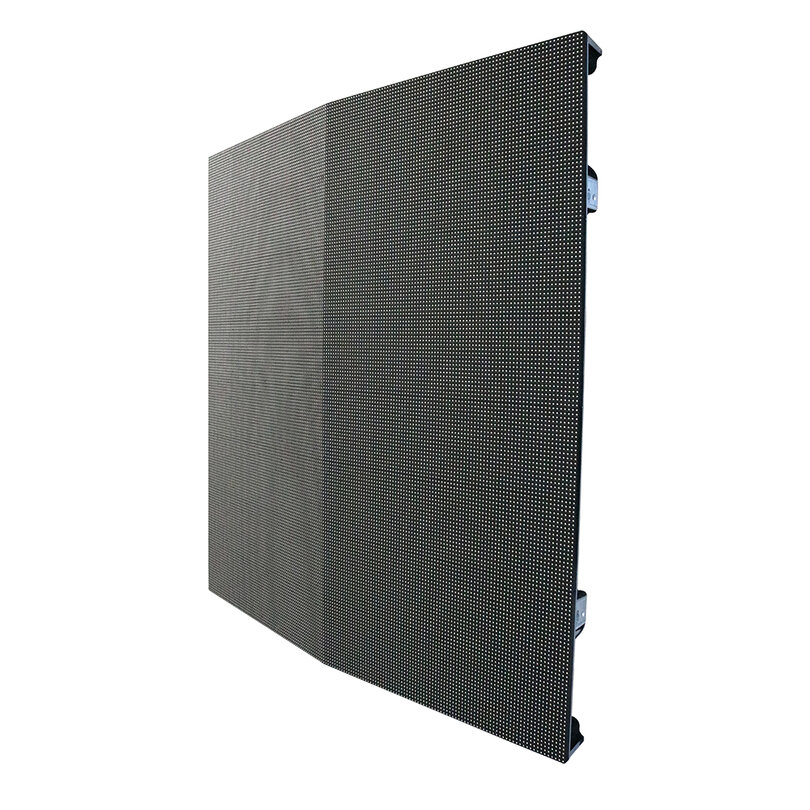

P3.91 rental LED display with shaped connectors for the creation of curved LED walls (±10°), 500 x 1000 mm, SMD2121 LED, IC MBI5124, for indoor use (1000 nit).

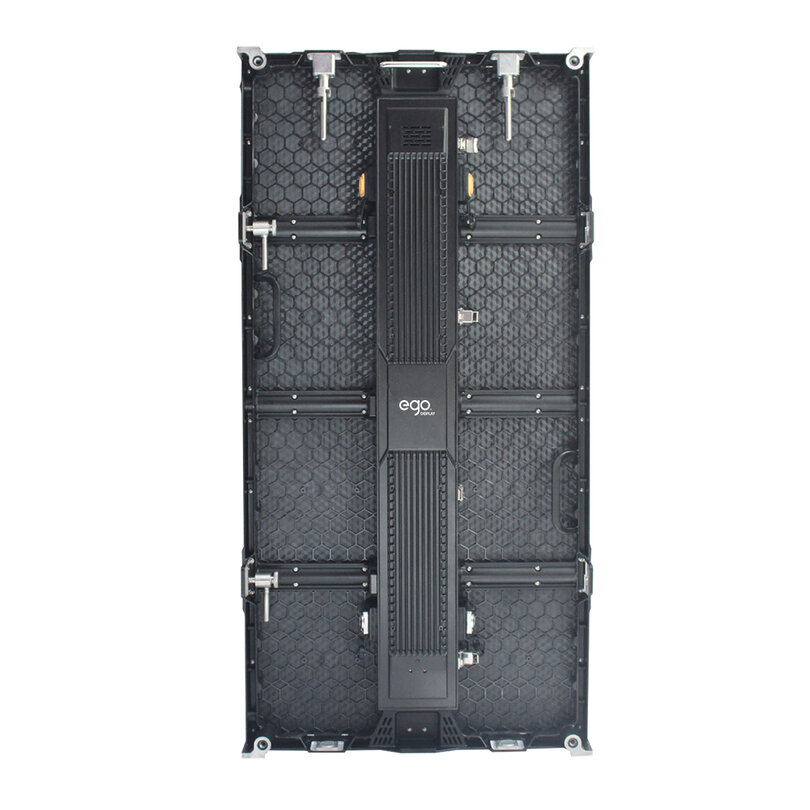

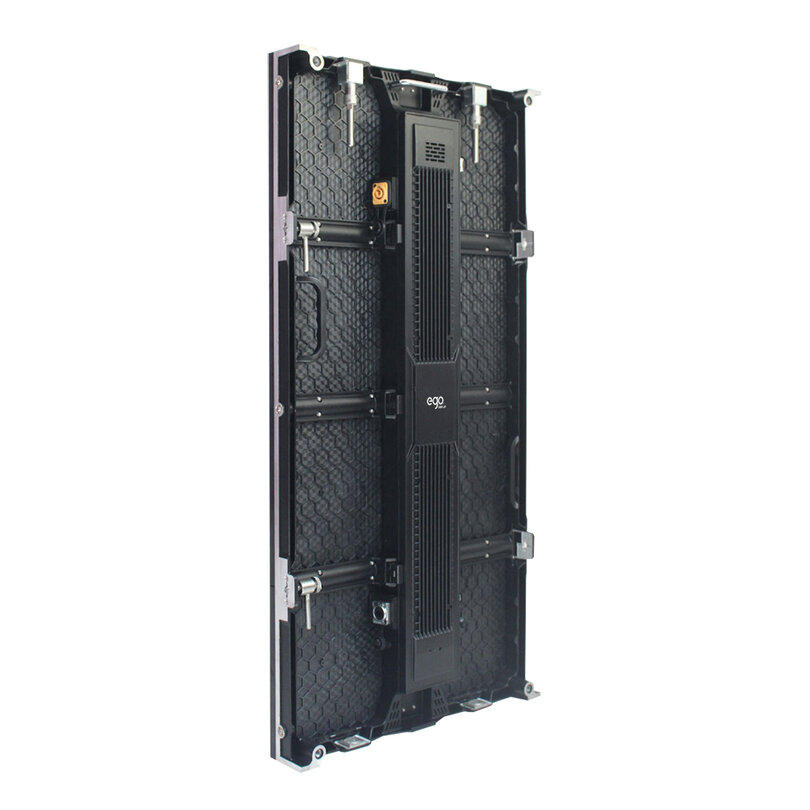

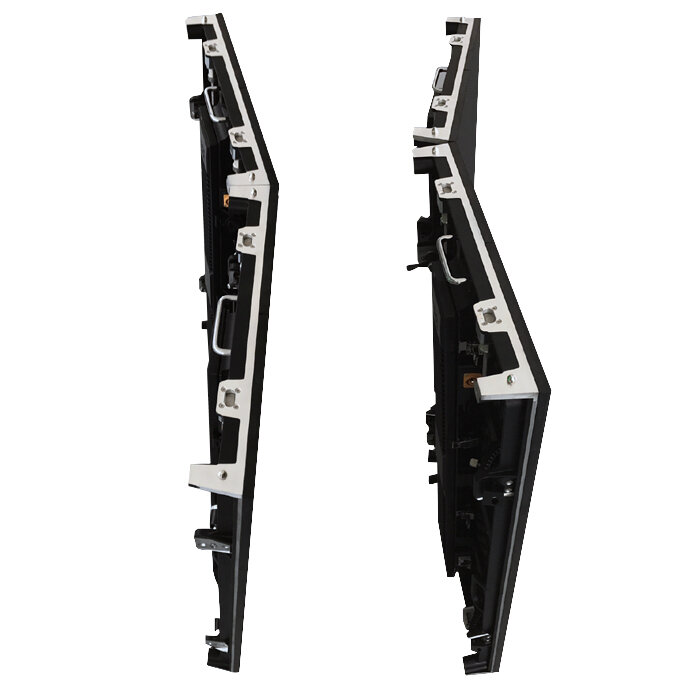

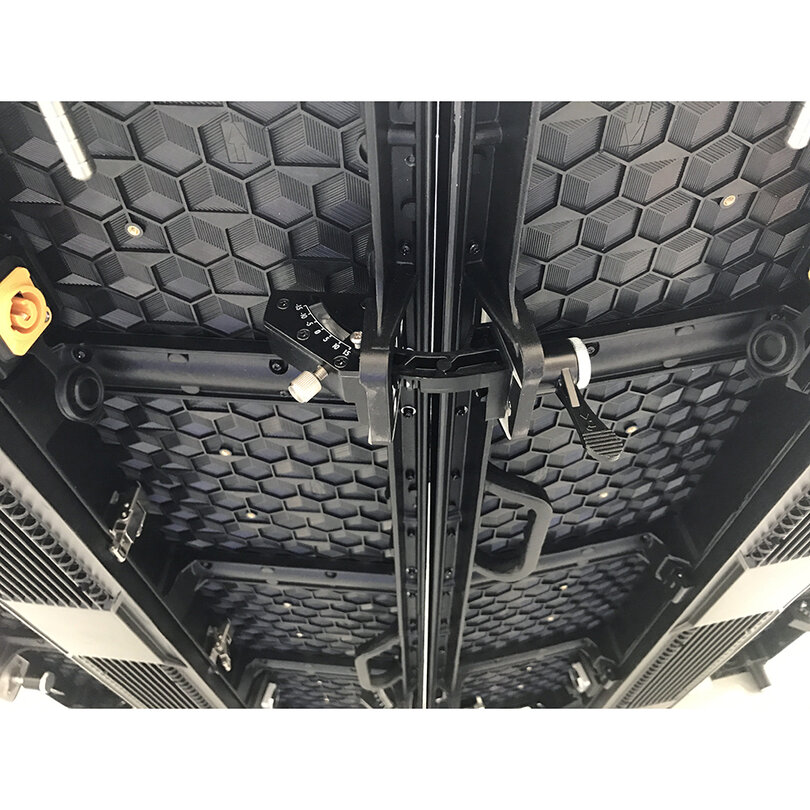

The cabinet adopts a continuous and precise adjustment mechanism, a shaped connector for curved configuration and a fast security lock. It can be used in corporate or entertainment, such as trade shows, exhibitions, presentations and more.
Technical characteristics
| Pixel pitch | 3.91 mm |
| IC | MBI5124 |
| Curved angle | ±10° |
| LED type | SMD2121 black |
| Panel resolution | 128 x 256 pixel |
| Physical density | 65,536 pixel/m2 |
| Brightness | ≥ 1000 cd/m2 |
| Scan method | 1/16 |
| Max. power consumption | 900 W/m2 |
| Ave. power consumption | 300 W/m2 |
| Refresh rate | ≤ 1920 Hz |
| Control mode | synchronous display with control PC by DVI |
| Protection level | IP43 indoor |
| Dimensions | 500 x 1000 mm |
| Weight | 13.5 kg/panel |
