Transparent, indoor, fixed, IC MBI5124, SMD3528UV, ≥5500 nit, ≤1920 Hz, 960 x 640 mm, 11.5 kg

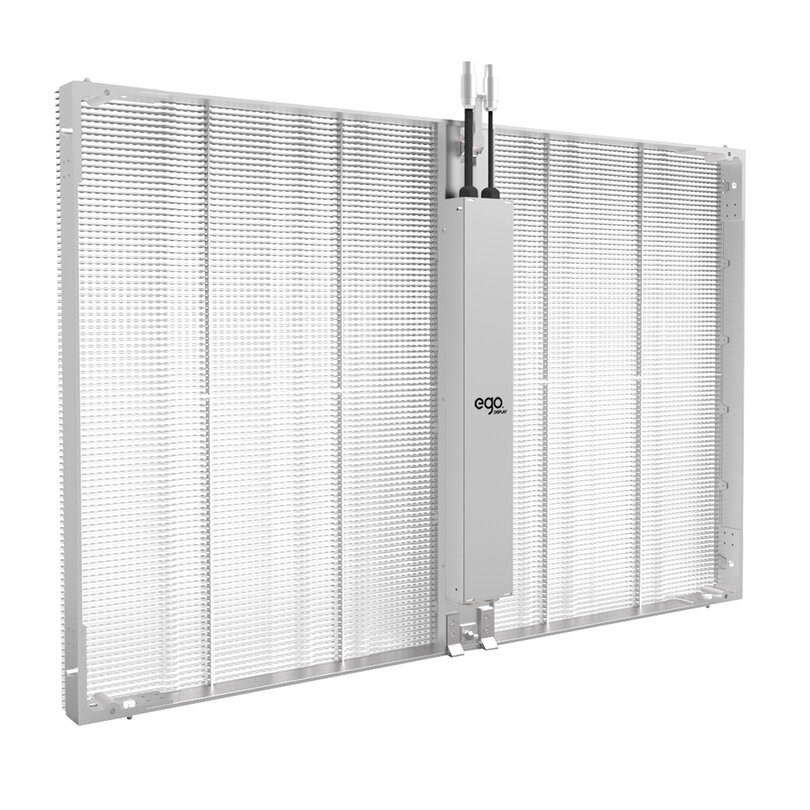

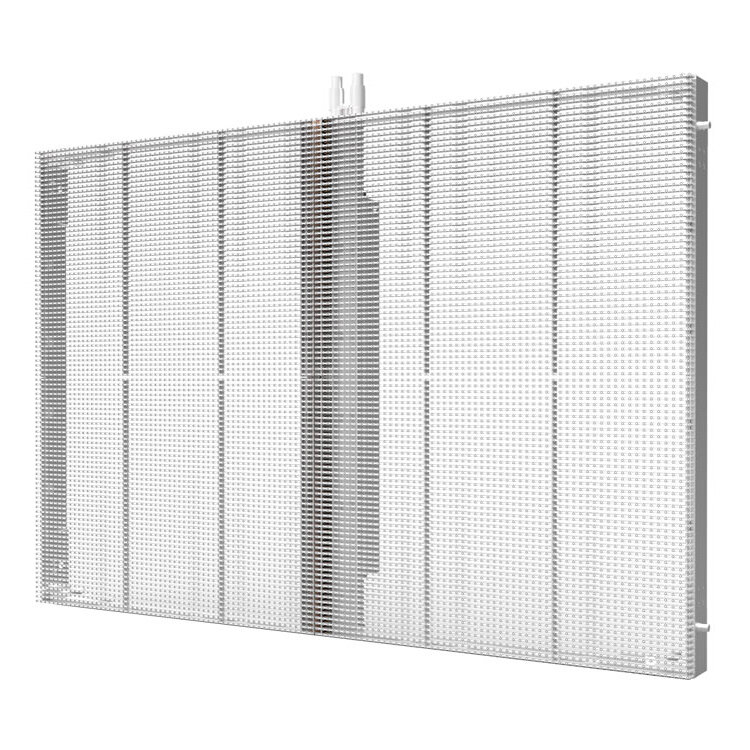

Extremely transparent P10 LED display with 960 x 640 mm cabinet, SMD3528UV LED, MBI5124, for fixed indoor installations (5500 nit).
Integrated power/signal wiring into the cabinet, easy to fit pin for precise alignment.
Can be used in installations where you want to create a spectacular visual effect, with vision from medium/large distances to inside shopping centres, near shop windows to exploit transparency, but also for events and shows.
Technical characteristics
| Dimension |
960 x 640 mm |
| Pixel pitch |
10 mm |
| Transparent rate |
80% |
| LED type |
SMD3528UV |
| IC |
IC MBI5124 |
| Panel resolution |
960 x 640 pixel |
| Physical density |
10,000 pixel/m2 |
| Brightness |
≥ 5500 cd/m2 |
| Scan method |
1/3 |
| Max. power consumption |
700 W/m2 |
| Ave. power consumption |
230 W/m2 |
| Weight |
11.5 kg/pc |
| Refresh rate |
≤ 1920 Hz |
| Control mode |
synchronous display with control PC by DVI |
| Protection level |
IP31/IP31, indoor |
