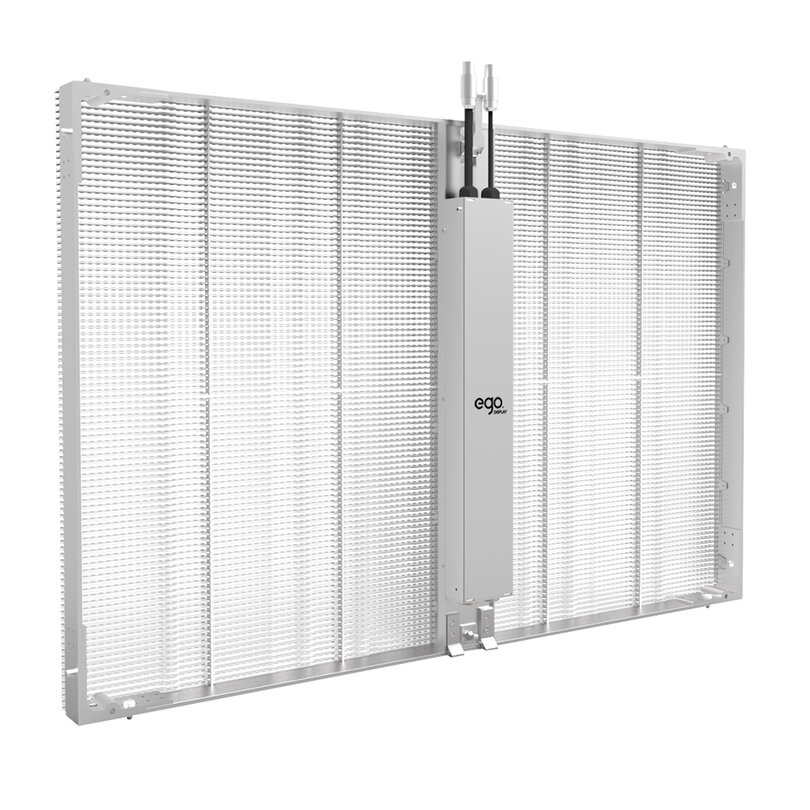

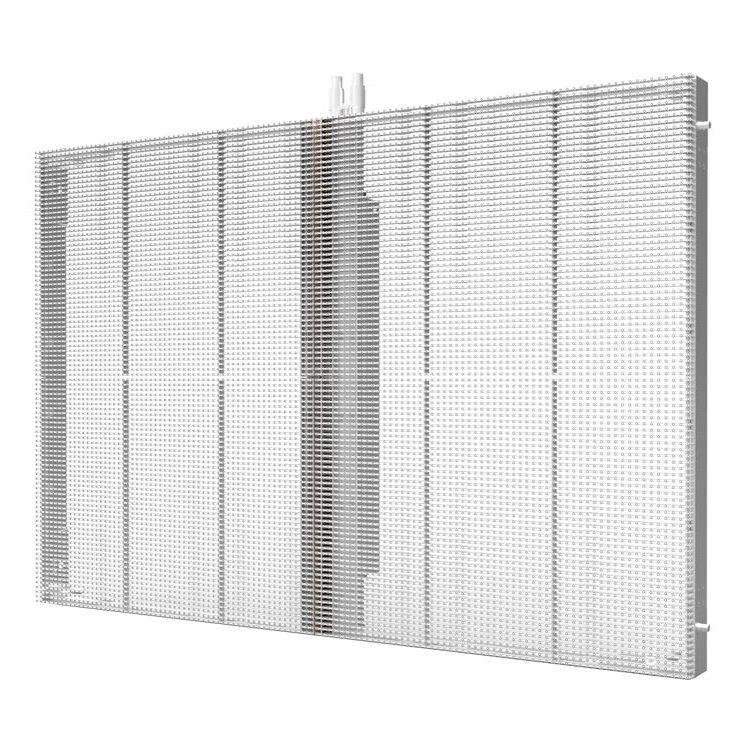

Extremely transparent P16 LED panel with 960 x 640 mm cabinet, SMD3528UV LED, MBI5124, for fixed indoor installations (5500 nit).
Power / signal wiring integrated into the cabinet, easy to mount pivot for precise alignment.
It can be used in installations where you want to create a spectacular visual effect, with vision from medium / long distances inside shopping centers, near shop windows to take advantage of transparency, but also for events and shows.
Benefits for users
Areas of use
Technical characteristics
| Pixel pitch | 16 mm |
| Transparent rate | 85% |
| LED type | SMD3528UV |
| IC | IC MBI5124 |
| Panel resolution | 60 x 40 pixel |
| Physical density | 3906 pixel/m2 |
| Brightness | ≥ 5500 cd/m2 |
| Scan method | static |
| Max. power consumption | 700 W/m2 |
| Ave. power consumption | 230 W/m2 |
| Refresh rate | ≤ 1920 Hz |
| Control mode | synchronous display with control PC by DVI |
| Protection level | IP31/IP31, indoor |
| Dimension | 960 x 640 mm |
| Weight | 11.5 kg/pc |
