PTC-155 - Full HD PTZ camera, 1/2.8" Sony CMOS sensor, 30x optical zoom, dual lens system, AI-powered auto-tracking, dark blue

Full HD PTZ camera, 1/2.8" Sony CMOS sensor, 30x optical zoom, dual lens system, AI-powered auto-tracking, dark blue

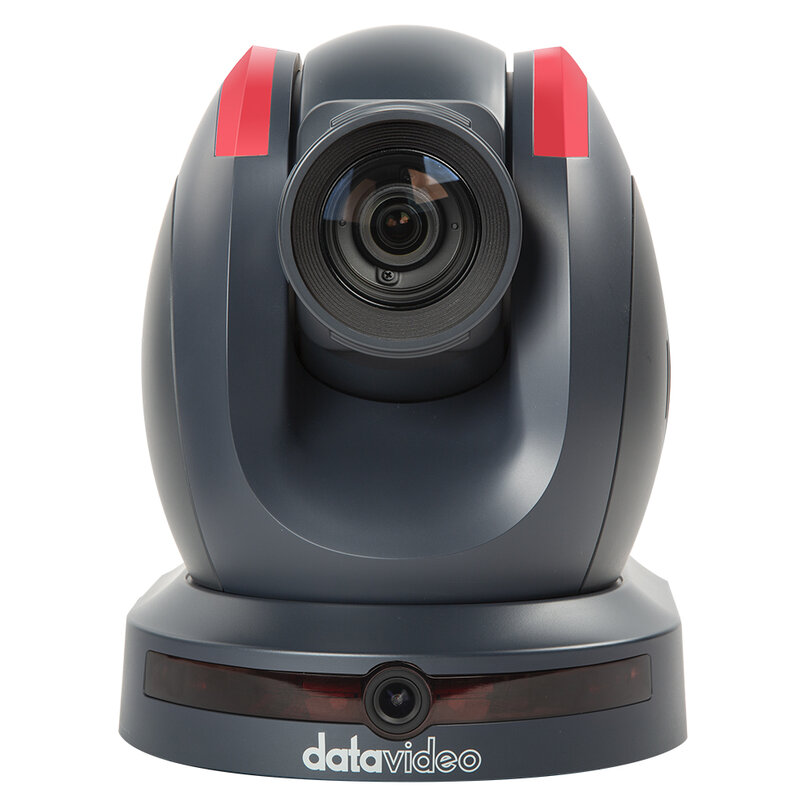

PTC-155 is a Full HD PTZ camera designed for professional video production, equipped with a 1/2.8" Sony CMOS sensor and a powerful 30x optical zoom, in addition to a second lens. The latter one allows you to precisely identify the position of the subject and its movement trajectory, for smooth and natural tracking of the same. Thanks to its AI technology, the camera offers an auto-tracking system that allows you to automatically follow the moving subject, ensuring professional shooting without the need for manual intervention.

The Sony CMOS sensor guarantees high image quality, even in difficult lighting conditions, with a minimum sensitivity of 0.5 Lux. The iris control range can be automatic or manual, while 2D/3D digital noise reduction helps improve image clarity.

The PTC-155 supports a wide range of video formats, including 1080p at different refresh rates and 720p, and offers a number of output options including HDMI 1.3, 3G-SDI and UVC. It also features an RJ45 network interface with PoE support, which simplifies installation and power supply.

The camera is compatible with multiple control protocols, including Pelco-D, Pelco-P, VISCA, VISCA over IP, NDI, DVIP and ONVIF, allowing for versatile integration with existing production systems.

The built-in streaming system supports protocols such as RTSP, RTMP(S), ONVIF, Multicast, SRT and NDI|Hx3, allowing simultaneous transmission on multiple platforms. The PTZ also offers the possibility of recording to an SD card, providing a convenient solution for archiving and backing up video content. Remote control is possible via web interface, IR, RS-422/RS-232 and DVIP.

In terms of design, the PTC-155 features a compact size and a weight of 2.7 kg. The package includes an IR remote control, a wall mount bracket ceiling, a 12 VDC power adapter and a safety cable.

Users benefits

• Dual lens system to ensure stable tracking and complete coverage
• AI-based intelligent auto-tracking
• Supports both multiple control and streaming protocols
• PoE power supply
• Ability to save content to SD card for reliable backup

Areas of use

• Concert halls
• University lecture halls
• Corporate conferences
• Houses of worship

Technical characteristics

• Video format / resolution: 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25, 720p60 / 59.94 / 50
• Image sensor: Sony 1/2.8" CMOS
• Effective pixels (approx.): 2.14 Mpixel
• SNR: ≥ 50 dB
• Min. illumination: 0.5 lux @ (F1.8, AGC ON)
• Electronic shutter: 1/25 s - 1/10,000 s
• Zoom ratio: 30x optical, 16x digital zoom
• Effective zoom ratio: 27.35x
• Iris control: auto / manual
• Digital noise reductions: 2D / 3D
• On-screen display (OSD): English / simplified Chinese / traditional Chinese
• White balance: auto, OnePush, manual
• AGC / gain control: yes
• HDR / WDR: WDR
• Mirror / flip image: yes
• Focus mode: auto / manual
• Panning / tilting range: Pan 300°, Tilt +130° to -15°
• Preset: 255
• Focal length: 30x, f = 5.5 - 150.43 mm, F1.66 - F4.99
• Field of view (horizontal, wide): main 54°, panorama 86°
• Image compensation: backlight compensation

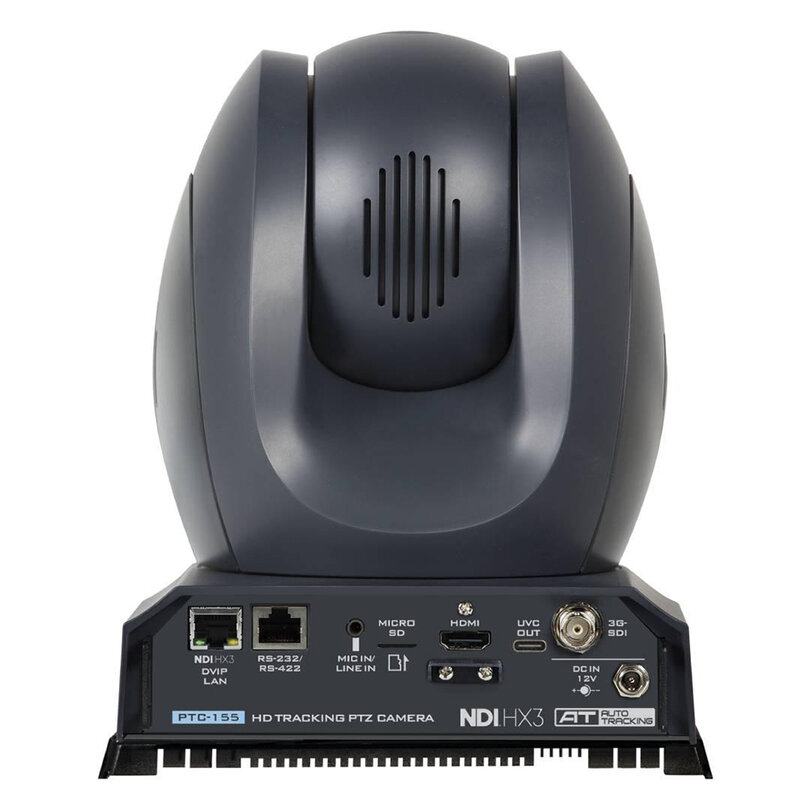

• Video output:
  • 1 x HDMI 1.3
  • 1 x 3G-SDI
  • 1 x 10/100M RJ45 (PoE)
  • 1 x UVC out
• Audio input: 1 x 3.5 mm (MIC/line in)
• Tally LED: yes
• Control protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
• Remote control interface: IR, Web GUI, RS-422/RS-232 (RJ-45), DVIP, NDI
• Video compression format: H.264 / H.265 / MJPEG
• Audio compression format: AAC, G711
• Audio bitrate: 96 kbps, 128 kbps
• Streaming protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3
• First stream supported resolution: 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
• Second stream supported resolution: 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
• Video bitrate: 32 kbps - 20 Mbps (first stream), 2 kbps - 5 Mbps (second stream)
• Video bitrate mode: VBR, CBR
• Encoding frame rate: 50 Hz 1 - 50 fps, 60 Hz 1 - 60 fps
• PoE: IEEE 802.3at
• F/W update: via Web UI
• IR control: yes
• Camera control unit: RMC-2P, RMC-180 series, RMC-300 series, PTZ View Assist APP
• Tripod mount: 1/4-20 UNC
• Optional accessories: WM-1, WM-10, WM-11
• Operating temp. range: 0 - 40 °C
• Power: 12 V_DC 19 W
• Color: dark blue
• Dimension (W x H x D): 18.4 x 22.85 x 19.4 cm
• Weight: 2.7 kg
• What's in the box:
  • 1 x PTC-155
    1 x IR remote controller
    1 x ceiling mount bracket -B
    6 x Ceiling mount bracket screw M3 x 4 mm
    1 x 12 V_DC power adaptor
    1 x safety cable
