8K HDMI monitoring solution up to 8K HDR

Teranex Mini SDI to HDMI 8K HDR is the advanced 8K HDMI monitoring solution that allows you to convert SDI sources to HDMI in all HD, Ultra HD and 8K formats up to 4320p 60.

It features four HDMI 2.0 output connections, built in down converter, HDR formats support, 33 point 10‑bit RGB LUTs, built in waveform, parade, vector and histogram scopes, monitor calibration probe and much more.

Technical characteristics

Connections

SDI video inputs: 4 x 12G-SDI HD / 2K / 4K / 8K auto switching. Dual and quad link 12G-SDI for 8K only
SDI video outputs: 4 x 12G-SDI loop output
HDMI video outputs: 4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p 60 in Quad Link
Analog audio outputs: 2 channels analog audio via RCA connectors
Embedded audio support: 16 channels of embedded audio on all SDI loop outputs and 8 channels on the HDMI outputs
Multi rate support: 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI
Updates and configuration: front USB-C or Ethernet
Reclocking: yes

Standards

SD video standards: none
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
4K DCI video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI, 4Kp 60 DCI
8K video standards: 4320p 23.98, 4320p 24, 4320p 25, 4320p 29.97, 4320p 30, 4320p 50, 4320p 59.94, 4320p 60. Auto switching between 2SI and Square Division
8K DCI video standards: 8Kp 23.98 DCI, 8Kp 24 DCI, 8Kp 25 DCI, 8Kp 29.97 DCI, 8Kp 30 DCI, 8Kp 47.95 DCI, 8Kp 48 DCI, 8Kp 50 DCI, 8Kp 59.94 DCI, 8Kp 60 DCI. Auto switching between 2SI and Square Division
SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI video rates: SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI
SDI video sampling: 4:2:2 and 4:4:4
SDI audio sampling: television standard sample rate of 48 kHz and 24‑bit
SDI color precision: 4:2:2 and 4:4:4
SDI color space: YUV and RGB

HDMI output standards

SD video standards: none
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60
Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
5K and 6K display standards: based on the EDID of the DisplayPort monitor
8K video standards: 4320p 23.98, 4320p 24, 4320p 25, 4320p 29.97, 4320p 30, 4320p 47.95, 4320p 48, 4320p 50, 4320p 59.94, 4320p 60
HDMI color space: REC 709, REC 2020
HDMI color precision: YUV 4:2:2 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test

Scopes

Scopes: waveform, RGB/YUV parade, vector, histogram
Viewing modes: two by scopes with picture overlay with opacity control; waveform and parade with standard and HDR graticules

Software

Software control: Mac OS X and Windows software upgrade via USB-C or Ethernet
Internal software upgrade: via included updater application

Operating systems

Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10 64-bit

Settings control

Settings control: 6 buttons and spin knob for menu and settings control, 2.2" color LCD display

Power requirements

Power supply: 1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V_AC input
Power consumption: 25 W
Operational voltage range: 100 to 240 V_AC

Environmental specifications

Operating temperature: 0 to 40 °C
Storage temperature: -20 to 60 °C
Relative humidity: 0 to 90% non-condensing

Physical specifications

Dimensions: 21 x 4.4 x 17.6 cm
Weight: 1.2 kg

What’s included

Teranex Mini SDI to HDMI 8K HDR
Welcome wallet with QR code for software download

$ 2.771,80

prices may have variations due to the currency fluctuation

SKU: CONVN8TRM/AA/SDIH

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Teranex Mini - SDI to HDMI 8K HDR - 8K HDMI monitoring solution up to 8K HDR

$ 2.771,80

8K HDMI monitoring solution up to 8K HDR

$ 2.771,80

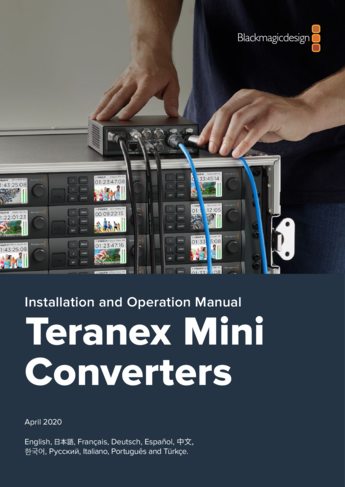

Download
