Teranex Mini - Optical to HDMI 12G - Optical SDI to HDMI converter up to Ultra HD

Optical SDI to HDMI converter up to Ultra HD

Teranex Mini Optical to HDMI 12G converts SDI and SMPTE fiber to HDMI. Each SMPTE fiber module can be inserted to provide embedded video and audio over enormous distances using 3G, 6G, or 12G-SDI fiber.

It features professional 12G-SDI and XLR connections, Ethernet for remote control, and a down converter for displaying Ultra HD sources on HD displays. The fiber optic SFP module is sold separately; to better suit your needs, you can purchase the SMPTE-compatible 3G-SDI, 6G-SDI, or 12G-SDI SFP module of your choice.

An optional Smart Panel can also be added to complete the Teranex Mini with LCD monitoring and push-button controls.

Technical characteristics

Connections

• SDI video inputs: 1 x 12G-SDI SD / HD / 2K / 4K auto switching

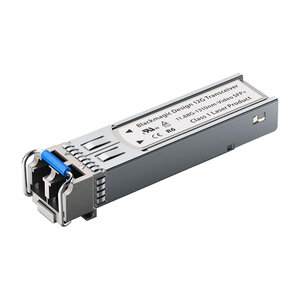

• Optical fiber connection (optional): optional 3G, 6G or 12G-SDI single mode 1310 nm SFP module with LC connector
• Optical fiber video inputs: 1 x 12G-SDI SD / HD / 2K / 4K auto switching
• Optical fiber video loop through: 1 x 12G-SDI loop output
• HDMI video outputs: 1 x HDMI 2.0 type A connector with support for 2160p 60
• Analog audio outputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Time Code output
• Digital audio outputs: 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code output
• Embedded audio support: 8 channels
• Multi rate support: auto detection of SD, HD or 12G-SDI
• Updates and configuration: front USB-C or Ethernet
• Reclocking: yes

Optical input standards

• SD video standards: 525i 59.94 NTSC, 625i 50 PAL
• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25
• 2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI
• Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
• 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
• SDI video rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
• SDI video sampling: 4:2:2 and 4:4:4
• SDI audio sampling: television standard sample rate of 48 kHz and 24‑bit
• SDI color precision: 4:2:2 and 4:4:4
• SDI color space: YUV and RGB
