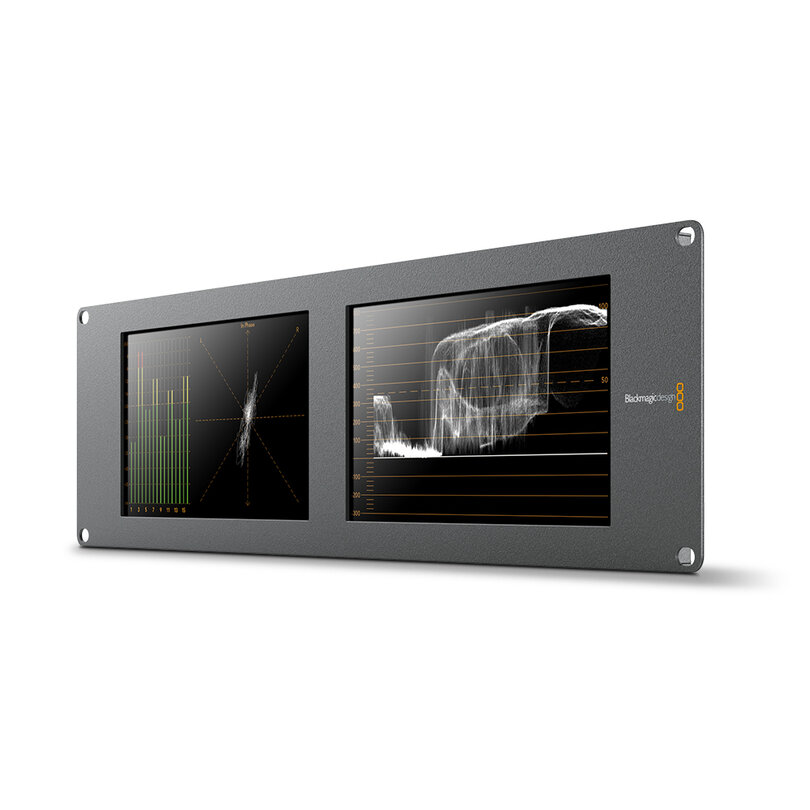

SmartScope Duo 4K 2 - Dual 8" 6G-SDI broadcast monitor in 3RU with waveforms scope

Blackmagic Design

лв 2.871,40

SKU: HDL-SMTWSCOPEDUO4K2
Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Dual 8" 6G-SDI broadcast monitor in 3RU with waveforms scope

SmartScope Duo 4K by Blackmagic Design is similar to the SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays.

Each monitor is independent, that means you can display any combination of scope or picture view!

Technical characteristics

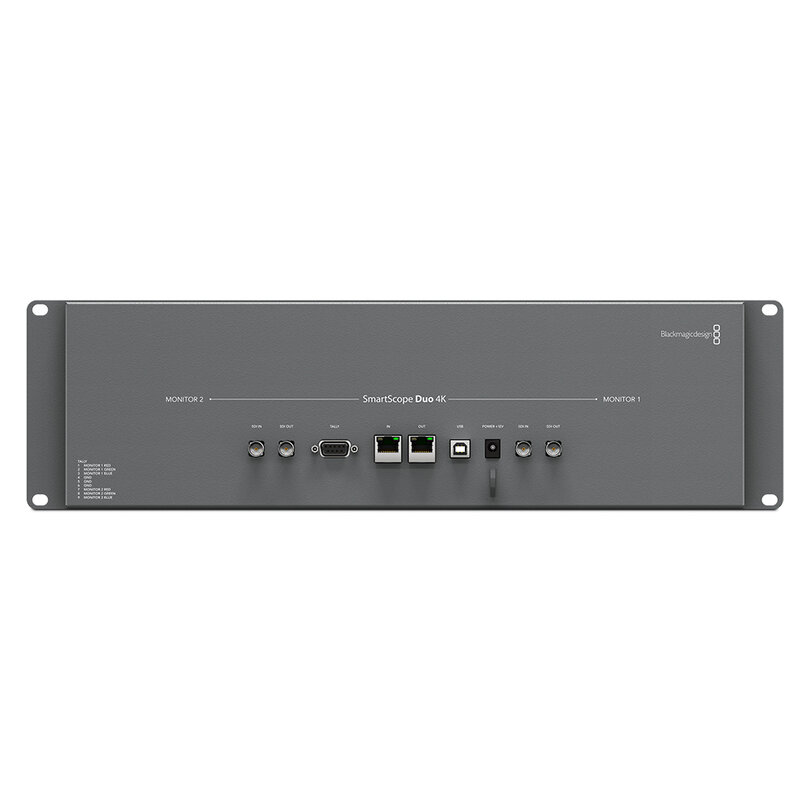

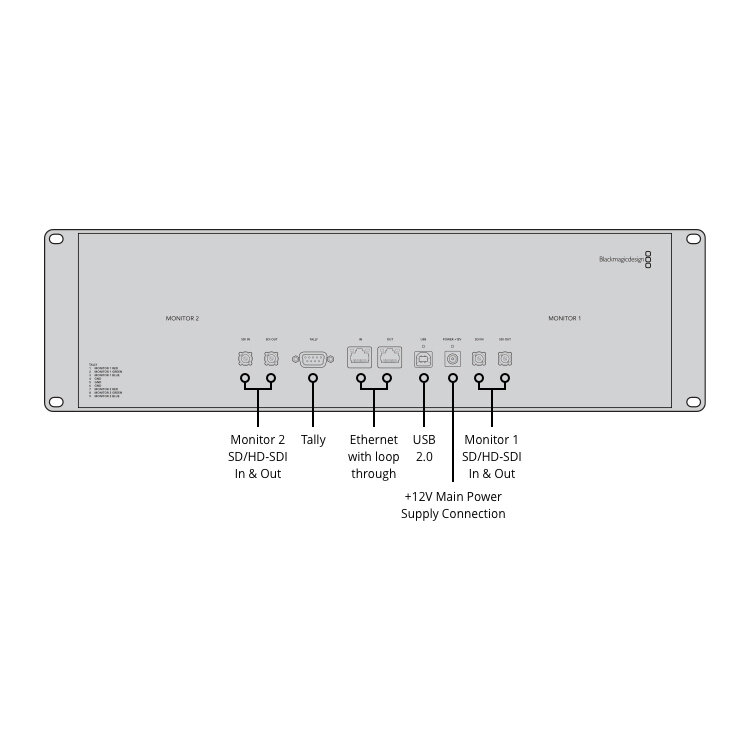

Connections

  • SDI video input: automatically switches between SD, HD and 6G-SDI. Reclocked loop through output
  • SDI video output: 1 x 10-bit loop through SD, HD and 6G-SDI switchable
  • SDI audio input: 16 channels embedded in SD, HD and UHD
  • SDI audio output: 16 channels embedded in SD, HD and UHD
  • Multi rate support: standard definition SDI, high definition SDI and 6G-SDI
  • Tally: 9-pin D connector

Standards

  • SD format support: 525i 29.97 NTSC, 625i 50 PAL
  • HD format support: 720p 50, 59.94, 60; 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1080PsF 23.98, 24, 25, 29.97, 30; 1080i 50, 59.94, 60
  • 2K format support: 2K DCI 23.98p, 24p, 25p; 2K DCI 23.98PsF, 24PsF, 25PsF
  • Ultra HD format support: 2160p 23.98, 24, 25, 29.97, 30
  • SDI compliance: SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M
  • Audio sampling: television sample rate of 48 kHz
  • Video sampling: 4:2:2 and 4:4:4
  • Color precision: 8-bit
  • Color space: YUV and RGB

Computer interface

  • USB 2.0 for software updates
  • Ethernet for configuration

Colorspace conversion

  • Hardware based real-time conversion

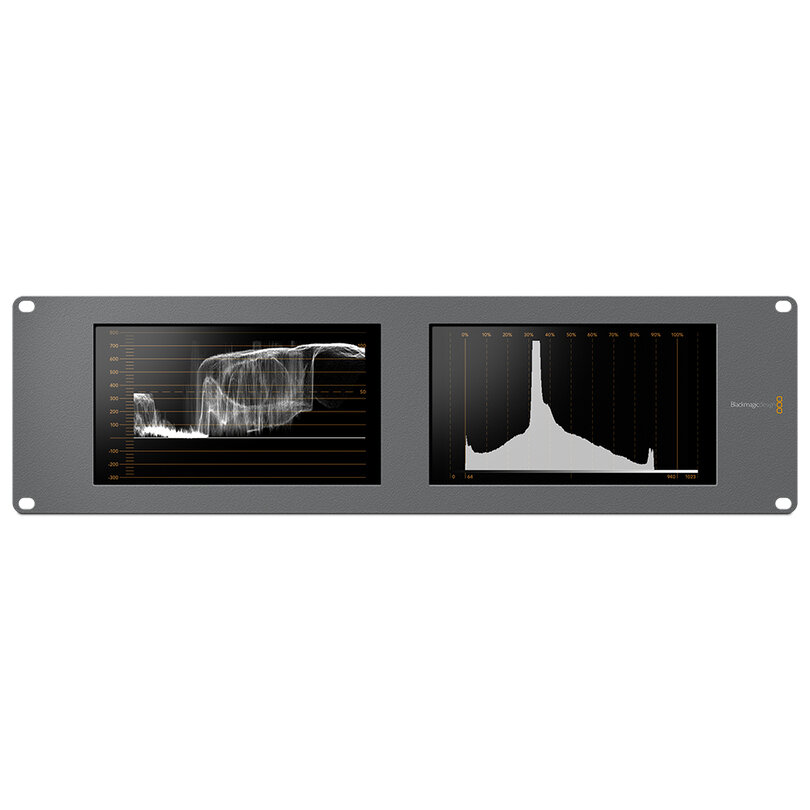

Scopes

  • Luminance waveform
  • Vectorscope
  • RGB parade
  • YUV parade
  • Histogram
  • Audio phase and level

Software

  • Software included: configuration utility for Mac and Windows
  • Internal software upgrade: via included firmware updater software

Physical installation

  • Rack unit size: 3RU

Operating systems

  • Mac: macOS 10.15 Catalina, macOS 11.1 Big Sur or later
  • Windows: Windows 10, 64-bit

Power requirements

  • Power supply: 12V universal power supply included with international socket adapters
  • Power consumption: less than 20 W
  • Operational voltage range: 12 - 15 V

Environmental specifications

  • Operating temperature: 0 to 40 °C
  • Storage temperature: -20 to 45 °C
  • Relative humidity: 0% to 90% non-condensing

Physical specifications

  • Dimensions: 48.2 x 13.3 x 3.2 cm
  • Weight: 1.53 kg

What's in the box

  • SmartScope Duo 4K
  • Power supply
  • Welcome wallet with QR code for software download
