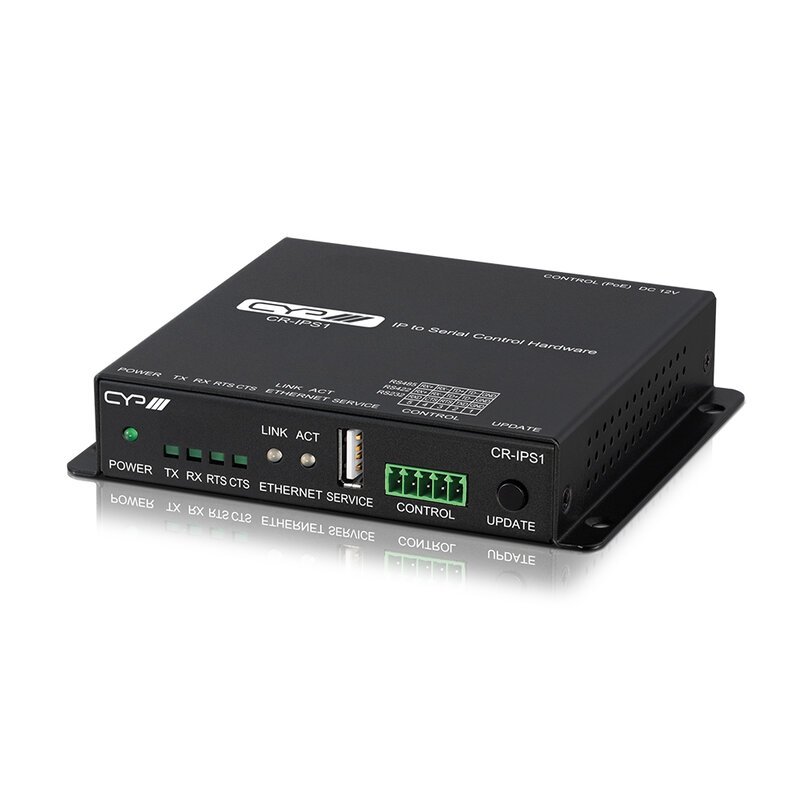

CR-IPS1 - Compact IP‑to‑serial controller supporting RS‑232/422/485, PoE power, WebGUI/Telnet control, field‑upgradable firmware

$ 359,54

prices may have variations due to the currency fluctuation

SKU: CR-IPS1

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Compact IP‑to‑serial controller supporting RS‑232/422/485, PoE power, WebGUI/Telnet control, field‑upgradable firmware

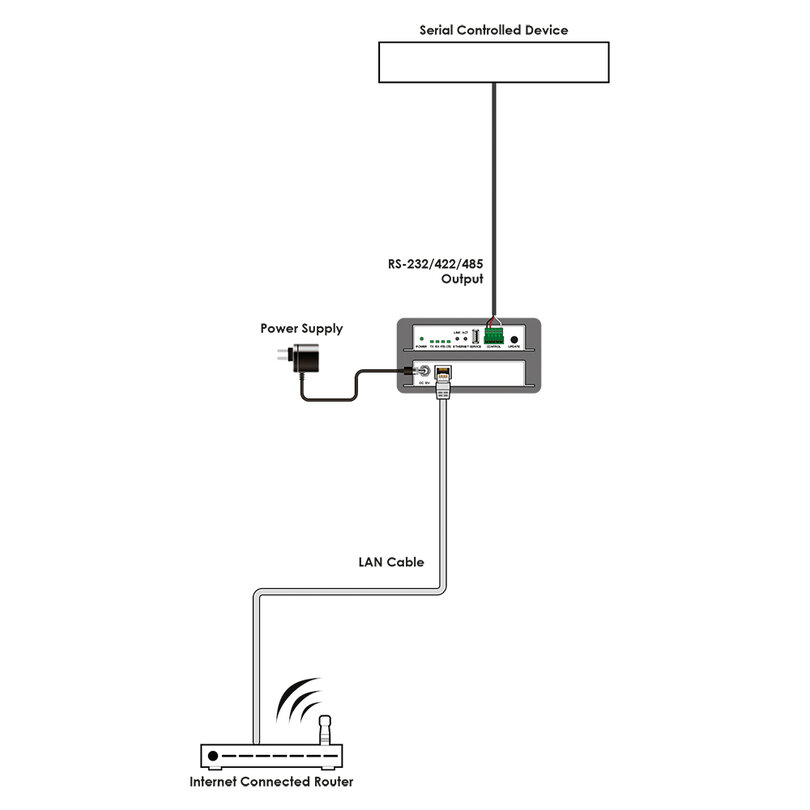

The CR‑IPS1 is a compact IP controller designed to manage a single serial device via RS‑232, RS‑422, or RS‑485. The unit allows commands to be sent over an IP network using WebGUI, Telnet, or a serial console, providing reliable control even in distributed installations.

It can be powered via PoE or a 12 V power supply, ensuring maximum flexibility during integration. Front LED indicators allow quick verification of power and network status, while support for the IEEE 802.1x RTS/CTS protocol ensures stable communications even in complex environments.

The device also includes a dedicated hotkey for rapid firmware updates.

Main features

RS-232, RS-422 and RS-485 compatibility
Multiple control interfaces including Web GUI, Telnet, and RS-232/422/485
Supports IEEE 802.1x RTS/CTS
Power over Ethernet (PoE)

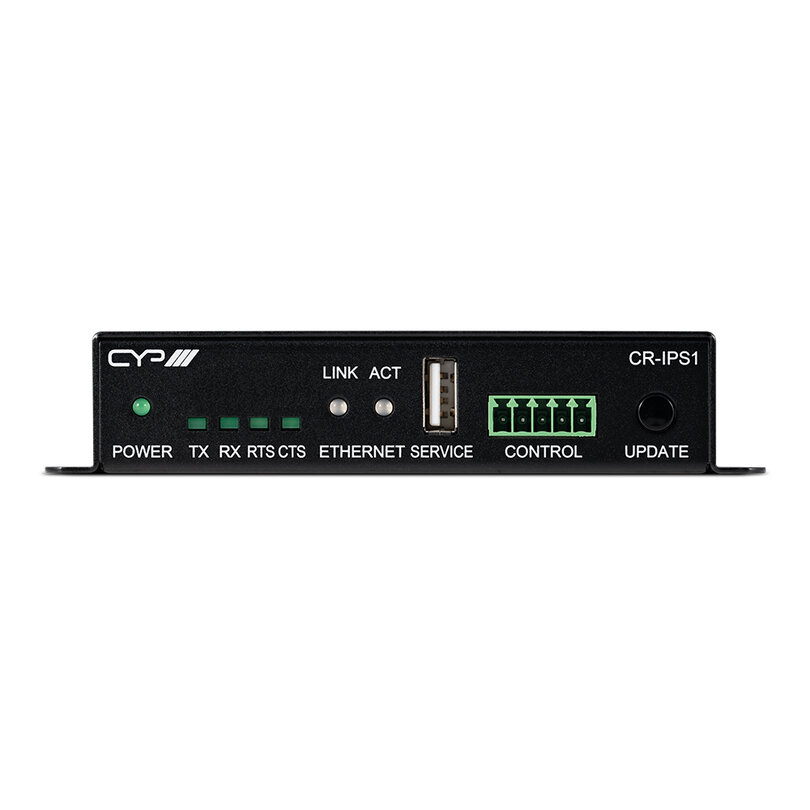

LEDs indicate unit status for confirmation

User benefits

Reliable IP control for individual serial devices
Simplified installation with PoE support
Management via Web GUI, Telnet, or serial console
Fast firmware updates via USB or hotkey

Areas of use

AV integration in meeting and conference rooms
Industrial device automation
Hotels and hospitality facilities
Educational installations with legacy serial devices
Showrooms
Retail (with serial-controlled devices)

Technical characteristics

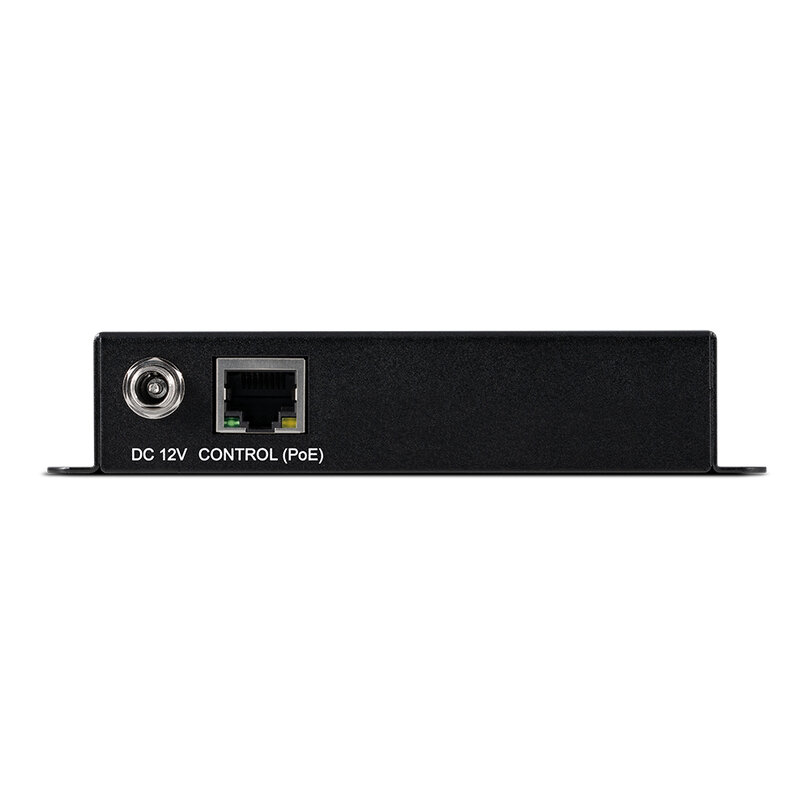

Inputs:
- 1 × RJ45 (1 × LAN PoE IP)
- 1 × USB Type A (1 × service port propriety data)
Outputs: 1 × Phoenix (5-pin) (1 × RS-232 / RS-422 / RS-485 com port)
PSU: PoE / 12 V_DC 1.25 A
Dimensions (W × H × D): 12.8 × 25 × 10.8 mm
Weight: 360 g

$ 359,54

prices may have variations due to the currency fluctuation

SKU: CR-IPS1

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

CR-IPS1 - Compact IP‑to‑serial controller supporting RS‑232/422/485, PoE power, WebGUI/Telnet control, field‑upgradable firmware

$ 359,54

Compact IP‑to‑serial controller supporting RS‑232/422/485, PoE power, WebGUI/Telnet control, field‑upgradable firmware

$ 359,54

Download
