CR-IPS4 - Compact IP‑to‑serial controller with 4 × RS‑232/422/485 ports, PoE power, WebGUI/Telnet control, field‑upgradable firmware

$ 457,99

prices may have variations due to the currency fluctuation

SKU: CR-IPS4

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.com. Our office will contact you as soon as possible.

Compact IP‑to‑serial controller with 4 × RS‑232/422/485 ports, PoE power, WebGUI/Telnet control, field‑upgradable firmware

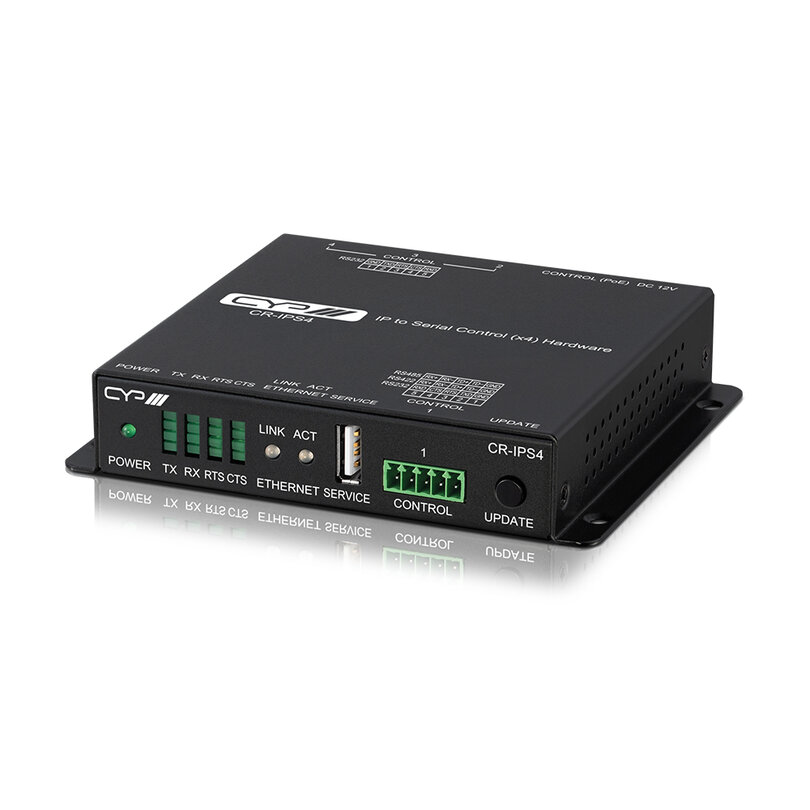

The CR‑IPS4 is an IP controller designed to manage up to four serial devices via RS‑232, RS‑422, or RS‑485. The unit allows commands to be sent over the IP network using WebGUI, Telnet, or serial console, providing reliable control even in distributed installations requiring simultaneous management of multiple devices.

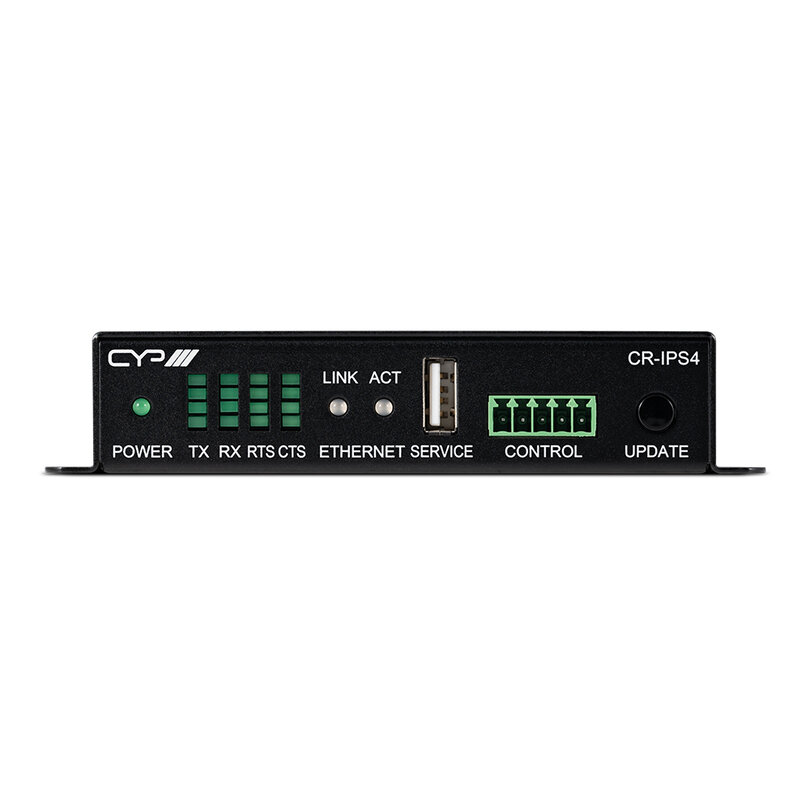

It can be powered via PoE or a 12 V power supply, ensuring maximum flexibility during integration. Front LED indicators allow quick verification of power and network status, while support for the IEEE 802.1x RTS/CTS protocol ensures stable communications even in complex environments.

The device also includes a dedicated hotkey for rapid firmware updates.

Main features

RS-232, RS-422, and RS-485 compatibility
4 independent serial ports
Multiple control interfaces including WebGUI, Telnet, and RS-232/422/485
Supports IEEE 802.1x RTS/CTS
Power over Ethernet (PoE)
LEDs indicate unit status for confirmation
Firmware upgradeable via USB or hotkey

User benefits

Reliable IP control for multiple serial devices
Simplified installation with PoE support
Management via WebGUI, Telnet, or serial console
Fast firmware updates via USB or hotkey
Reduction in the number of controllers required with 4 ports

Areas of use

AV integration in meeting and conference rooms
Industrial device automation
Hotels and hospitality facilities
Educational installations with legacy serial devices
Showrooms
Retail (with serial-controlled devices)

Technical characteristics

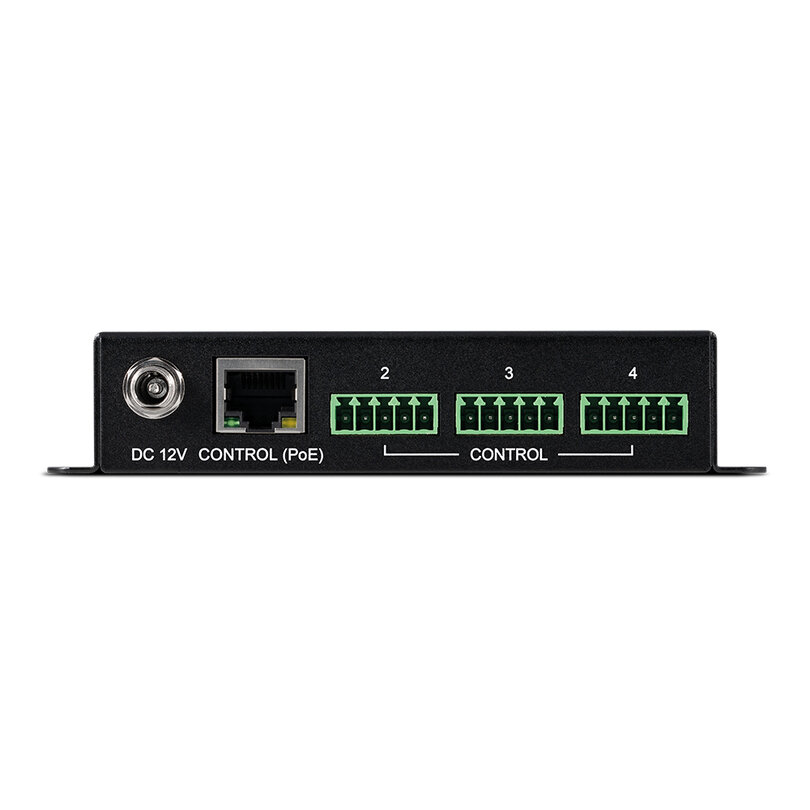

Inputs:
- 1 × RJ45 (1 × LAN PoE IP)
- 1 × USB Type A (1 × service port propriety data)
Outputs:
- 1 × Phoenix (5-pin) (1 × RS-232 / RS-422 / RS-485 com port)
- 3 × Phoenix (5-pin) (3 × RS-232 com port)
PSU: PoE / 12 V_DC 1.25 A
Dimensions (W × H × D): 12.8 × 25 × 10.8 mm
Weight: 360 g
