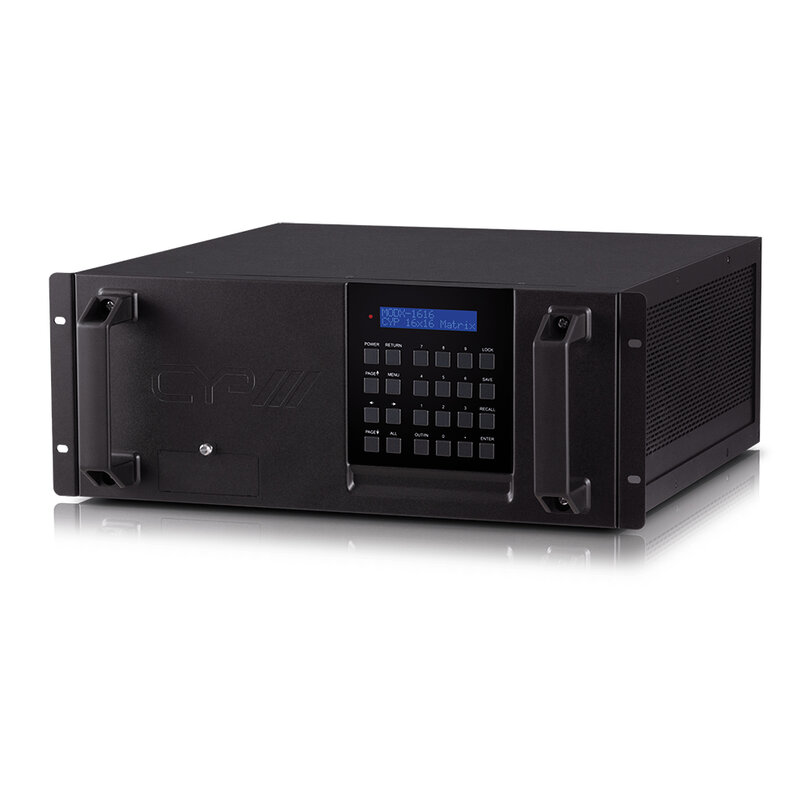

Modular 16 x 16 4K 60 4:4:4 matrix chassis supporting HDMI and HDBaseT cards, AVLC for visually lossless 4K distribution, HDR support, redundant hot‑swap power supplies
A fully customizable 16 x 16 modular matrix switcher, CYP's flagship product, capable of handling 4K UHD signals at 18 Gbps (4:4:4 @ 60 Hz) with HDR10 and Dolby Vision support. Thanks to its modular structure, it can accommodate up to 4 input cards and 4 output cards, each with 4 ports, enabling flexible and scalable configurations for high-end professional installations.
The HDMI and HDBaseT 2.0 cards support signals up to 4K 60 4:4:4 and audio formats up to LPCM 7.1, Bitstream, and HD Bitstream. The HDBaseT cards with AVLC (Adaptive Visually Lossless Compression) technology allow 4K 60 4:4:4 content to be transmitted to the PUV-2100RX-AVLC receivers while maintaining visual quality virtually indistinguishable from the original.
The system also integrates an independent analog audio matrix, allowing audio to be routed separately from video. Management is via Web GUI, Telnet, RS-232, IR, or the front panel LCD display. The MODX-1616 is powered by two hot-swappable, redundant power supplies with a built-in alarm system, ensuring 24/7 operational continuity for mission-critical installations.
Main features
- Fully modular design with 8 slots: 4 inputs and 4 outputs
- Support for 4K UHD 18 Gbps (600 MHz) signals with HDR10 and Dolby Vision via input / output cards
- Compatible with HDCP 1.x and 2.2
- Independent routing up to 16 x 16 in 4-port configurations per card
- Support for HDMI 2.0 and HDBaseT 2.0 cards with AVLC
- Resolutions up to 3840 x 2160 @ 60 Hz (4:4:4, 8-bit)
- HDR support for 4K @ 24 Hz (4:4:4) and 4K @ 60 Hz (YUV 4:2:0) up to 12-bit
- Audio pass-through: LPCM 2.0 / 5.1 / 7.1, Bitstream and HD Bitstream
- Scaling function on the cards Output (4K 60 upscale / 1080p 60 downscale)
- Advanced EDID management for quick integration of sources and displays
- Independent integrated analog audio matrix

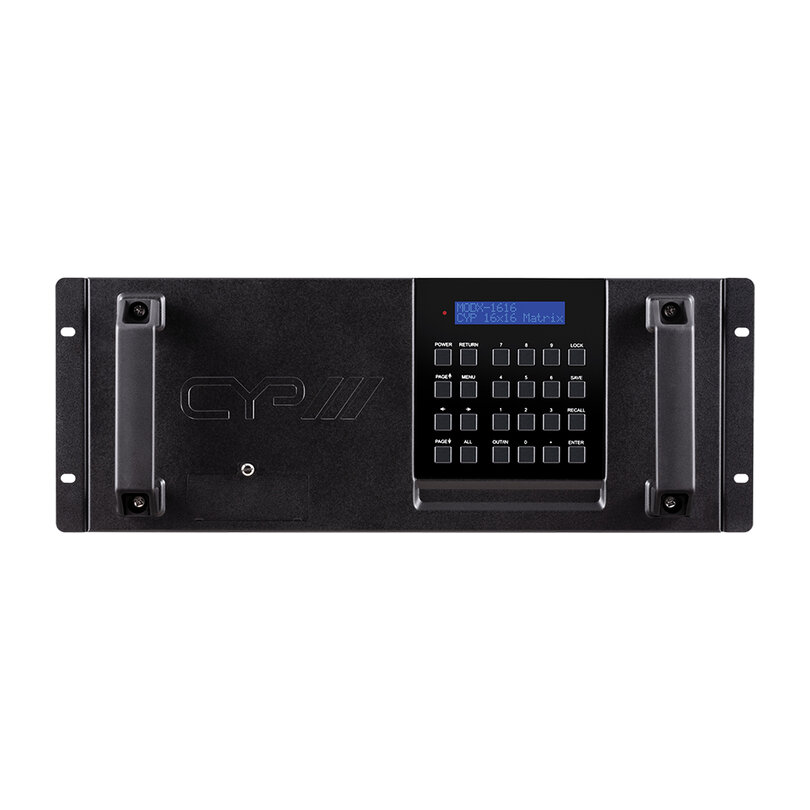

- Control via WebGUI, Telnet, RS-232, IR, and LCD front panel
- Firmware is field-upgradable
- 3U rack design with hot-swappable redundant power supplies
User benefits
- Maximum flexibility thanks to the 16 x 16 modular structure
- 4K 60 4:4:4 video quality with HDR and Dolby Vision support
- 4K 60 transmission over HDBaseT via AVLC without audible loss
- Complete redundancy thanks to dual hot-swappable power supplies
- Centralized management via intuitive WebGUI
- Scalability
- Independent audio and video routing
- Compatibility with a wide range of sources and displays
Areas of use
- Control and monitoring centers
- Corporate installations with Advanced AV distribution
- Conference rooms, auditoriums, boardrooms
- Broadcast infrastructure
- Video control rooms
- High-end hospitality and retail
- Critical installations requiring 24/7 redundancy
Technical characteristics

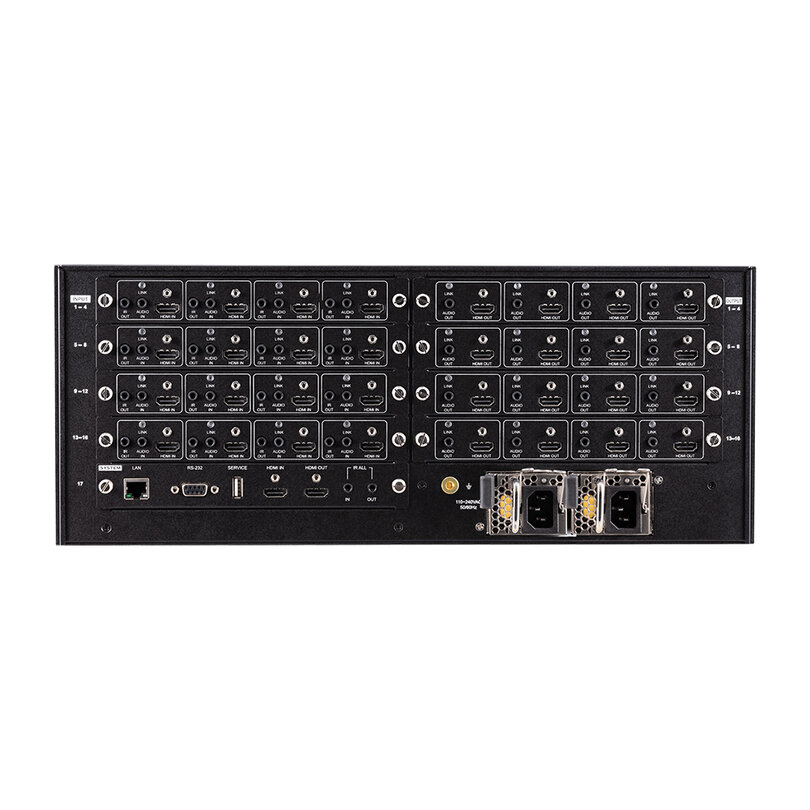

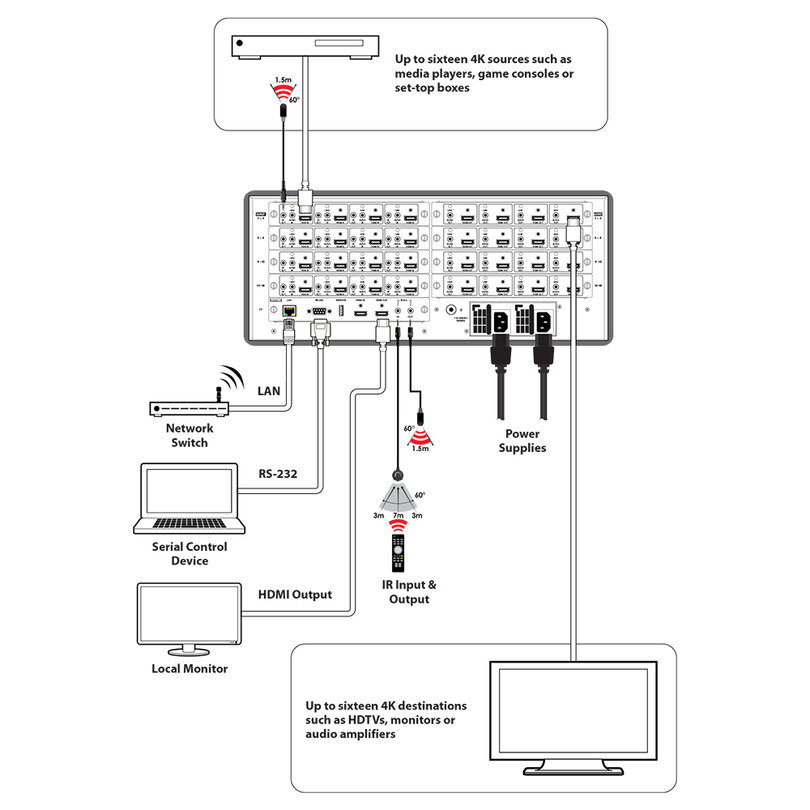

Interfaces
- Input ports: 4 input card slots (1 HDMI per card)
- Output ports: 4 output card slots (1 HDMI per card)
- Pass-through ports: 1 x IR Blaster (3.5 mm), 1 x IR Extender (3.5 mm)
- Control I/O: 1 x RS-232 (DE-9), 1 x Ethernet (RJ-45)
- Service port: 1 x USB (Type-A)
Video (system control card)
- HDMI compliance: HDMI 2.0
- HDCP compliance: HDCP 2.x
- Input signal type: 3840 x 2160p @ 60 8-bit YUV 4:4:4, HDR10
- Output signal type: 3840 x 2160p @ 60 8-bit YUV 4:4:4, HDR10
- Max. input resolution: 3840 x 2160p @ 60
- Max. output resolution: 3840 x 2160p @ 60
Audio (system control card)
- HDMI audio: LPCM (8 channels), Bitstream, HD Bitstream
Power
- Power supply: 12 V / 4 A, 5 V / 3 A (redundant, hot-swappable)
- Power consumption: 150 W (full load), 25 W (standby)
Field firmware update
Enclosure
- Chassis material: metal (steel)
- Chassis colour: black
- Rackmount size: 3U
- Dimensions (case only): 44 × 17.7 × 42.9 cm
- Dimensions (all inclusive): 48.4 × 18.2 × 48.2 cm
- Weight: 19 kg
