XA-3P - Battery‑powered 4K HDMI pattern generator, analyser and cable tester, 18 Gbps, HDCP 2.2, EDID management, SCDC monitoring, 4K > 1080p down‑scaling

Battery‑powered 4K HDMI pattern generator, analyser and cable tester, 18 Gbps, HDCP 2.2, EDID management, SCDC monitoring, 4K > 1080p down‑scaling

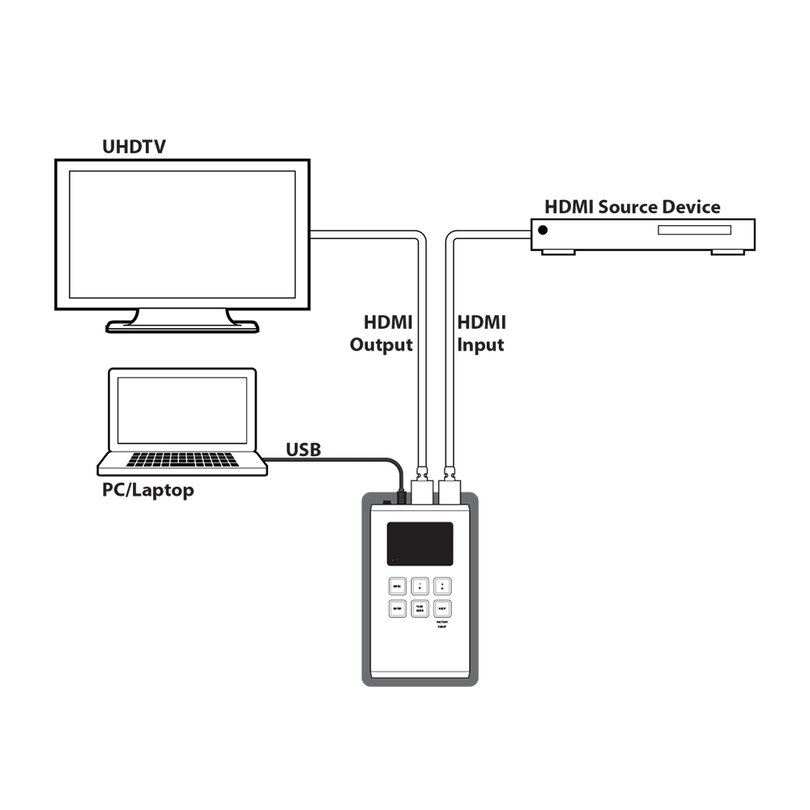

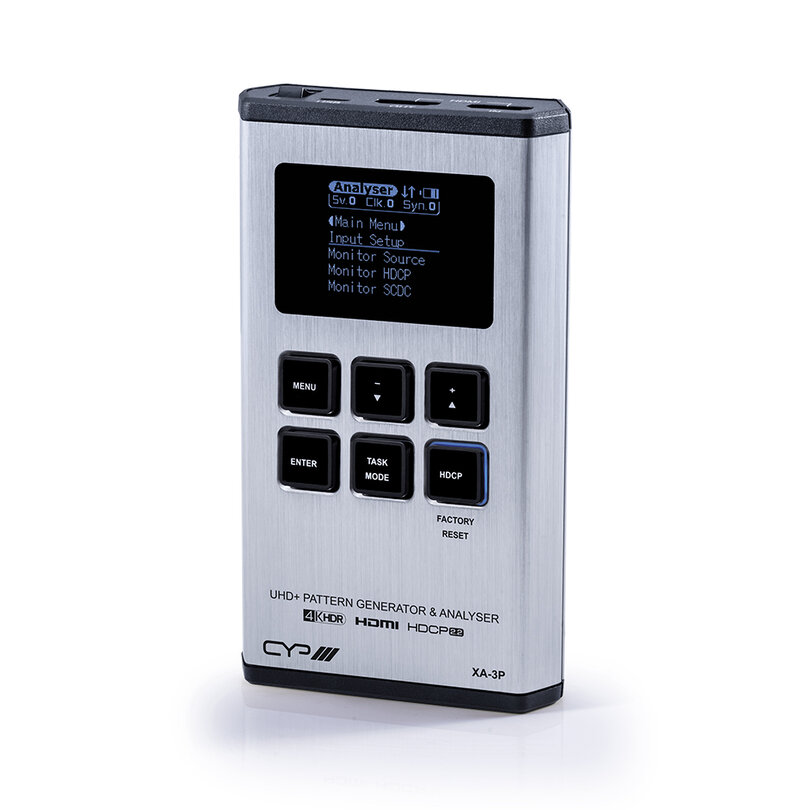

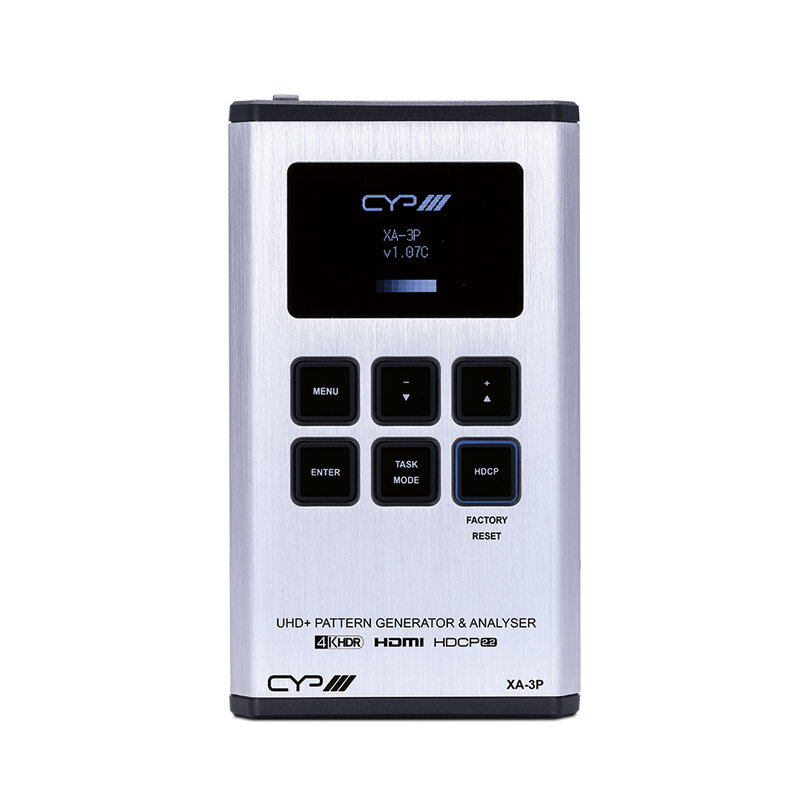

The XA-3P is the ideal partner for quickly verifying and diagnosing all elements of an HDMI signal path, including the source, cable, and display.

Testing the integrity of an HDMI cable is essential for any AV installer, especially with the increasing demands of 4K and HDR content. Cable Testing mode allows you to verify whether an HDMI cable can fully support signals up to 18 Gbps, with results displayed on the built-in LCD or an external monitor.

Compatible with HDMI 2.0a and HDCP 1.4/2.2, the device integrates numerous analysis functions: cable testing up to 18 Gbps, pattern generator with 23 resolutions and 11 selectable patterns, EDID management with presets and user slots, SCDC monitoring, and HDMI packet analysis. Analyzer mode also includes a scaler that allows downscaling from 4K UHD to 1080p. The front controls are simple to use, and the HDMI connections are easily accessible on the top of the unit.

The XA-3P is battery-powered for maximum portability in demanding installations; the battery can be recharged or powered via the USB port.

Ultimately, it's an indispensable tool for installers, technicians, and integrators who need to quickly verify HDMI signal quality and compatibility in the field.

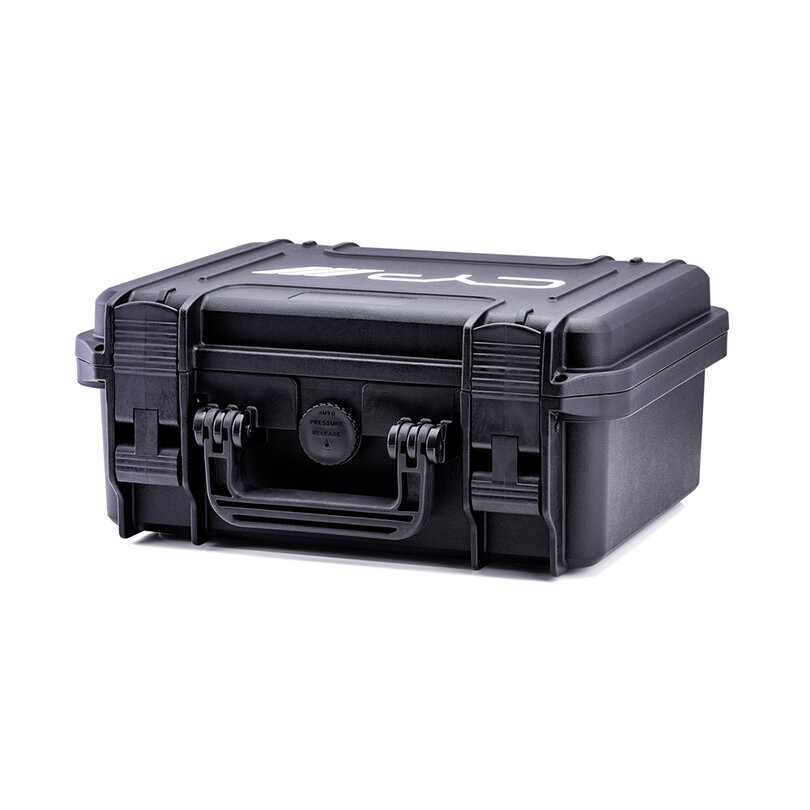

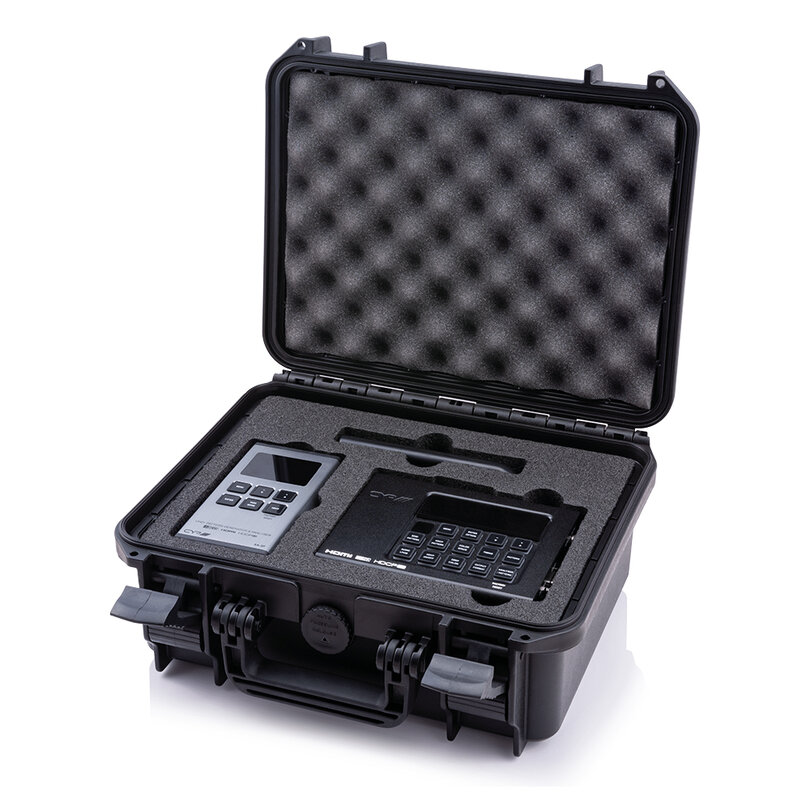

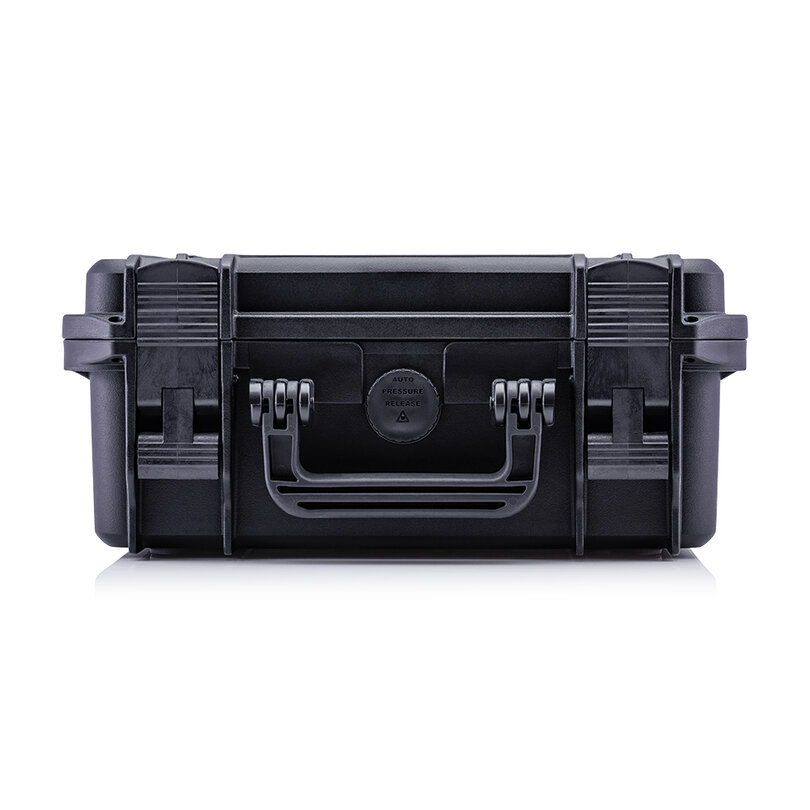

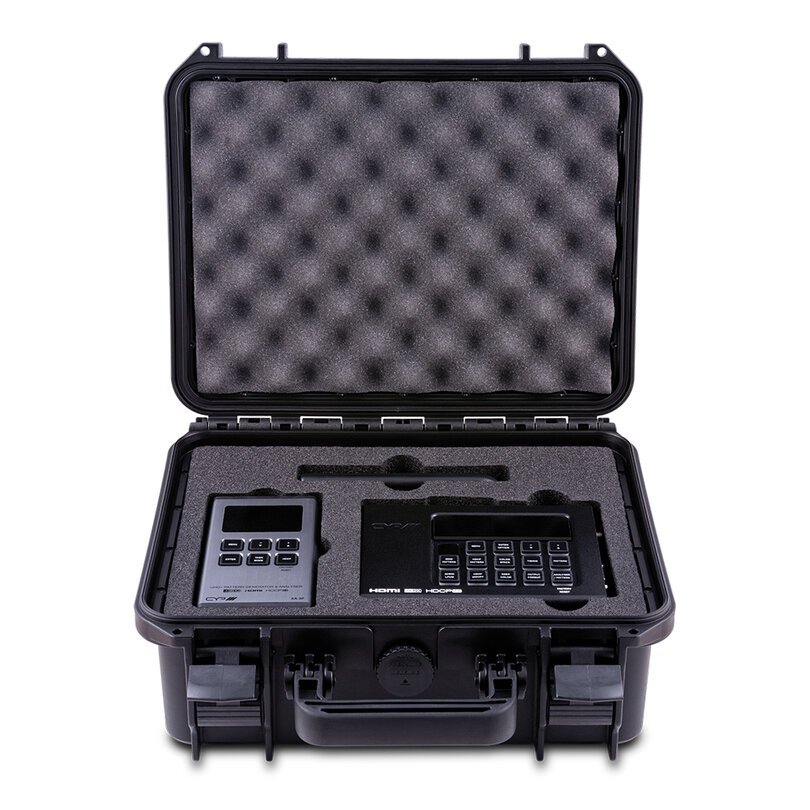

N.B.: XA-CASE sold separately.

Main features

• Supports HDMI I/O up to 18 Gbps (6G) with 4K UHD resolutions
• HDCP 1.4 and HDCP 2.2 compliant
• Resolutions up to 3840 × 2160 @ 60 Hz (YUV 4:4:4, 8-bit) and 4096 × 2160 @ 60 Hz (YUV 4:4:4, 8-bit)
• Supports video pass-through
• Built-in scaler for 4K > 1080p downscaling in Analyzer mode
• SCDC IN/OUT monitor
• HDMI packet analysis
• 23 selectable resolutions in test pattern mode
• 11 selectable video patterns
• HDMI 2.0 Cable Test function with 5V support and Hot Plug detection
• Audio generation up to 8CH LPCM and source audio signal analysis
• Management EDID with 10 presets and 10 user slots
• Battery or USB power supply
• LED display with real-time feedback
• Firmware update via USB

User benefits

• Instant HDMI cable integrity check up to 18 Gbps
• Complete HDMI chain analysis to quickly identify source or display issues
• Fully portable (battery powered)
• Reduced installation time with built-in patterns, resolutions, and tests
• Precise control of device behavior with advanced EDID management

Areas of use

• AV installations requiring HDMI signal testing and verification
• In-field diagnostics
• 4K HDR compatibility check in commercial and residential systems
• HDMI cable testing during pre-installation or maintenance
• Technical labs and QA departments for HDMI validation

Technical characteristics

• Inputs:

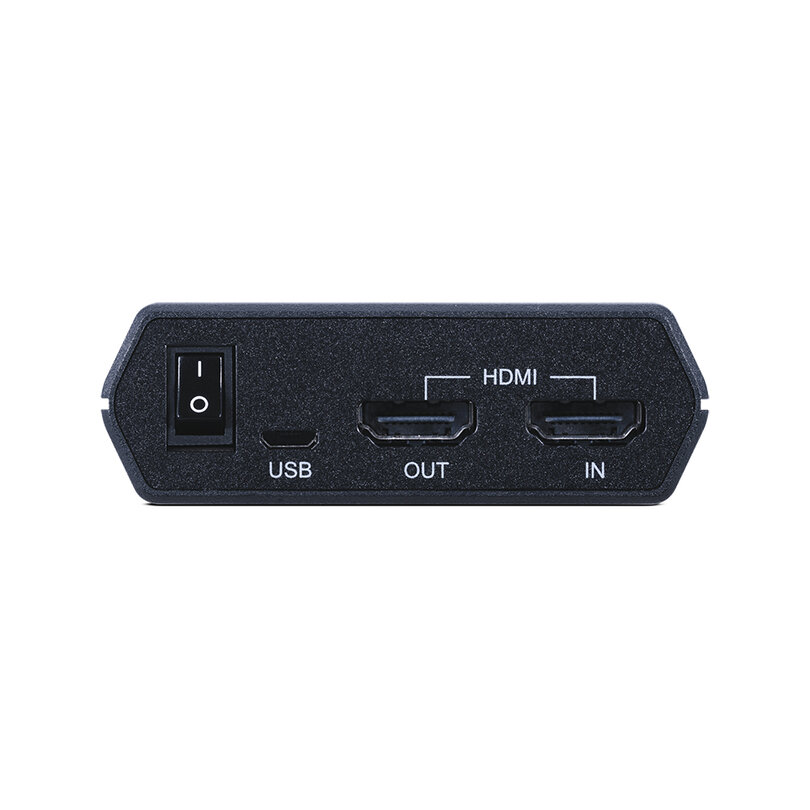

  • 1 × HDMI (1 × HDMI uncompressed AV and data)
  • 1 × USB Mini B (1 × USB power)
• Outputs:
  • 1 × HDMI (1 × HDMI uncompressed AV and data)
• PSU: USB powered, battery powered
• Dimensions (W × H × D): 8 × 12.4 × 2.4 cm
• Weight: 0.32 kg
